Installation Instructions
Bag Rack Kit for E-Merge
Part # 90021-17
These instructions provide the installer with an
overall procedure for mounting the Bag Rack Kit to
the Tomberlin E-Merge E2 or E4.
Affected Models:
Legend:
Caution indicates a hazardous situation which,
if not avoided, could result in minor or
moderate injury.
Parts Required:
Prior to assembly and mounting, please verify all
parts are present. If missing any components,
please contact us at 844-EMERGE2 (363-7432).
Parts Listing:
NOTICE:Please read the following instructions
carefully and completely before beginning. It is
important to have an understanding of the
overall instructions as each step is completed.

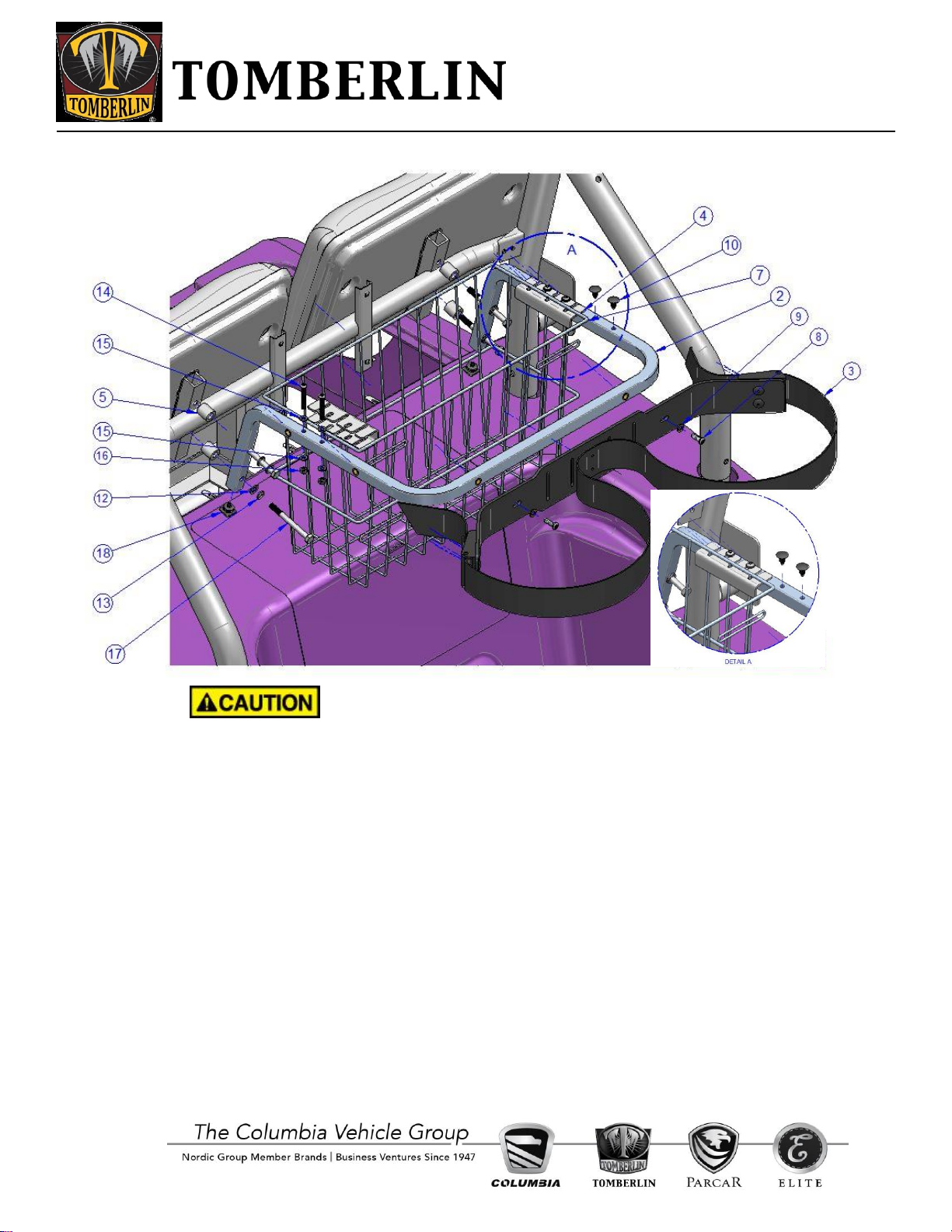

Assembly, Frame, Bag Rack
Assembly, Cradle, Bag Rack
Spacer, ¾”OD x .438” ID x .800”
Long
Washer, ¼”, SAE, Flat, Black
Fastener, PushPanel, ¼“ x 11/16”
x 5/8”
Instruction Sheet (This Document)
Washer, M8 x 16mm, Flat, SS
Washer, M8, Split Lock, SS
Screw, M6 –1.0 x 40mm, SS
Washer, M6 –12mm, Flat, SS
Nut, M6 –1.0 mm, Nylok, SS
Screw, M8 –1.25 x 80mm, SS
Item not shown in drawing
Tomberlin E-Merge E2 SE/LE/SS
Tomberlin E-Merge E4 LE
