Toa F-2322CU2 User manual
INSTRUCTION MANUAL
CEILING SPEAKER SYSTEMS F-2322CU2
F-2352CU2
F-2322CU2 F-2352CU2
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
2
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ............................................................................... 3
2. GENERAL DESCRIPTION ............................................................................. 4
3. FEATURES .......................................................................................................... 4
4. NOMENCLATURE AND DIMENSIONS ..................................................... 5
5. MOUNTING HARDWARE INSTALLATION ............................................... 6
6. WIRING
6.1. Wiring through Hard or Flexible Conduit ........................................................... 8
6.2. Wiring with Naked Cables ................................................................................. 9
7. CABLE CONNECTION TO INPUT CONNECTOR ................................. 10
8. SPEAKER INSTALLATION ........................................................................... 11
9. REMOVING THE SPEAKER FOR MAINTENANCE
9.1. Detaching the Front Grille ............................................................................... 13
9.2. Removing the Speaker ................................................................................... 13
10. REPAINTING THE SPEAKER FRONT GRILLE ..................................... 14
11. INPUT OVERLOAD PROTECTION FUNCTION .................................... 14
12. SAFETY AGENCY COMPLIANCE ............................................................. 15
13. SPECIFICATIONS ............................................................................................ 16
Accessories ............................................................................................................. 16
3
• Leave the installation to your TOA dealer because
the installation requires expert knowledge.
Improper installation may cause the unit to fall,
resulting in personal injury and/or property
damage.
• Install the unit in a location that can structurally
support the weight of the unit and its mounting
hardware. Doing otherwise may result in the unit
falling down and causing personal injury and/or
property damage.
• Do not use other methods than specified to mount
the unit. Extreme force is applied to the unit and
the unit could fall off, possibly resulting in personal
injuries.
• Attach the safety wire to the unit. If not attached,
the unit could fall off, resulting in personal injury.
• Tighten each screw securely. Ensure that the unit
has no loose joints after installation to prevent
accidents that could result in personal injury.
• Never hold the diffuser section as a handle to carry
the unit during installation. If the diffuser breaks off,
the unit could fall from an elevated position,
resulting in possible personal injury. (F-2352CU2
only)
• Use the specified mounting hardware in
combination. Doing otherwise may cause the unit
or component to fall off, resulting in personal injury.
• Should the following irregularity be found during
use, immediately stop operating the unit and
contact your nearest TOA dealer. Further attempt
to use under this condition may cause fire or
electric shock.
· If you detect smoke or a strange smell coming
from the unit
· If no tone sounds
• Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in fire or
electric shock.
• Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn can cause heat to
generate and result in a fire.
• Avoid touching the unit's sharp metal edge to
prevent injury.
CAUTION
1. SAFETY PRECAUTIONS
• Be sure to read the instructions in this section carefully before use.
• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
• We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.
WARNING
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
WARNING
CAUTION
4
2. GENERAL DESCRIPTION
The F-2322CU2 and F-2352CU2 are flush-mounted Ceiling Speaker Systems that offer wide frequency range
of high-quality sound output.
The F-2322CU2 employs a full-range speaker element, while the F-2352CU2 features a 2-way speaker
configuration.
Both speaker systems are designed to be mounted to a drop ceiling with use of the supplied tile bridge.
3. FEATURES
• Bass-reflex speaker system designed to provide a wide frequency range and high power handling capability.
• Wide-dispersion flush-mount ceiling speaker design employs unique acoustic construction to realize a wide
area of coverage. Uniform sound output levels are achievable not only directly under the speaker, but also
over a wide radius.
• Because the speaker is provided with both low- and high-impedance operating capability, it can be used in
many different applications. Front panel-mounted input selector switch permits easy verification and change
of current impedance settings.
• Easy installation. Can be quickly and accurately mounted to ceilings.
• Rotating front grille can be installed quickly and conveniently.
• Attractive exterior design specially created by an interior designer blends naturally with any architectural
space, enhancing the immediate area's sense of harmony.
5
4. NOMENCLATURE AND DIMENSIONS
Ceiling tile
Ceiling tile
ø230 (9 1/16)
12 (15/32)
209 (8 15/64)
Mounting hole: ø200 (7 7/8)
Mounting hole: ø200 (7 7/8)
ø195 (7 43/64)
Safety wire (accessory)
Length: Approx. 600 (23 5/8")
Front grille (accessory)
Front grille (accessory)
Max. 37 (1 29/64)
Max. 37 (1 29/64)
Max. 202 (7 61/64)
[Front]
[Ceiling mounting]
[Ceiling mounting]
[Side]
• F-2322CU2 Unit: mm (inches)
[Side] [Rear][Front]
ø230 (9 1/16)
41 (1 39/64)
238 (9 3/8)
ø195 (7 43/64)
Safety wire (accessory)
Length: Approx. 600 (23 5/8")
Max. 202 (7 61/64)
• F-2352CU2
Tile bridge
(accessory)
Tile bridge
(accessory)
Safety wire hook
Choke bracket Connector cover
[Rear]
Safety wire hook
Choke bracket Connector cover
6

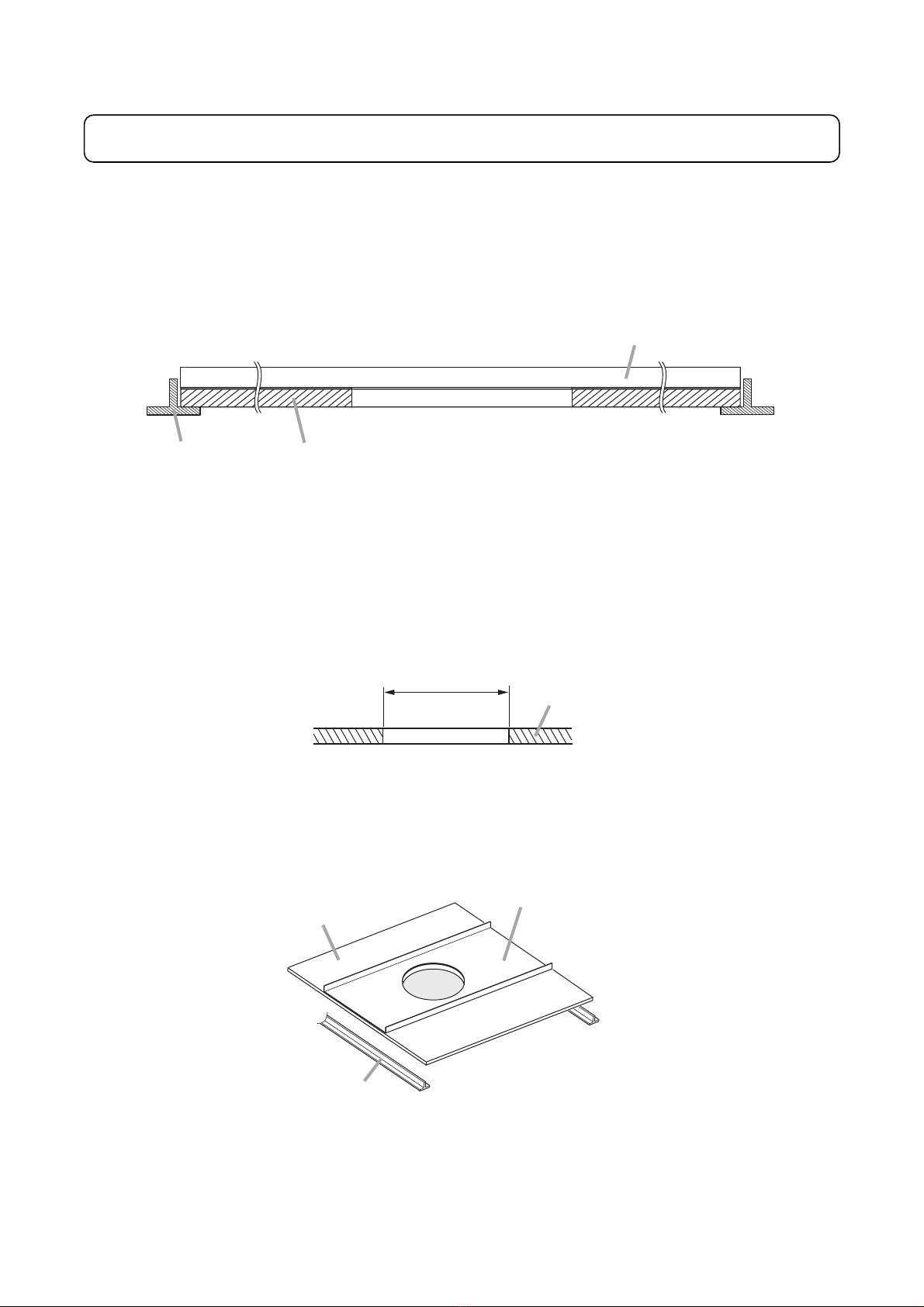

Before mounting the speaker, check the ceiling structure is of drop ceiling with 2-foot standard ceiling tiles.
5. MOUNTING HARDWARE INSTALLATION
[Installation view on Drop Ceilings]
Caution
Set the tile bridge so that both ends fit securely into the T-grids, even if the ceiling tile accidentally falls off.
Ceiling tileT-grid
Tile bridge (accessory)
Ceiling tile
ø200 ±5 mm (77/8±13/64")
[Installation procedures]
Step 1. Cut a ø200 mm (7 7/8") hole in the ceiling.
Use the supplied paper pattern to position and trace the hole.
Step 2. Place the supplied tile bridge on the 2-foot tile as shown below.
T-grid
2-foot tile
Tile bridge (accessory)
7

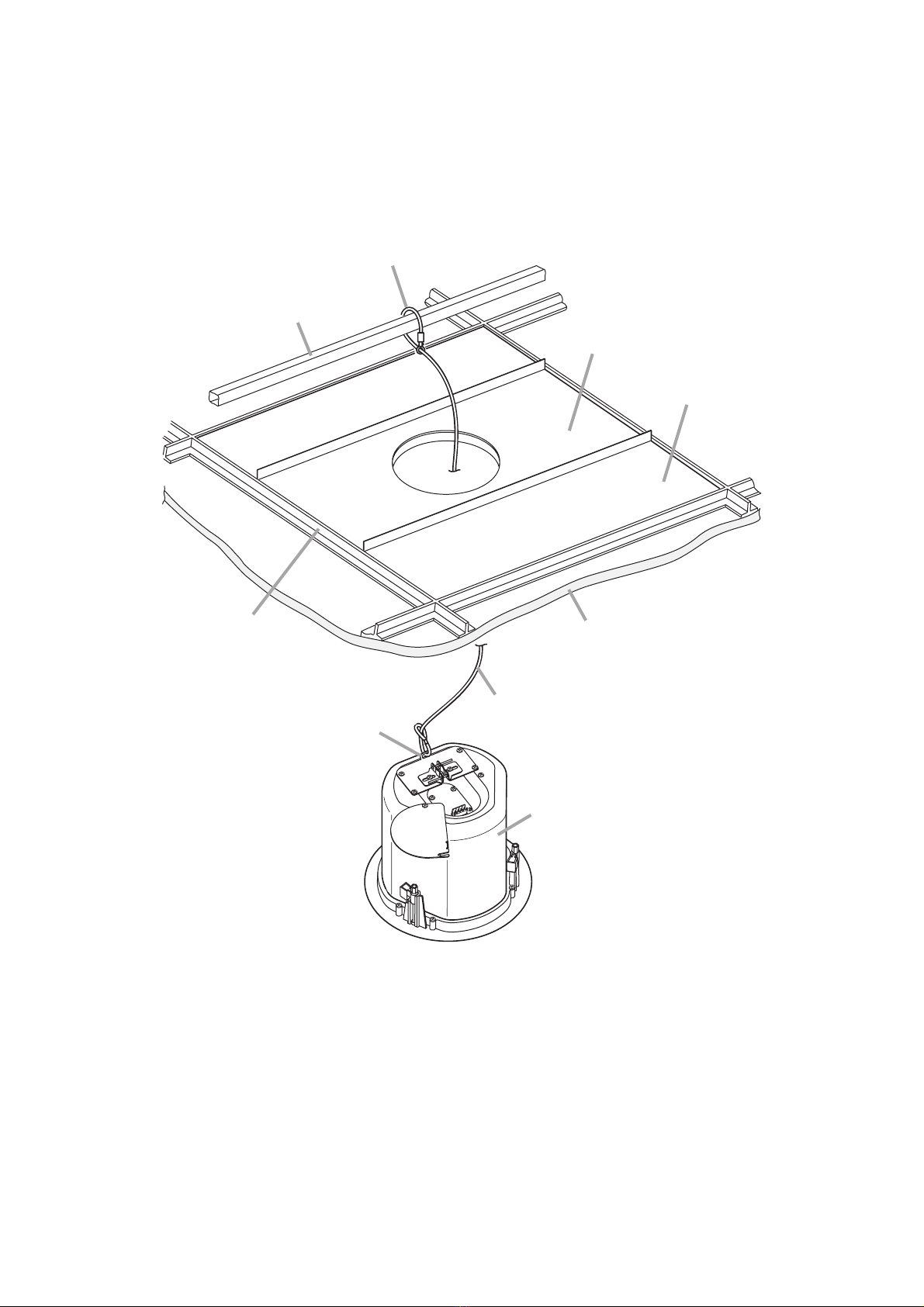

Step 3. Attach a safety wire to prevent the speaker from accidentally falling.
To attach, tie one end of the supplied safety wire around the speaker's safety wire hook, and tie its
snap ring around a secure C-channel bar or suspension pipe.
2-foot tile
Safety wire (accessory)
Secure C-channel bar or
suspension pipe
Speaker unit
Ceiling tile
Safety wire (accessory)
Safety wire hook
T-grid
Tile bridge (accessory)
8
Loosen the screw to allow the speaker cable to pass through.
Choke bracket
Flexible conduit
Retighten the screw to fix
the flexible conduit.
Note
Ensure that the flexible conduit is securely fixed.
Connector cover
After completing the speaker cable connection, turn the connector cover
in the direction indicated by the arrow, and fix the cover with 2 screws.
Plug the wired input connector into the speaker's socket,
then pull the speaker cable from the choke bracket.
(For wiring the input connector, refer to p. 10.)
Accommodating larger diameter conduit
The choke bracket accommodates up to 3/8-inch
(9.5 mm) flexible conduit. When larger diameter
conduit should be fit, use a suitable fitting
commercially available by replacing the existing
choke bracket with it. Detaching the choke
bracket by unscrewing it exposes a 7/8-inch (22
mm) hole. Install the alternate fitting there.
6. WIRING
6.1. Wiring through Hard or Flexible Conduit
Note
The choke bracket equipped with the speaker has not been evaluated by UL, for conduit connection and
UL514B Standard.
Flexible conduit of 3/8 or 1/2 inch trade size and the UL514B conduit fitting of the same trade size can also be
used. When using the UL514 listed conduit fitting, detach the equipped choke bracket and mount the conduit
fitting instead.
9
6.2. Wiring with Naked Cables
Loosen the screw to allow the speaker cable to pass through.
Choke bracket
Retighten the screw to fix
the speaker cable.
Note
Ensure that the speaker cable is securely fixed.
After completing the speaker cable connection, turn the connector cover
in the direction indicated by the arrow, and fix the cover with 2 screws.
Connector cover
Plug the wired input connector into the speaker's socket,
then pull the speaker cable from the choke bracket.
(For wiring the input connector, refer to p. 10.)
10

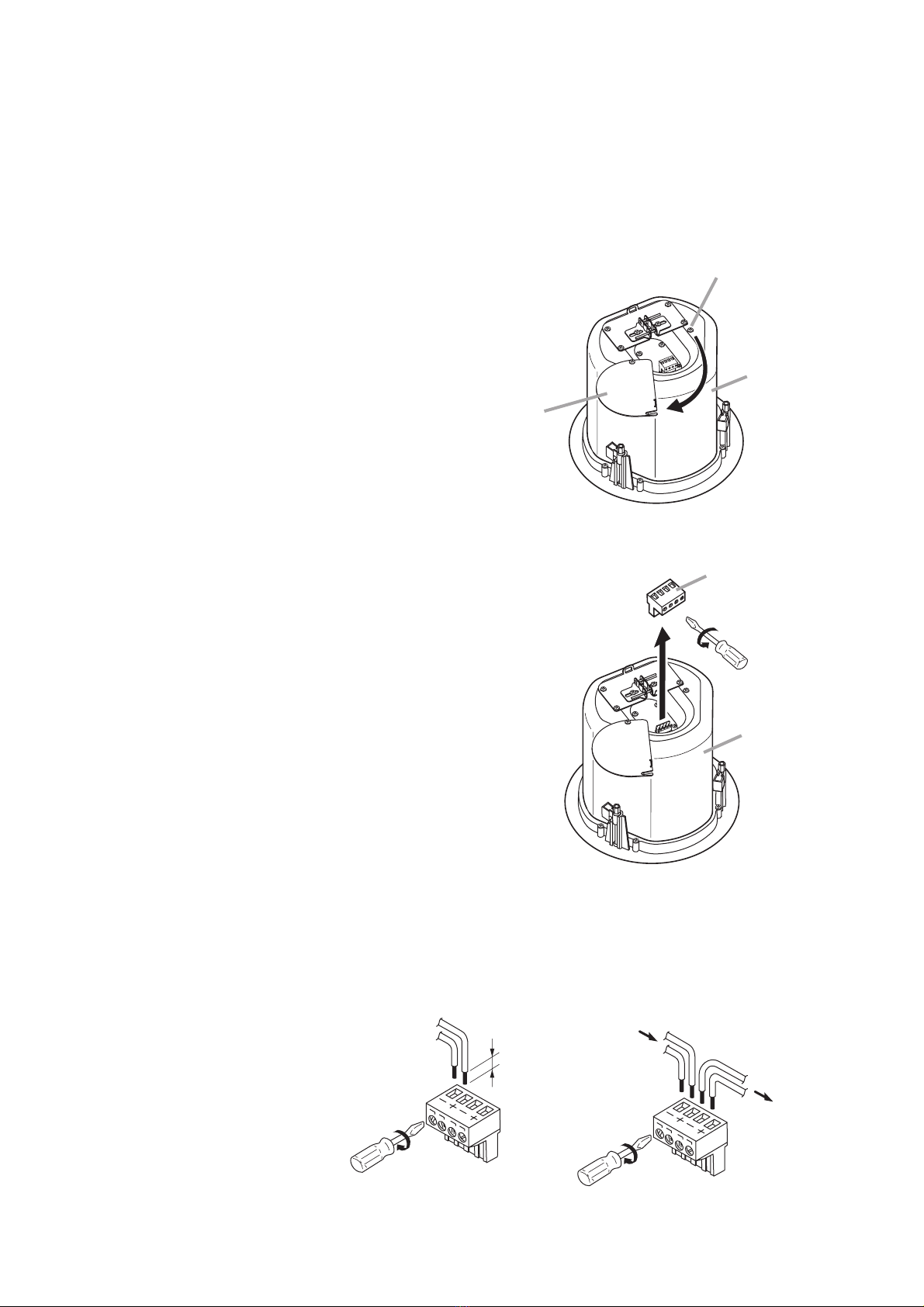

Step 2. Detach the removable input connector from the
speaker's socket, and loosen the screw of the
terminal to be used.
Speaker unit
Removable input
connector
Step 3. Insert the stripped cable end into the terminal and tighten the terminal screw with a screwdriver.
Note
If not making bridge connections,
be sure to tighten unused terminal
screws to avoid their vibration.
5 mm
(13/64")
From Amplifier
To the
next speaker
[If bridging][If not bridging]
7. CABLE CONNECTION TO INPUT CONNECTOR
Recommended cable types
• Solid copper wire: ø1.0 – ø1.6 mm
(equivalent to AWG 18 – 14)
• Stranded copper wire: 0.75 – 2.5 mm2
(equivalent to AWG 18 – 14)
Step 1. Loosen the 2 cover mounting screws, and rotate the
connector cover in the direction indicated by the
arrow in the figure at right.
Cover mounting screw
Connector cover
Speaker unit
