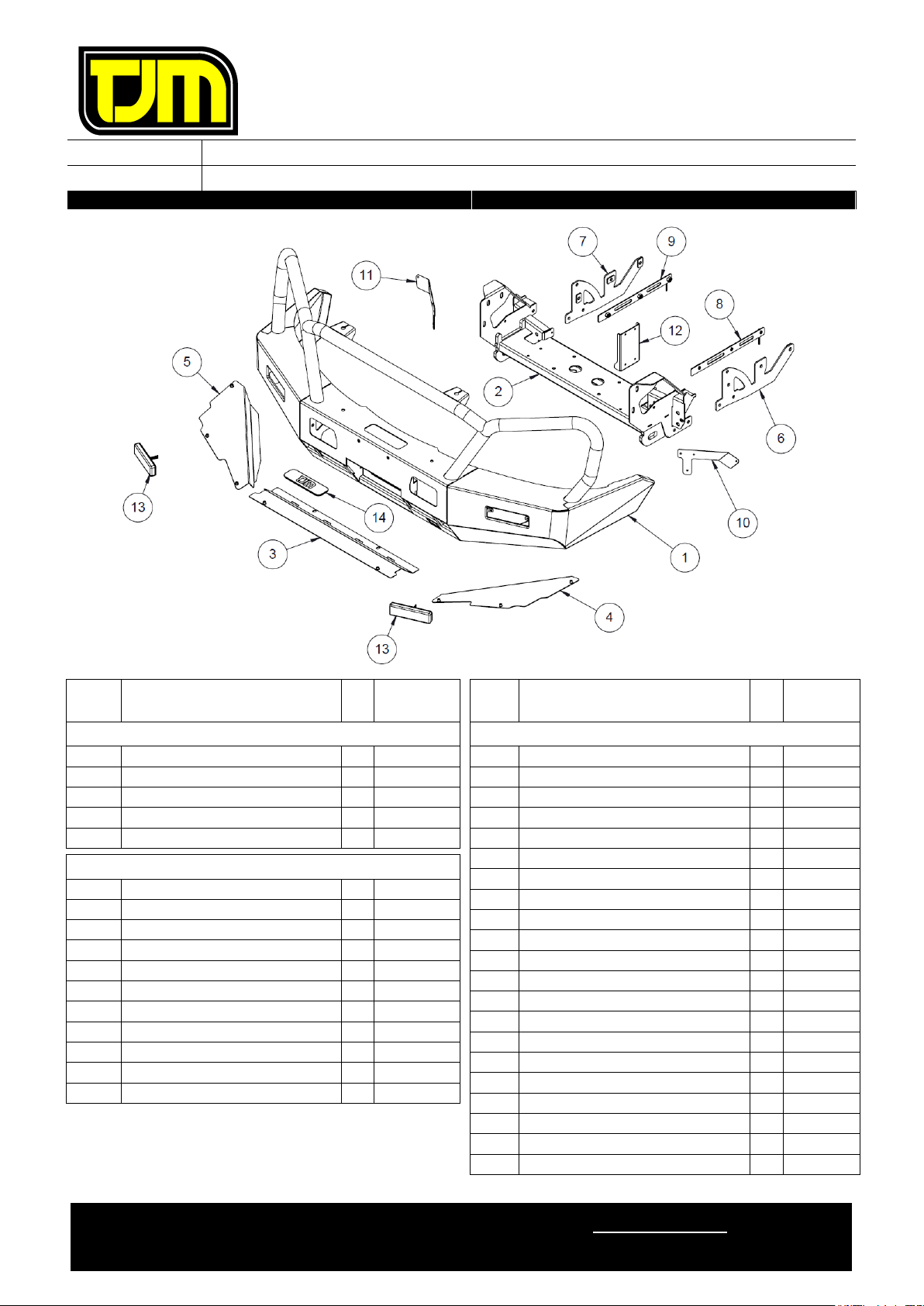

27. Remove the indicator & clearance lamps from
the light housings.
28. Connect the wiring looms inline to both lamps,
then replace them to their original locations.
29. Feed the wiring loom through below the
headlights.
30. Repeat the previous four steps for the
opposite side of the vehicle.
31. Check the operation of the indicator/park
lights, then un-plug them
32. Mark the lower air guide as shown, following
the below process:
32.1. Mark a horizontal line on the front face
10mm (approx.) above the rounded
mounting point.
32.2. Mark a vertical line on the side face ,
20mm from the flat front face.
32.3. Join the two lines previously created
with a horizontal line on the side face.
33. Following the previously marked trim lines,
trim the left hand lower air guide to shape.
34. De-burr the edges & clean the area/surface of
any swarf/debris.
35. Repeat the previous three steps for the
opposite side of the vehicle.
36. With the nuts towards the center of the
vehicle, insert the inner chassis nut-plate into
the large opening in the front of the chassis
rail, having the thin “leg” towards the rear of
the vehicle & touching the bottom inside face
of the chassis rail.
37. Aling the holes in the inner chassis nut-plate
with the holes in the chassis rail.
