Timago TGR-R RS 8811 User manual
1
INSTRUCTIONS FOR USE
Steel 4-wheeled rollator with elbow supports
Product code: TGR-R RS 8811
1. Characteristics
Foldable 4-wheeled rollator is made of powder coated steel frame. It is
equipped with brakes with locking mechanism, seat with removable
tray, and basket. The rollator possesses height adjustable handles,
elbow supports, and solid rubber wheels 8’’ in diameter.
The set includes:
•Frame with seat
•Two push handles with brakes
•Basket
•Tray
•Mounting lever – 2 pcs
•Locking lever – 4 pcs
Elements of the rollator:
a. push handle
b. brake
c. stopping handle
d. elbow support
e. connecting element
f. brake cable
g. mounting lever
h. locking lever
i. locking lever
j. lock of frame folding
k. transverse hinge
l. seat
2
m. basket
n. crutch holder
o. upper adjustment of brake
p. lower adjustment of brake
2. Application
The rollator is ancillary equipment and is designed for patients with
reduced mobility who need stable support and help while walking. It is
especially designed for patients who suffer from rheumatic changes,
limited mobility in radiocarpal and elbow joints, and for patients with
weakened grip strength. The rollator is also recommended to the
elderly as an aid in keeping balance, improving walking comfort and
ensuring safety from falling. The use of the rollator affects positively on
the return to activity of the people with locomotion and tilting to erect
position problems. It guarantees better stabilization, support and
security while walking.
3. Assembly
Folding and unfolding
•The rollator consists of 4 elements: frame, connecting element,
elbow support and handle with brake
•Firstly, fix the connecting element (e) into the mounting openings
of the frame and lock them with mounting lever.
•Secondly, fix the elbow support (d) and adjust the height by
tightening locking lever (h).
•Fix the push handles with brakes (a) into the mounting openings
under the elbow supports (d) and adjust the height by tightening
the locking lever (i).
•To unfold the rollator, press down the crossbar which is placed
under the seat so that the hinges (k) which are on the outer sides
of the rollator are completely unfolded.
•Hang the basket in the front part of the rollator, below the seat.
3
•Fix the tray on the seat so that the catches of the tray are in the
mounting openings.
•Remove plastic casing from wheels.
•To fold the rollator for transport, engage the brake by pulling the
handle towards you energetically. Press the lock of frame folding
on the right side of the frame and pull the crossbar upwards
simultaneously. The basket and tray can be dismantled.
Note! Be careful while folding the rollator due to the risk of smashing
fingers in hinges.
Brakes
•The design of hand brake allows
blocking it without the need to let go
the handle which significantly
improves the user's safety.
•In order to stop the rollator, pull the
brake handle towards you and the
push handle, and hold.
•While stop or using the seat, lock the
brake with stopping handle (red
handle) by pulling it towards you.
•To release the brake, push the stopping handle away in the
opposite direction.
Height adjustment of elbow support
•To adjust the height of elbow supports, unscrew the locking
levers which are located on the outer side of the frame, select
appropriate height and tighten the locking levers.
•To adjust the distance of the push handle, unscrew the mounting
lever which is located under the elbow support, select
appropriate distance and then, tighten the mounting lever.
Note! The handles must be set on the same level.
4
Adjustment of brakes
Adjustment of upper brake
•Unscrew the nut of brake cable, pull it up t to the appropriate
length and lock it by tightening the locking nut.
Adjustment of lower brake
•Loosen the mounting screw using open-end wrench, pull the black
brake cable to adjust the tension of the cable, and then, tighten
the mounting screw.
4. Technical data
Overall width
57 cm
Overall depth
65 cm
Seat dimensions
38 cm x 16 cm
Seat height from the ground
60 cm
Handles height adjustment
100-126.5 cm
Weight
14.75 kg
Maximum capacity
135 kg
Maximum capacity of the basket
12 kg
5. Notes
Timago International Group does not bear responsibility of improper
use of the rollator, failure to comply safety regulations and misuse.
6. Maintenance
•Clean the frame with damp cloth and dry thoroughly.
•Do not use strong polishing agents due to the damage of
protecting coatings.
•Clean the impurities from moving parts of the rollator regularly
(hinges, clamping screws, locks).
5
7. Storage and transport conditions
Device should not be exposed to direct sunlight, water or moisture.
8. Warranty information
All products distributed by our company are covered by a warranty, the
terms of which are described in the warranty card available on our
website. Please contact the retailer from whom you purchased the
product. Please, keep in mind that for warranty purposes, the proof of
purchase (receipt or invoice) should be retained.

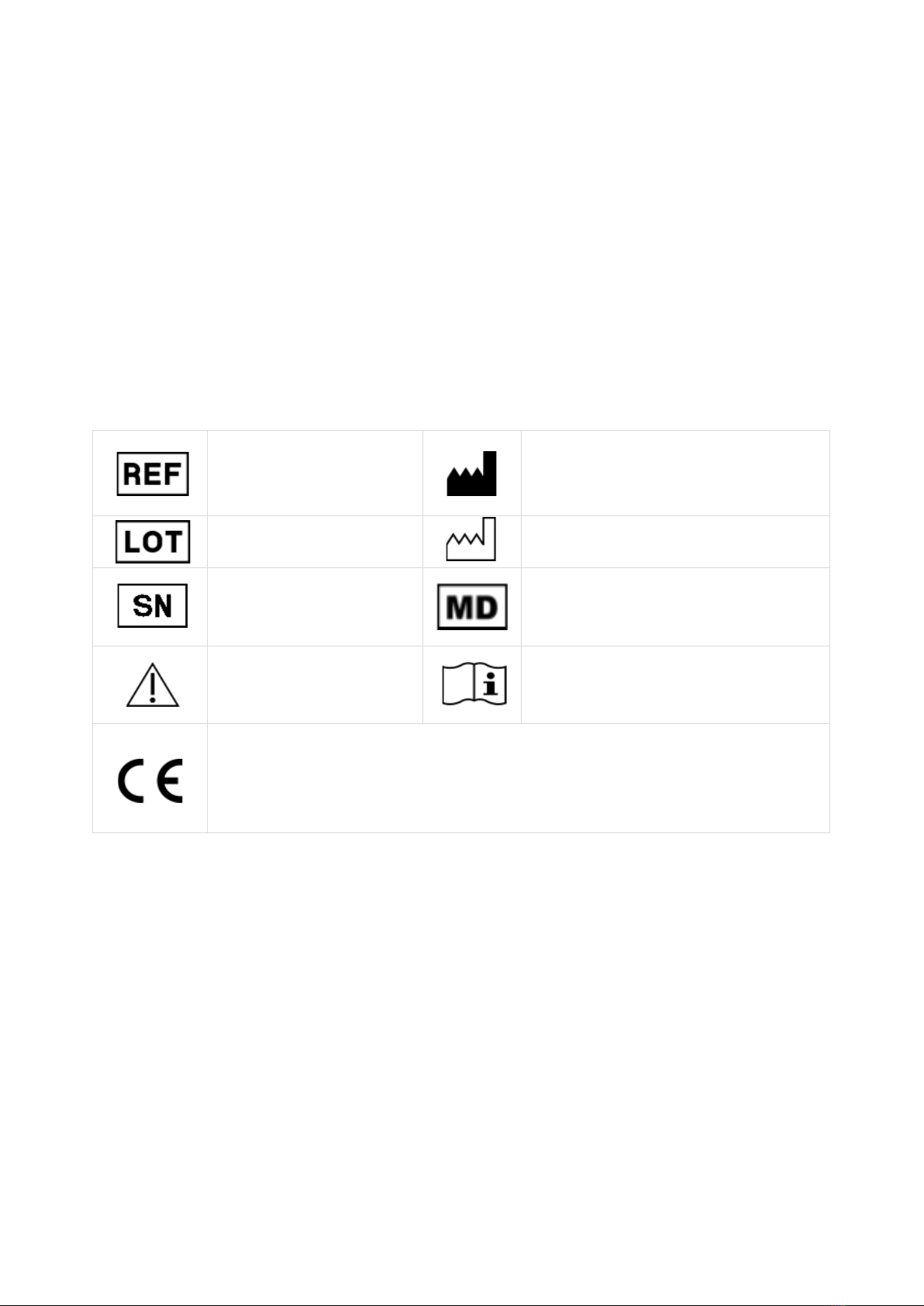

9. Labels
Reference
number
Manufacturer
LOT number
Manufacture date
Serial number
Medical device
Note
Please read the
instruction
The manufacturer checked for compliance with
essential medical devices requirements.
Our complete line of products is available from our distributors.
Learn more at: www.timago.com. Thank you for choosing Timago!
6
Timago International Group
Spółka z o.o. i Spółka – Spółka komandytowa
ul. Karpacka 24/12
43-316 Bielsko-Biała, Polska
T.: +48 33 499 50 00
F.: +48 33 499 50 11
E.: info@timago.com
Rev. II, date 20.05.2021
