Thule XADAPT11 User manual
506-7014_01
XADAPT11
part description part number qty.
Aadapter plate / 8527486001 2
BM6 x 12 tamperproof button head screw
853526903 4
Cspring locking washer / 956061259 4
DM6 sliding square nut 20 x 20 / 8537557 4
EM6 X 40 tamperproof bolt, 690 SP / 853526905 8
FM6 locking nut / 938060054 8
Gflat washer 6mm I.D. / 951061254 8
Htamperproof wrench T-27 / 8535270 1
PARTS INCLUDED
A H
B C D E F G
1•To attach adapter plate to bottom of Hull-a-Port base, first turn Hull-a-Port upside
down and align plate shape with bottom of Hull-a-Port base. The longer (pointier)
end should point toward the back handle and hubs.
•Hex nut insets should be visible.
•Place an M6 locking nut into inset on one of the four corners on the bottom of
the plate.
`
(Attach Hull-a-Port to AeroBlade)
506-7014_01
2

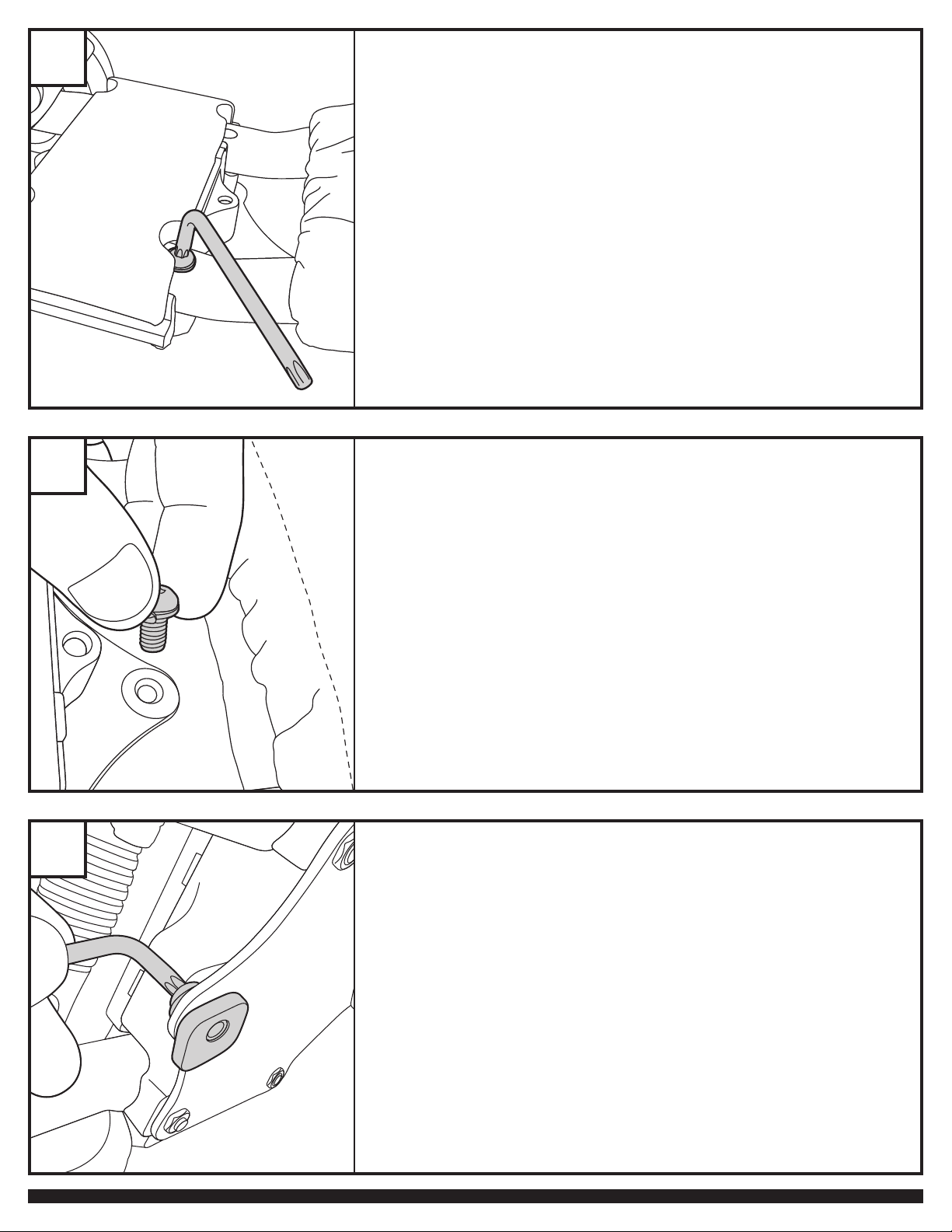

• Place flat washer on M6 x 40 tamperproof bolt.
• Insert bolt from top side through Hull-a-Port tube and plate into M6 locking nut.
• Tighten firmly using tamperproof wrench.
• Repeat these steps for the other three attachment points.
`
3
• Place spring locking washer onto M6 x 12 tamperproof button head screw.
• Insert button head screw into hole at one end of the plate.
`
4
• Thread sliding square nut onto button head screw on bottom side of plate.
• Do NOT tighten firmly yet.
`
506-7014_01
5
`
• To attach Hull-a-Port onto AeroBlade bar, swing open the end cap door.
• Cut and remove section of black rubber wind diuser strip where Hull-a-Port will be.
• Slide square nuts (attached to bottom of Hull-a-Port and plate) into T-track on AeroBlade bar.
• Refill diuser strip into gaps in AeroBlade track slot.
• Swing end cap door closed.
6
• Firmly tighten tamperproof button head screws using provided tamperproof wrench.
`NOTE: This may require sliding Hull-a-Port nylon pad forward on tubing slightly in
order to reach button head screw.
