Kit 1278

GB Fitting instructions

DMontageanleitung

FInstructions de montage

NL Montage-instructies

I

Istruzioni per il montaggio

EInstrucciones de montaje

PT

Instruçőes de Montagem

SMonteringsanvisning

FIN Asennusohje

EST

Paigaldusjuhend

LAT

Stiprināšanas instrukcija

LIT

Pritvirtinimo instrukcijos

PL Instrukcja montażu

RU

Инструкции по установке

CZ Návod na montáž

SK

Návod na montáž

SLO

Navodila za pritrjevanje

HR

Uputa za sastavljanje

HU

A felszerelés módja

GR

Οδηγες συναρμολγησης

TR

Montaj talimatlar

¤Óá¹Ð¹Ó¡ÒÃµÔ´µÑé§

FORD Fiesta, 5-dr Hatchback, 02-05, 06–

All manuals and user guides at all-guides.com

2

368

x2

x 4

x 4

x 1

1

x4

x2

x2

x4

A

B

501-1278-02

FR

RR

RL

FL x 1

x 2

x 2

x 2

x 2

29

MAX

PRODUCTNO.:1200PRODUCTNO.:1200

PRODUCTWEIGHTPRODUCTWEIGHT:7KG:7KG

15

43

All manuals and user guides at all-guides.com

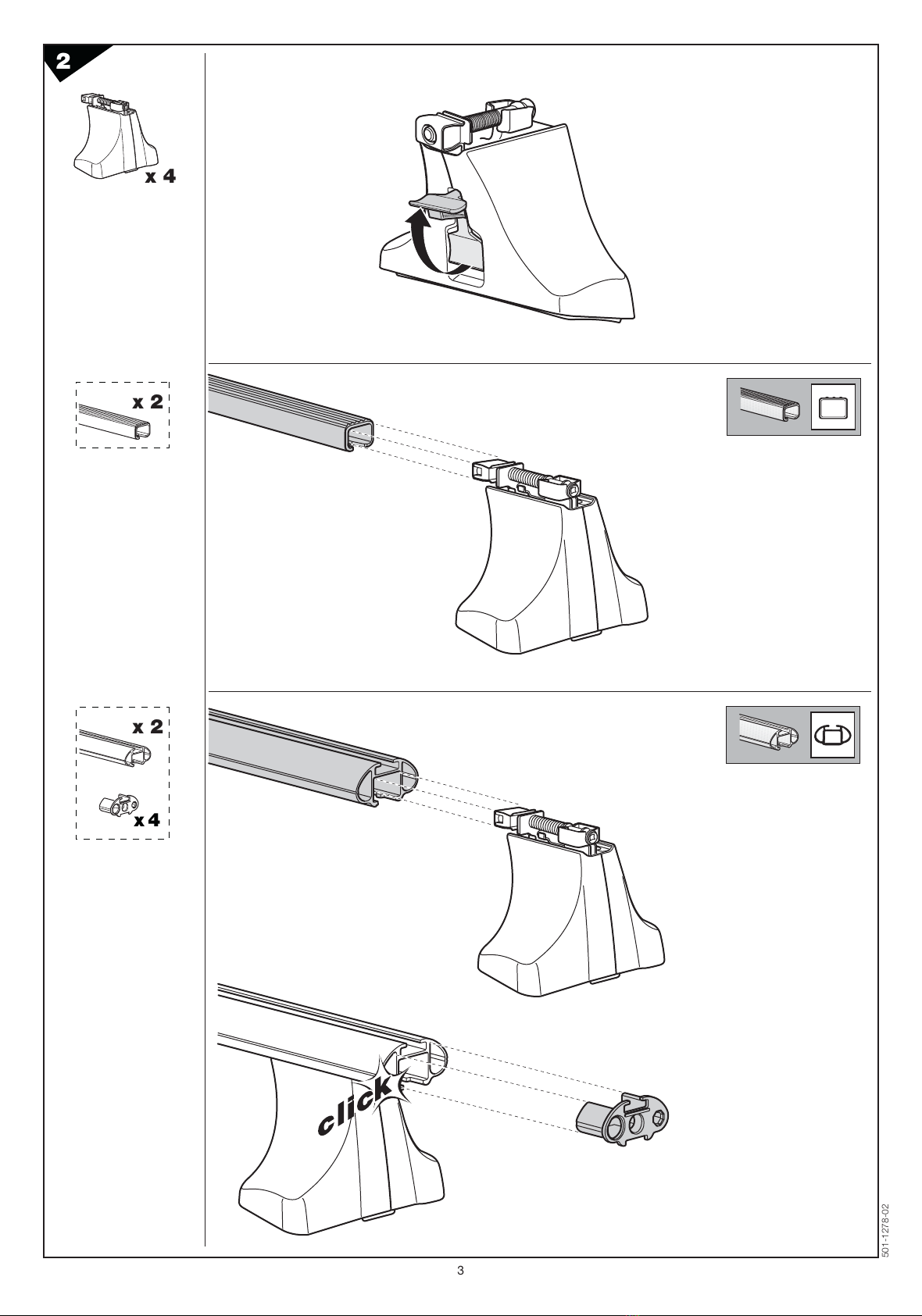

3

501-1278-02

2

x 4

x 2

x 2

x4

All manuals and user guides at all-guides.com

4

x4

x4

4

x2

3X

1.

2.

Y

1.

2.

501-1278-02

FORD Fiesta, 5-dr Hatchback, 02-05, 06– 30

X

FORD Fiesta, 5-dr Hatchback, 02-05, 06– 32.5

Y

All manuals and user guides at all-guides.com

5

501-1278-02

5

FR

RR

RL

FL

FR

FL

RL

FR

RR

368

29

368

29

15

43

15

43

FORD Fiesta, 5-dr Hatchback, 02-05, 06–

All manuals and user guides at all-guides.com

6

6

7

501-1278-02

4 Nm

GB Tighten alternately

DDie Schrauben abwechselnd anziehen

FSerrer alternativement chaque côté

NL Afwisselend aan de linker- en de

rechterkant aandraaien

ISerrare alternativamente

EAlternare il serraggio delle viti

PT

Aperte alternadamente

SDra åt växelvis

FIN Kierrä vuorotellen

EST Pinguldage vaheldumisi

LAT

Pievelciet pamīšus

LIT

Užsukinėkite pakaitomis

PL Śruby dokręcaj naprzemiennie

RU Затягивайте попеременно

CZ Pokrętła bagażnika dokręcaj dokręcaj

naprzemiennie.

SK

Doťahujte striedavo

SLO

Privijajte izmenično.

HR

Naizmjenično zategnite

HU Egymástól függetlenül szorítandó

GR

Σφγγετε εναλξ

TR

Dönüşümlü sıkın

260 mm 700 mm

All manuals and user guides at all-guides.com

7

GB

Removal

D

Demontieren

F

Démontage

NL

Demontage

I

Rimozione

E

Desmontaje

PT

Remoção

S

Demontering

FIN

Irrotus

EST

Eemaldamine

LAT

Noņemšana

LIT

Nuėmimas

PL

Wymontowywanie

RU Снятие

CZ

Odmontování

SK

Demontáž

SLO Odstranjevanje

HR

Uklanjanje

HU Leszerelés

GR

Αφαρεση

TR

Sökme

1.

2.

1.

2.

¡ÒÃ¶Í´

501-1278-02

26

27

28

29

30

31

27

28

29

30

31

1.

2.

3.

4.

Fit Tips!

x 4

1.

2.

ONE

KEY

SYSTEM

1.

2.

3.

All manuals and user guides at all-guides.com

8

501-1278-02
