Thrustmaster RUN'N'DRIVE WIRELESS 3-IN-1 User manual

CouvQI_RunNdrive3in15075295.indd1 1 13/06/07 12:19:42

1/14

User Manual

TECHNICAL FEATURES

1. 2 independent vibrating motors

(for PlayStation® 2)

2. 2 progressive analog mini-sticks

3. D-Pad

. Progressive optical wheel

5. 2 progressive triggers

6. HOME LED button for Playstation®3

and MODE for PC

7. MAPPING LED button (for programming

and indicating connection status)

8. PRESET LED button

(to select programming)

9. Action buttons

10. PC and PlayStation® 3 USB connector

11. “PC” or “PS3” USB selector

12. CONNECT LED button on receiver

13. PlayStation® 2 “Gameport” connector

1 . Battery compartment

15. POWER ON/OFF switch

16. MOTORS ON/OFF switch

2/14

TABLE OF SUPPORTED MODES

Platform MODE Color of HOME button

( )

PLAYSTATION®

“PS1” OFF

PLAYSTATION® 2 “PS2” RED

PLAYSTATION® 3 “PS3” RED

“ AXES” GREEN

PC “6 AXES” RED

INSTALLING BATTERIES

Insert 2 LR03 / AAA type batteries in the battery compartment situated on the back of the gamepad (14).

OVERVIEW

•POWER ON/OFF switch (15)

- OFF position = the gamepad is off (and doesn’t use up batteries).

- ON position = the gamepad is on.

•MOTORS ON/OFF switch (1 )

- OFF position = vibration mode is disabled (uses less battery power).

- ON position = vibration mode is enabled (uses more battery power).

•“PC / PS3” USB selector (11)

Must always be set to the correct position before connecting your receiver’s USB connector.

•MAPPING (7) and CONNECT (12) blue LEDs

- Both LEDs are on = connection established between gamepad and receiver.

- Both LEDs flash quickly = no connection between gamepad and receiver.

- The MAPPING LED is off = the gamepad is in standby mode or powered off.

- The MAPPING LED flashes slowly & continuously = please change batteries.

THE CONNECTION BETWEEN THE GAMEPAD AND RECEIVER

IS ESTABLISHED AUTOMATICALLY

To force the connection in case of error: press the CONNECT button on the receiver

and simultaneously press the L2 + R2 + MAPPING buttons on your gamepad.

•STANDBY MODE

The gamepad switches off automatically:

- After 5 minutes of inactivity

- After 5 seconds in the event of error or loss of connection.

To wake up your gamepad: press START or use the POWER ON/OFF switch (15).

3/14

PLAYSTATION® 3

INSTALLATION ON PLAYSTATION® 3

1. Set your receiver’s USB selector to the “PS3” position.

2. Connect the USB connector to USB port #1 on the console.

3. Switch on your console.

4. Switch on your gamepad using the POWER ON/OFF switch (15).

5. Once a connection has been established: start up your game.

You are now ready to play!

PLAYSTATION® 3 MODE

“AUTOMATIC PRESET” CONFIGURATION - PLAYSTATION® 3

PS3 mode Red HOME button

Here:

•“Optical wheel” associated with “Left/Right”

direction on left mini-stick

•“Right trigger” associated with progressive

“R2” button

•“Left trigger” associated with progressive “L2”

button

USING THE “HOME” BUTTON ( )

Your gamepad’s “HOME” button allows you to exit games, access menus and directly switch off your

PlayStation®3 system.

IMPORTANT NOTES FOR PLAYSTATION® 3

- The USB selector on your receiver (11) must always be set to “PS3” before connecting the receiver.

- In “1 Player” mode: If your official gamepad is powered on, you must switch it to “gamepad port 2” in order

for your “Run’N’ Drive” gamepad to be functional.

- On PlayStation® 3, the “Run’N’ Drive” gamepad is only compatible with PlayStation® 3 games (and will

not work with PlayStation® 2 games) and does not feature a motion sensor.

4/14

PLAYSTATION® 2

INSTALLATION ON PLAYSTATION® 2

1. Connect the receiver’s PS2 Gameport connector (13) to port #1 on the console.

2. Switch on your console.

3. Switch on your gamepad using the POWER ON/OFF switch (15).

4. Once a connection has been established: start up your game.

You are now ready to play!

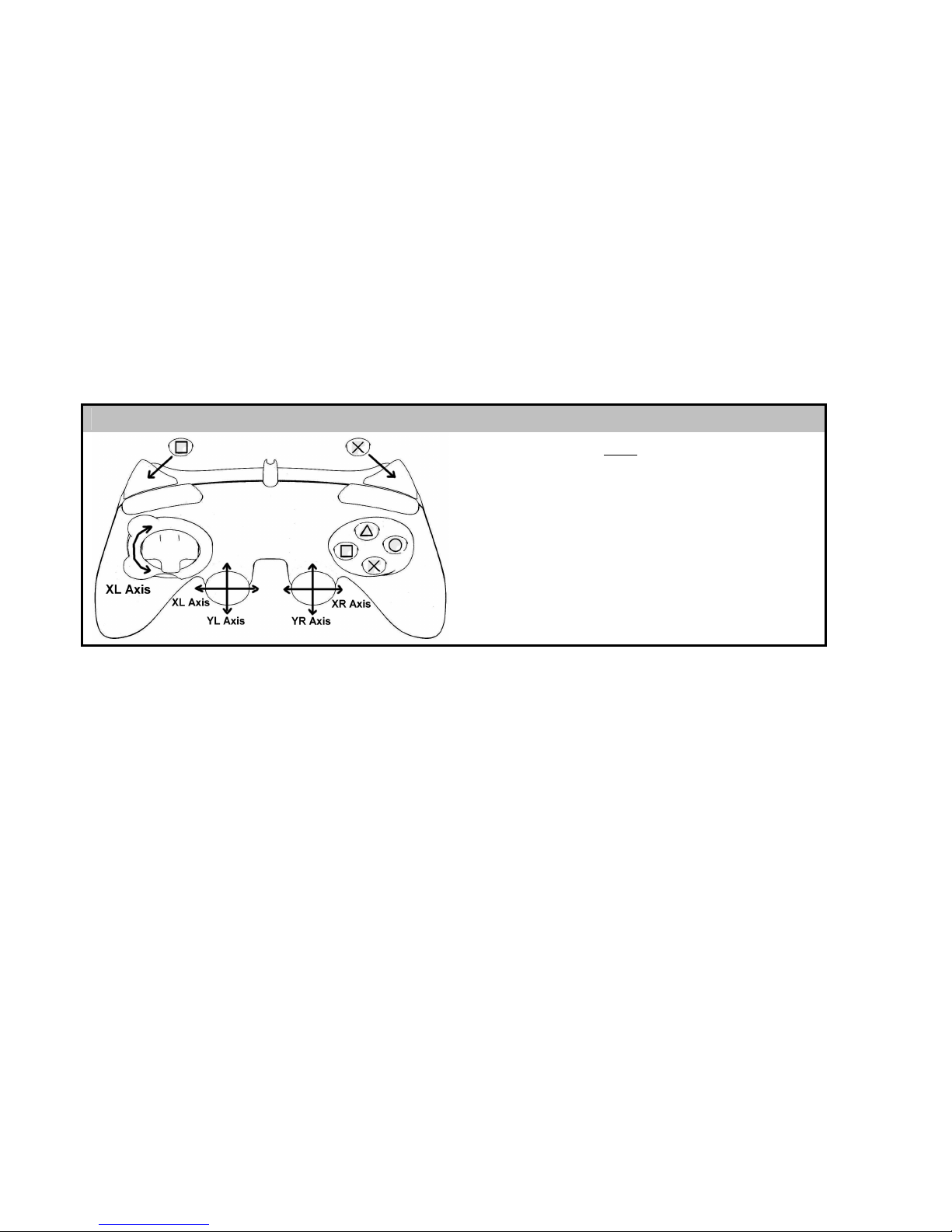

PLAYSTATION® 2 MODE

“AUTOMATIC PRESET” CONFIGURATION - PLAYSTATION® 2

PS2 mode Red HOME button

Here:

•“Optical wheel” associated with

“Left/Right” direction on left mini-stick

•“Right trigger” associated with progressive

“Cross” button

•“Left trigger” associated with progressive

“Square” button

IMPORTANT NOTE FOR PLAYSTATION® 2

Never connect the USB connector (10) to your PlayStation® 2 (to avoid the risk of damaging your gamepad or

your console).

5/14

INSTALLATION ON PC

1. Set the USB selector on the receiver (11) to the “PC” position.

2. Connect the receiver’s USB connector to one of your computer’s USB ports. Windows® XP or Vista will

automatically detect the new device.

3. Switch on your gamepad using the POWER ON/OFF switch (15).

4. Click Start/Settings/Control Panel and then double-click Game Controllers.

The Game Controllers dialog box displays the gamepad’s name with OK status.

5. In the Control Panel, click Properties to test and view the buttons, D-pad, mini-sticks, triggers and

optical wheel.

You are now ready to play!

IMPORTANT NOTES FOR PC

- The USB selector on your receiver (11) must always be set to “PC” before connecting the receiver.

- “Advanced Programming Software” for PC is also available for download on our website at the following

address:

http://ts.thrustmaster.com/

SELECTING “AXES” ON PC

•Selecting axes via “Software”:

After installing the “Advanced Programming Software”, go to page 1 of the Control Panel, click the

number of axes you wish to use and then click OK.

•Selecting axes via “Hardware”:

Press the HOME button ( ) to select the number of active axes.

6/14

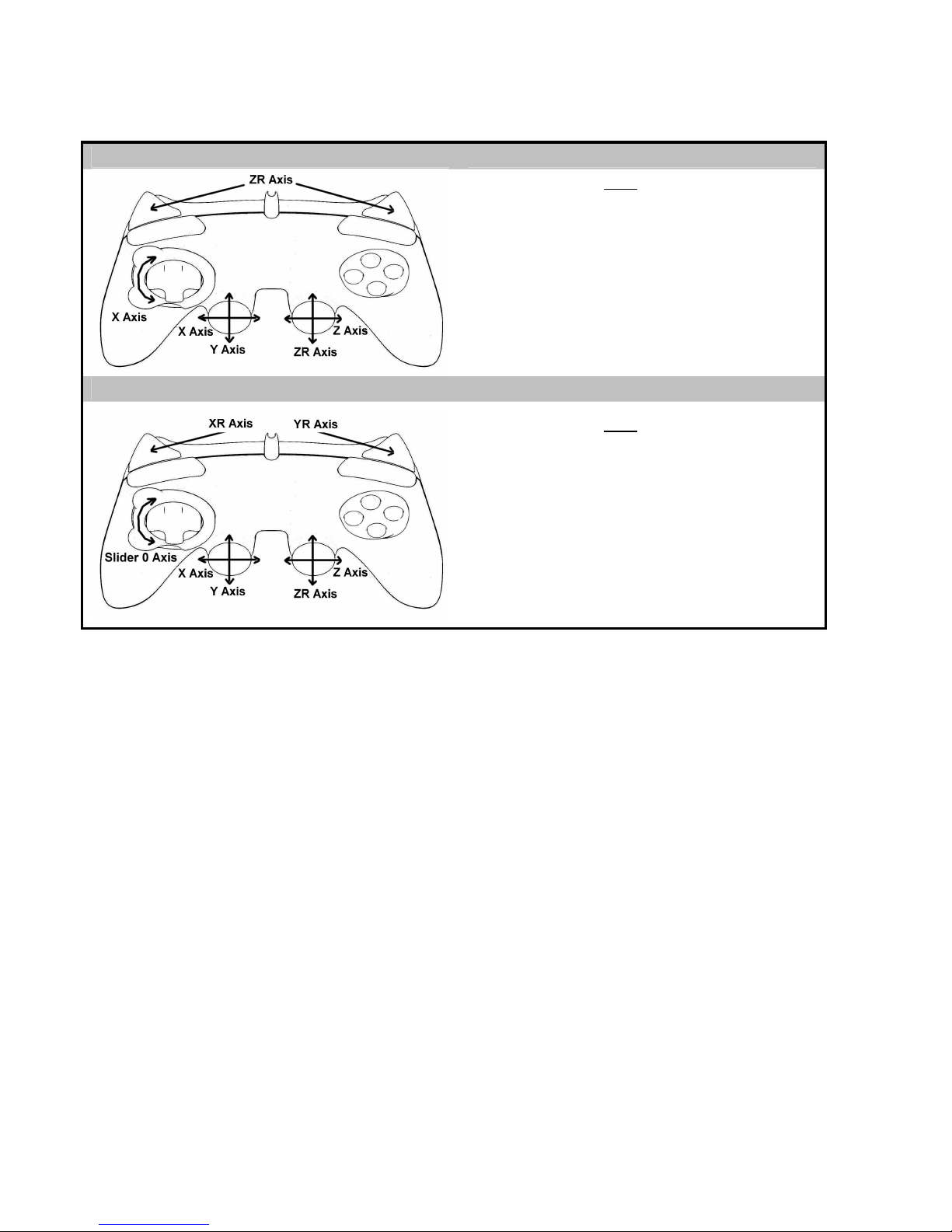

2 “AXES” MODES AVAILABLE ON PC

“AUTOMATIC PRESET” CONFIGURATION - PC

“4 AXES” mode Green HOME button

Here:

•“Optical wheel” associated with “Left/Right”

direction on left mini-stick

•“Right trigger” associated with “Up”

direction on right mini-stick

•“Left trigger” associated with “Down”

direction on right mini-stick

“7 AXES” mode Red HOME button

Here:

•“Optical wheel”

is now independent

•“Right trigger”

is now independent

•“Left trigger”

is now independent

To find out all of the possibilities offered on PC,

try them out in the Windows “Game Controllers” section

(once you have installed the “Advanced Programming Software”)

7/14

ADVANCED FUNCTIONS

ADJUSTING THE OPTICAL WHEEL’S SENSITIVITY

The optical wheel (4) has 2 sensitivity modes:

- Normal sensitivity (the default mode)

- High sensitivity (must be set)

•Setting “High Sensitivity” mode:

Steps Action HOME button

1 Raise and hold the “UP” direction on the optical wheel

2 Press and release the MAPPING button (7) Flashes continuously

Your optical wheel is now more sensitive

(Procedure must be carried out each time the gamepad restarts or is disconnected)

•Returning to “Normal Sensitivity” mode:

Steps Action HOME button

1 Lower and hold the “DOWN” direction on the optical wheel

2 Press and release the MAPPING button (7) Does not flash

Your optical wheel has now returned to Normal Sensitivity (the default mode)

2 PROGRAMMING MODES

The PRESET button and LED (8) allows you to view the type of programming selected:

AUTOMATIC (preprogrammed) or MANUAL (programmed by yourself). A single press of this button

allows you (even during the course of a game) to switch from one programming mode to the other.

•“AUTOMATIC PRESET” (PRESET button OFF)

This represents the default programming: the functions of the optical wheel and the triggers are

preprogrammed, as are the positions of the buttons and the directions of the mini-sticks and of the D-Pad.

PLEASE REFER TO THE “AUTOMATIC PRESET” CONFIGURATION DIAGRAMS

•“MANUAL PRESET” (PRESET button GREEN)

This represents your own personal programming:

- The buttons, directions of the mini-sticks and of the D-Pad can either be

* programmed on the optical wheel and on the triggers,

* or switched between themselves.

- You can modify the programming to your liking and whenever you wish.

- The programming is automatically saved inside your gamepad (even when disconnected).

- When your “MANUAL PRESET” is clear, it is identical to the “AUTOMATIC PRESET”.

8/14

PROGRAMMING THE OPTICAL WHEEL AND TRIGGERS

The 2 directions of the optical wheel and the 2 progressive triggers can be programmed using the

MAPPING button (7).

•Examples of possible applications:

Programming a button, direction of a mini-stick or of the D-Pad:

- onto the “up” or “down” direction of the optical wheel

- onto the “right trigger” or “left trigger”

•Programming procedure on optical wheel and triggers:

Steps Action PRESET button

color

1 Enable “MANUAL PRESET” (8) by pressing the button. Lit up green

2 Press and release the MAPPING button (7). Lit up red

3 Press and release the button or direction to program. Flashes red

4 Raise or lower the direction on the optical wheel

or press the trigger onto which you wish to place your function. Lit up green

Your “MANUAL PRESET” is now enabled and up to date

(with your programming applied to the optical wheel or triggers)

SWITCHING BUTTONS/MINI-STICKS/D-PAD

All progressive buttons (on PS2 and PS3) or digital buttons (on PC), as well as directions of the mini-

sticks and of the D-Pad can be switched using the MAPPING button (7).

•Examples of possible applications:

- Switch buttons between themselves

- Switch the 2 mini-sticks

(in this case, you will to have to map the directions of the first mini-stick to the directions of the

second mini-stick)

- Switch the D-Pad with a mini-stick

(in this case, you will have to map the D-Pad directions to the directions of the mini-stick in

question).

•Procedure for switching buttons, mini-sticks and D-Pad

- Does not work for the triggers.

- Works for the optical wheel but only on PC and in “7 axes” mode.

Steps Action PRESET button

color

1 Enable “MANUAL PRESET” (8) by pressing the button. Lit up green

2 Press and release the MAPPING button (7). Lit up red

3 Press and release the button or direction to switch. Flashes red

4 Press and release the button or direction onto which you wish to

place your function. Lit up green

Your “MANUAL PRESET” is now enabled and up to date (with the 2 functions switched).

9/14

EEPROM MEMORY

•Your gamepad features an internal chip which saves all of your “MANUAL PRESET” programming

(even when the gamepad is switched off or disconnected for a long period of time).

•You can save a different “MANUAL PRESET” for each platform used:

PlayStation® 1, PlayStation® 2, PlayStation® 3, PC Axes and PC 7 Axes

TO ERASE YOUR “MANUAL PRESET”

Action PRESET button

color

1 Enable your “MANUAL PRESET” (8). Lit up green

2 Press and hold the MAPPING button (7) for 2 seconds. Flashes green 2

seconds

Your “MANUAL PRESET” is now clear (and once again identical to the “AUTOMATIC PRESET”).

RETURNING TO “FACTORY SETTINGS”

You can erase all of your programming or settings:

Steps Action MAPPING button color

1 Press the MAPPING + SELECT + START buttons

simultaneously Flashes blue 5 seconds

All of your “MANUAL PRESETS” (= PC + PS2 + PS3) or settings are now clear.

Note: this procedure will completely restart your gamepad

(on PC, we therefore recommend that you do this outside of games).

POSSIBLE USES IN GAMES

The optical wheel (thanks to its technology and degree of rotation greater than that of any mini-stick) offers

unparalleled precision and stability in all types of games: racing (ultra-precise steering), flying (rudder),

action and FPS (progressive zoom), sports (measured shot, strength of hit), etc.

The triggers (thanks to their progressive action and range of mechanical travel greater than that of any

button) offer extremely precise control in all types of games: racing (progressive and independent

acceleration and braking, handbrake), action and FPS (rate of fire, lateral movement), sports (measured

pass or shot, strength of hit or jump, running speed), etc.

SOME EXAMPLES AND TIPS:

- There are numerous configuration possibilities, depending on the game you are playing.

- In certain games (racing type), do not hesitate to test out the 2 sensitivity modes for your optical wheel

(Normal or High) in order to optimize its precision and responsiveness.

Other manuals for RUN'N'DRIVE WIRELESS 3-IN-1

This manual suits for next models

Table of contents

Languages:

Other Thrustmaster Video Game Controllers manuals

Thrustmaster

Thrustmaster T-WIRELESS NW User manual

Thrustmaster

Thrustmaster T.16000M User manual

Thrustmaster

Thrustmaster NASCAR PRO VICTORY Instructions for use

Thrustmaster

Thrustmaster FireStorm DUAL ANALOG 3 Instructions for use

Thrustmaster

Thrustmaster TOP GUN AfterBurner Force Feedback User manual

Thrustmaster

Thrustmaster FERRARI 488 GT3 WHEEL ADD-ON User manual

Thrustmaster

Thrustmaster Arcade Stick User manual

Thrustmaster

Thrustmaster T-WIRELESS 3-IN-1 User manual

Thrustmaster

Thrustmaster Ferrari GTE Wheel Add-On User manual

Thrustmaster

Thrustmaster Ferrari F1 Wheel Add-on User manual

Thrustmaster

Thrustmaster T100 Force Feedback User manual

Thrustmaster

Thrustmaster T-Wireless Black User manual

Thrustmaster

Thrustmaster SIMTASK FARMSTICK User manual

Thrustmaster

Thrustmaster TS-XW RACER Sparco P310 Competition Mod User manual

Thrustmaster

Thrustmaster T60 User manual

Thrustmaster

Thrustmaster T-WIRELESS 3-IN-1 RUMBLE FORCE User manual

Thrustmaster

Thrustmaster T500 RS User manual

Thrustmaster

Thrustmaster T248 User manual

Thrustmaster

Thrustmaster RUN'N'DRIVE WIRELESS 3-IN-1 User manual

Thrustmaster

Thrustmaster T80 Ferrari 488GTB Edition User manual

Thrustmaster

Thrustmaster TMX PRO User manual

Thrustmaster

Thrustmaster SIMTASK FARMSTICK User manual

Thrustmaster

Thrustmaster TM Rally Wheel Add-on Sparco R383 Mod User manual

Thrustmaster

Thrustmaster ferrari 458 spider User manual

Thrustmaster RUN'N'DRIVE WIRELESS 3-IN-1 User manual

Popular Video Game Controllers manuals by other brands
