User Manual

TECHNICAL FEATURES

1. 2 progressive analog mini-sticks

+ 2 digital action buttons

2. Progressive optical wheel

3. Progressive left trigger

4. Progressive right trigger

5. D-Pad

6. Action buttons

7. MAPPING button (for programming)

8. MODE button with LED

(to select the system or number of axes)

9. PRESET button with LED

(to select programming)

10. 2 independent vibrating motors

(for PlayStation® 2 and PC)

11. PlayStation® 2 game port connector

12. USB PC and PlayStation® 3 connector

SAFETY NOTICE

•In the event of malfunction during use due to electrostatic emission, please exit the game and unplug

the device from your computer or your console. Resume normal game play by plugging the device back

in and restarting the game.

•Do not touch or move the mini-sticks, optical wheel or triggers when connecting your gamepad (in order

to avoid disrupting the calibration process).

2/12

TABLE OF SUPPORTED MODES

System MODE Color of MODE

button (8)

PLAYSTATION®1

“PS1” OFF

PLAYSTATION® 2 “PS2” GREEN

PLAYSTATION® 3 “PS3” OFF

“4 AXES” OFF

“5 AXES” RED

“7 AXES” GREEN

PLAYSTATION® 2

INSTALLATION ON PLAYSTATION® 2

1. Connect the PS2 game port connector (11) to a game port on your console.

2. Turn on your console and launch the game.

You are now ready to play!

ATTENTION: NEVER CONNECT THE USB CONNECTOR (12) TO YOUR PLAYSTATION®2

(to avoid the risk of damaging your gamepad and/or your console)

“PLAYSTATION®2” MODE

•“PS1” mode: the MODE button is Off (exclusively reserved for “PlayStation® 1” games)

•“PS2” mode: the MODE button is Green (exclusively reserved for “PlayStation® 2” games)

“AUTOMATIC PRESET” CONFIGURATION - PLAYSTATION® 2

“PS2” mode MODE button is GREEN

Here:

•“Optical wheel” associated with

“Left/Right” direction on left mini-stick

•“Right” trigger associated with

progressive “X” button

•“Left” trigger associated with

progressive “Square” button

3/12

PLAYSTATION® 3

INSTALLATION ON PLAYSTATION® 3

1. Connect the USB connector (12) to a USB port on your console.

2. Turn on your console.

3. Switch your gamepad to “PS3” mode = the MODE button should be Off.

(to do so, if necessary, press the button until it switches off).

4. Launch the game.

You are now ready to play!

“PLAYSTATION®3” MODE

“AUTOMATIC PRESET” CONFIGURATION - PLAYSTATION® 3

“PS3” mode MODE button is OFF

Here:

•“Optical wheel” associated with

“Left/Right” direction on left mini-stick

•“Right” trigger associated with

“Up” direction on right mini-stick

•“Left” trigger associated with

“Down” direction on right mini-stick

Important notes for “PlayStation® 3”:

- On “PlayStation® 3”, the MODE button must absolutely be “OFF” (and not red or green).

To do so, press the button if necessary.

- The “Run’N’ Drive” gamepad does not feature a “motion sensor” or “PS” button,

as does the official gamepad included with your console.

- In “1 Player” mode: if your official gamepad is powered on, you must switch it to

“controller port 2” for your “Run’N’ Drive” gamepad to be functional.

- On “PlayStation® 3”, the “Run’N’ Drive” gamepad is only compatible with “PlayStation® 3” games

(and will not function with “PlayStation® 2” games).

- To exit your “PlayStation® 3” games, use the “PS” button on your official gamepad.

4/12

INSTALLATION ON PC

The CD-ROM included with this product allows you to install the Force Feedback drivers.

1. Insert the installation CD-ROM into your CD-ROM drive. Follow the on-screen instructions to install

the Force Feedback drivers. Once installation is complete, click Finish and restart your computer.

2. Once your computer has restarted, connect the USB connector (12) to one of your computer’s USB

ports. Windows 98/Me/2000/XP/Vista will automatically detect the new device.

3. The drivers are installed automatically. Follow the on-screen instructions to complete the installation.

4. Select Start/Settings/Control Panel and then double-click Game Controllers (or Gaming Options,

depending on your operating system).

The Game Controllers dialog box displays the gamepad’s name with OK status.

5. In the Control Panel, click Properties to configure your gamepad:

•Test device: allows you to test and view the buttons, D-pad and axes for the 2 mini-sticks, for the

optical wheel and for the 2 triggers.

•Test forces: allows you to test 8 vibration effects and configure vibration effect settings.

You are now ready to play!

SELECTING THE NUMBER OF AXES ON PC

•Selection of axes via “Software”: On page 1 of the Control Panel, click the number of axes you wish

to use and then click OK.

•Selection of axes via “Hardware”:

Press the MODE button (8) to select the number of active axes.

5/12

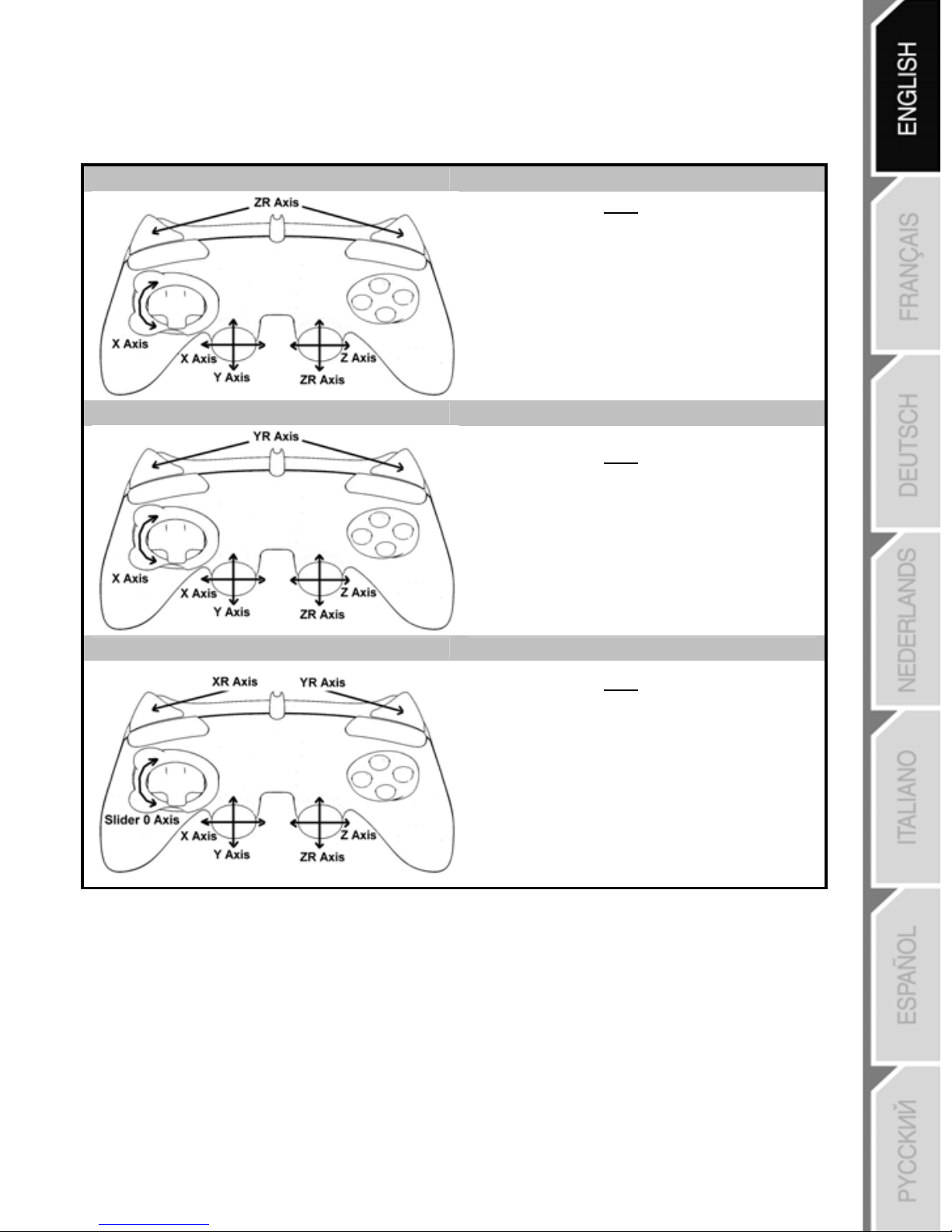

3 “AXES” MODES AVAILABLE ON PC

“AUTOMATIC PRESET” CONFIGURATION - PC

“4 AXES” mode MODE button is OFF

Here:

•“Optical wheel” associated with

“Left/Right” direction on left mini-stick

•“Right” trigger associated with

“Up” direction on right mini-stick

•“Left” trigger associated with

“Down” direction on right mini-stick

“5 AXES” mode MODE button is RED

Here:

•“Optical wheel” associated with

“Left/Right” direction on left mini-stick

•“Right” and “Left” triggers are now

independent but combined between

themselves

“7 AXES” mode MODE button is GREEN

Here:

•“Optical wheel”

is now independent

•“Left” trigger

is now independent

•“Right” trigger

is now independent

For a better idea of all the possibilities offered on PC,

try them out in the Windows “Game Controllers” section

6/12

ADVANCED FUNCTIONS

ADJUSTING THE OPTICAL WHEEL’S SENSITIVITY

The optical wheel (2) has 2 sensitivity modes:

- Normal sensitivity (default mode)

- High sensitivity (must be adjusted)

•Adjustment for “High sensitivity” mode:

Steps Action Color of MODE

button

1 Raise and hold the “UP” direction on the optical wheel

2 Press and release the MAPPING button (7)

Flashes Red

2 seconds

The optical wheel is now more sensitive

(Repeat this procedure each time you restart your console or disconnect the gamepad)

•Adjustment to return to “Normal sensitivity” mode:

Steps Action Color of MODE

button

1 Lower and hold the “DOWN” direction on the optical wheel

2 Press and release the MAPPING button (7)

Flashes Green

2 seconds

The optical wheel has now returned to normal sensitivity (the default mode)

2 PROGRAMMING MODES

The PRESET button and LED (9) allows you to view the type of programming selected:

AUTOMATIC (preprogrammed) or MANUAL (programmed by yourself). A single press of this button

allows you (even during the course of a game) to switch from one programming mode to another.

•“AUTOMATIC PRESET” (PRESET button OFF)

This represents the default programming: The functions of the optical wheel and the triggers are

preprogrammed, as are the positions of the buttons and the directions of the mini-sticks and of the D-Pad.

PLEASE REFER TO THE “AUTOMATIC PRESET” CONFIGURATION DIAGRAMS

•“MANUAL PRESET” (PRESET button GREEN)

This represents your own personal programming:

- The buttons, directions of the mini-sticks and of the D-Pad can either be:

* Programmed on the optical wheel and on the triggers; or

* Switched between themselves.

- You can modify the programming to your liking and whenever you wish.

- The programming is automatically saved inside your gamepad (even when disconnected).

- When your “MANUAL PRESET” is clear, it is identical to the “AUTOMATIC PRESET”.

7/12

PROGRAMMING THE OPTICAL WHEEL AND TRIGGERS

The 2 directions of the optical wheel and the 2 progressive triggers can be programmed using the

MAPPING button (7).

•Examples of possible applications:

Programming a button, direction of a mini-stick or of the D-Pad:

- onto the “up” or “down” direction of the optical wheel

- onto the “right” trigger or “left” trigger

•Programming procedure on optical wheel and triggers:

Steps Action Color of PRESET

button

1 Enable “MANUAL PRESET” (9) by pressing the button Lit up Green

2 Press and release the MAPPING button (7) Lit up Red

3 Press and release the button or direction to program Flashes Red

4 Raise or lower the direction on the optical wheel

Or press the trigger onto which you wish to place your function Lit up Green

Your “MANUAL PRESET” is now enabled and up to date

(with your programming applied to the optical wheel or triggers)

SWITCHING BUTTONS/MINI-STICKS/D-PAD

All progressive buttons (on PS2 and PS3) or digital buttons (on PC), as well as directions of the mini-sticks

and of the D-Pad can be switched using the MAPPING button (7).

•Examples of possible applications:

- Switch buttons between themselves

- Switch the 2 mini-sticks

(in this case, you will to have to map the 4 directions of the first mini-stick to the 4 directions of the

second mini-stick)

- Switch the D-Pad with a mini-stick

(in this case, you will have to map the 4 D-Pad directions to the 4 directions of the mini-stick in

question).

•Procedure for switching buttons, mini-sticks and D-Pad

(does not work with the optical wheel and triggers, except for on PC in “7 axes” mode)

Steps Action Color of PRESET

button

1 Enable “MANUAL PRESET” (9) by pressing the button Lit up Green

2 Press and release the MAPPING button (7) Lit up Red

3 Press and release the button or direction to switch Flashes Red

4 Press and release the button or direction onto which you wish to

place your function Lit up Green

Your “MANUAL PRESET” is now enabled and up to date (with the 2 functions switched)

8/12

EEPROM MEMORY

•Your gamepad features an internal chip which serves to retain all of your “MANUAL PRESET”

programming in memory (even when the gamepad is switched off or disconnected for a long period of

time).

•You can save 1 different “MANUAL PRESET” for each system used (PS1, PS2, PS3, PC 4 Axes, PC 5

Axes or PC 7 Axes). The exception is for “PS3” and “PC 4 Axes”, which use the same “MANUAL

PRESET” (modifying or erasing one of these will have the same effect on the other).

TO ERASE A “MANUAL PRESET”

Steps Action Color of PRESET

button

1 Enable your “MANUAL PRESET” (9) Lit up Green

2 Press and hold the MAPPING button (7)

for 2 seconds

Flashes Green

2 seconds

Your “MANUAL PRESET” has now been erased (and is identical to the “Automatic Preset”)

TO RETURN TO “FACTORY SETTINGS”

You can erase all of your programming and settings with a single step:

Steps Action Color of PRESET button

1 Press the MAPPING + SELECT + START buttons

simultaneously

Flashes Green and Red

2 seconds

All of your “MANUAL PRESETS” (= PC + PS2 + PS3) or settings have now been erased

Note: On PC, we recommend that you do not carry out this step while in a game.

POSSIBLE USES IN GAMES

The optical wheel (thanks to its technology and degree of rotation greater than that of any mini-stick)

offers unparalleled precision and stability in all types of games: racing (ultra-precise steering), flying

(rudder), action and FPS (progressive zoom), sports (measured shot, strength of hit), etc.

The triggers (thanks to their progressive action and range of mechanical travel greater than that of any

button) offer extremely precise control in all types of games: racing (progressive and independent

acceleration and braking, handbrake), action and FPS (rate of fire, lateral movement), sports (measured

pass or shot, strength of hit or jump, running speed), etc.

SOME EXAMPLES AND TIPS:

- There are numerous configuration possibilities, depending on the game you are playing.

- On PC, if a game does not accept your programming (undesired effects) in “5 or 7 axes” mode, switch

your gamepad to “4 axes” mode (the standard mode).

- In certain (racing style) games, don’t hesitate to test out the 2 sensitivity modes for the optical wheel

(Normal or High) in order to optimize its precision and responsiveness.

9/12

DIFFERENT EXAMPLES ACCORDING TO TYPE OF GAME

Action/Adventure (“Car” mode) Action/Adventure (“On foot” mode)

Sports (“Ball game” type) Sports (“Golf” type)

Car racing (“Simulation” type) Car racing (“Arcade/Rally” type)

Flying (“Simulation” type) Flying (“Arcade/Action” type)

Table of contents

Languages:

Other Thrustmaster Video Game Controllers manuals

Thrustmaster

Thrustmaster FORZA MOTORSPORT 5 User manual

Thrustmaster

Thrustmaster T.FLIGHT STICK X User manual

Thrustmaster

Thrustmaster dual trigger User manual

Thrustmaster

Thrustmaster GPX LightBack User manual

Thrustmaster

Thrustmaster T100 Force Feedback User manual

Thrustmaster

Thrustmaster eSwapX 2 PRO User manual

Thrustmaster

Thrustmaster GPX User manual

Thrustmaster

Thrustmaster T-WIRELESS NW User manual

Thrustmaster

Thrustmaster RGT Force Feedback CLUTCH User manual

Thrustmaster

Thrustmaster ADVANCE WIRELESS DUAL TRIGGER User manual

Thrustmaster

Thrustmaster universal challenge Instructions for use

Thrustmaster

Thrustmaster Rechargeable Wireless Dual Trigger 2-in-1 User manual

Thrustmaster

Thrustmaster T.Flight Hotas One User manual

Thrustmaster

Thrustmaster HOTAS WARTHOG Instructions for use

Thrustmaster

Thrustmaster Thrustmaster Force Feedback Racing Wheel User manual

Thrustmaster

Thrustmaster T150 User manual

Thrustmaster

Thrustmaster TMX PRO User manual

Thrustmaster

Thrustmaster TM OpenWheel Add-On User manual

Thrustmaster

Thrustmaster Red Legend Edition User manual

Thrustmaster

Thrustmaster HOTAS Cougar Instructions for use

Thrustmaster

Thrustmaster T500 RS User manual

Thrustmaster

Thrustmaster T500RS User manual

Thrustmaster

Thrustmaster TH8A User manual

Thrustmaster

Thrustmaster Alcantara Edition 599XX EVO 30 User manual

Thrustmaster RUN'N'DRIVE 3-IN-1 RUMBLE FORCE User manual

Popular Video Game Controllers manuals by other brands
