Thrustmaster Ferrari GT User manual

CouvQI_FGT3in1_5075271.indd 1 4/06/07 14:41:56

1/10

Compatible: PlayStation® 3 / PlayStation® 2 / PC

User Manual

TECHNICAL FEATURES

1 2 digital gearshift levers (UP and DOWN)

2 LED

3 Action buttons

4 D-Pad

5 SE” and ST” buttons:

- for Select and Start

- for programming

6 Home” button for PlayStation® 3

7 USB selector ( PC” / PS3”)

2/10

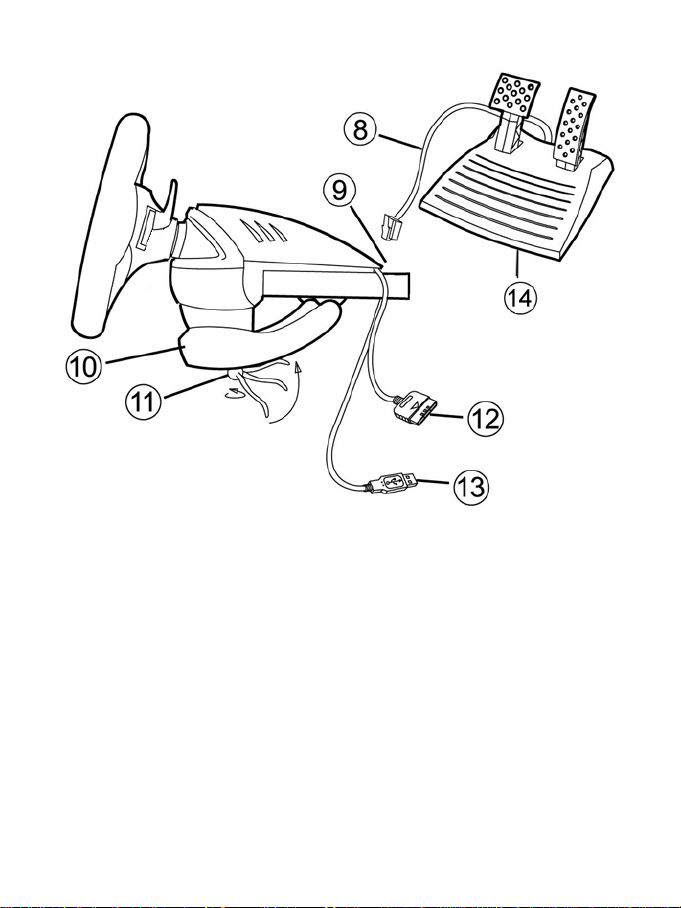

8 Pedal cable

9 RJ45 connector for pedal set

10 Table clamp

11 Clamp screw

12 GAMEPORT connector (for PlayStation®2)

13 USB connector (for PC and PlayStation®3)

14 Pedal set

INSTALLING THE WHEEL

Fixing th wh l in plac

1. Place the wheel on a table or other flat surface.

2. Place the clamp screw (11) in the table clamp (10) and then screw the clamping unit into the hole on

the underside of the wheel until firmly fixed in place. Do not turn the screw too tightly, as you risk

damaging the clamping unit and/or the table.

Conn cting th p dal s t

1. Connect the pedal cable (8) to the wheel’s RJ45 connector (9).

3/10

PLAYSTATION® 2

INSTALLATION ON PLAYSTATION® 2

1. Connect the PS2 Gameport connector (12) to port number 1 on your console.

2. Turn on your console and launch the game.

3. Your wheel’s LED lights up in red.

You are now ready to play!

ATTENTION: NEVER CONNECT THE USB CABLE (13) TO YOUR LAYSTATION® 2

(to avoid the risk of damaging your wheel or your console)

IMPORTANT NOTES ON PLAYSTATION® 2

In certain racing games, do not hesitate to test out your wheel’s 2 sensitivity modes in order to optimize its

precision and responsiveness.

PLAYSTATION® 3

INSTALLATION ON PLAYSTATION® 3

1. Set the wheel’s USB selector (7) to the PS3” position.

2. Connect the USB connector (13) to a USB port on your console.

3. Turn on your console.

4. Launch the game.

You are now ready to play!

USING THE “HOME” BUTTON (6)

Your wheel’s Home” button allows you to exit games and access your PlayStation®3 system’s menus.

IMPORTANT NOTES ON PLAYSTATION® 3

- The wheel’s USB selector (7) must always be set to the PS3” position before connecting your wheel.

- In 1 Player” mode: If your official gamepad is turned on, you will have to switch it to controller port 2” in

order for your wheel to be functional.

- On PlayStation® 3, the wheel is only compatible with PlayStation® 3 games (and will not function with

PlayStation® 2 games).

- In certain racing games, do not hesitate to test out your wheel’s 2 sensitivity modes in order to optimize its

precision and responsiveness.

4/10

Installation on PC

The CD-ROM included with this product allows you to install the Vibration Feedback” drivers.

1. Set the wheel’s USB selector (7) to the PC” position.

2. Insert the installation CD-ROM into your CD-ROM drive. Follow the on-screen instructions to install

the Vibration Feedback” drivers. Once the installation is complete, click Finish and restart your

computer.

3. Once your computer has restarted, connect the USB connector (13) to one of your computer’s USB

ports. Windows® XP or Vista will automatically detect the new device.

4. Driv r installation

Drivers are installed automatically. Follow the on-screen instructions to complete the installation.

5. Click Start/S ttings/Control Pan l and then double-click Gam Controll rs (or Gaming Options,

depending on your operating system).

The Game Controllers dialog box displays the wheel’s name with OK status.

6. In the Control Pan l, click Prop rti s to configure your gamepad:

•T st d vic : Allows you to test and visualize the buttons, D-pad and axes of the wheel and pedal

set.

•T st forc s: Allows you to test 8 vibration effects and configure effect and vibration settings.

You are now ready to play!

IMPORTANT NOTES ON PC

- The wheel’s USB selector (7) must always be set to the PC” position before connecting your wheel.

- Your wheel and pedals automatically self-calibrate upon connection of the USB connector. In the event

of any problems, you can also carry out manual calibration by downloading the Thrustmaster

Calibration Tool” software, available at the following address:

http://ts.thrustmaster.com

5/10

ADVANCED FUNCTIONS

ADJUSTING THE WHEEL’S SENSITIVITY

Your wheel’s steering has 2 sensitivity modes:

- Normal sensitivity (the default mode)

- High sensitivity (must be set)

•S tting “High S nsitivity” mod :

Action LED color

Simultaneously press and release:

the D- ad (4) + the 2 U and DOWN levers (1) FLASHES SLOWLY

Your wheel’s steering is now more sensitive.

(This procedure must be repeated each time you restart or disconnect your wheel)

•S tting “Normal S nsitivity” mod (default mode):

Action LED color

Simultaneously press and release:

the D- ad (4) + the 2 U and DOWN levers (1) DOES NOT FLASH

Your wheel’s steering has now returned to normal sensitivity (the default mode)

PROGRAMMING THE WHEEL AND PEDALS

Your wheel is fully programmable:

- All buttons as well as the D-Pad can be switched between themselves.

- All buttons as well as the D-Pad can be programmed onto the 2 pedals.

•Exampl s of possibl applications:

- On PS2 and PS3: Programming L2/R2 or L3/R3 onto the 2 UP and DOWN digital levers (L1/R1).

- Programming a button(s) onto one or both pedals.

- Switching different buttons for greater accessibility.

•Programming proc dur

St ps Action LED color

1 Simultaneously press and release:

SE + ST (5) OFF

3 Press and release the button to program. FLASHES QUICKLY

4 Press and release the button or pedal onto which

you wish to place your function. ON

Your programming has now taken effect.

(You must repeat this procedure each time you restart or disconnect your wheel)

6/10

Erasing your programming

St ps Action LED color

1 Press and hold for 2 seconds:

SE + ST (5)

TURNS OFF THEN

ON AGAIN

Your programming has now been erased.

CONFIGURING THE PEDALS ON PLAYSTATION® 2 AND PLAYSTATION® 3

On these consoles, your wheel’s accelerator and brake controls are in separate” mode by default,

meaning that the pedals function on independent axes:

- On PlayStation® 2:

Accelerator” = Cross” button & Brake” = Square” button

- On PlayStation® 3:

Accelerator” = R2” trigger & Brake” = L2” trigger

For a different type of control (to limit skidding, for example), you can switch your wheel to combined” (2

axes) mode: the pedals then function on a single axis.

- On PlayStation® 2 and PlayStation® 3:

Accelerator and Brake” = Up/Down direction on Right mini-stick”

•S tting “Combin d P dals” mod

Action LED color

Simultaneously press and release:

the 2 pedals (14) + the Home” button (6)

GREEN

Your pedals are now combined

(You must repeat this procedure each time you restart or disconnect your wheel)

7/10

•To r turn to “S parat P dals” mod (the default mode)

Action LED color

Simultaneously press and release:

the 2 pedals (14) + the Home” button (6)

On PlayStation® 2 On PlayStation® 3

RED

Your pedals have now returned to the default mode: Separate”

CONFIGURING THE PEDALS ON PC

Your wheel’s accelerator and brake controls are in separate” (3 axes) mode by default, meaning that the

pedals function on independent axes.

3 axes mode allows you to considerably improve the precision of your driving.

If your game does not support 3 axes mode, your wheel’s pedals will not function properly. You will then

have to exit the game and select combined” (2 axes) mode instead.

Mod LED color

S parat pedals (3 axes) RED

Combin d pedals (2 axes) GREEN

•S l cting ax s via “Softwar ”

(This setting will be saved even after you restart or disconnect your wheel)

On page 1 of the Control Panel”: Select the mode you wish to use, then click OK.

•S l cting ax s via “Hardwar ”

(This setting will not be saved: It must be repeated each time you restart or disconnect)

(Allows you to select your mode directly in your game’s “Controls” options)

Simultaneously press and release: the 2 pedals (14) + the “Home” button (6)

8/10

TROUBLESHOOTING AND WARNINGS

•My wh l do sn’t function corr ctly or app ars to b improp rly calibrat d:

- Switch off your computer or your console, completely disconnect your wheel including all cables, then

reconnect the wheel and restart your game.

- If the problem persists on PC, download the Thrustmaster Calibration Tool” manual calibration software

available at the following address: http://ts.thrustmaster.com

- Never move the wheel or pedals when connecting your wheel in order to avoid any calibration problems.

•My p dal s t do s not work corr ctly:

- Reconfigure your wheel in your game’s controller options section.

- If the problem persists on PC, exit the game and switch the pedals to combined” (2 axes) mode. You

can then return to your game to reconfigure the wheel with the new axes.

•I can’t configur my wh l:

- On PS2 and PS3: In your game’s Options / Controller / Gamepads” menu: select the most appropriate

configuration.

- On PC: In your game’s Options / Controller / Wheels” menu: select the most appropriate configuration.

- Please refer to your game’s user manual or online help for more information.

- You can also use your wheel’s programming” function to resolve this type of problem.

•On PC or PS3, my wh l do s not work corr ctly:

- Exit your game, disconnect your wheel, verify that the PC/PS3 ” USB selector (7) is in the proper

position, then reconnect everything and try again.

•On PC, my gam ’s m nus scroll by th ms lv s:

- Exit the game and switch the pedals to combined” (2 axes) mode. Then return to your game to

reconfigure the wheel with the new axes.

•On PC, th vibrations ar continuous:

- Decrease the intensity of force effects in your game’s controller options section or adjust the forces in the

wheel’s control panel.

- In your game’s controller options, select Force type: Gamepad” (if the option is available).

•My wh l’s st ring is not r sponsiv nough:

- Switch your wheel to high sensitivity mode.

FAQs, tips and drivers available at www.thrustmaster.com

9/10

TECHNICAL SUPPORT

If you encounter a problem with your product, please go to http://ts.thrustmaster.com and click T chnical Support.

From there you will be able to access various utilities (Frequently Asked Questions (FAQ), the latest versions of

drivers and software) that may help to resolve your problem. If the problem persists, you can contact the

Thrustmaster products technical support service ( Technical Support”):

By mail:

In order to take advantage of technical support by email, you must first register online. The information you provide

will help the agents to resolve your problem more quickly. Click R gistration on the left-hand side of the Technical

Support page and follow the on-screen instructions. If you have already registered, fill in the Us rnam and

Password fields and then click Login.

By t l phon :

Unit d

Kingdom

08450800942

Charges at local rate

Monday to Friday from Noon to 4pm and 5pm to 10pm

Saturday from 9am to Noon and 1pm to 7pm

Sunday from 9am to Noon and 1pm to 4pm

Unit d

Stat s

1-866-889-5036

Free

Monday to Friday from 7am to 11am and from Noon to 5pm

Saturday and Sunday from 7am to Noon

(Eastern Standard Time)

Canada 1-866-889-2181

Gratuit / Free

Monday to Friday from 7am to 11am and from Noon to 5pm

Saturday and Sunday from 7am to Noon

(Eastern Standard Time)

D nmark 80887690

Free

Monday to Friday from 1pm to 5pm and 6pm to 11pm (English)

Saturday from 9am to 1pm and 2pm to 8pm

Sunday from 10am to 1pm and 2pm to 5pm

Sw d n 0200884567

Free

Monday to Friday from 1pm to 5pm and 6pm to 11pm (English)

Saturday from 9am to 1pm and 2pm to 8pm

Sunday from 10am to 1pm and 2pm to 5pm

Finland 0800 913060

Free

Monday to Friday from 2pm to 6pm and 7pm to Midnight (English)

Saturday from 10am to 2pm and 3pm to 9pm

Sunday from 11am to 2pm and 3pm to 6pm

Other manuals for Ferrari GT

Table of contents

Languages:

Other Thrustmaster Video Game Controllers manuals

Thrustmaster

Thrustmaster dual trigger User manual

Thrustmaster

Thrustmaster T300 RS User manual

Thrustmaster

Thrustmaster TX Leather Edition User manual

Thrustmaster

Thrustmaster 360MODENA UPAD FORCE Instructions for use

Thrustmaster

Thrustmaster Ferrari GT User manual

Thrustmaster

Thrustmaster RGT Force Feedback CLUTCH User manual

Thrustmaster

Thrustmaster ferrari 458 spider User manual

Thrustmaster

Thrustmaster 360 Modena Force GT User manual

Thrustmaster

Thrustmaster Enzo Ferrari wireless User manual

Thrustmaster

Thrustmaster GPX LightBack User manual

Thrustmaster

Thrustmaster F-16C Viper User manual

Thrustmaster

Thrustmaster TCA Sidestick X Airbus Edition User manual

Thrustmaster

Thrustmaster T300 User manual

Thrustmaster

Thrustmaster T80 Ferrari 488 GTB Edition User manual

Thrustmaster

Thrustmaster T3PA User manual

Thrustmaster

Thrustmaster HOTAS Cougar Instructions for use

Thrustmaster

Thrustmaster T500 RS User manual

Thrustmaster

Thrustmaster GPX User manual

Thrustmaster

Thrustmaster TMX PRO User manual

Thrustmaster

Thrustmaster eSwap X Pro User manual

Thrustmaster

Thrustmaster Ferrari F1 Wheel Add-on User manual

Thrustmaster

Thrustmaster T150 User manual

Thrustmaster

Thrustmaster T-WIRELESS 3-IN-1 User manual

Thrustmaster

Thrustmaster TMX Force Feedback User manual

Thrustmaster Ferrari GT User manual

Popular Video Game Controllers manuals by other brands
