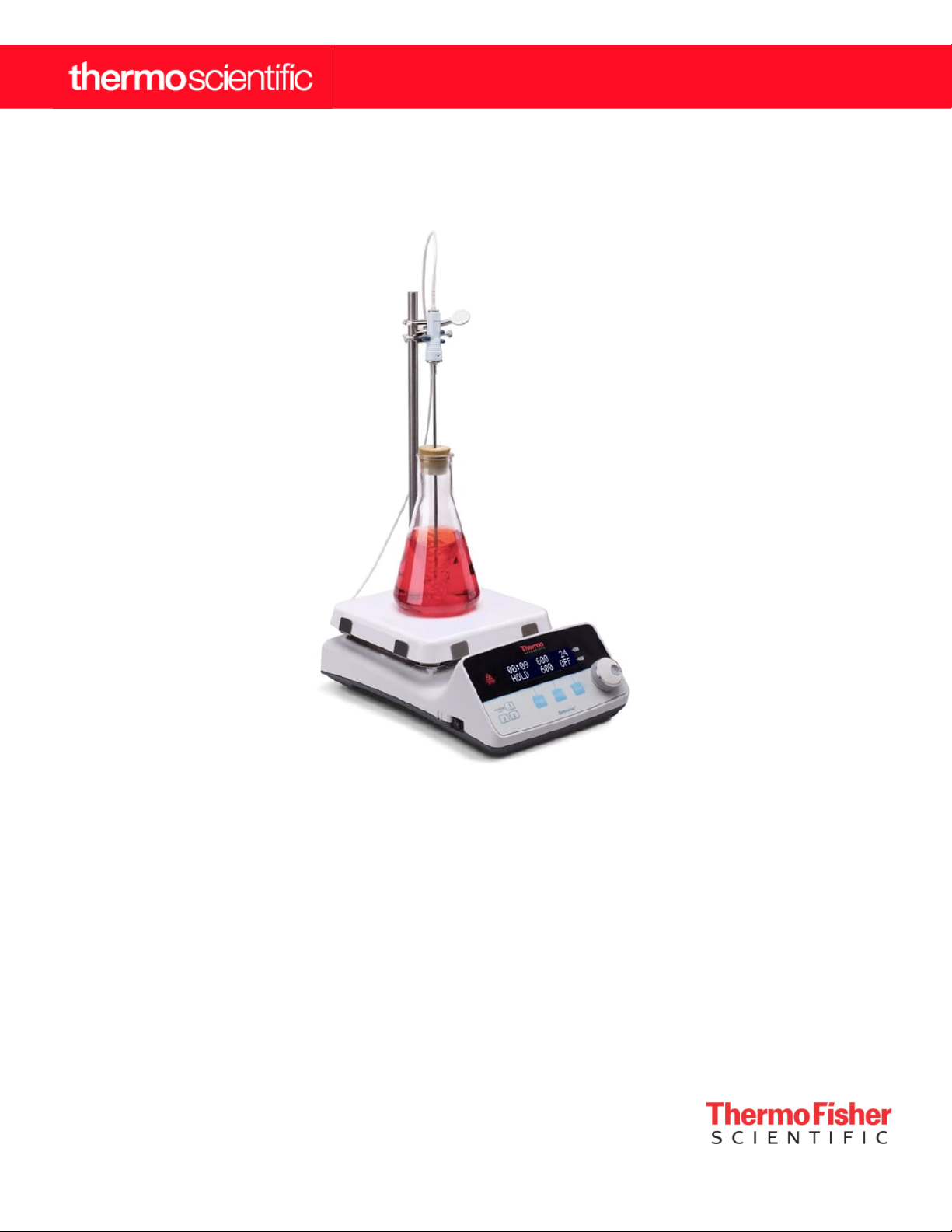

Thermo Scientific SUPER-NUOVA+ User manual

Operating Manual

CIC0000810 • Revision A • August 2021

SUPER - NUOVA+ Hot Plates, Stirrers

and Stirring Hot Plates

Do You Need Information or Assistance on Thermo Scientific Products?

If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:

Direct 1-740-373-4763

Toll Free, U.S. and Canada 1-800-438-4851

FAX 1-877-213-8051

Internet Worldwide Web Home Page http://www.thermoscientific.com

Tech Support Email Address service.led.m[email protected]

Certified Service Web Page www.unitylabservices.com

Our Sales Support staff can provide information on pricing and give you quotations. We can take your order

and provide delivery information on major equipment items or make arrangements to have your local sales

representative contact you. Our products are listed on the Internet and we can be contacted through our

Internet home page.

Our Service Support staff can supply technical information about proper setup, operation or troubleshooting

of your equipment. We can fill your needs for spare or replacement parts or provide you with on-site service.

We can also provide you with a quotation on our Extended Warranty for your Thermo Scientific products.

Whatever Thermo Scientific products you need or use, we will be happy to discuss your applications. If you

are experiencing technical problems, working together, we will help you locate the problem and, chances are,

correct it yourself...over the telephone without a service call.

When more extensive service is necessary, we will assist you with direct factory trained technicians or a

qualified service organization for on-the-spot repair. If your service need is covered by the warranty, we will

arrange for the unit to be repaired at our expense and to your satisfaction.

Regardless of your needs, our professional telephone technicians are available to assist you Monday through

Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by telephone or fax. If you wish to write,

our mailing address is:

Thermo Fisher Scientific

401 Millcreek Road, Box 649

Marietta, OH 45750

International customers, please contact your local Thermo Scientific distributor.

Contents

Models ........................................................................ 1

Safety Information ....................................................... 2

Alert Signals ............................................................ 2

Warnings ................................................................. 2

Información de seguridad ............................................ 4

Señales de alerta ..................................................... 4

Advertencias ........................................................... 4

Sicherheitshinweise ..................................................... 6

Gefahrensymbole .................................................... 6

Warnungen ............................................................. 6

Informations de sécurité .............................................. 8

Signaux d'alerte ...................................................... 8

Avertissements ........................................................ 8

Informação de Segurança ........................................... 10

Sinais de Aviso ........................................................ 10

Avisos ..................................................................... 10

Информация по безопасности ................................ 12

Сигналы тревоги ................................................... 12

Предупреждения .................................................. 12

General Specification .................................................. 14

Ceramic Hot Plate Specifications ............................. 14

Ceramic Stirrer Specifications .................................. 14

Ceramic Stirring Hotplate Specifications .................. 15

Aluminum Hot Plate Specifications .......................... 15

Heating Specifications ............................................. 16

Stirring Speed Specifications ................................... 17

Environmental Conditions ........................................ 17

Declaration of Conformity ........................................ 17

Introduction ................................................................ 19

General Cleaning Instructions .................................. 19

Unpacking and Installation .......................................... 20

Unpacking ............................................................... 20

Installation ............................................................... 20

Control Panel .......................................................... 21

Principles of Operation ............................................ 21

Operation .................................................................... 22

Hard Switch ............................................................ 22

Setting the Stirring Speed ....................................... 22

Setting the temperature ........................................... 23

Controlling Solution Temperature Using

External Probe ........................................................ 23

Using Preset Programs ........................................... 23

Heating Metal Vessels and Sand Baths ................... 24

Setting the Time ...................................................... 24

Hardware Over-Temperature Protection .................. 24

System Configuration .................................................. 25

Temp Unit ............................................................... 25

Over-temperature Set Point – OTP .......................... 26

Preset Continue ...................................................... 26

Temperature Probe Calibration ................................ 26

Troubleshooting .......................................................... 28

Error Codes ............................................................ 28

Accessories ................................................................ 29

Warranty ..................................................................... 30

Hot Plates, Stirrers and Stirring Hotplates Models | 1

Models

This manual covers the models shown below.

Table 1. Models

Model Voltage Description

HP88857190 100 -120 V 7 x 7 Ceramic Hot Plate

HP88857195 220 - 240 V 7 x 7 Ceramic Hot Plate

S88857190 100 - 120 V 7 x 7 Ceramic Stirrer

S88857195 220 - 240 V 7 x 7 Ceramic Stirrer

SP88857190 100 - 120 V 7 x 7 Ceramic Stirring Hotplate

SP88857195 220 - 240 V 7 x 7 Ceramic Stirring Hotplate

HP88857194 100 - 120 V 7 x 7 Aluminium Hot plate

HP88857198 220 - 240 V 7 x 7 Aluminium Hot plate

SP88857194 100 -120 V 7 x 7 Aluminium Stirring Hotplate

SP88857198 220 - 240 V 7 x 7 Aluminium Stirring Hotplate

HP88850190 100 - 120 V 10 x10 Ceramic Hot Plate

HP88850195 220 - 240 V 10 x10 Ceramic Hot Plate

S88850190 100 - 120 V 10 x10 Ceramic Stirrer

S88850195 220 - 240 V 10 x10 Ceramic Stirrer

SP88850190 100 - 120 V 10 x10 Ceramic Stirring Hotplate

SP88850195 220 - 240 V 10 x10 Ceramic Stirring Hotplate

2 | Safety Information Hot Plates, Stirrers and Stirring Hotplates

Safety Information

Alert Signals

Note: Notes alert you to pertinent facts and conditions.

Note: The SUPER-NUOVA+ hot plates are not explosion

proof. If explosion proof models are required, contact

Customer Service at 1-800-553-0039 for more information.

Your Thermo Scientific SUPER-NUOVA+ hot plate, stirrer or

stirring hot plate has been designed with function, reliability,

and safety in mind. It is your responsibility to install it in

conformance with local electrical codes. For safe operation,

please pay attention to the alert signals throughout the

manual.

This manual contains important operating and safety

information. The user must carefully read and understand the

contents of this manual prior to the use of this equipment.

Warnings

To avoid electrical shock, always:

To avoid personal injury

WARNING: Warnings alert you to a possibility of

personal injury.

CAUTION:

Cautions alert you to a possibility of

damage to the equipment.

HOT SURFACE:

Hot surfaces alert you to a

possibility of personal injury if you come in contact

with a surface during use or for a period of time after

use.

WARNING: Refer servicing to qualified

personnel.

WARNING: These products should be used

only under the operating conditions specified in

the Operating Manual. Always use safe

laboratory practices and do not leave the unit in

operation while unattended as product

functionality or laboratory practice failures could

occur that might lead to uncontrolled or

excessive heating of the top surface. Safety

procedures (including, but not limited to,

unplugging when not in use) and response plans

should be put in place to address the worst

case possibility.

If an over-temperature failure occurs, the top

surface temperature could rise to the maximum

temperature (300-450°C depending on your

model’s specification) and remain at that

temperature indefinitely. Under these conditions,

the material being heated on the surface of the

hotplate could reach levels in excess of the

maximum temperature.

• Use a properly grounded electrical outlet of

correct voltage and current handling capacity.

• Disconnect from the power supply prior to

maintenance and servicing.

• Do not use in the presence of flammable or

combustible materials — fire or explosion may

result. This device contains components

which may ignite such materials. Not rated for

use in hazardous atmospheres.

• Use caution when heating volatile materials;

top surface and element can reach the “Flash

Point Temperature” of many chemicals. These

hot plates are not explosion proof. Fire or

explosion may result. Unit contains

components which may ignite such materials.

• Keep top surface clean. Use a non-abrasive

cleaner. Alkali spills, hydrofluoric acid spills or

phosphoric acid spills may damage top and

lead to thermal failure. Unplug unit and

remove spills promptly. Do not immerse unit

for cleaning.

Hot Plates, Stirrers and Stirring Hotplates Safety Information | 3

• Replace the top immediately if damaged by

etching, scratching or chipping. A damaged

top can break in use.

• Do not use metal foil on hot plate which may

block air flow. Overheating will result.

• Check and tighten the removable cord

periodically making sure it is secure. If

loosened, the cord could become hot and/or

spark and be a potential fire hazard. If cord

appears damaged, replace immediately. If

cord is repeatedly loosened it is

recommended to purchase the power cord.

• Do not remove or modify grounded power

plug. Use only properly grounded outlets to

avoid shock hazard.

• Use appropriate hand and eye protection

when handling hazardous chemicals.

• Gross weight of items placed on top of hot

plates should not exceed 35 lbs (15.9 kg) on

the 10" x 10" models and 25 lbs (11.3 kg) on

the 7" x 7" models.

• “Caution Hot Top. Avoid Contact.” The top

plate of the unit can remain hot for some time

after use. A “CAUTION-HOT TOP” light will

remain on until top plate temperature cools to

below 50°C.

• Do not leave an active probe out of the fluid.

This may cause uncontrolled heating of the

fluid on the hot plate and unintentional boiling

or an explosion could occur.

• Localized heater element temperature can be

significantly higher than the temperature

indicated on the display. If flammable

concentrations reach internal element, a fire

could result.

• Note that the exterior housing will be hot

during and for a period of time after use.

• Refer servicing to qualified personnel.

4 | Información de seguridad Hot Plates, Stirrers and Stirring Hotplates

Información de seguridad

Señales de alerta

Nota: Las notas le alertan sobre información y condiciones

pertinentes.

Su Plancha Caliente de Agitación Thermo Scientific

SUPER-NUOVA+ fue diseñada con la función, la fiabilidad y la

seguridad en mente. Para su instalación es su

responsabilidad hacerlo en conformidad con los códigos

eléctricos locales. Para su seguro funcionamiento, por favor,

preste atención a las señales de alerta especificados en el

manual.

Este manual contiene información importante acerca del

funcionamiento y seguridad. Antes de utilizar el equipo el

usuario debe leer cuidadosamente y entender el contenido de

este manual.

Advertencias

Para evitar descarga eléctrica, siempre:

Para evitar lesiones personales:

Advertencia: Las advertencias le alertan de la

posibilidad de lesiones personales.

Precaución:

Precauciones le alerta de

posibilidades de daños en el equipo.

Superficie calienteu:

Las superficies calientes le

alertan de la posibilidad de lesiones personales si

tiene contacto con la superficie durante su uso o

después de un determinado periodo de tiempo.

Advertencia: Estos productos deben ser

usados siguiendo las condiciones de operación

especificadas en el Manual de Operación.

Siempre use prácticas seguras de laboratorio y

no deje la plancha de calentamiento en

funcionamiento sin vigilancia ya que puede

haber cualquier falla en la funcionalidad del

producto o en la práctica de laboratorio que

podría conducir a un calentamiento incontrolado

o excesivo de la superficie superior.

Advertencia: Se deben poner en marcha los

procedimientos de seguridad (incluyendo, pero

no limitado a, desconectar cuando no está en

uso) y los planes de respuesta para hacer frente

en el peor de los escenarios. Si se produce un

fallo de exceso de temperatura, la temperatura

de la superficie superior podría elevarse a una

temperatura máxima de (300-540°C

dependiendo de las especificaciones de su

modelo) y permanecer a esa temperatura

indefinidamente. En estas condiciones, el

material se calienta en la superficie de la plancha

calefactora que podría alcanzar niveles que

superen la temperatura máxima permitida.

• Utilice una toma eléctrica con polo a tierra

con la correcta tensión y la capacidad de

manejo de corriente.

• Desconecte de la red eléctrica antes de hacer

cualquier mantenimiento y/o reparación.

• No utilizar cerca de materiales inflamables o

combustibles - podría conllevar a un incendio

o una explosión. Este dispositivo contiene

componentes que pueden encender estos

materiales. No está clasificado para ser usado

en entornos peligrosos.

Hot Plates, Stirrers and Stirring Hotplates Información de seguridad | 5

• Tenga cuidado al calentar materiales volátiles;

la superficie superior y el elemento puede

alcanzar a una "Temperatura Punto de

inflamación" de muchos productos químicos.

Estas planchas no son a prueba de

explosiones. Podría producirse un incendio o

una explosión. La unidad contiene

componentes que pueden encender estos

materiales.

• Mantenga limpia la parte superior superficie.

Use un limpiador no abrasivo. Los vertidos

alcalinos, los derrames de ácido fluorhídrico o

derrames de ácido fosfórico pueden dañar la

parte superior y conllevar a una insuficiencia

térmica. Desconecte la unidad y elimine los

derrames de inmediato. No sumerja la unidad

en líquidos para su limpieza.

• Remplace la tapa inmediatamente si está

dañada por el efecto de los químicos, rayado

o astillado. Una tapa dañada puede romperse

durante su uso.

• No utilice papel de aluminio en la plancha

caliente este puede bloquear el flujo de aire

dando lugar a un sobrecalentamiento.

• Se debe revisar y apretar el cable

desmontable periódicamente para asegurarse

de que es seguro. Si esta aflojado, el cable se

podría calentar y/ o provocar chispas siendo

un peligro potencial de incendio. Sustituya el

cable inmediatamente si el cable está

dañado. Si el cable se afloja continuamente

se recomienda comprar el cable de energía

eléctrica.

• No retire o modifique el enchufe con polo a

tierra. Utilice sólo enchufes con polo a tierra

para evitar el riesgo de descarga eléctrica.

• Utilice la protección adecuada para manos y

ojos al manipular productos químicos

peligrosos.

• El peso bruto de los objetos que se pongan

en la parte superior de las planchas calientes

no debe exceder las 35 libras. (15,9 kg) En los

modelos 10" x 10", 25 libras. (11.3 kg) en los

modelos 7" x 7".

• "Precaución: Hot Top. Evite el contacto. "La

placa superior de la unidad puede

permanecer caliente durante algún tiempo

después de su uso. Una luz de

"PRECAUCIÓN - HOT TOP" permanecerá

encendida hasta que la temperatura plancha

superior se enfríe por debajo de los 50°C.

• No deje una sonda activa fuera del fluido.

Esto puede causar un calentamiento

incontrolado del fluido en la plancha caliente y

podría producirse una ebullición o una

explosión.

• El elemento de temperatura del calentador

localizado puede ser significativamente mayor

que la temperatura indicada en la pantalla. Si

las concentraciones inflamables alcanzan

algún componente interno, podrían provocar

un incendio.

• Debe tener en cuenta que la carcasa exterior

permanecerá caliente durante su uso y por un

periodo de tiempo después de su uso.

• Siempre solicite los servicios del personal

cualificado.

Table of contents

Languages:

Other Thermo Scientific Laboratory Equipment manuals

Thermo Scientific

Thermo Scientific KingFisher Pure RNA Blood Kit User manual

Thermo Scientific

Thermo Scientific Jewett User manual

Thermo Scientific

Thermo Scientific AI 3000 User manual

Thermo Scientific

Thermo Scientific Heraeus Megafuge 16 User manual

Thermo Scientific

Thermo Scientific 7452 Operating instructions

Thermo Scientific

Thermo Scientific Sorvall ST40R User manual

Thermo Scientific

Thermo Scientific TX-750 User manual

Thermo Scientific

Thermo Scientific RVT5105 Programming manual

Thermo Scientific

Thermo Scientific TGA-IR User manual

Thermo Scientific

Thermo Scientific 5030i SHARP User manual

Thermo Scientific

Thermo Scientific 3960 Operating instructions

Thermo Scientific

Thermo Scientific DensityPRO+ User manual

Thermo Scientific

Thermo Scientific Sorvall Legend Micro 21R User manual

Thermo Scientific

Thermo Scientific Dionex Easion User manual

Thermo Scientific

Thermo Scientific Medifuge User manual

Thermo Scientific

Thermo Scientific Compact Digital MicroPlate Shaker User manual

Thermo Scientific

Thermo Scientific 88882005 User manual

Thermo Scientific

Thermo Scientific RC 12BP Plus User manual

Thermo Scientific

Thermo Scientific Forma 8602 Operating instructions

Thermo Scientific

Thermo Scientific iCAP Qnova Series User manual

Thermo Scientific

Thermo Scientific Locator Jr User manual

Thermo Scientific

Thermo Scientific Shandon TissueWave 2 Manual

Thermo Scientific

Thermo Scientific Ion Torrent S5 User manual

Thermo Scientific

Thermo Scientific Multidrop 384 User manual

Popular Laboratory Equipment manuals by other brands

Qiagen

Qiagen DML 3000 user manual

Queensgate

Queensgate NANOSCAN OP400 Quick start instructions

Conviron

Conviron GEN1000-GE Operator's manual

Parr Instrument

Parr Instrument 4560 Operating instructions manual

IKA

IKA IC control operating instructions

Integra

Integra DOSE IT operating instructions

Agilent Technologies

Agilent Technologies 5800 ICP-OES user guide

Endress+Hauser

Endress+Hauser Cleanfit CPA875 operating instructions

NI PXI-5422 CALIBRATION PROCEDURE

Collomix

Collomix Aqix operating instructions

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series operating manual

Ocean Insight

Ocean Insight FLAME-NIR+ Installation and operation manual

Parker

Parker ALIGN-MG-NA Installation, operation and maintenance manual

BD 644787 user guide

DENTAURUM

DENTAURUM Compact Megaplus Instructions for use

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 instruction manual

VWR

VWR SAS Super IAQ instruction manual

illumina

illumina MiSeqDx reference guide
