Thermo Scientific Forma 416 Operating instructions

Model 416 and 430

Forma Orbital Shakers*

Operating and Maintenance Manual 7000416 Rev. 5

Thermo ScientificThermo Scientific

MANUAL NUMBER 7000416

-- -- 8/29/07 Clarified start-up platform use ccs

5 22245/OS-284 3/25/04 Updated timer periods to 5 minute increments ccs

-- OS-279 2/19/04 Added unit specific electrical schematic, no Model 4500 Series ccs

4 20195 7/5/01 Updated EMC Standard aks

-- 19406/OS-224 11/22/00 Added note for QI Kit 194012 Counterweight w/ 24” x 36” platform ccs

3 19305/OS-217 10/9/00 Added Platform Stalled and Check Fuse alarm messages ccs

-- 18782/OS-197 12/10/99 Updated shipping bracket artwork ccs

2 18544/OS-202 10/27/99 Add power fail time delay, chg Check Belt alarm message clear ccs

REV ECR/ECN DATE DESCRIPTION By

Preface

Orbital Shakers i

* Triple counter-balanced, single eccentric drive mechanism (U. S. Patent #5,558,437)

* Test tube rack (U. S. Patent #5,632,388)

Warning Use Model 416/430 Orbital Shaker to process non-flammable

materials only. ▲

Caution Grounding circuit continuity is vital for the safe operation of this

shaker. Never operate the unit with the grounding conductor

disconnected. ▲

Thermo Scientificii Orbital Shakers Thermo Scientific

Preface

Important Read this instruction manual. Failure to read, understand and follow the instructions in this manual

may result in damage to the unit, injury to operating personnel, and poor equipment performance. ▲

Caution All internal adjustments and maintenance must be performed by qualified service personnel. ▲

Material in this manual is for information purposes only. The contents and the product it describes are subject to

change without notice. Thermo Scientific makes no representations or warranties with respect to this manual. In

no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to the use of

this manual.

Thermo Scientific Orbital Shakers iiiThermo Scientific

Preface

Important operating and/or maintenance instructions. Read the accompanying text carefully.

Potential electrical hazards. Only qualified persons should perform procedures associated with this

symbol.

Equipment being maintained or serviced must be turned off and locked off to prevent possible injury.

Marking of electrical and electronic equipment, which applies to electrical and electronic equipment

falling under the Directive 2002/96/EC (WEEE) and the equipment that has been put on the market

after 13 August 2005.

This product is required to comply with the European Union’s Waste Electrical & Electronic

Equipment (WEEE) Directive 2002/96/EC. It is marked with the WEEE symbol. Thermo Scientific

has contracted with one or more recycling/disposal companies in each EU Member State European

Country, and this product should be disposed of or recycled through them. Further information on

Thermo’s compliance with this directive, the recyclers in your country and information on Thermo

products will be available at www.thermofisher.com.

✔Always use the proper protective equipment (clothing, gloves, goggles, etc.)

✔Always dissipate extreme cold or heat and wear protective clothing.

✔Always follow good hygiene practices.

✔Each individual is responsible for his or her own safety.

Thermo Scientificiv Orbital Shakers Thermo Scientific

Preface

Do You Need Information or Assistance on

Thermo Scientific Products?

If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:

1-740-373-4763 Direct

1-888-213-1790 Toll Free, U.S. and Canada

1-740-373-4189 FAX

http://www.thermo.com Internet Worldwide Web Home Page

Service E-Mail Address

Thermo Scientific

Controlled Environment Equipment

401 Millcreek Road, Box 649

Marietta, OH 45750

Our staff can provide information on pricing and give you quotations. We can

take your order and provide delivery information on major equipment items or make

arrangements to have your local sales representative contact you. Our products are listed on the

Internet and we can be contacted through our Internet home page.

Our staff can supply technical information about proper setup, operation or

troubleshooting of your equipment. We can fill your needs for spare or replacement parts or

provide you with on-site service. We can also provide you with a quotation on our Extended

Warranty for your Thermo Scientific products.

Whatever Thermo Scientific products you need or use, we will be happy to discuss your

applications. If you are experiencing technical problems, working together, we will help you

locate the problem and, chances are, correct it yourself...over the telephone without a service

call.

When more extensive service is necessary, we will assist you with direct factory trained

technicians or a qualified service organization for on-the-spot repair. If your service need is

covered by the warranty, we will arrange for the unit to be repaired at our expense and to your

satisfaction.

Regardless of your needs, our professional telephone technicians are available to assist you

Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by

telephone or fax. If you wish to write, our mailing address is:

International customers, please contact your local Thermo Scientific distributor.

Sales Support

Service Support

service.led.marietta@thermofisher.com

Orbital Shakers vThermo Scientific

Table of Contents

Installation and Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

Removing Pallet Shipping Brackets . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Install the Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Removing Shipping Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Installing the Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3

Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

Assembling the Flask Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

Installing the Flask Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Installing the Test Tubes Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

RS-232 Interface Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9

Connecting the Remote Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Optional Temperature Monitor Kit . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Control Panel Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

Quick Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

Factory (Default) Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

Change Shaker Speed & Time Settings . . . . . . . . . . . . . . . . . . . . . . .2-4

Changing the RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

Changing Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

Changing from Hold to Countdown . . . . . . . . . . . . . . . . . . . . . . .2-5

Shaker Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6

Cycle Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6

Power Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7

RPM Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7

Check Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7

Platform Stalled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8

Check Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8

Turning Audible Alarm Off and On . . . . . . . . . . . . . . . . . . . . . . . . .2-8

Calibrating the Shaker Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-10

Calibrating Optional Temperature Probe . . . . . . . . . . . . . . . . . . . . .2-11

Setting the Remote Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11

Cycle Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-12

Power Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-12

RPM Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-13

Check Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-13

Viewing the Total Operating Hours . . . . . . . . . . . . . . . . . . . . . . . . .2-13

Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-14

Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-15

Section 1

Section 2

vi Orbital Shakers Thermo Scientific

Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-16

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Cleaning a Spill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

Alarms and Alarm Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

General Fault Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

Adjusting Drive V-Belt Tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

Installing a New Drive V-Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3

Spare Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4

Cleaning Inside the Cabinet (Major Spill) . . . . . . . . . . . . . . . . . . . .4-4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1

Electrical Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1

Table of Contents

Section 3

Section 4

Section 5

Section 6

Section 8

Section 7

Section 9

Orbital Shakers 1-1Thermo Scientific

Removing Pallet

Shipping Brackets

Section 1 Installation and Start-Up

Models 416 and 430 Orbital Incubator Shakers are supplied with the

following materials:

1 - T-handle 5/32” hex socket wrench

2 - Platform alignment studs 1/4-20

6 - Grade 8, 5/32” hex socket flat head screws (provided w/ platform)

1 - Screwdriver for flask clip installation and removal

1 - Line cord set

Warning This shaker is heavy! The weight of the Model 416/430 is 138

lbs. (62.7kg). Place this unit on a support surface which will accommodate

the weight and operating motion of this shaker. Have assistance available

when moving it. ▲

Figure 1-1. Front View

The Orbital Shaker is secured to its shipping pallet with two brackets, one

on each side of the frame. Remove these brackets when the unit is

unpacked by unhooking them from the shaker frame.

Figure 1-2. Pallet Shipping Bracket

1-2 Orbital Shakers Thermo Scientific

Section 1

Installation and Start-Up

Removing Shipping

Bracket

Install the shaker on a sturdy table or bench. The support structure must

be able to accommodate both the weight and operating motion of the

shaker. The shaker can also be placed under a bench or in a “knee well.”

Note If your platform is already installed, skip this section and continue

to next section. s

Caution Remove the shipping bracket and install the shaker platform

before plugging in or attempting to operate the unit. ▲

After removing the orbital mechanism

shipping bracket and installing the

platform, remove this protective decal from

the control panel to begin shaker operation.

Figure 1-3. Orbital Mechanism Shipping Bracket

To protect the shaker’s orbital mechanism during shipment, a sheet metal

shipping bracket is installed and must be removed before the unit can be

operated. Using a 7/16” and 9/16” hex wrench, remove the three 1/4”

and the single 3/8” screws. Retain this hardware for future shipping.

Location

Install the Platform

Orbital Shakers 1-3Thermo Scientific

Section 1

Installation and Start-Up

This shaker accommodates either a 5/16” heavy-duty, 18” x 18” platform

or a 24” x 18” platform.

Note If installing the larger platform, RPM is limited to 400. The 194012

counterweight kit must also be installed by qualified service personnel. ▲

All shaker platforms are attached to their orbital mechanisms with six 1/4-

20 hex socket flat head screws. These screws are hardened and should not

be exchanged with any other screw type. The 5/32” hex socket wrench

included with the shaker must be used when attaching the platform. Refer

to Figure 1-4.

Caution Do not attempt to use a Phillips head screwdriver. ▲

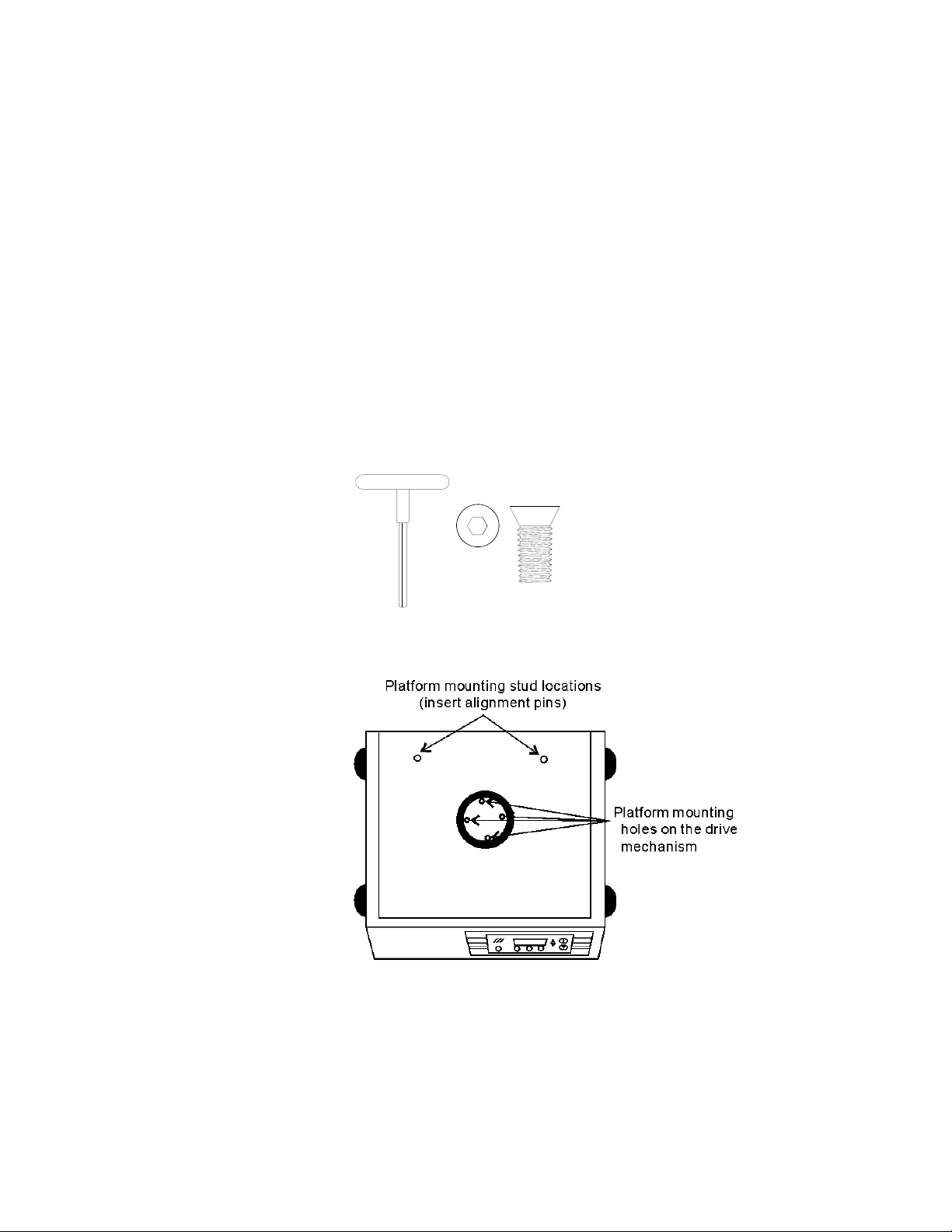

Figure 1-4. T-Handle Wrench and Hex Socket Head Screw

Figure 1-5. Platform Mounting Holes and Alignment Pin

Installing the Platform

This manual suits for next models

Table of contents

Other Thermo Scientific Laboratory Equipment manuals

Thermo Scientific

Thermo Scientific PrintMate A79510100 Manual

Thermo Scientific

Thermo Scientific ProPac SCX-20 User manual

Thermo Scientific

Thermo Scientific Heraeus Megafuge 8 User manual

Thermo Scientific

Thermo Scientific EX-111 Manual

Thermo Scientific

Thermo Scientific FT 6060 User manual

Thermo Scientific

Thermo Scientific Heraeus Multifuge X1 User manual

Thermo Scientific

Thermo Scientific Dionex Integrion HPIC Manual

Thermo Scientific

Thermo Scientific TRACE GC Ultra User manual

Thermo Scientific

Thermo Scientific Sorvall RC-4 User manual

Thermo Scientific

Thermo Scientific 1300 Series User manual

Thermo Scientific

Thermo Scientific Varioskan User manual

Thermo Scientific

Thermo Scientific 678 Series User manual

Thermo Scientific

Thermo Scientific BioCane CK50900 Series User manual

Thermo Scientific

Thermo Scientific Partisol 2025i User manual

Thermo Scientific

Thermo Scientific Thermo Scientific HyPerforma User manual

Thermo Scientific

Thermo Scientific NanoDrop One User manual

Thermo Scientific

Thermo Scientific A 40B User manual

Thermo Scientific

Thermo Scientific NESLAB EX Series General instructions

Thermo Scientific

Thermo Scientific WAE 32-OSD User manual

Thermo Scientific

Thermo Scientific KingFisher Presto User manual

Thermo Scientific

Thermo Scientific HPS RT2 Advanced User manual

Thermo Scientific

Thermo Scientific Heraeus Megafuge 16 Centrifuge User manual

Thermo Scientific

Thermo Scientific Matrix 1029 User manual

Thermo Scientific

Thermo Scientific NanoDrop Lite Plus User manual

Popular Laboratory Equipment manuals by other brands

Qiagen

Qiagen DML 3000 user manual

Queensgate

Queensgate NANOSCAN OP400 Quick start instructions

Conviron

Conviron GEN1000-GE Operator's manual

Parr Instrument

Parr Instrument 4560 Operating instructions manual

IKA

IKA IC control operating instructions

Integra

Integra DOSE IT operating instructions

Agilent Technologies

Agilent Technologies 5800 ICP-OES user guide

Endress+Hauser

Endress+Hauser Cleanfit CPA875 operating instructions

NI PXI-5422 CALIBRATION PROCEDURE

Collomix

Collomix Aqix operating instructions

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series operating manual

Ocean Insight

Ocean Insight FLAME-NIR+ Installation and operation manual

Parker

Parker ALIGN-MG-NA Installation, operation and maintenance manual

BD 644787 user guide

DENTAURUM

DENTAURUM Compact Megaplus Instructions for use

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 instruction manual

VWR

VWR SAS Super IAQ instruction manual

illumina

illumina MiSeqDx reference guide
