A programmable room thermostat is both a programmer and a room thermostat.

A programmer allows you to set “On” and “Off” periods to suit your own lifestyle.

A room thermostat works by sensing the air temperature, switching on the

heating when the air temperature falls below the thermostat setting, and

switching it off once this set temperature has been reached.

So a programmable room thermostat lets you choose what times you want the

heating to be on, and what temperature it should reach while it is on. It will allow

you to select different temperatures in your home at different times of the day

(and days of the week) to meet your particular needs and preferences.

Setting a programmable room thermostat to a higher temperature will not make

the room heat up any faster. How quickly the room heats up depends on the

design and size of the heating system.

Similarly reducing the temperature setting does not affect how quickly the room

cools down. Setting a programmable room thermostat to a lower temperature will

result in the room being controlled at a lower temperature, and saves energy.

The way to set and use your programmable room thermostat is to find the lowest

temperature settings that you are comfortable with at the different times you

have chosen, and then leave it alone to do its job.

The best way to do this is to set the room thermostat to a low temperature – say

18°C, and then turn it up by 1°C each day until you are comfortable with the

temperature. You won’t have to adjust the thermostat further. Any adjustment

above this setting will waste energy and cost you more money.

You are able to temporarily adjust the heating program by overriding or using the

temperature hold feature. These features are explained further on pages 17 and

18 of this manual.

Programmable room thermostats need a free flow of air to sense the

temperature, so they must not be covered by curtains or blocked by furniture.

Nearby electric fires, televisions, wall or table lamps may also prevent the

thermostat from working properly.

What is a programmable

room thermostat?

This therM stat is designed to be flush mounted and requires a back box of

35mm (minimum depth) to be sunk into the wall prior to installation.

Step 1 - Remove the screw from the bottom face of the thermostat then carefully

separate the front half from the back plate.

Step 2 - Place the thermostat front somewhere safe.

Terminate the thermostat as shown in the diagrams on pages 28-31 of this booklet.

Note: For time clock wiring connections, terminate as shown on page 38.

Step 3 - Screw the thermostat back plate securely into the back box.

Step 4 - Clip the front of the thermostat onto the back plate, securing it in place with

the retaining screw.

Mount the thermostat at eye level.

Read the instructions fully so you get the best from our product.

Don’t

Do not install near to a direct heat source as this will affect functionality.

Do not push hard on the LCD screen as this may cause irreparable damage.

3 4

Installation Procedure

This therM stat can either be used as a thermostat or a time clock.

Thermostat mode is the default setting.

To change between thermostat or time clock modes, follow these steps.

• Use the Left / Right keys to scroll to SETUP ...........................................

• Press and hold the Tick button for 10 seconds .......................................

• Use the Left / Right keys to scroll between modes ..................................

Mode 1 = Thermostat

Mode 2 = Time Clock

Note: the selected option will flash.

• Press the Tick key to confirm selection ...................................................

The therM stat will revert to the main display screen for the selected mode.

For time clock mode instructions, first pair the time clock with the therM hub as

explained on page 8, then turn to page 33.

• The next step is to join the therM stat to the therM hub, we recommend joining

the therM stat located nearest to the therM hub first.

• To add a therM stat, follow these steps;

• Select Add Zone, enter a zone title and press Add Zone again.

• You now have two minutes to join the therM stat to the therM hub.

• On the therM stat, use the Left / Right keys to select SETUP

and press Tick .......................................................................................

• Feature 01 is displayed on screen.

• Press the Tick key to pair the therM stat to the therM hub ......................

• The MESH symbol appears flashing on the display.

To pair the therM hub with the therM app, follow these steps.

• Connect the power supply to the therM hub.

• Connect the therM hub to your router with the Ethernet cable provided.

The router will automatically assign an IP address to the therM hub, the Link

LED will light up once the therM hub has connected to your network.

• Download the FREE therM app from the Apple App Store, Google Play Store,

Amazon App Store or Windows Phone App Store and register an account.

• Once you have registered your account, press the Login button then press the

Add Location option.

•

Press the connect button on the therM hub to add the location to your account.

• When successfully connected, enter a title for the new location (e.g. Home) and

configure the time zone for the system.

Mode Select Pairing the therM hub

Pairing the therM stat

therM stats work using a mesh network, meaning therM stats have the ability to send

and receive signals via other thermostats on the network. This signal is relayed from

one thermostat to another until it reaches its destination. This communication method

extends the communication range whilst offering increased network stability when

compared with standard RF thermostats.

The Mesh symbol is shown when the device is communicating with the therM hub, if

the mesh symbol disappears this indicates connection to the therM hub has been lost.

therM stats have a cooling control feature option.

Cooling mode must be initially enabled within the thermostat feature menu.

Cooling can only be activated from the therM app or therM chill.

When in cooling mode the therM stat will constantly maintain the cool set temp.

If the cooling feature is disabled, the thermostat doesn’t have a cool set temp and

therefore doesn’t provide cooling control.

• When the therM stat successfully connects to the therM hub the MESH symbol

will be permanently displayed.

• Press Next to add more zone or press Finish to complete the setup.

Please note, you only have to pair the hub to your account once. To pair any additional

therM stats, select Add Zones from the Manage Zones option in the therM app.

What is a Mesh Network

Cooling Explained

Mode 1 - Thermostat

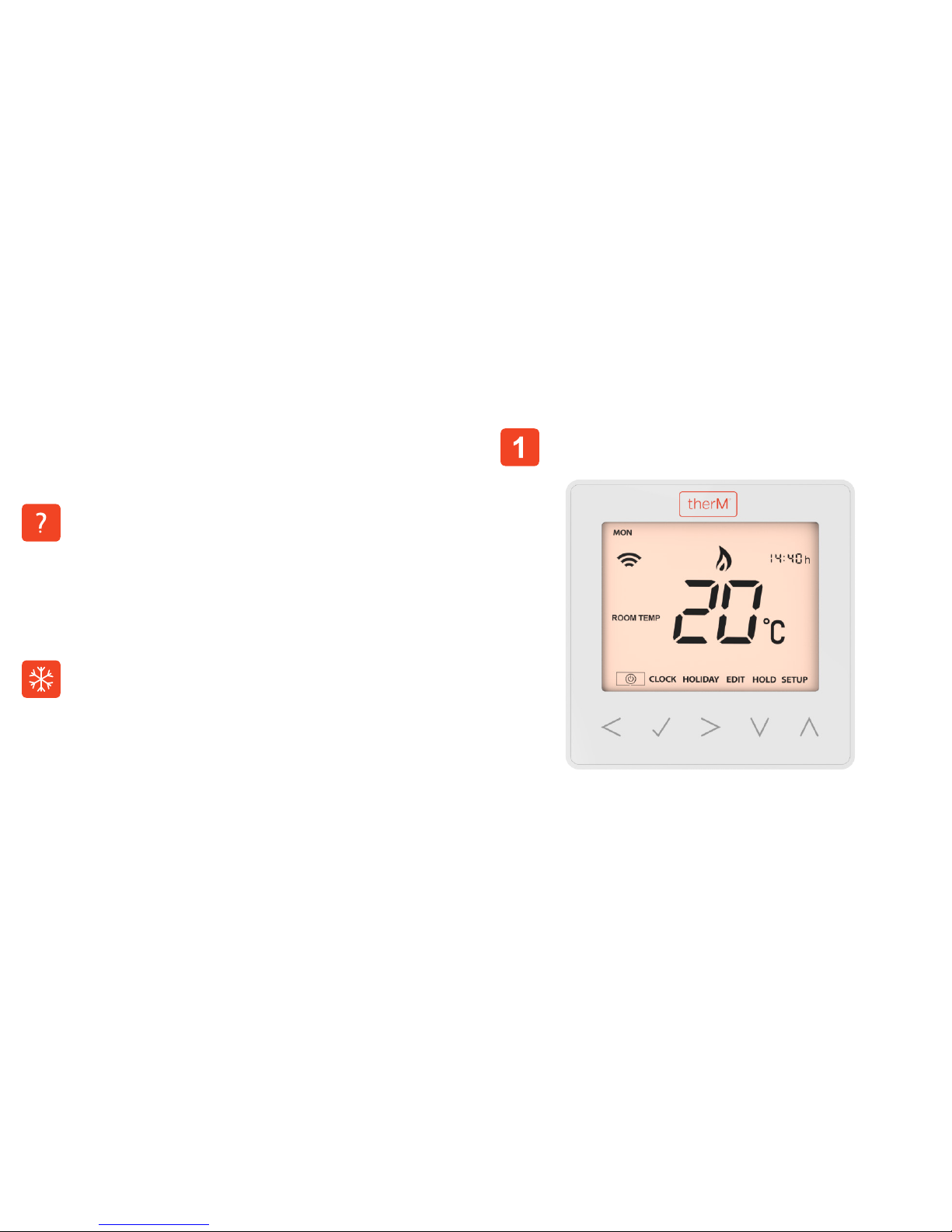

1. Day Indicator - Displays the day of the week.

2. Mesh Symbol - Displayed when connected to the therM hub.

3. Floor Limit Symbol - Displayed when the floor probe has reached the

temperature limit set on feature 07.

4. Frost Symbol - Displayed when frost protection mode is active.

5. Flame Symbol - Displayed when the thermostat is calling for heat, flashes when

optimum start is active.

6. Heat/Cool - Indicates the current operation mode, only shown when therM chill

is connected to the system.

7. Floor/Room Temp - Indicates the current sensor mode.

8. Set - Displayed when changes are being made to the program schedule or

current set point.

9. Key Lock Indicator - Displayed when the KeyLock is Locked.

10. Program Indicator - Displayed during programming to show which period is

being altered.

11. Main Menu - Displays which option is currently selected.

12. Temperature Format - Degrees Celsius or Fahrenheit.

13. Temperature - Displays the current sensor temperature.

14. Cool On - Displayed when cooling is active.

15. Clock - Time displayed in 24 hour format.

16. Holiday Left - Displayed when the thermostat is in holiday mode.

17. Hold Left - Displayed when a temperature hold is active, the remaining time

will be shown.

231 4

614

LCD Display

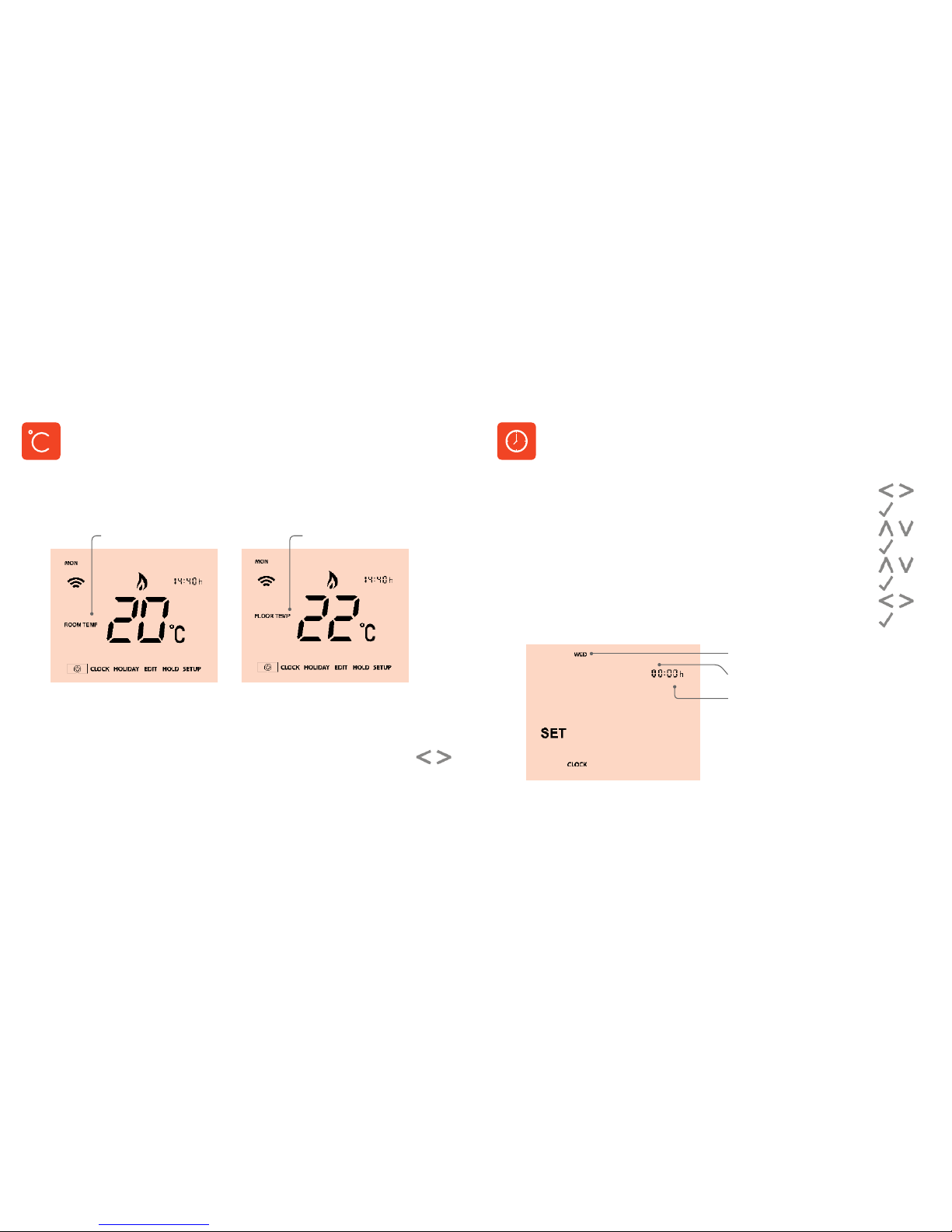

This therM stat can be configured for different sensor options such as built in air

sensor, floor sensor or both. The display will clearly indicate which sensor is being

used by showing either “Room Temp” or “Floor Temp” before the actual temperature

value.

When the therM stat is set to use both the air & the floor sensor, the room temperature

will be displayed by default.

To view the current floor temperature, press and hold the Left and Right arrow

keys for 5 seconds, the floor temperature will then be displayed .......................

To set the clock, follow these steps.

• Use the Left / Right keys to scroll to CLOCK .......................................

• Press Tick to confirm selection ..........................................................

• Use the Up / Down keys to set the hours (24 hour format) .................

• Press Tick to confirm selection ..........................................................

• Use Up / Down keys to set the minutes .............................................

• Press Tick to confirm selection ..........................................................

• Use Left / Right keys to set the the day ..............................................

• Press Tick to confirm selection and return to the main display ............

Day

Minutes

Room Temperature Floor Temperature

Hours

Temperature Display Setting The Clock

The therM stat offers three program mode options; Weekday/Weekend programming,

7 Day programming and 24 Hour programming. There is also the option to

use the thermostat as a Non-Programmable thermostat.

When thermostats are connected to the mesh network, the program mode for

the system is configured by using the therM app.

The thermostat is supplied with comfort levels already programmed, but these can be

changed easily. The default times and temperature settings are;

07:00 - 21°C (Wake) 09:00 - 16°C (Leave)

16:00 - 21°C (Return) 22:00 - 16°C (Sleep)

If you only want to use 2 levels, you should program the unused levels to --:--

For Weekday/Weekend programming, the four comfort levels are the same for Mon-Fri,

but can be different for Sat-Sun. For 7 Day programming each day of the week can have

four different comfort levels. In 24 Hour mode all days are programmed with the same

comfort levels.

• To program the comfort levels, use the Left / Right keys to scroll to EDIT ......

• Press Tick to confirm selection ....................................................................

• Use the Left / Right keys to select day / period of week

(the selection will flash) ..............................................................................

• Press Tick to confirm selection ..............................................................

• WAKE will now flash and the current time and temperature setting will be shown.

• Press Tick to alter WAKE settings ...........................................................

• Use the Up / Down keys to set the hours ...............................................

• Press Tick to confirm ............................................................................

• Use the Up / Down keys to set the minutes ...........................................

• Press Tick to confirm ............................................................................

• Use the Up / Down keys to set the temperature ....................................

• Press Tick to confirm the settings .........................................................

• Press the right arrow key .....................................................................

• LEAVE will now flash and the current settings will be displayed.

• Press Tick to alter LEAVE settings .........................................................

• Repeat these steps to set all comfort levels.

• For any unused periods set time to --:--

• Use the Left / Right keys to scroll to DONE and press Tick .....................

Comfort Levels Explained

The Up / Down keys allow you to adjust the set temperature ........................

When you press either key, you will see the word SET and the desired

temperature value. Use the Up / Down keys to adjust the SET value ............

Press Tick to confirm settings and return to the main display .......................

The temperature hold function allows you to manually override the current operating

program and set a different temperature for a desired period.

• Use the Left / Right keys to scroll to HOLD ........................................

• Press Tick to confirm selection ...........................................................

• Use the Up / Down keys to set the desired Hold period ......................

• Press Tick to confirm selection ...........................................................

• Use the Up / Down keys to set the desired Hold temperature .............

• Press Tick to confirm selection ...........................................................

You will see the HOLD LEFT indication is displayed on screen.

The time will countdown the set duration and then revert to the normal program.

To cancel a temperature Hold, repeat these steps but reduce the Hold time to 00:00 hrs

HOLD LEFT Indicator

Hold Time Remaining

Note: This new temperature is maintained only until the next programmed comfort

level. At this time, the thermostat will revert back to the programmed levels.

Set Temperature

Set Icon

Temperature Control Temperature Hold

Table of contents

Other therM Thermostat manuals

therM

therM TH01TS User manual

Popular Thermostat manuals by other brands

EWELLY

EWELLY EW-181 manual

Prolon

Prolon T1100 Hardware guide

Computherm

Computherm Q20 operating instructions

Heatmiser

Heatmiser neoStat user manual

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA user manual

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat user manual

Saswell

Saswell SAS920XWHB-7-S-RF User manual and warranty card

Aircalo

Aircalo TFP1-ET85P2 operating manual

Honeywell

Honeywell CM721 user manual

Carrier

Carrier DEBONAIR 33CS Installation and operating instructions

Lennox

Lennox iHarmony Zone Thermostat Installation and setup guide

Gemtech

Gemtech GT7000 Operation

Rollei

Rollei Smartes 45000 manual

Sinope

Sinope TH1300RF user guide

Honeywell

Honeywell RLV4305 owner's guide

Honeywell

Honeywell Prestige 2.0 THX9421 manual

NuTone

NuTone NTBZ48 Installation & operation guide

Stelpro

Stelpro MAESTRO ASMT402AD user guide

therM Stat User manual

Popular Thermostat manuals by other brands
