WASHER
DRYER
WW85360M
User Manual
SRBENG BiH/
CG
2
ENG
SAFETY INSTRUCTIONS
For your safety,the information in this manual must
be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage,
personal injury or loss of life.
Explanation of the symbols:
WARNING!
This combination of symbol and signal word
indicates a potentially dangerous situation which
may result in death or serious injuries unless it’s
avoided.
CAUTION!
This combination of symbol and signal word
indicates a potentially dangerous situation which
may result in slight or minor injuries or damage to
property and the environment.
NOTE
This combination of symbol and signal word
indicates a potentially dangerous situation which
may result in slight or minor injuries.
WARNING!
The electric shock!
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.
• The new hose-sets supplied with the appliance
are to be used and that old hose-sets should not
be reused.
• Before any maintenance the device, unplug the
appliance from the mains.
• Always unplug the machine and turn off the water
supply after use. The max. inlet water pressure, in
pascals. The min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be
inserted into an earthed three-pole socket.
Check carefully and make sure that your socket is
properly and reliably earthed.
• Make sure that the water and electrical devices
must be connected by a qualified technician in
accordance with the manufacturer’s instructions
and local safety regulations.
Risk to children!
• EN countries: the appliance can be used by
children aged from 8 years and above and
persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge
if they have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
should not play with the appliance. Cleaning
and user maintenance should not be made by
children without supervision.
• Children of less than 3 years should be
supervised to ensure that they do not play with
appliance.
• Animals and children could climb into the
machine. Check the machine before every
operation.
• Kids should be supervised so that they do not
play with the appliance.
• Glass door may be very hot during the operation.
Keep kids and pets far away from the machine
during the operation very wet rooms as well as in
the rooms with explosive or caustic gas.
• Remove all packages and transport bolts before
using the appliance. Otherwise, serious damage
may result.
• Plug must be accessible after installation.
Risk of explosion!
• Do not wash or dry articles that have been
cleaned in, washed in, soaked in, or dabbed with
combustible or explosive substances( such as
wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) This may result in fire or
explosion.
• Before hand thoroughly rinse items of washing
by hand.
CAUTION!
Installing the product!
• This appliance is for indoor use only.
• It isn’t intended to be built-in using.
• The openings must not be obstructed by a
carpet.
• The appliance should not be installed in bath
room or very wet rooms as well as in the rooms
with explosive or caustic gases.
• The appliance with single inlet valve only can
be connected to the cold water supply. The
appliance with double inlet valves should be
correctly connected to the hot water and cold
water supply.
• Plug must be accessible after installation.
• Remove all packages and transport bolts before
using the appliance. Otherwise, serious damage
may result.
Risk of damaging appliance!
• This product is only for home use and is only
designed for the textiles suitable for machine
washing and drying.
• Do not climb up and sit on top cover of the
machine.
• Do not lean against machine door.
3
ENG
• Cautions during Handling Machine:
1. Transport bolts shall be reinstalled to the
machine by a specialized person.
2. The accumulated water shall be drained out of
the machine.
3. Handle the machine carefully. Never hold
each protruded part on the machine while lifting.
Machine door can not be used as the handle
during the conveyance.
4. This appliance is heavy. Transport with care.
• Please do not close the door with excessive
forces. If it is found difficult to close the door,
please check if the clothes are put in or
distributed well.
• It is forbidden to wash carpets.
Operating the appliance!
• Before washing the clothes at first time, the
product should be operated in one round of the
whole procedures without the clothes inside.
• Flammable and explosive or toxic solvents are
forbidden. Gasoline and alcohol etc. Should
not be used as detergents. Please only select
the detergents suitable for machine washing,
especially for drum.
• Make sure that all pockets are emptied. Sharp
and rigid items such as coins, brooch, nails,
screws, stones etc. may cause serious damages to
this machine.
• Please check whether the water inside the drum
has been drained before opening its door. Please
do not open the door if there is any water visible.
• Be careful of burning when the product drains
hot washing water.
• After the program is completed, Please wait for
two minutes to open the door (Some model).
• Never refill the water by hand during washing.
Packaging/Old appliance
This marking indicates that this product should
not be disposed with other household wastes
throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return
your used device, please use the collection systems
or contact the retailer where the product was
purchased. They return and can take this product for
environmentally safe recycling.
4
ENG
INSTALLATION
Product Description
Top cover
Water supply hose
Detergent dispenser
Door
Control panel
Power supply cord
Drain hose
Service filter
Drum
Accessories
Transport hole plug Supply hose
cold water
Supply hose hot
water (optional)
Drain hose support
(optional)
Owner’s manual
Installation area
WARNING!
• Stability is important to prevent the product from
wandering!
• Make sure that the product should not stand on the
power cord.
w
w
W>20mm
The product line chart is for reference only, please refer to real product as standard.
NOTE
5
ENG
Before installing the machine, the location characterized as
follows shall be selected:
1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation
4. Room temperature is above 0°C
5. Keep far away from the heat resources such as coal or gas.
Unpacking the washer dryer
WARNING!
• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.
1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packing. Make sure the small triangle foam is removed with
the bottom one together. If not, lay the unit down with side surface, then remove the small foam from the
unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Remove transport bolts
WARNING!
• You must remove the transport bolts from the backside before using the product.
• You’ll need the transport bolts again if you move the product , so make sure you keep them in a safe place
Please take the following steps to remove the bolts:
1. Loosen 4 bolts with spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.
Levelling the washer dryer
WARNING!
• The lock nuts on all four feet must be screwed tightly against the housing.
1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions
tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the floor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady.
1234
Raise Lower
Foot
Lock nut
6
ENG

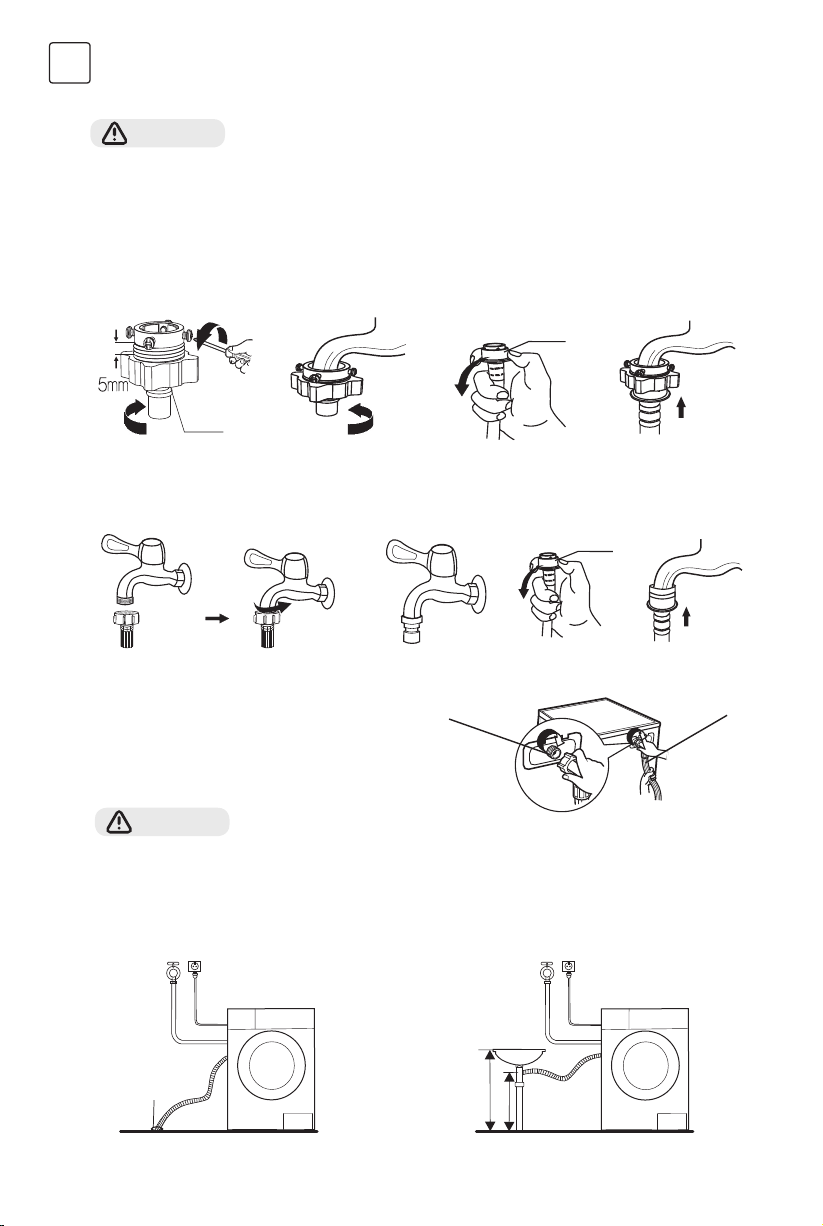

Connect Water Supply Hose
WARNING!
• To prevent leakage or water damage, follow the instructions in this chapter!
• Do not kink, crush, modify or sever water inlet hose.
• For the model equips hot valve,connect it to hot water tap with hot water supply hose. Energy
consumption will decrease automatically for some program.
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1. Connection between ordinary tap and inlet hose.
2. Connection between screw tap and inlet hose.
1234
Slide bushing
Slide bushing
Clamp nut
Loosen clamp nut and
four bolts
Tap with threads and inlet hose Special tap for washing machine
Press slide bushing insert inlet
hose into connecting base
Tighten clamp nut Connection finished
Min.60cm
100cm
Max.
Connect the other end of inlet pipe to the inlet
valve at the backside of product and fasten the
pipe tightly clockwise.
Drain Hose
WARNING!
• Do not kink or protract the drain hose.
• Position drain hose properly ,otherwise damage might result of water leakage.
There are two ways to place the end of drain hose:
1. Put the hose into the water drain 2. Connect it to a drain pipe.
Water Inlet valve
Water drain
Water supply hose
7

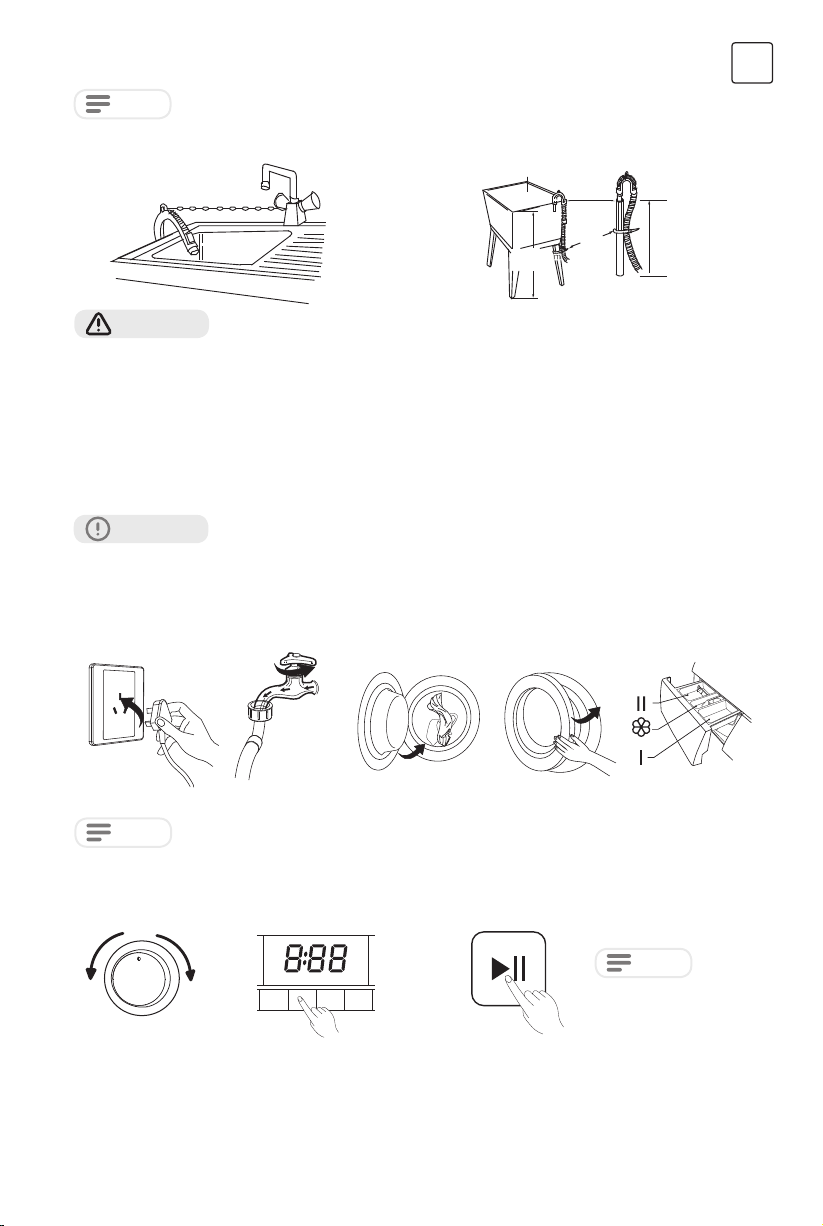

ENG
WARNING!
• When installing drain hose, fix it properly with a rope.
• If drain hose is too long, do not force it into washing machine as it will cause abnormal noises.
CAUTION!
• Before washing, please make sure it’s installed properly.
• Before washing at first time, the washing machine shall be operated in one round of the whole procedures
without clothes in as follows.
1. Before Washing
Hose
Retainer
NOTE
• Detergent need to be added in “case I“ after selecting pre-washing for machines with this function.
If default is selected,
step 2 can be
skipped.
2. Washing
Max.100c
Min.60cm
Mi n . 6 0 c m
Ma x . 1 0 0 c m
Drain
Bind
OPERATIONS
Quick Start
Plug in
Select function or defaultSelect program Start up
Open tap Load Close door Add detergent
Main
wash
Softener
Prewash
NOTE
• If the machine has drain hose support, please install it like the following.
NOTE
3. After Washing
“End” on display.
8
ENG
• The working condition of the washer should be (0-40)°C. If used under 0°C,the inlet valve and draining
system may be damaged. If the machine is placed under condition of 0°C or less, then it should be
transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen
before use.
• Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-
foaming detergent suitable for machine washing properly.
Prewash detergent
Main wash detergent
Softener

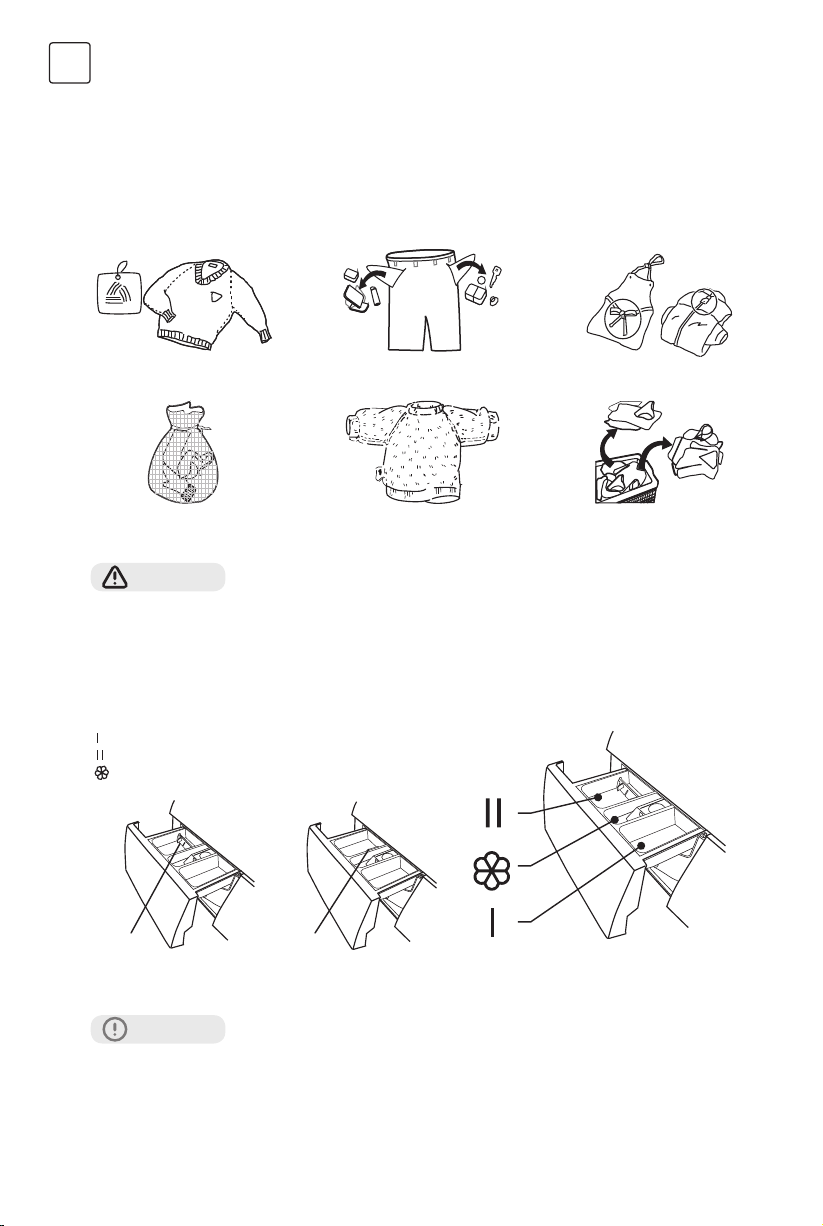

Before Each Washing
Detergent Dispenser
Check the label
Put small clothes into the pillow slip
Liquid detergent
Dam-board Dam-board
Powder detergent Pull out the dispenser
Take out the items out of the pockets
Turn easy-pilling and long-pile fabric
inside out
Knot the long strips, zip or button
Separate clothes with different textures
WARNING!
• When washing a single piece of clothing, it may easily cause great eccentricity and give an alarm due
to great unbalance.Therefore, it is suggested to add one or two more pieces of clothing to be washed
together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and other flammable materials.
CAUTION!
• Detergent only need to be added in “case I“ after selecting pre-washing for machines with this function.
9
ENG
Means must Means optional
Program
*Dry Only
*Synthetic
*Mix
*5kg W/D
*1Hour W/D
*Cotton
NOTE
• As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it
is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and
overflowing while filling water.
• Please choose suitable type of detergent for the various washing temperature to get the best washing
performance with less water and energy consumption
The chart is for reference only, Please refer to real product as standard.

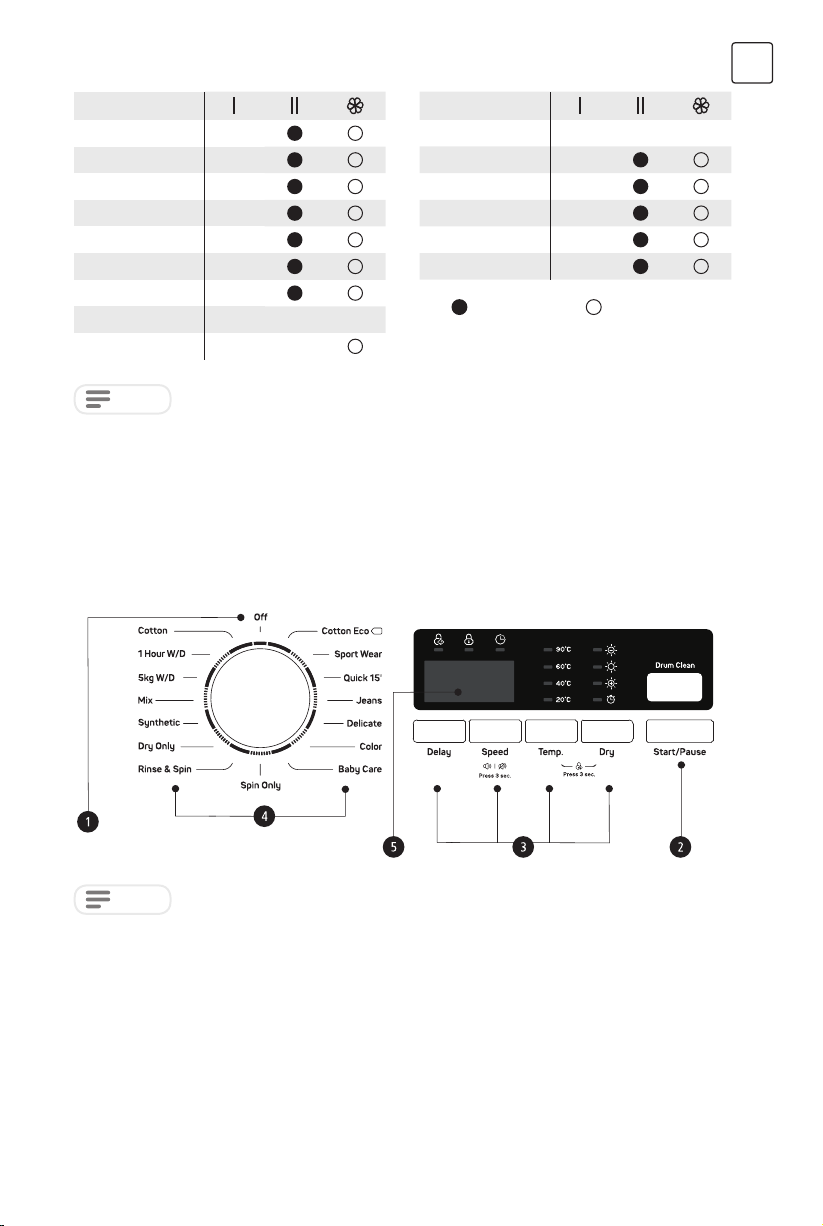

Control Panel
Program
Cotton Eco
Sport Wear
Quick 15’
Jeans
Delicate
Color
Baby Care
Spin Only
Rinse & Spin
NOTE
1. On/Off
Product is switched on or off.
2. Start/Pause
Press the button to start or pause the washing
cycle.
3. Option
This allows you to select an additional function
and will light when selected.
4. Programmes
Available according to the laundry type.
5. Display
The display shows the settings, estimated
time remaining, options, and status messages
for your washer. The display will remain on
through the cycle.
10
ENG
Option
ADisplay
Wash Time
Speed
End
Delay Time
Error
BChild Lock CDoor Lock
DDelay ETemp.
Dry
Choose the Programme Setting time Start
Delay
Set the Delay function:
1. Select a programme;
2. Press the Delay button to choose the time (the delaying time is 0-24 H);
3. Press [Start/Pause] to commence the delay operation
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before starting the programme.
If the programme already started, should switch off programme to reset a new one.
If there is any break in the power supply while the machine is operating, a special memory stores the selected
programme and when the power is restarted, the program will continue.
CAUTION!
Program Option
Delay
Cotton Eco
Sport Wear
Quick 15’
Jeans
Delicate
Color
Baby Care
Spin Only
Rinse & Spin
Program Option
Delay
*Dry Only
*Synthetic
*Mix
*5kg W/D
*1Hour W/D
*Cotton
Means optional
(Some models have intelligent weighing
function, please refer to the actual product)
Delay
Delay
Table of contents
Other Tesla Washer Dryer manuals
Popular Washer Dryer manuals by other brands
Whirlpool
Whirlpool WFC8090GX Use and care guide and installation instructions
Whirlpool
Whirlpool LTE5243DQ6 User instructions
Bosch
Bosch XQG100-WDU285H00W User manual and installation instructions
montpellier
montpellier MWD7512S Installation and operating instructions
LG
LG FHD0905 T Series owner's manual
Midea
Midea MF200D85B owner's manual
Maytag
Maytag MGT3800XW installation instructions
Siemens
Siemens WD15G440TR Instruction manual and installation instructions
Equator
Equator Clothes Processor EZ1500 owner's manual
Splendide
Splendide WDC7100XCP Specifications
John Lewis
John Lewis JLWD 1408 instruction manual
Ariston
Ariston A1200WD Instruction booklet
