TERAFLEX 1365000 User manual
Jeep JT 3.5” Spring Lift
www.TERAFLEX.com
1
Revision B 999376
Tools Needed:
- Metric Sockets and Open End Wrenches - Factory Service Manual
- Torque Wrench - General Mechanics Tools
Maintenance Note:
After the rst 300 miles and every 3,000 miles after that, re-torque all the suspension
components and bolts.
Important Notes:
Prior to beginning this install, or any installation, read the instructions thoroughly to familiarize yourself with
the required steps. Evaluate if you are experienced and capable to personally perform these modications.
A factory service manual should be used in conjunction with these installation instructions.
This product will change the highway handling characteristics of your vehicle, exercise caution. After
altering the suspension it is always advisable to have an alignment done by a competent 4 wheel drive
shop or by an alignment shop that is experienced with lifted 4 wheel drive vehicles.
Refer to the parts list to ensure that all necessary components and hardware has been included. If any
parts are missing please contact your local TeraFlex dealer for assistance.
# 1365000
# 2013000
# 2023000
# 2033000
www.TERAFLEX.com 2
Revision B 999376

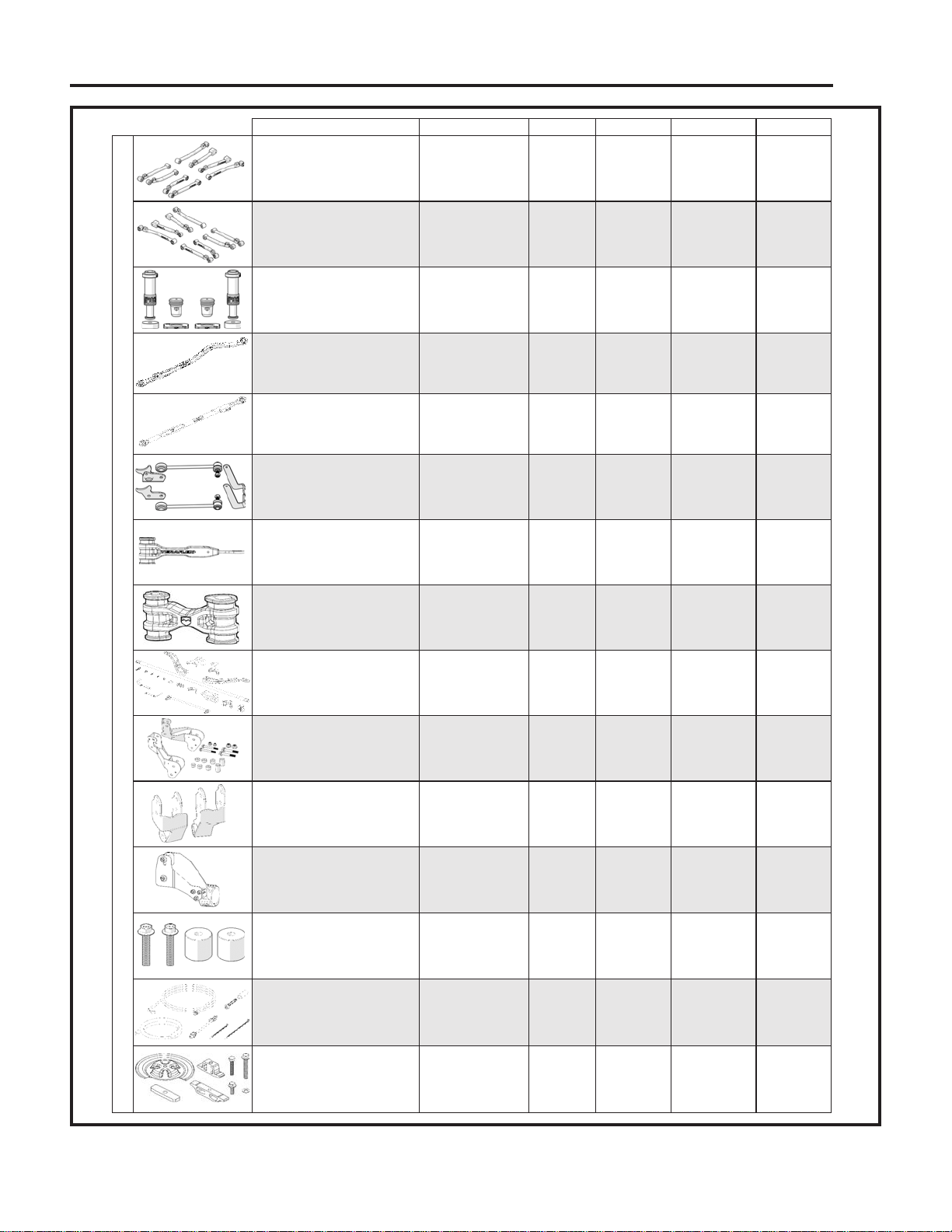

Description Item #
RT3 Alpine CT3 Sport ST3 Base Lift
Front Spring 02-21-401-400-1 2 2 2 2
Rear Spring 02-23-401-150-1 2 2 2 2
Front Bumpstops 12-01-109-200 - 2 2 2
Front Bumpstop Spacer 12-02-109-050 - 4 4 4
Rear Top Bumpstop
Spacers 1.5" 12-01-309-150 2 2 2 2
Rear Top Bumpstop
Spacer Rings .5" 12-01-309-050 2 2 2 2
Rear Bumpstop Spacers 12-02-309-050 4 4 4 2
Front Track Bar Bracket 1953250 1 1 1 1
Front Swaybar link 11.50" 21-01-001-115 - - - 2
Rear Swaybar Link 13.0" 21-01-001-130 - - - 2
M10 x 30mm OD
Flat Washer 45-10-003-003 4 4 4 4
M10 X 1.50 X 70mm
Hex Head Bolt 45-21-001-001 2 2 2 2
M10 x 1.5 Fuji Nut 23-07-03-001 2 2 2 2
M10 x 1.5 x 100mm
Flat Socket Cap Screw 45-04-003-001 - 2 2 2
M8 x 1.25mm
Yellow Zinc Fuji Nut 23-07-03-002 - 4 4 4
M8 x 1.25 x 30mm
Hex Flange Bolt 45-02-003-016 4 4 4 4
Rear Upper Bumpstop
Spacer 56-10-05-044-1-1 2 2 2 2
Nut Wrench Tool 600271 - 1 1 1
M14 x 1.5 x 80mm
Hex Cap Screw 45-01-005-002 1 1 1 1
M12 x 1.75 x 25mm
Hex Flange Bolt 45-02-005-003 2 2 2 2
M14 X 1.5 Flange
Top Lock Nut 45-08-004-005 1 1 1 1
M12 X 1.75 Flange
Top Lock Nut 45-08-004-006 1 1 1 1
M14 x 28mm OD
Flat Washer 45-10-005-004 1 1 1 1

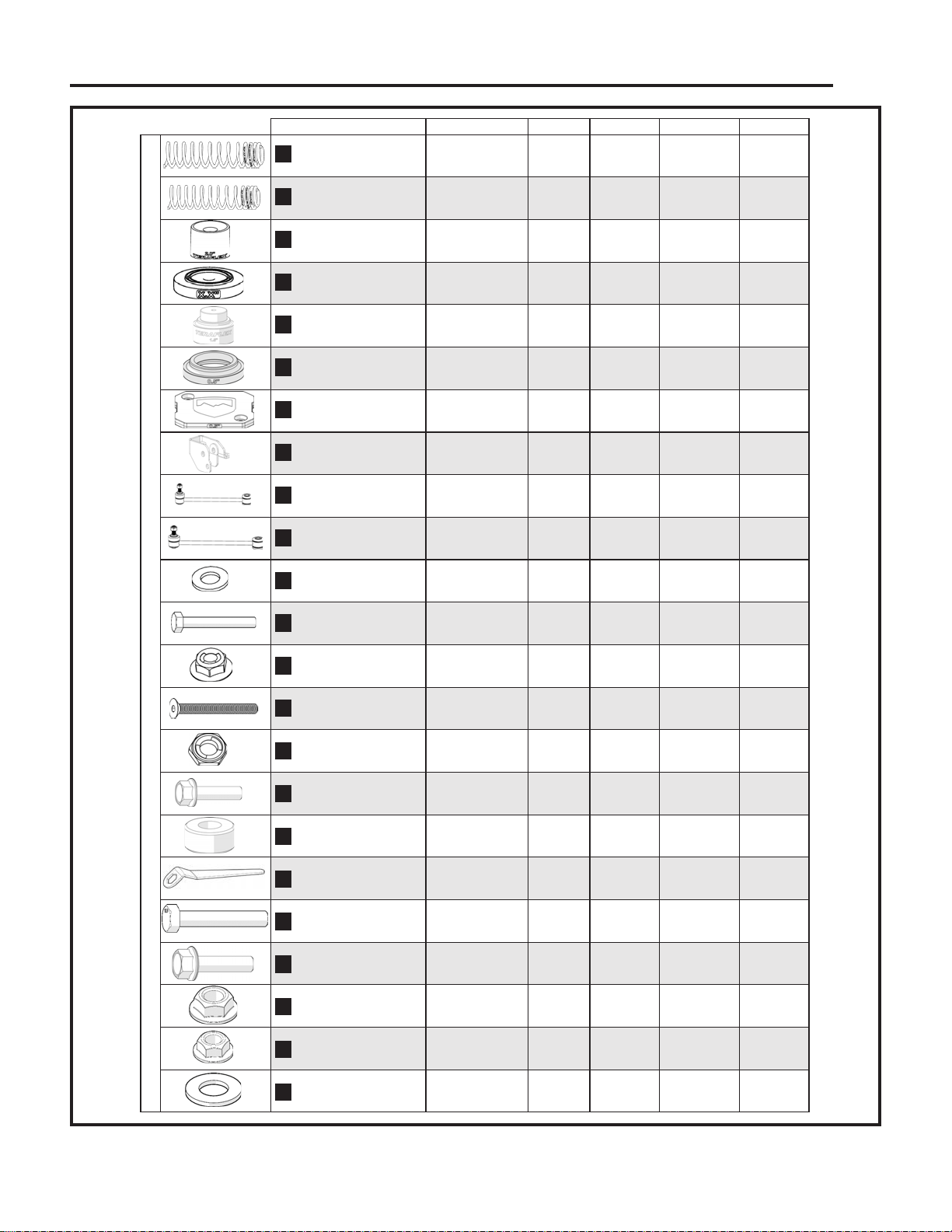

Spring Box Components
1
2
3
4
5
6
7
8
9
10
11
12
17
16
15
14
13
18
19
20
21
22
23
www.TERAFLEX.com 3
Revision B 999376
Description Item #
RT3 Alpine CT3 Sport ST3 Base Lift
Alpine Control Arm Kit 1417500 - 1 - -
Alpine IR Control Arm Kit 1417550 1 - - -
SpeedBump Kit 2" 1968352 1 - - -
Front Track Bar 1753420 1 1 - -
Rear Track Bar 1764420 1 - - -
Front Sway Bar
Quick Disconnect 1764000 1 1 1 -
Front Brake Line Anchor Kit 1101255 1 1 1 -
Rear Brake Line Anchor Kit 1101455 1 1 1 -
Rear Trail Rate Forged S/T
Swaybar Kit 1774700 1 1 1 -
Front Drop Bracket Kit 1938125 - - 1 -
Rear Control Arm Bracket Kit 1938225 1 1 1 -
Rear Track Bar Bracket 1963600 1 1 1 -
JT Driveline Spacer Kit 4801000 1 1 1 -
JT Extended Travel Accessory
Kit 4834100 1 1 1 -
JT Rear Upper / Lower Spring
Retainer Kit 4954000 1 1 1 -

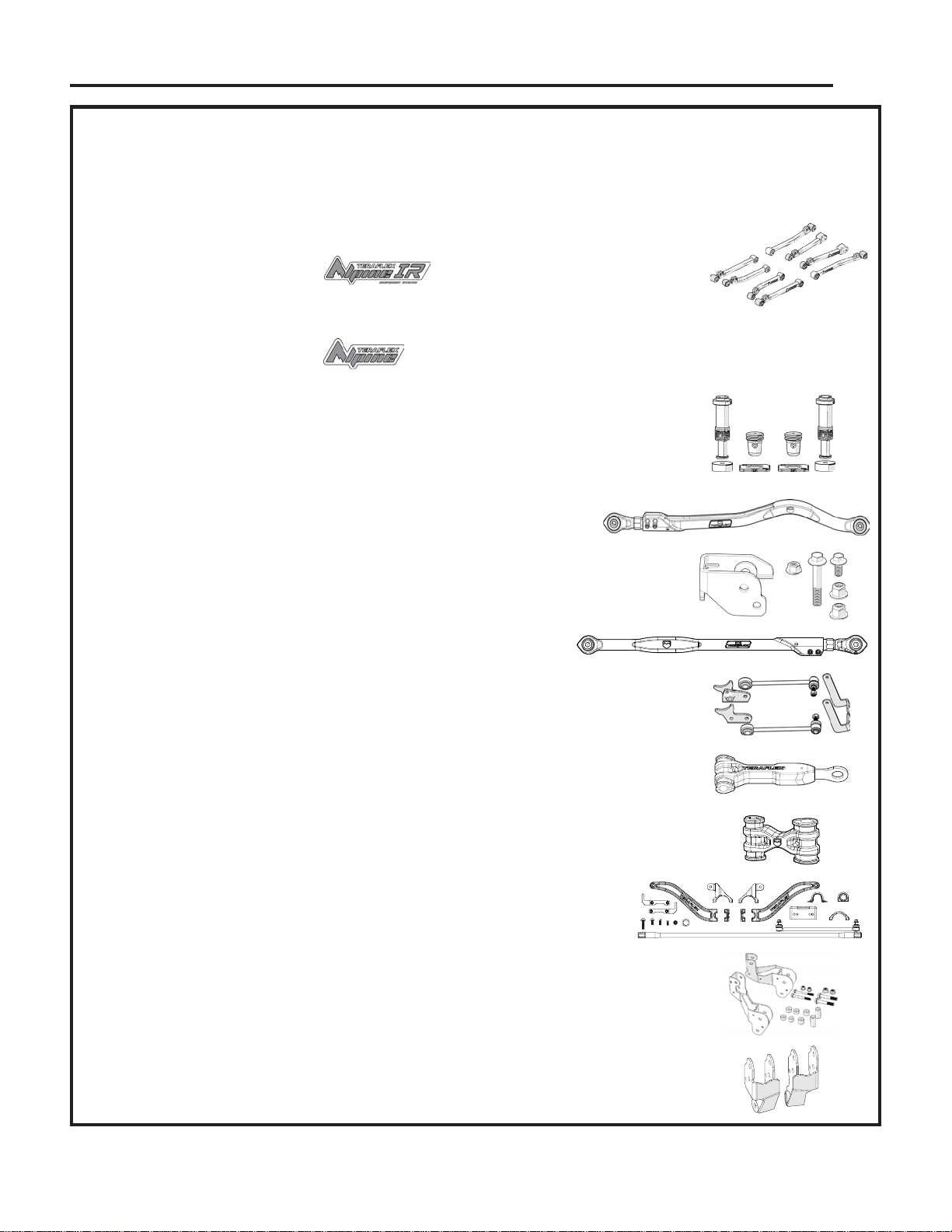

Other Boxed Kits
www.TERAFLEX.com 4
Revision B 999376
www.TERAFLEX.com 4
*NOTES*
*FOR ALPINE & ALPINE IR CONTROL ARM KITS: Before continuing
refer to Instruction #999373
-CONTROL ARMS WITH ALPINE IR BUSHINGS can be torqued
with the Jeep raised in the air.
-CONTROL ARMS WITH ALPINE BUSHINGS Will need to leave
the control arms loose until the end of the installation.
*FOR SPEEDBUMP KITS: Before continuing refer to Instruction
#999370
*FOR FRONT TRACK BAR: Refer to Instruction #999340
*FOR FRONT TRACK BAR BRACKET: Refer to Instruction #999341
*FOR REAR TRACK BAR: Refer to Instruction #999384
*FOR FRONT QUICK DISCONNECTS: Refer to Instruction #999372
*FOR FRONT BRAKE LINE ANCHORS: Refer to Instruction #999267
*FOR REAR BRAKE LINE ANCHORS: Refer to Instruction #999396
*FOR REAR TRAIL RATE FORGED S/T SWAYBAR: Refer to
Instruction #999404
*FOR FRONT DROP BRACKETS: Before continuing refer to
Instruction #999309
*FOR REAR CONTROL ARM BRACKET: Before continuing refer to
Instruction #999398
www.TERAFLEX.com 5
Revision B 999376

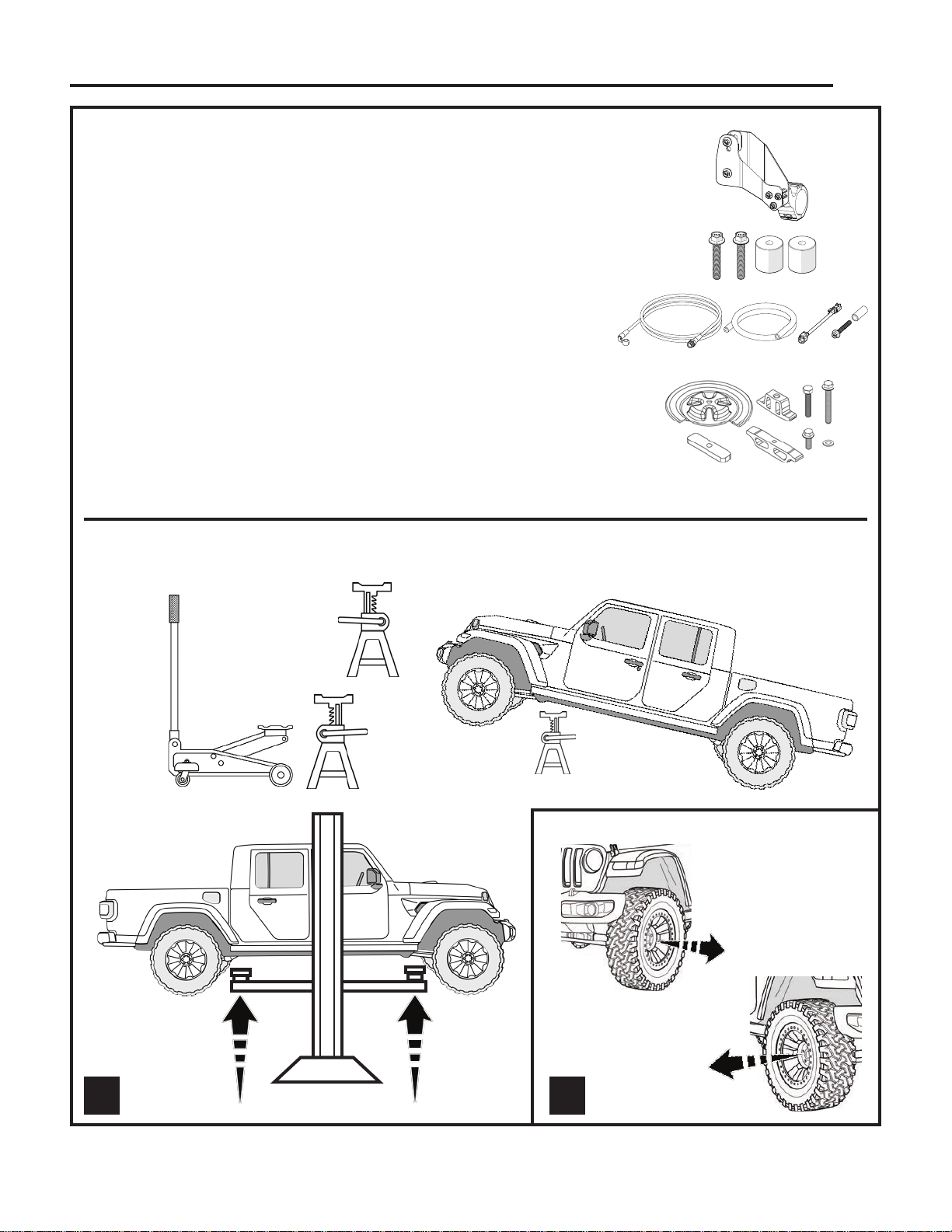

LIFT AND SUPPORT AT FRAME
REMOVE FRONT TIRES
1 2
FRONT INSTALLATION
*NOTES*
*FOR REAR TRACK BAR BRACKETS: Refer to Instruction #999391
*FOR JT DRIVELINE SPACER KIT: Refer to Instruction #999401
*FOR JT EXTENDED TRAVEL ACCESSORY KIT: Refer to
Instruction #999402
*FOR JT REAR UPPER & LOWER SPRING RETAINERS: Before
continuing refer to Instruction #999389
www.TERAFLEX.com 6
Revision B 999376

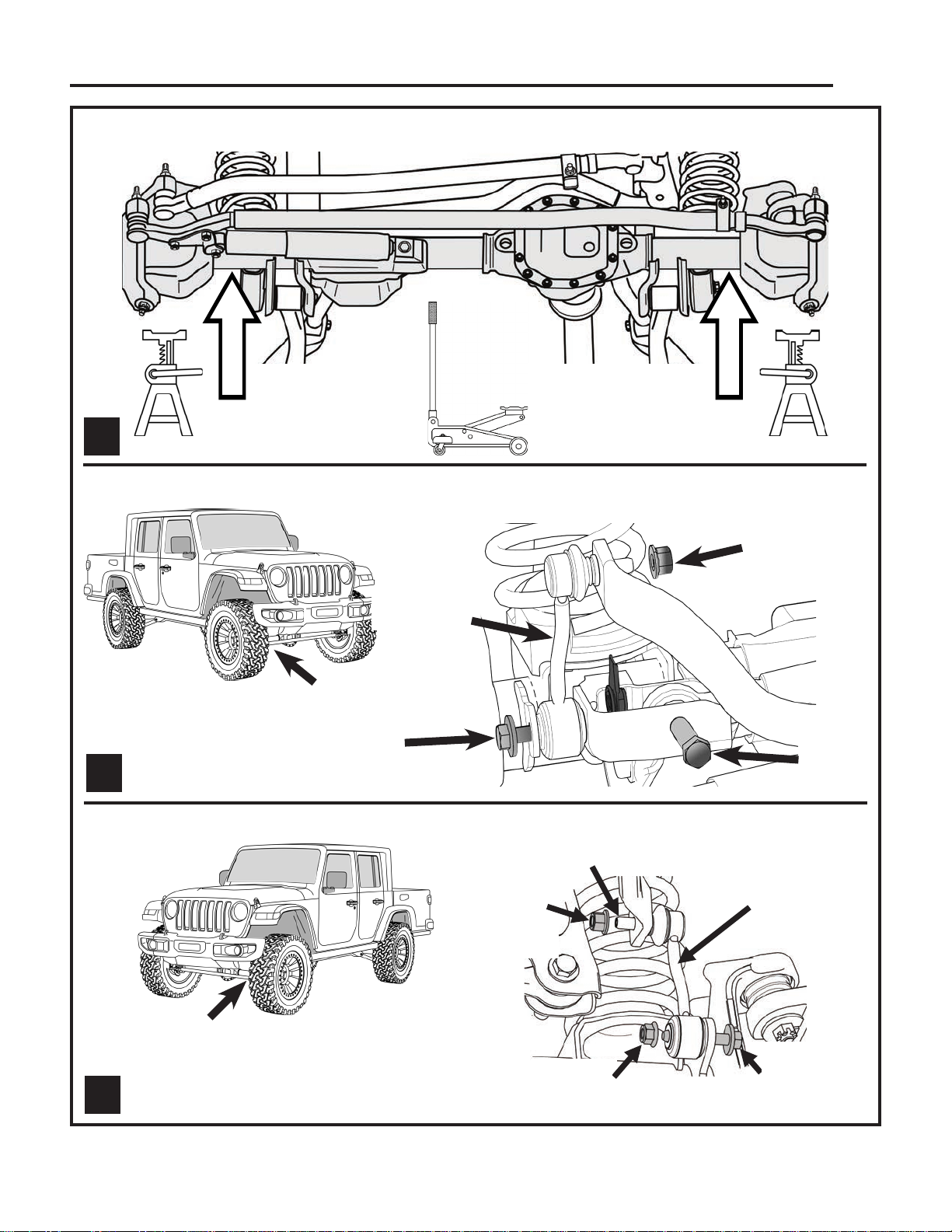

REMOVE PASSENGER SWAY BAR LINK & REMOVE TRACK BAR BOLT AT THE AXLE
REMOVE DRIVER SWAY BAR LINK
REMO
VE
NUT 18
mm
REMOVE
NUT 18mm
REMOVE
BOLT 18mm
REMOVE
& DISCARD
STUD 6mm
4
5
STUD 6mm
NUT 18mm
BOLT
18mm
REMOVE &
DISCARD
BOLT
18mm
STUD 6mm HEX REMOVE &
DISCARD
BOLT
18mm
REMOVE
NUT 18mm
REMOVE
NUT 18mm
SUPPORT THE FRONT AXLE
3
www.TERAFLEX.com 7
Revision B 999376

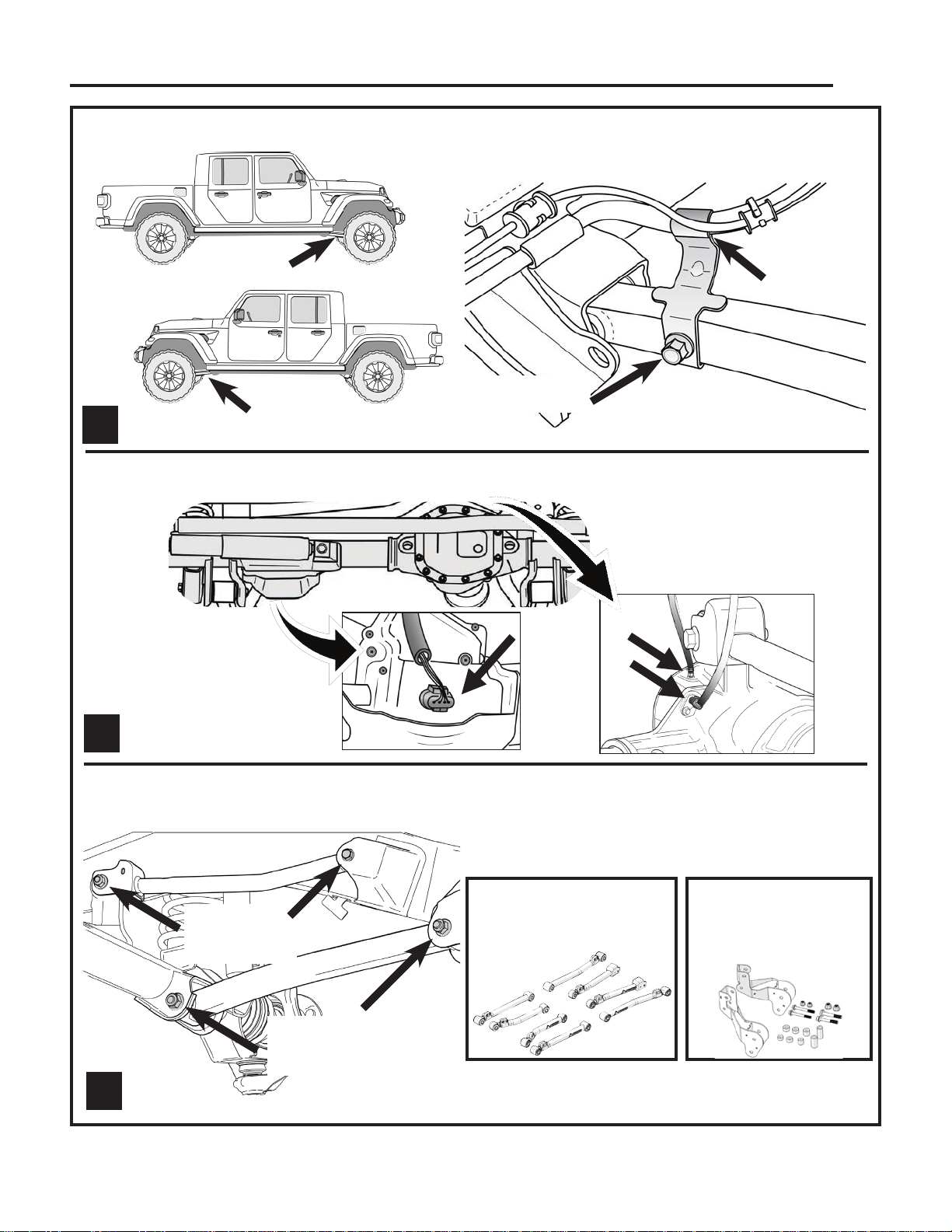

REMOVE AND DISCARD BRAKE LINE BRACKETS FROM LOWER CONTROL ARMS
DISCONNECT ACTUATORS AND VENT HOSE AT THE FRONT AXLE
LOOSEN FRONT CONTROL ARM BOLTS
NOTE: DO NOT REMOVE THE CONTROL ARM BOLTS
PRY OPEN
REMOVE
NUT 15MM
6
7
8
LOOSEN
BOLT & NUT
18mm
LOOSEN
BOLT 21mm
NUT 24mm
NOTE: IF INSTALLING
ALPINE ARMS, REFER TO
INSTRUCTION #999373
NOTE: IF INSTALLING
FRONT DROP
BRACKETS, REFER TO
INSTRUCTION #999309
www.TERAFLEX.com 8
Revision B 999376

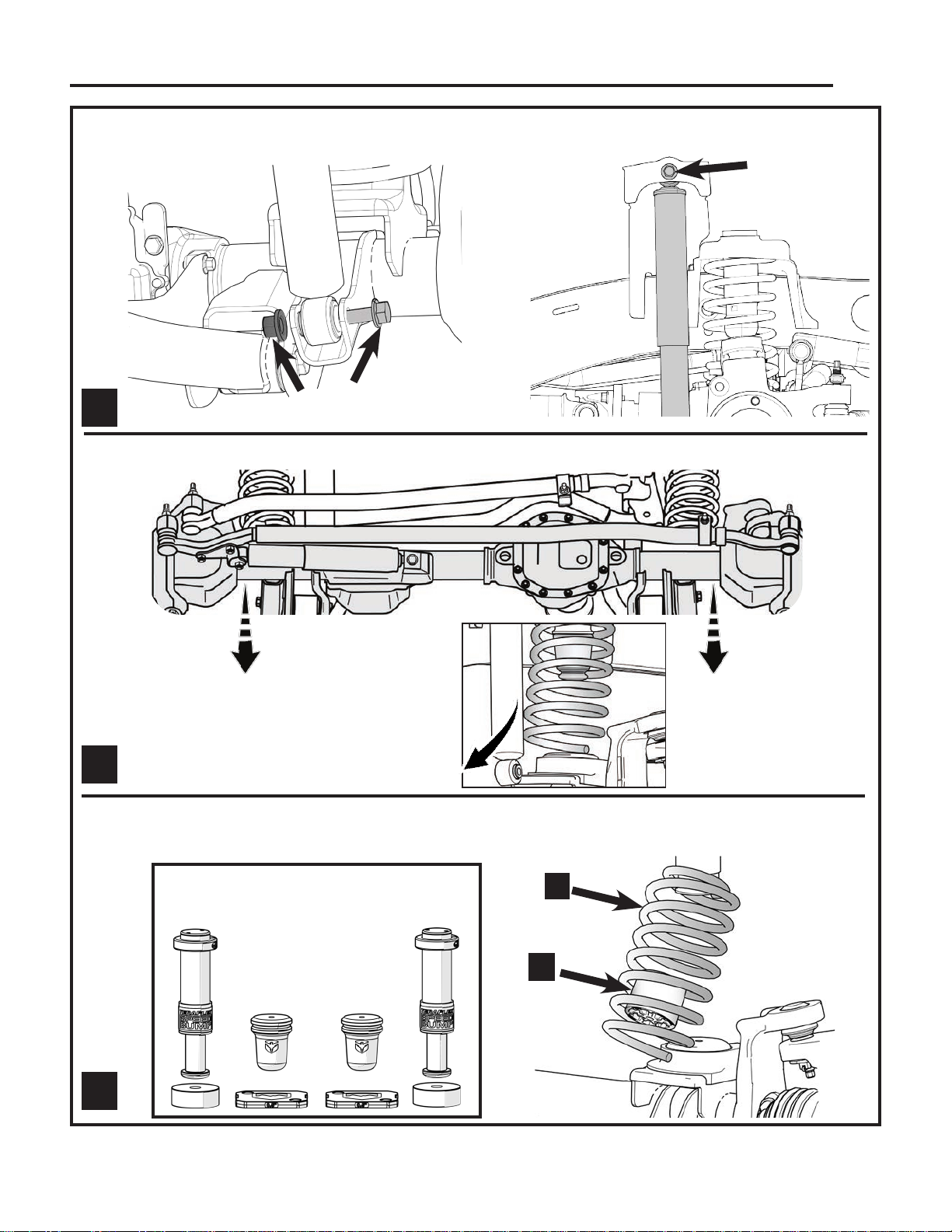

LOWER AXLE AND REMOVE FRONT SPRINGS
NOTE: REMOVE ANY
PLASTIC RETAINERS
FROM WIRING OR
HOSES AS NEEDED.
9BOLT &
NUT 18mm
BOLT
18mm
10
REMOVE FRONT SHOCKS
INSTALL FRONT SPRINGS AND LOWER BUMPSTOPS
NOTE: REFER TO PAGE 16 FOR BUMPSTOP AMOUNT
3
1
11
NOTE: IF INSTALLING SPEEDBUMP KIT,
REFER TO INSTRUCTION #999370
www.TERAFLEX.com 9
Revision B 999376
13
14
13
18
14
TORQUE
12 FT-LBS

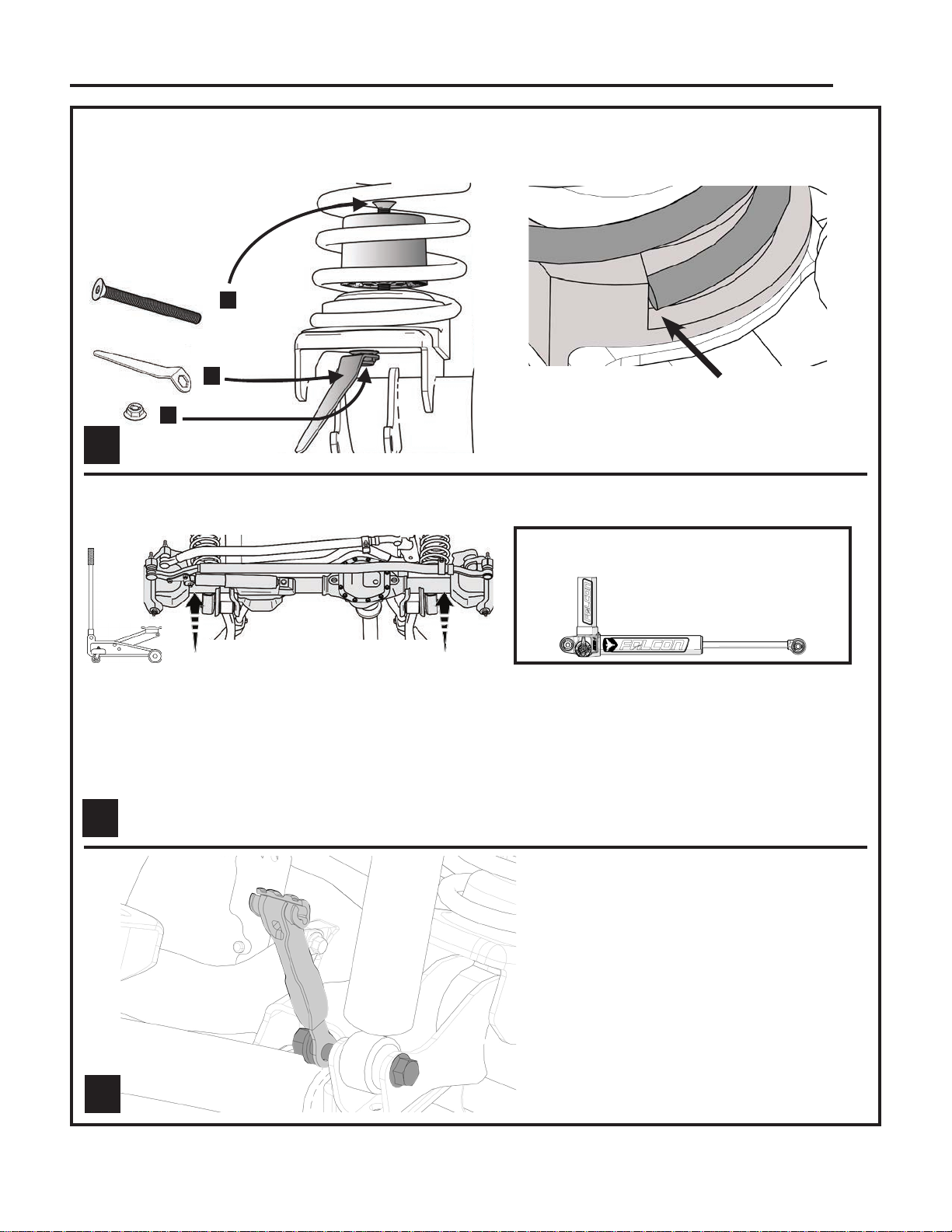

RAISE AXLE & INSTALL NEW SHOCKS
FOR INSTALLING FALCON SHOCKS
(REFER TO QUICK START GUIDE INSIDE
FALCON SHOCK BOX)
NOTE: IF INSTALLING CONTROL ARMS WITH ALPINE BUSHINGS, LOWER THE
JEEP TO THE GROUND BEFORE TORQUING THE CONTROL ARM BOLTS.
NOTE: IF INSTALLING CONTROL ARMS WITH ALPINE IR BUSHINGS THE
CONTROL ARM BOLTS CAN BE TORQUED WITH THE JEEP RAISED.
REFER TO PAGE 15 FOR TORQUE SETTINGS
12
MAKE SURE SPRING
IS FULLY SEATED ON
PERCH
INSTALL THE BUMPSTOP ONTO THE AXLE AND FULLY SEAT THE SPRINGS INTO THE
LOWER SPRING PERCH
NOTE: IF INSTALLING FRONT
BRAKE LINE ANCHORS, REFER
TO THE INSTRUCTIONS ON THE
BACK OF THE BOX.
www.TERAFLEX.com 10
Revision B 999376

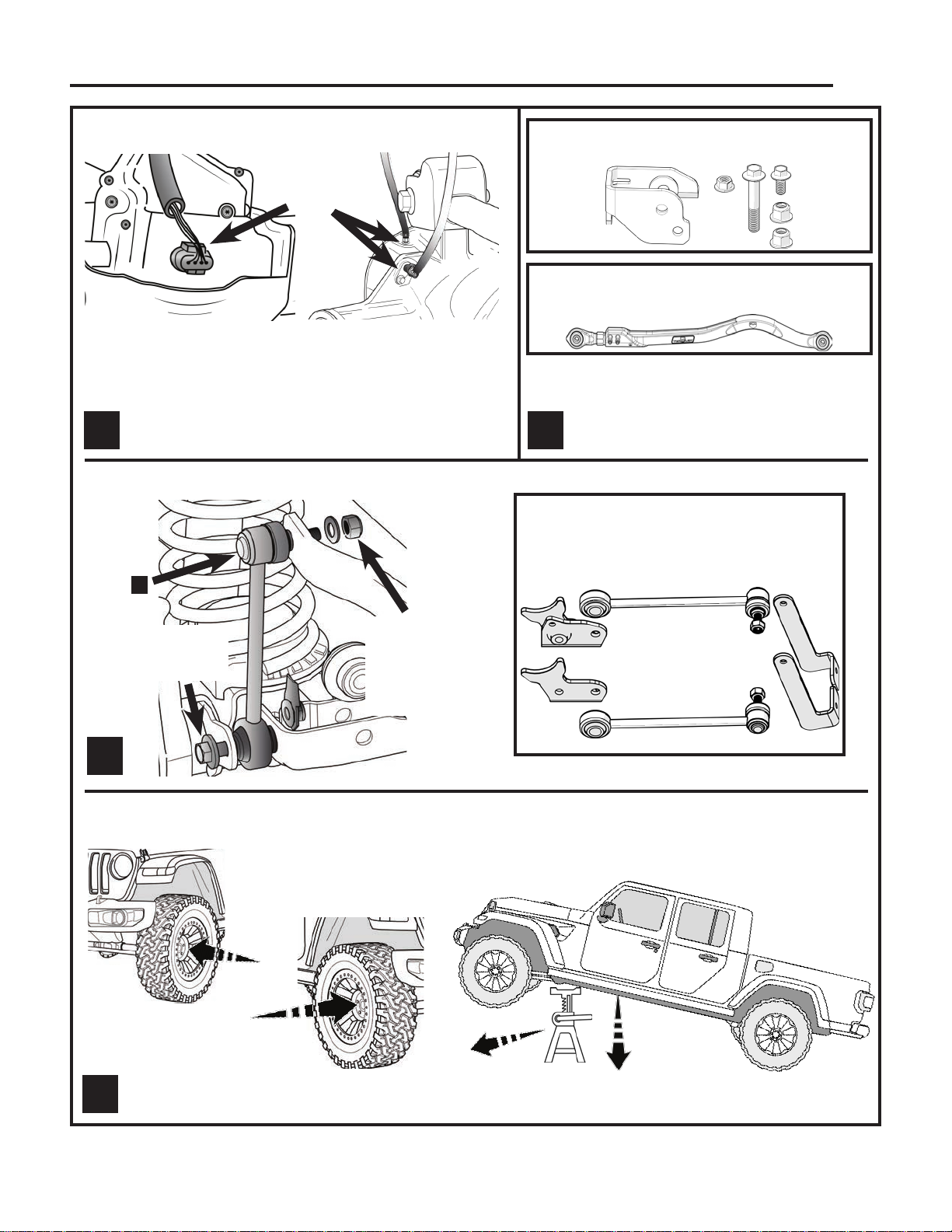

RECONNECT CONNECTIONS TO FRONT AXLE
RECONNECT PLASTIC RETAINERS FROM
WIRING OR HOSES AS NEEDED.
INSTALL NEW SWAY BAR LINKS
NOTE: IF ONLY FRONT OF JEEP WAS LIFTED, REINSTALL TIRES AND LOWER JEEP
BACK TO THE GROUND BEFORE LIFTING THE REAR
9
TORQUE
59 FT-LBS
BOLT 18mm
TORQUE
66 FT-LBS
NUT 18mm
STUD 6mm
HEX KEY
15
*TORQUE THE FRONT TIRES TO 130 FT LBS*
17
NOTE: IF INSTALLING QUICK
DISCONNECTS, REFER TO
INSTRUCTIONS #999372
18
NOTE: IT IS EASIEST TO REINSTALL TRACK
BAR AFTER JEEP IS BACK ON THE GROUND
NOTE: IF INSTALLING FRONT TRACK BAR,
REFER TO INSTRUCTION #999340
NOTE: FOR INSTALLING FRONT TRACK BAR
BRACKET, REFER TO INSTRUCTION #999341
16
