Tennant 7100 Training manual

IB 340494 (7-01) 1

No. 340494

Machine: 7100

Published: 7-01/00

System: OPTIONS

INSTRUCTION BULLETIN

NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts

List in the appropriate place in your machine manual for future reference.

Retaining the Parts List will make it easier to reorder individual parts and will

save you the cost of ordering an entire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 391193

SYNOPSIS / PROBLEM:

This kit contains the parts needed to install/replace the storage bag on the model 7100

scrubber.

Please follow step-by-step instructions.

SPECIAL TOOLS / CONSIDERATIONS: Hand drill, 21/64 [8.33 mm] drill bit, 2 in. hole saw

(Estimated time to complete: 1 hour)

PREPARATION:

(Refer to FIG. 1 and 2)

FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking

brake. Then turn off machine and remove key.

INSTALLATION:

(Refer to FIG. 1 and 2)

1. Locate and mark the two mounting hole locations, using the rework drawing in figure 1.

(Refer to FIG. 1)

2. Drill two 21/64 [8.33 mm] holes all the way through the marked hole locations.

(Refer to FIG. 1)

3. Using the two new holes as centerpoints, drill two 2 in. holes from the inside of the machine

through the first wall layer. Do not run the hole saw all the way through the machine wall.

The 2 in. hole through the inside wall of the machine will only be used to secure the

mounting hardware. (Refer to FIG. 2)

4. Mount the bag (1) to the rear of the machine with the mounting bag strip (1), hex screws

(3), washers (5) and lock nuts (4). (Refer to FIG. 2)

5. Tighten the bag mounting hardware to 7.6 -- 9.9 Nm (5.4 -- 7 ft lb). (Refer to FIG. 2)

IB 340494 (7-01)2

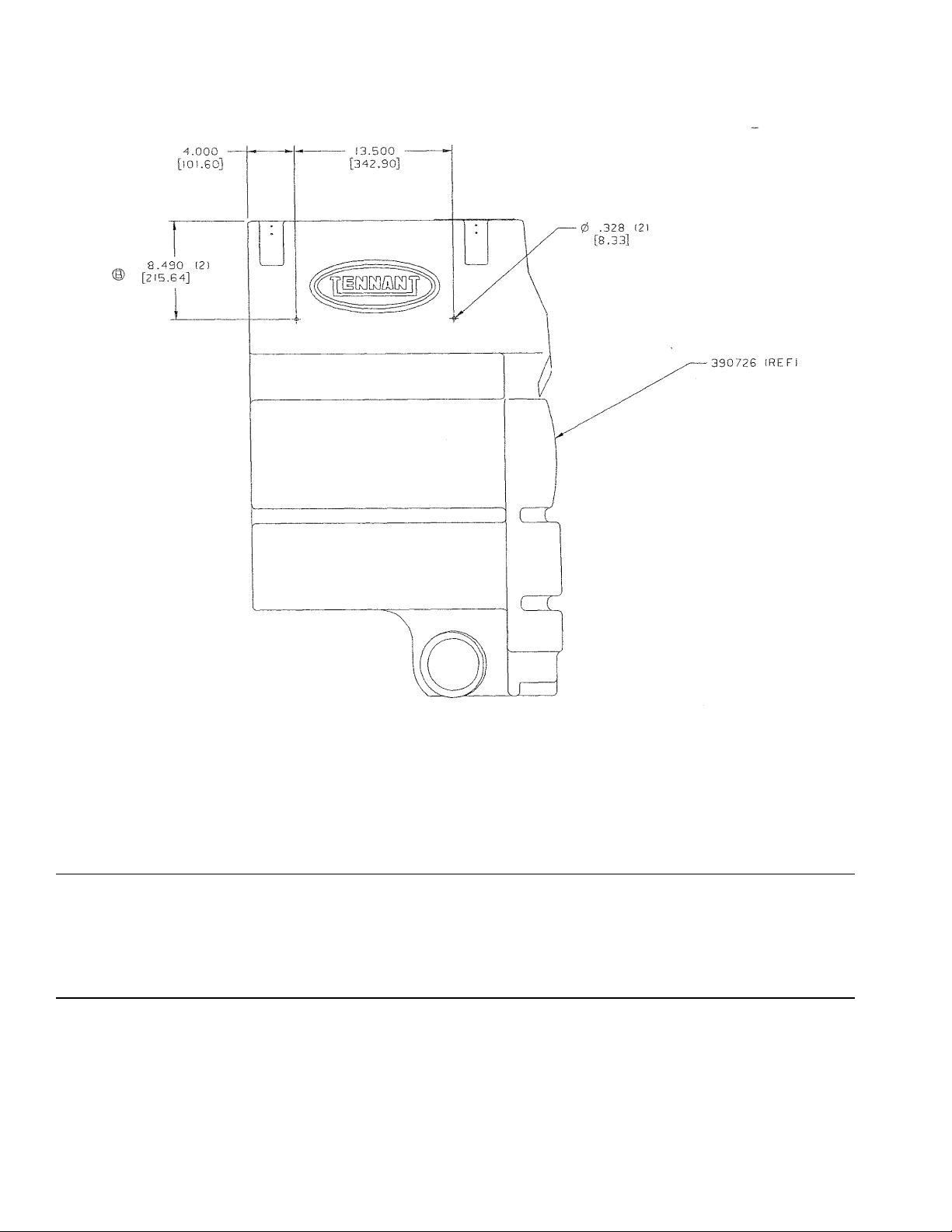

FIG. 1 -- MOUNTING HOLE LOCATIONS, BAG, STORAGE

BILL OF MATERIALS FOR STORAGE BAG KIT, 391193

TENNANT

Ref. Part No. Description Qty.

1 391258 Bag, power wand 1

2 391243 Strip, mtg, bag 1

3 09011 Screw, hex, M08 X 1.25 X 30, Ss 2

4 08713 Nut, hex, lock M08 X 1.25, NL, Ss 2

5 01685 Washer, flt, 0.31 Ss 4

TENNANT COMPANY

P. O. Box 1452

Minneapolis, MN 55440-1452

IB 340494 (7-01) 3

1

2

5

4

5

Tighten mounting hardware to

7.6 -- 9.9 Nm [5.5 -- 7 ft lb]

Drill 2 in hole through inside layer

only, to access tightening hardware

3

FIG. 2 -- STORAGE BAG INSTALLATION
