Tennant 5700 Training manual

IB340182 (2-99)LITHOIN U.S.A.1

No.340182

Machine:5700

Published:2-99/01

System:SCRUBBING

INSTRUCTION BULLETIN

NOTE:DONOTDISCARD thePartsList fromtheInstruction Bulletin.Place theParts

Listinthe appropriateplace inyourmachinemanualforfuturereference.

Retaining thePartsListwill make iteasiertoreorderindividualparts and will

save you the costofordering anentire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 374032

SYNOPSIS/PROBLEM:

This kit contains the parts needed to replace the current squeegee assembly with a new

Tight--Aisle style squeegee assembly on the model 5700 scrubber.

Please follow step-by-step instructions.

SPECIAL TOOLS/CONSIDERATIONS:NONE

(Estimated time to complete: 1 hour)

PREPARATION:

(Referto FIG.1)

1. Raise the squeegee.

2. Turn the machine power off and set the parking break if your machine has this option.

FORSAFETY:Beforeleaving orservicing machine,stop on levelsurface and setparking

brake.Thenturn off machine and remove key.

INSTALLATION:

(Referto FIG.1)

1. Remove the squeegee suction hose from the the squeegee.

2. Loosen the two mounting knobs.

3. Pull the squeegee off the machine.

4. Check that the squeegee is still raised, and place the new Tight--Aisle squeegee under the

squeegee pivot.

5. Slide the Tight--Aisle squeegee frame onto the squeegee pivot.

6. Tighten the mounting knobs.

7. Push the squeegee suction hose on the Tight--Aisle squeegee.

8. Start machine and check for proper squeegee blade adjustment and operation.

IB340182 (2-99)LITHOIN U.S.A.2

16 16

25 26 27

27 25

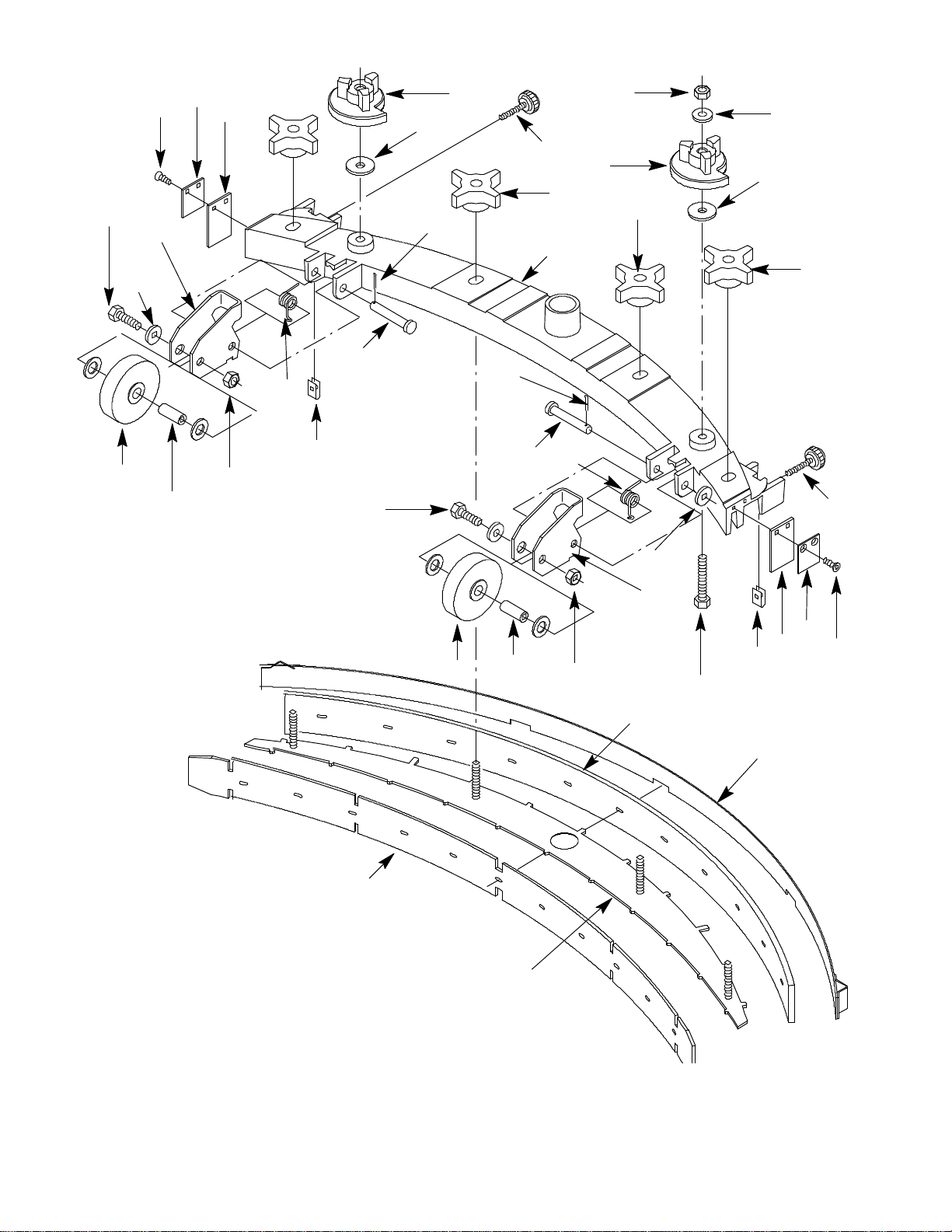

FIG.1Tight--AisleSqueegee Group

IB340182 (2-99)LITHOIN U.S.A.3

SQUEEGEE

The squeegee assembly channelswaterintothe vacuum

fan suction.The frontblade channelsthe water,and the

rearblade wipesthe floor.

Check the squeegee bladesfordamage and weardaily.

Rotate or replace eitherof the squeegee bladesif the

leading edge istorn orworn half-waythrough the thickness

of the blade.

The squeegee can be adjusted forleveling and deflection.

The deflection and leveling of the squeegee blades should

becheckeddaily,orwhenscrubbingadifferenttype offloor.

The squeegee assembly can be removed fromthe

squeegee pivot to preventdamage during transportof the

machine.

REMOVINGTHE SQUEEGEE ASSEMBLY

1.Raisethe squeegee.

2.Turnthe machine poweroff and set the parking

brakeifyourmachine hasthisoption.

FORSAFETY:Beforeleaving orservicing

machine,stop on levelsurface,and turn off

machine.

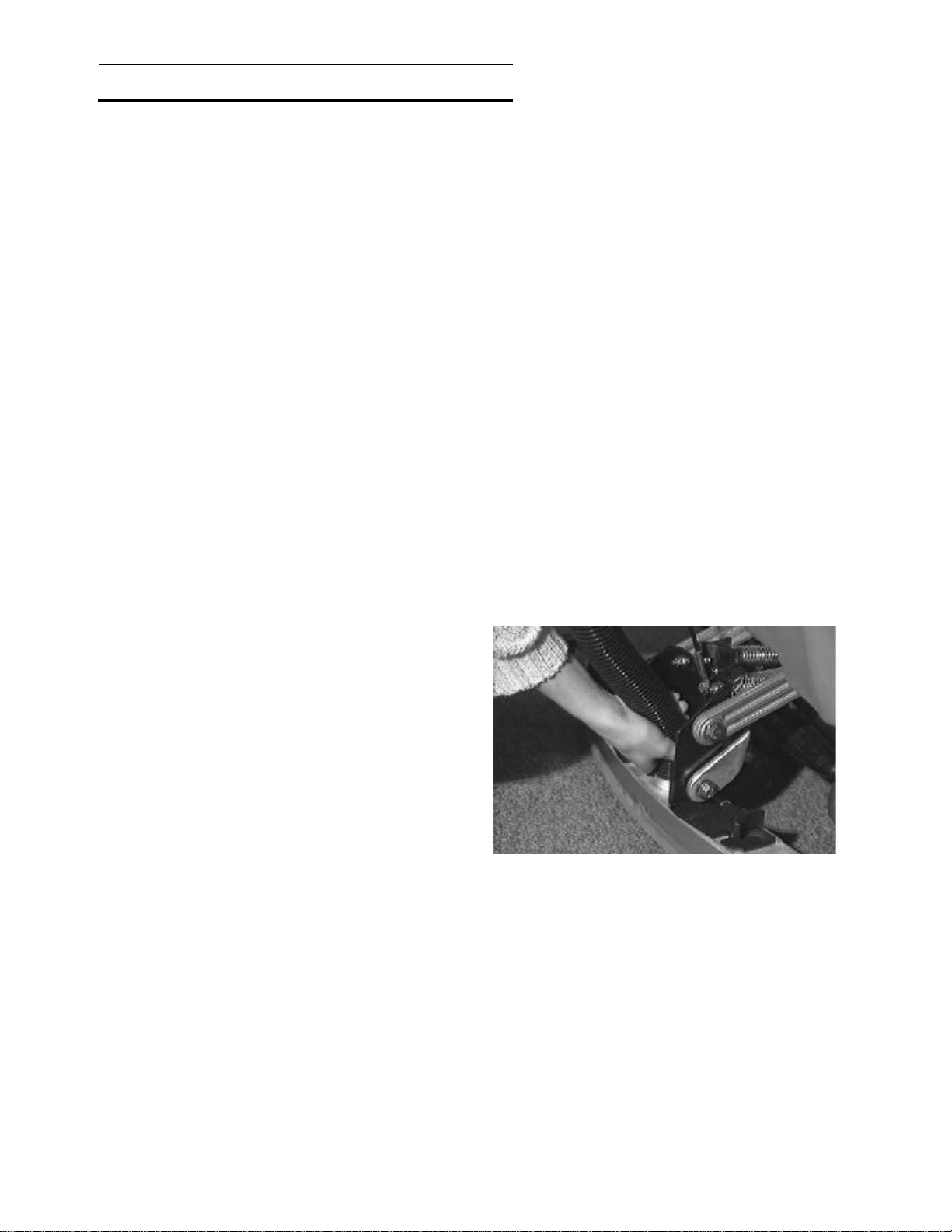

3.Removethe squeegee suction hosefromthe

squeegee.

IB340182 (2-99)LITHOIN U.S.A.4

4.Loosen the twomounting knobs.

5.Pull the squeegee off the machine.

INSTALLINGTHE SQUEEGEE ASSEMBLY

1.Makesurethe squeegee israised.

2.Placethe squeegee underthe squeegee pivot.

3.Slide the squeegee frame ontothe squeegee pivot.

4.Tighten the mounting knobs.

5.Pushthe squeegee suction hose on

the squeegee.

LEVELINGTHE SQUEEGEE

Leveling of the squeegee assureseven contact the length

of the squeegee blade withthe surface being scrubbed.

Makesurethisadjustmentisdone on an even,levelfloor.

1.Turnthe machine poweron.

2.Lowerthe squeegee.

3.Drivethe machine forward, then turnthe machine

poweroff.

4.Lookat the deflection of the squeegee blade,over

the full length of the squeegee blade.

IB340182 (2-99)LITHOIN U.S.A.5

5. If the deflection isnot the same overthe full

length

of the blade, turnthe squeegee leveling knob

counter-clockwisetoincreasethe deflection

at the endsof the squeegee.

Turnthe squeegee leveling knob clockwise

to decreasethe deflection at the endsof the

squeegee blade.

6.Drivethe machine forward againwiththe

squeegee downtocheck the squeegee blade

deflection.

7.Readjust the squeegee blade deflection if

necessary.

ADJUSTINGSQUEEGEE BLADEDEFLECTION

Deflection isthe amountofcurlthe squeegee blade

haswhen the machine movesforwardwiththe squeegee

lowered tothe floor.The bestdeflection iswhen the

squeegee wipesthe floorjustdrywithaminimum

amountofdeflection.

1.Turnthe machine poweron.

2.Lowerthe squeegee.

3.Drivethe machine forward,and lookat the

deflection of the squeegee blade.The correct

amountofdeflection is12 mm

(0.50 in)forscrubbing smoothfloorsand

15 mm (0.62 in)for rough floors.

4.Turnthe machine poweroff.

5.To adjust the amountofdeflection, turnthe

squeegee deflection cams counter-clockwise

to decreasethe blade deflection.

Turnthe squeegee deflection cams clockwise

toincrease blade deflection.

6.Drivethe machine forward againtocheck the

squeegee blade deflection.

7.Readjust the squeegee blade deflection if

necessary.

03719

12 mm

(0.50 in)

IB340182 (2-99)LITHOIN U.S.A.6

SQUEEGEE BLADES

The squeegee hastwosqueegee blades, the frontand

back.Each blade hasfourwiping edges.To usethemall,

startwith one wiping edge.To usethe nextwiping edge,

rotatethe blade end-for-end.To usethe nextwiping edge,

rotatethe top edgesdown,bottomedgesup.To usethe

lastedge,rotatethe blade end-for-end.

Replace anyworn ordamaged squeegee blades.

REPLACING OR ROTATINGTHEREAR SQUEEGEE

BLADE

1.Makesurethe squeegee israised off the floor.

2.Turnthe machine poweroff and set the parking

brakeifyourmachine hasthisoption.

FORSAFETY:Beforeleaving orservicing

machine,stop on levelsurface,and turn off

machine.

3.Loosen the tworetention knobs,one ateach end on

the squeegee.

IB340182 (2-99)LITHOIN U.S.A.7

4.Pull off the rear retaining band.

5.Pull off the rearsqueegee blade.

6. Insert the rotated ornewsqueegee blade and

then insert the retainerband.

7.Tighten the tworetention knobsuntil the ends

of the frontand rearsqueegee bladestouch.

Do notovertighten.

REPLACING OR ROTATINGTHEFRONT

SQUEEGEE BLADE

1.Makesurethe squeegee israised off the floor.

2.Turnthe machine poweroff and set the parking

brakeifyourmachine hasthisoption.

FORSAFETY:Beforeleaving orservicing

machine,stop on levelsurface,and turn off

machine.

3.Removethe squeegee fromthe machine.See

REMOVINGTHE SQUEEGEE ASSEMBLY.

4.Removethe rearsqueegee blade and retainer.

See REPLACING OR ROTATINGTHEREAR

SQUEEGEE BLADE.

IB340182 (2-99)LITHOIN U.S.A.8

5.Loosen the tworemaining knobson top of the

squeegee assembly.

6.Pull the retainerplate back and pull out the front

squeegee blade of the squeegee frame.

7. Insert the rotated ornewsqueegee blade inthe

squeegee frame,lining up the slotsinthe blade

withthe tabson the retainerplate.

8.Pushthe retainerplateforward.Tighten the two

outside knobson top of the squeegee assembly.

9. Insert the rearsqueegee blade and retainer.Tighten

the tworearblade retention knobsuntil the endsof

the frontand rearsqueegee bladestouch.Do not

overtighten.

10. Installthesqueegeeassemblyonthe squeegeepivot.

See INSTALLINGTHE SQUEEGEE ASSEMBLY.

11.Adjust the squeegee blade leveling and deflection

as stated inLEVELINGTHE SQUEEGEE and

ADJUSTINGSQUEEGEE BLADEDEFLECTION.

IB340182 (2-99)LITHOIN U.S.A.9

BILL OFMATERIALSFORTIGHT--AISLE SQUEEGEE KIT374032

TENNANT

Ref.PartNo.Description Qty.

1 374033 Frame, Squeegee Tight--Aisle 1

2 374034 Plate, Blade Retainer Tight--Aisle 1

3 374035 Blade, Squeegee, Front Tight--Aisle 1

4 374036 Blade, Squeegee, Rear Tight--Aisle 1

5 374037 Band Wldt, Squeegee Tight--Aisle 1

6 222794 Knob, W1.25--20X1.5 Lg Stud 2

7 82138 Nut Speed, Retainer, .25--20 Thd 2

8 222066 Wheel, 3.0 Dia 2

9 222268 Washer, .375B 1.25D .12Neoprene 2

10 222244 Cam, Adj, Sqge 2

11 222245 Bracket, Mtg, Wheel 2

12 222260 Pin, Clevis, 0.37 Dia 2.25Lg 2

13 222130 Spring, Torsion, Wheel 2

14 39005 Pin, Cotter .094X0.75 2

15 222497 Sleeve 2

16 370100 Knob, 4 Prongs w/.31--8 Insert 4

17 01685 Washer, Fit .31 Ss 6

18 08713 Nut--Hxlocnyln M 8X1.25 Reg Ss 4

19 09767 Scr Hexssm 8X1.25 70 2

20 49694 Scr Hex Ssm 8X1.25 50 2

21 222385 Blade, Squeegee, Tile Tight--Aisle 1

22 222387 Blade, Squeegee, Rear, Tile Tight--Aisle 1

23 222391 Blade, Squeegee, Front Tight--Aisle Oil Resist1

24 222389 Blade, Squeegee, Rear Tight--Aisle Oil Resist 1

25 374039 End, Squeegee, Rubber 2

26 374040 Plate, End Squeegee 2

27 09120 M5X0.8--16mm Socket Head 4

TENNANT COMPANY

P. O. Box 1452

Minneapolis, MN 55440-1452
