Tennant S30 XP Training manual

IB 340883 (02--2008) 1

INSTRUCTION BULLETIN

No. 340883

Machine: S30 XP / X4

Published: 02--2008

Rev. 00

NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the

Parts List in the appropriate place in the machine manual for future

reference. Retaining the Parts List will make it easier to reorder

individual parts and will save the cost of ordering an entire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9004325

SYNOPSIS:

This kit contains the parts needed to replace the instrument panel label on S30 XP and S30 X4

machines.

Please follow step-by-step instructions.

SPECIAL TOOLS / CONSIDERATIONS: NONE

(Estimated time to complete: 1 hour)

PREPARATION:

1. Park machine on a clean level surface, turn off

machine, remove key, and set parking brake.

FOR SAFETY: Before leaving or servicing

machine, stop on level surface, set parking

brake, turn off machine, and remove key.

2. Disconnect the negative terminal from the

battery.

WARNING: Always disconnect battery

cables from machine before working on

electrical components.

3. Remove the hardware holding the panel

assembly to the dash. Discard the hardware.

Refer to Fig. 1.

FIG. 1

4. Carefully lift the panel assembly from the

dash and disconnect the main wire harness

from the panel assembly. Refer to Fig. 2.

FIG. 2

5. Set the panel assembly face down on a clean

flat surface.

IB 340883 (02--2008)2

INSTALLATION:

NOTE:Connect one end of the ground strap (4) to

ground and wrap the other end around wrist

before handling the control panel / instrument

panel label (1). The ground strap must be worn

whenever the control panel / new instrument

panel label are being handled.

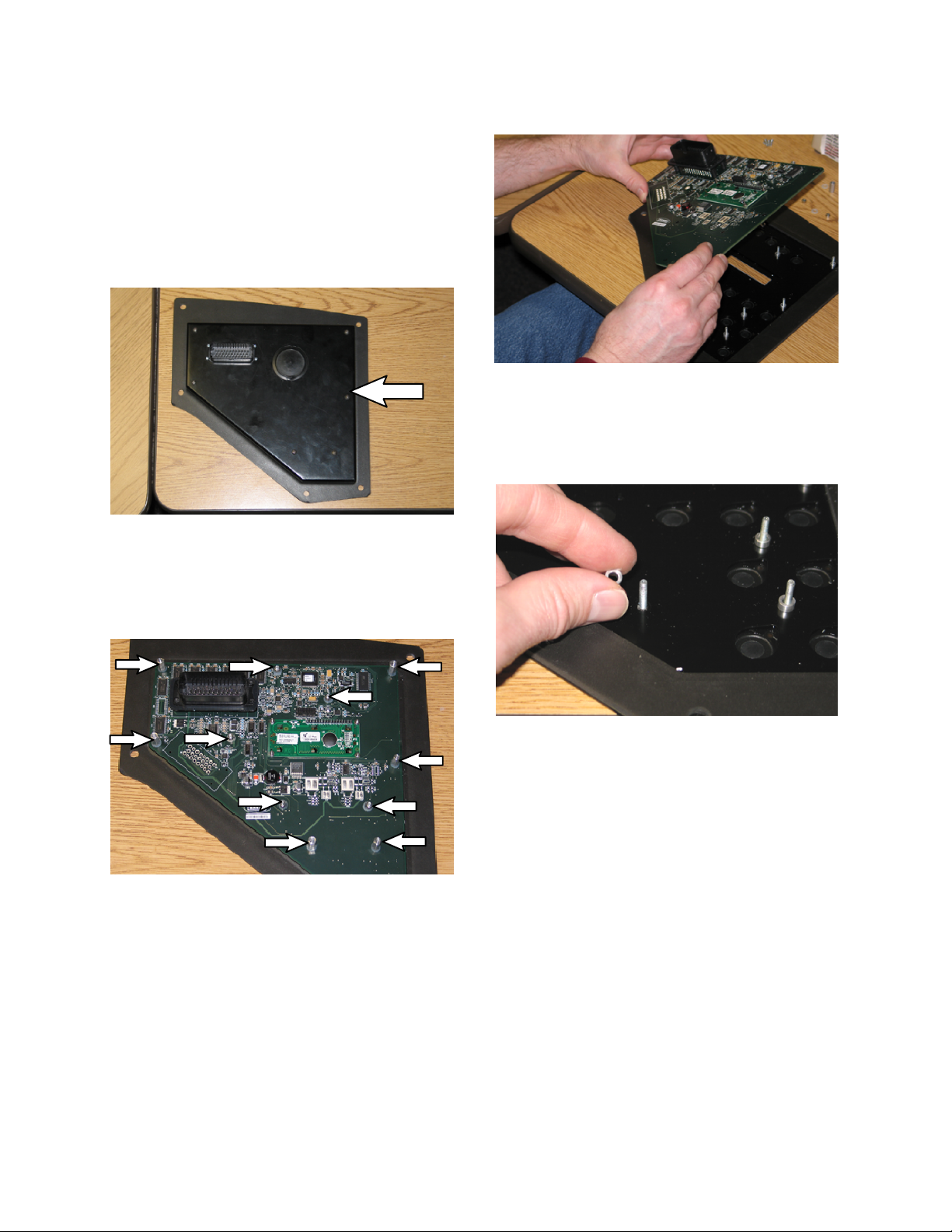

1. Remove the back cover from the control

panel. Set the back cover and hardware

aside. Refer to Fig. 3.

FIG. 3

2. Remove the five fasteners and six standoffs

holding the circuit board to the panel

assembly. Set the fasteners, standoffs, and

eleven nylon washers aside. Refer to Fig. 4.

FIG. 4

3. Remove the circuit board from the instrument

panel and set the circuit board on a clean flat

surface. Refer to Fig. 5.

FIG. 5

4. Remove the eleven aluminum spacers from

the instrument panel label. Set the spacers

aside. Discard the instrument panel label.

Refer to Fig. 6.

FIG. 6

5. Place the eleven aluminum spacers onto the

new instrument panel label (1). Refer to Fig. 6.

NOTE:All aluminum spacers must be installed

onto the instrument panel label (1). Board could

be damaged if any standoffs are missing.

6. Use the hardware from Step 2 to install the

circuit board onto the instrument panel label

(1). Refer to Fig. 4.

IB 340883 (02--2008) 3

7. Reinstall the back cover plate onto the control

panel assembly. Refer to Fig. 3.

8. Reconnect the main wire harness to the panel

assembly. Refer to Fig. 2.

9. Use the five pan screws (2) and five nylon

washers (3) to reinstall the panel assembly

onto the dash. Refer to Fig. 1.

10. Reconnect the negative terminal to the

battery.

11. Start and test the machine. Verify the

machine operates properly.

Bill of Materials for Panel Kit, Label, Replmt [S30] -- 9004325

Ref.

Tennant

Part No. Description Qty.

o9004325 )Panel Kit, Label, Replmt [S30] 1

Y1 1045321 Panel Assy, Instrmt, w/Label, Replmt 1

Y2 1045487 Screw, Pan, Phl, M5 X 0.80 X 16, Blk 5

Y3 1012615 Washer, Flat, 0.19B 0.44D .03, Nyl, Blk 5

Y427964 Strap, Ground, Static, Disposable 1
