Teltonika FM6 Safety guide

FM6

FMB6

Professional tracker

How to connect

FMB6 to Carrier

freezers

1

Main installation location is displayed in the picture below:

Figure 1 Panel cover

2

Remove the panel stickers marked in the picture:

Figure 2 Fuse panel stickers location

3

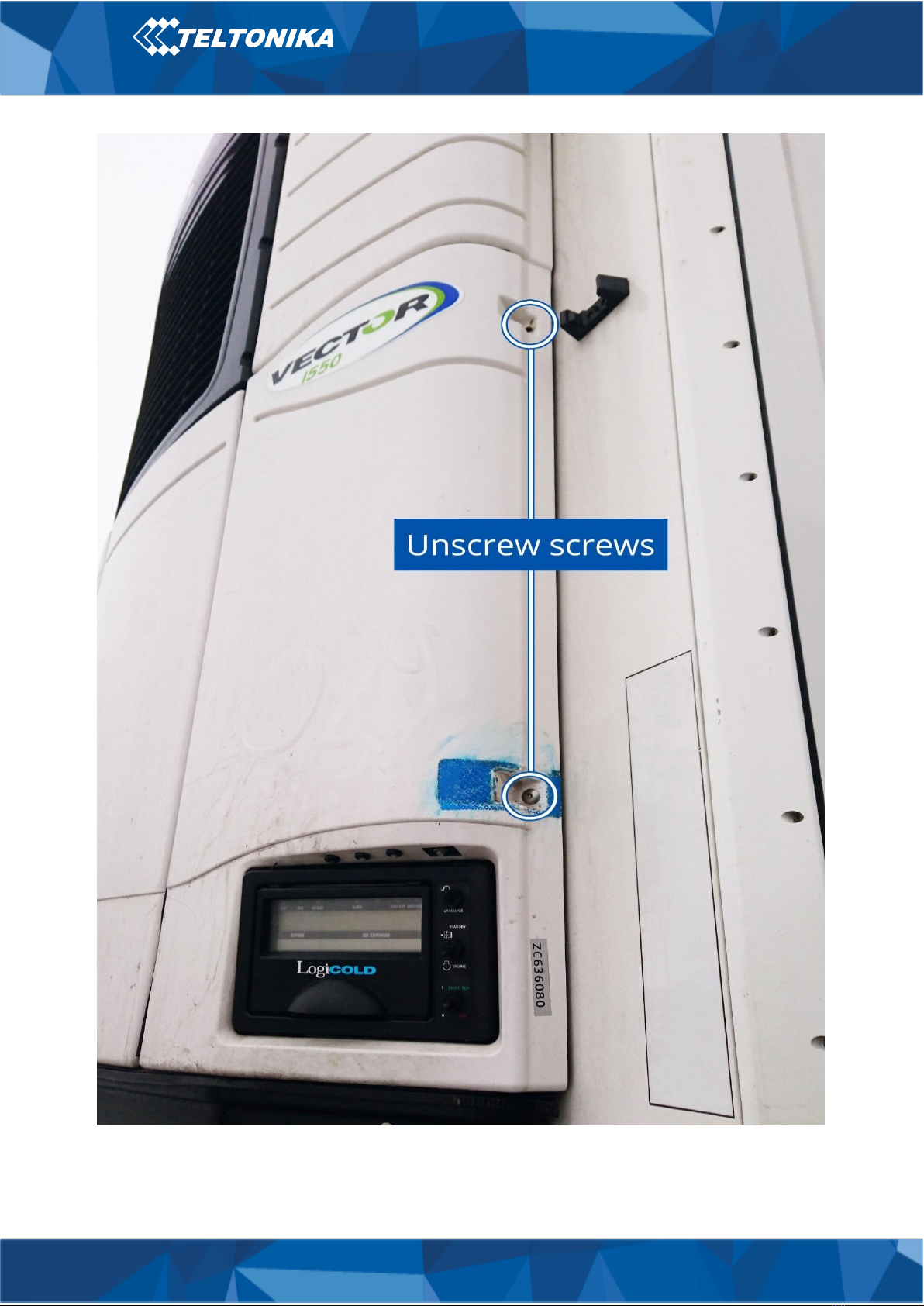

Unscrew the panel screws marked in the picture and open the panel cover:

Figure 3 Location of the screws

4

The picture below displays the location of the electric panel where connectors can be found:

Figure 4 The main connector location

5

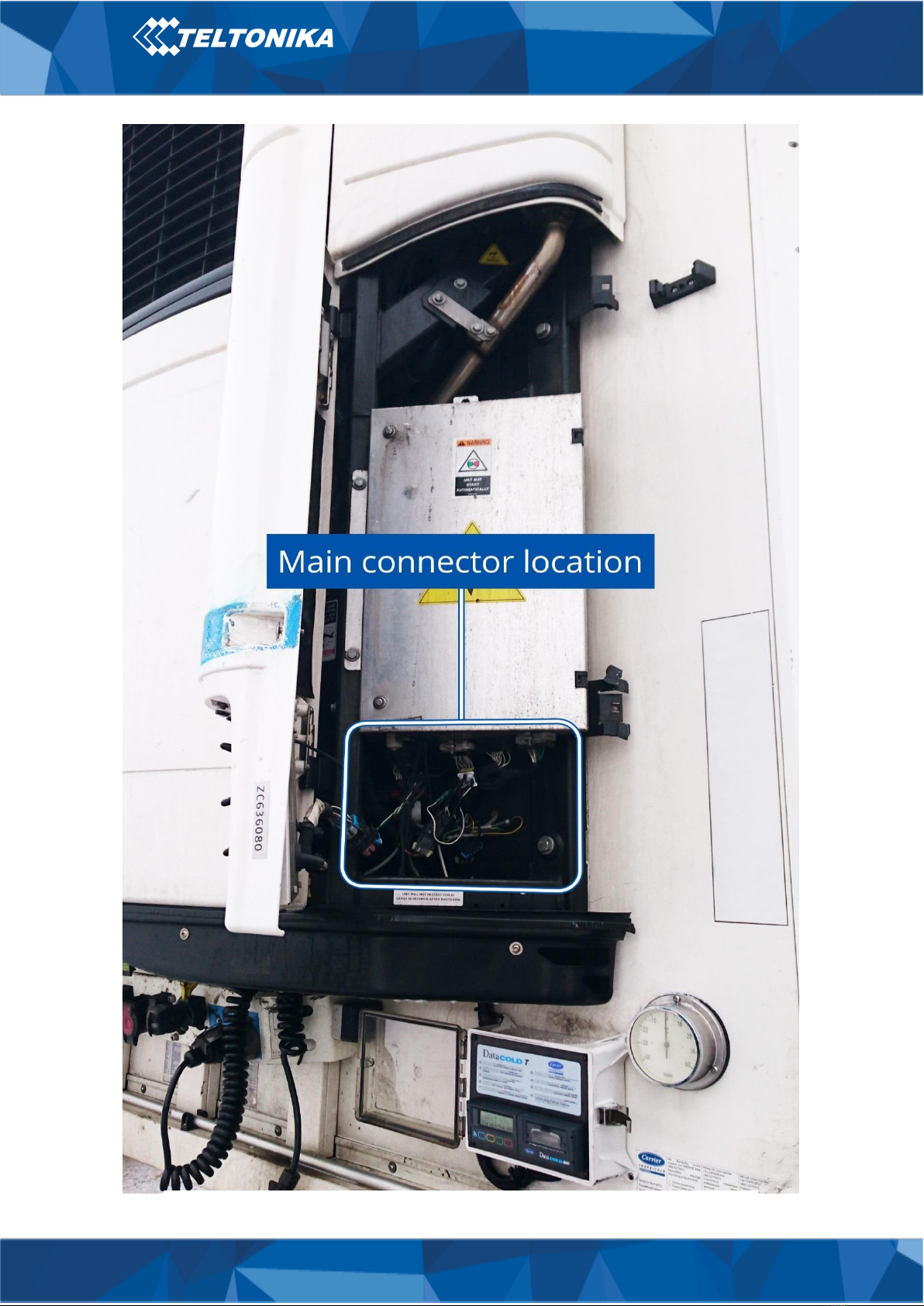

All of the the connectors displayed in screenshot, find the marked connector:

Figure 5 The main connector location

6

The connector should have a cap attached as displayed in the close up screenshot, unclip the cap.

Figure 6 The main connector cap

7

The FMB6 devices can be installed in the panel as displayed in this example:

Figure 7 An example of FMB6 device installed in the panel

8

Device’s wires lead down through gasket to the connector as displayed below:

Figure 8 An example of FMB6 device installed in the panel full view

9

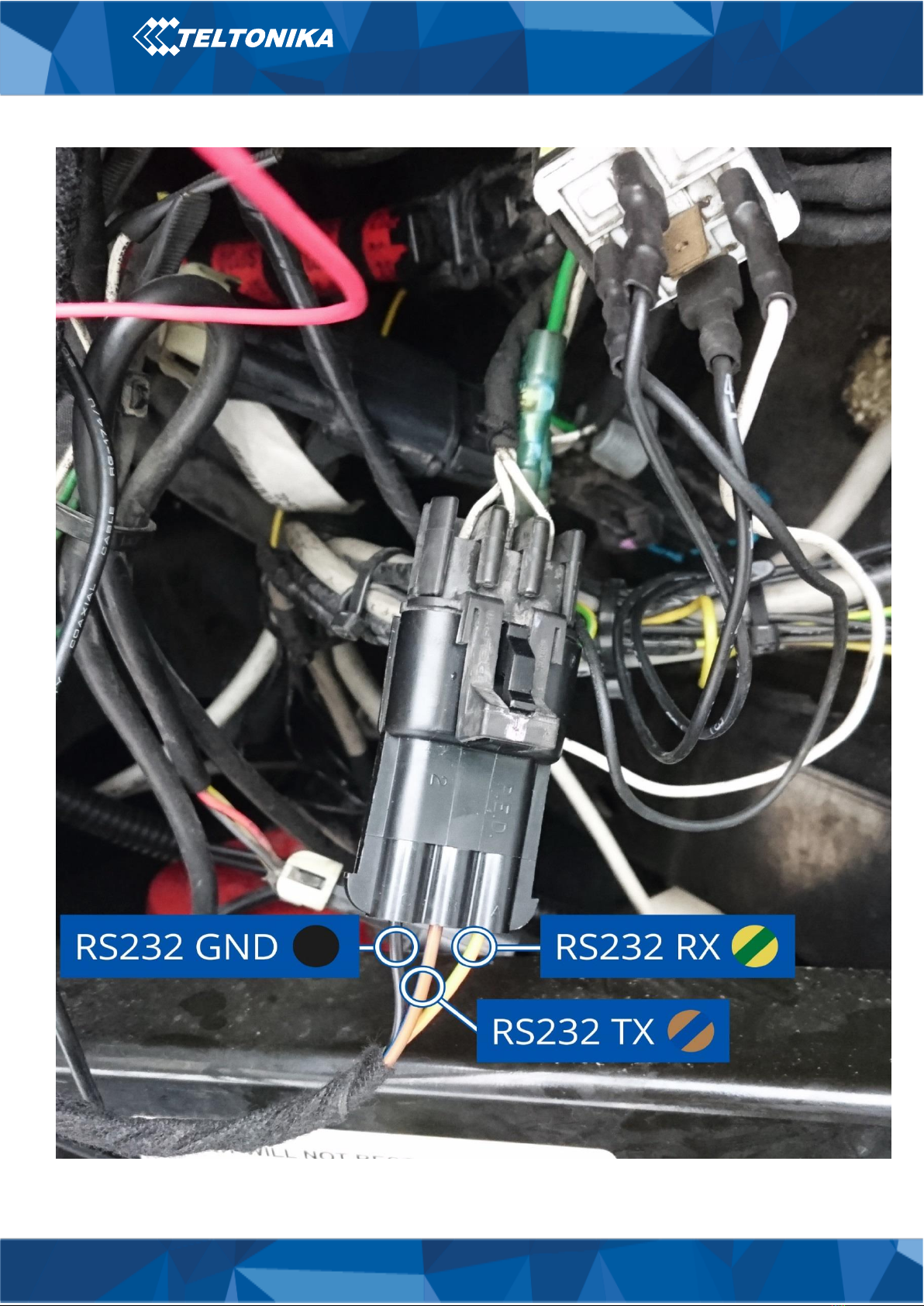

Connect the FMB6 wires to the main connector in the electric panel exactly as shown below. Wires marked

in the screenshot (RS232 GND(Black), RS232 TX (Orange/Blue), RS232 RX(Yellow/Green)).

Figure 9 The connection of the FMB6 device‘s wires to the main connector
