Telematrix 2 Line trimline User manual

USERS GUIDE

2 LINE

TRIMLINE

TELEPHONE

c Copyright TeleMatrix Inc.2004

Congratulations on the purchase of your

TeleMatrix 2-line Trimline telephone.

This telephone is a precision electronic

device designed and manufactured with

the highest quality components and work-

manship that requires minimum maintenance.

please be sure to read the contents in this

user’s guide to become familiar with

its features and functionality.

INTRODUCTION

Table Of Contents

Introduction 1

Features 3

Controls 4

Definition Of Controls 5

Installation 6

Parts Checklist 7

Wall Mounting 10

Permanent Mounting 12

Switch Setting 13

Operation 17

Care & Maintenance 18

Service 19

Warranty 21

CONTENTS

•Two Line Operation

•Tone/Pulse Dialing (selectable)

•Message Waiting Lamp (90VDC Neon)

•Convenient Data Port

•Hold Key

•Line Status Indicators

•Handset Volume Control

•Flash Function (600mS)

•Dial In Handset

•Last Number Redial

•Hi/Low Ringer Volume Control

•Desk Or Wall Mountable

•Secured, Permanent Mounting Option

•Fully Modular

•90VDC Neon or low Voltage LED Selectable

Selectable Message waiting

FEATURES

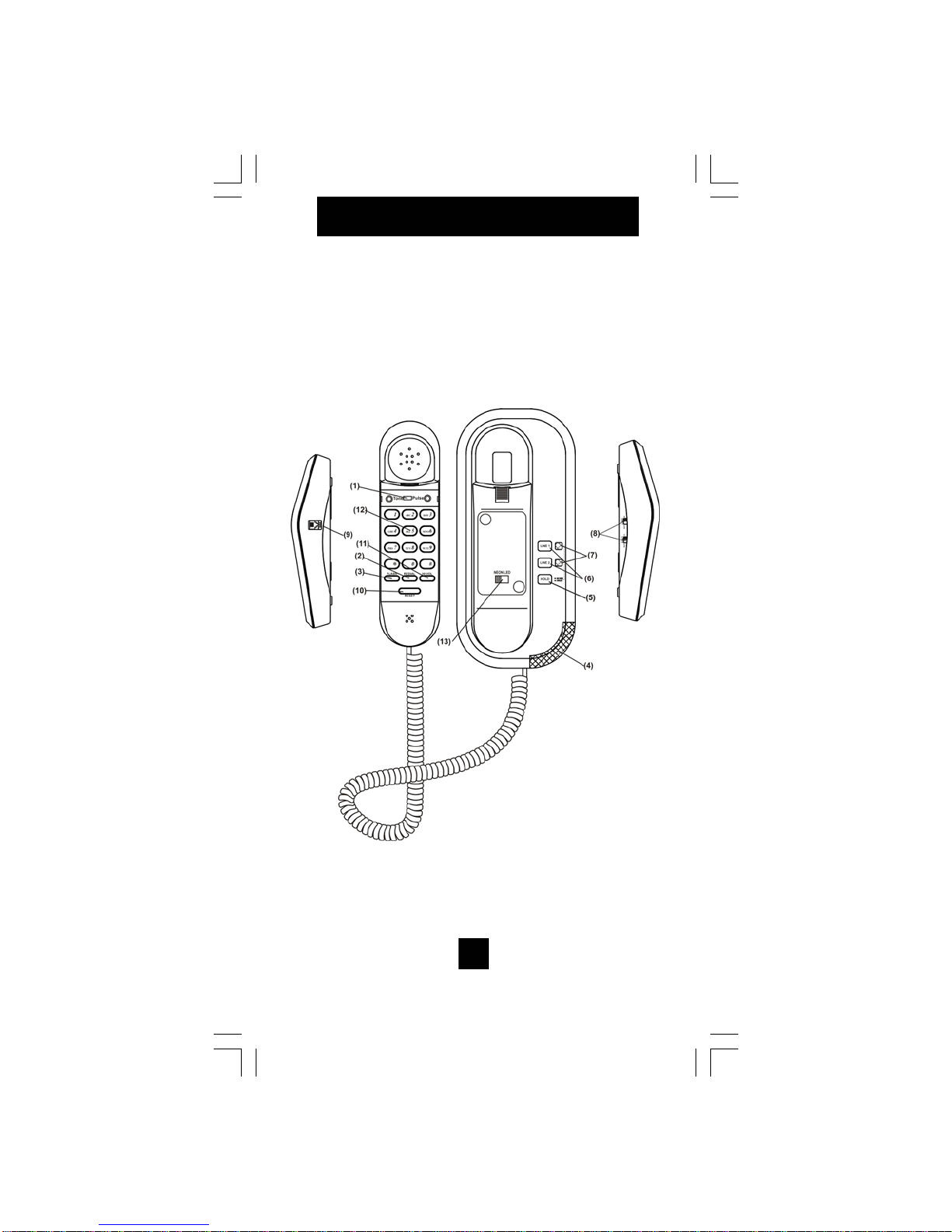

CONTROLS

1. Tone/Pulse Switch

Used to select touch-tone or rotary pulse dialing.

2. Redial key

Used to automatically re-dial the last number dial.

3. Flash Key

Provide a 600mS time line break.

4. Message Waiting Lamp

Visual indicator to tell you that a message is waiting

or that the line is ringing.

5. Hold Key

Used to place a caller on hold.

6. Line Selector Keys

Used to select Line1 or Line2 when placing or

answer a call

7. Line Status Indicator

LED indicators to show that the line is ringing,

in-use or on hold

8. Ringer Volume Control

Switch to adjust the loudness or the ringer.

9. Data Port

Used for plugging in a laptop, modem, fax, etc.

10. Line Reset Key

Used to reset the line to place another call.

11. Handset Volume Control

Amplifies the volume of the receiver.

12. Dialpad

Large keys used for outbound dialing.

13. Message waiting selector switch

Select optional 90VDC Neon or low voltage LED

message waiting.

DEFINITION OF CONTROLS

Caution

•Never install telephone wring during a lightning

storm.

•Never install telephone jacks in wet location

unless the jack is specifically designed for wet

locations.

•Never touch un-insulated telephone wires or

terminal unless the telephone line has been

disconnected at the network interface.

•Use caution when installing or modifying

telephone lines.

INSTALLATION

Parts Checklist

The following parts are packaged with your

TeleMatrix Trimline Telephone:

1. 15-foot Modular telephone line cord.

2. 5-inch Modular telephone line cord.

3. 10-foot Modular coiled handset cord.

INSTALLATION

Connecting The Line Cord

Plug one end of the 15-foot modular telephone

line cord into the receptacle on the bottom of

the base unit. Route the cord through the cord

channel provided. Plug the remaining end of

the line cord into a standard telephone outlet.

INSTALLATION

Connecting The Handset Cord

Plug one end of the modular coiled handset

cord into the receptacle located on the left

side of the base unit. Plug the remaining end

into the receptacle on the handset.

INSTALLATION
