Tekmar 510 User manual

Table of Contents

Display........................................................2

Symbols......................................................2

User Interface............................................. 3

Viewing Current Temperatures...................4

Setting Time and Day................................. 5

Viewing Current Time .................................5

Mode of Operation......................................6

Schedules...................................................6

Adjusting Room Temperatures ................... 7

Adjusting Floor Minimum Temperatures.....7

Temporary Override.................................... 8

Extended Absences/Vacation.....................8

Advanced Schedule Settings...................... 9

Units of Temperature ................................ 10

Backlight................................................... 10

Cleaning the Thermostat ......................... 11

Error Messages ........................................ 11

Warranty................................................... 12

U510

09/09

Programmable Thermostat 510

- User Brochure

Congratulations

on the purchase

of your tekmar

programmable

thermostat. This

thermostat combines

easy-to-use

programming with

advanced features to

increase both comfort

and energy efficiency.

Your tekmar

thermostat features:

•

• User friendly 4-

button interface

with backlit LCD

display

•

• Multiple program

schedules

•

• Options to control

floor and air

temperature for

enhanced comfort

Please refer to page 6

for schedule details to

ensure your new thermostat

is operating as efficiently as it

was designed to.

Item Field

Displays the

selected item

Number Field

Displays the

current value of

the selected item

Status Field

Displays the

current status

of the control’s

inputs, outputs

and operation

Menu Field

Displays the

current menu

MODE OF OPERATION

Displays selected mode of operation (OFF, HEAT, AUTO (512),

COOL (512).

HEAT

Indicates the stage of heat that is operating.

COOL

Indicates that cooling is operating (512 Only).

LOCK

Displays when in the User access level. Also indicates when

an item is visible but not adjustable.

EARLY START

Indicates the thermostat is in early start. With schedules active,

this intelligent feature learns room warming/cooling patterns and

ensures area is up to proper temperature for each event.

Sleep Wake

UnOcc

SCHEDULED EVENT

Indicates the current scheduled event.

TEMPORARY OVERRIDE

Indicates that the temperature has been temporarily adjusted

from the scheduled event temperature.

WARNING

Indicates an error is present.

Display

Symbols

User Interface

Access Levels

This thermostat has two access levels:

USER (User)

INST (Installer)

This brochure covers all features available in the USER level. Only qualified service

people should adjust the INST settings.

All of the items displayed by the thermostat are organized into four menus:

•

View

Adjust

•

Time

Schedule

•

Item

Each menu has several items. The abbreviated name of the selected item will be

displayed in the Item Field of the display. To view the next available item, press

and release the Item button.

Adjustment

To make an adjustment to a setting in the thermostat:

1. Use the Menu button to select the appropriate menu.

2. Use the Item button to select the desired item.

3. Use the Up or Down button to adjust the setting.

4. To cycle backwards through a menu, hold Item and press .

Default Item

When you display an item in the menu for more than 5 seconds it becomes

the default item. After you navigate other menus, the display reverts back to the

default item after 60 seconds of button inactivity.

When is selected, it will be displayed indefinitely until Menu is pressed.

Viewing Current Temperatures

Use the menu to view the current temperatures being sensed by the thermostat.

To view the available temperatures, use the Menu button to go to the menu.

Use the Item button to cycle through temperatures.

Room Temperature

This is the current air temperature of the room being

controlled.

Outdoor Temperature

If an outdoor sensor is connected to the thermostat, this is

the current outdoor air temperature.

Floor Temperature

If a floor sensor is connected to the thermostat, this is the

current floor temperature.

Remote Temperature

If a remote sensor is connected to the thermostat, this is

the current temperature at the remote sensor location.

Viewing the Current Time

To view the current time:

1. Use the Menu button to select the menu.

Note: Time can only be viewed when schedules are in

use.

Setting Time and Day

1. Use the Menu button to select . The current

time and day displays. If the clock has not been set,

the time will flash.

2. Use the Item button to advance to the minutes

adjustment. The minutes begins to flash. Press the

or buttons to adjust.

3. Use the Item button to advance to the hour adjustment.

The hour begins to flash. Press the or buttons

to adjust.

4. Use the Item button to advance to the next item.

The day begins to flash. Press the or buttons to

adjust.

Schedules

Displays

the current

event when

a schedule is

active

By default, this thermostat uses four adjustable ‘events’ on a 24 hour cycle. Each

event is a time of day requiring a room temperature change. This optimizes system

efficiency by reducing room temperatures when the building is less likely to be

occupied.

Although default schedule settings are

recommended, they are fully adjustable.

Please refer to the “Advanced Schedule

Settings” section on Page 9 for more

detailed settings.

Mode of Operation

The 510 thermostat has two modes of operation:

Off: Does not provide heating.

Heat: Provides heating only.

The 512 thermostat, when set up for heating and cooling, additionally offers:

Auto: Automatically switches between heating and cooling the space. Note: If a

floor (Slab) sensor is installed, the floor minimum temperature will be maintained

even during cooling.

Cool: Provides cooling only. Note: If a floor (Slab) sensor is installed, the Slab

minimum temperature will be ignored.

•

To choose the Mode of Operation:

1. Use the Menu button to select the

menu.

2. Use the Item button to select MODE.

3. Use the or button to select the

desired mode of operation.

510 Thermostat MODE options

Schedule

Mode Event Time

4 events per

day

Wake 6:00 AM

Unoccupied 8:00 AM

Occupied 6:00 PM

Sleep 10:00 PM

2 events per

day

Occupied 6:00 AM

Unoccupied 10:00 PM

Default Schedule Settings

Adjusting Room Temperatures

To change the desired room temperature:

1. Use the Menu button to select .

Use the Item button to select the ROOM

item.

When using a schedule, press Item to select

the event you would like to change (Wake,

UnOcc, Occ or Sleep).

3. Use the or buttons to change the

desired temperature.

If your thermostat is also controlling cooling

(512 Only), separate temperatures can be set

for each event in COOL mode.

In , press Item until COOL is displayed.

Adjust temperatures as described in steps 2

and 3 above.

If a floor (Slab) sensor is installed, you can set the minimum floor temperature.

Caution: Setting a high floor minimum temperature can result in overheating the

room.

To set the minimum floor warming temperatures on a schedule, follow the

‘Adjusting Schedule Temperatures’ steps listed above (ROOM is now SLAB for

this adjustment).

Adjusting Floor Minimum Temperatures

1. Use the Menu button to select .

2. Use the Item button to select SLAB MIN.

3. Use the or buttons to change the desired temperature.

Desired room temperatures are easily adjustable, even on a schedule with multiple

events.

A temporary override changes the desired room temperature for a short

period of time. After 3 hours, the original schedule resumes normal operation.

If you would like to temporarily change the desired room temperature:

Temporary Override (Schedule Only)

Wait 10

seconds

Extended Absences/ Vacation

If you are going away for an extended period of time, an Away Override can be

used. This reduces energy use by setting heating temperature to 62°F and cooling

temperature (Type 512 in Heat/Cool only) to 82°F. These temperature settings are

not adjustable.

1. Use the Menu button to select .

ROOM should be displayed. If not, press the

Item button to select ROOM.

Use the or button to override the current

set temperature. The menu changes to

and ‘OVR Tmpy’ will flash indicating a

temporary change. Continue pressing the or

button to adjust the desired temperature.

Type 512 in Heat/Cool: Use Item button to

choose between HEAT and COOL. Adjust

temperatures in each mode with or

button.

4. Wait 10 seconds. Screen will return to default

with ‘OVR Tmpy’ displayed at bottom.

To cancel the temporary hold before it expires,

press the Menu button until ‘OVR Tmpy’ is

removed.

To select Away Override:

1. Use the Menu button to select the menu.

2. Press the button until AWAY is selected.

To cancel the Away Override, simply select

and press button until NONE is shown.

Schedule Mode

The schedule allows for either 2 or 4 temperature changes per day. These changes

are called ‘events’.

To select the schedule mode:

1. Press Menu button to select .

2. Press Item button to display .

3. Press the or buttons to select schedule mode.

NONE - no schedule will be used

- 2 events can be programmed (Occ and UnOcc)

- 4 events can be programmed (Occ, UnOcc, Sleep, Wake)

Cycle Period

The cycle period can be changed to either 24 hour or 7 day.

To select the cycle period:

1. Press Menu button to select .

2. Press the Item button to display .

3. Press the or buttons to select the desired schedule cycle.

24hr - All days have the same schedule.

7day - Each day of the week has its own individual schedule.

Setting the Schedule

•

Advanced Schedule Settings

To set the schedule:

1. Use the Menu button to select .

2. Use the Item button to select the first event of the schedule.

3. Use the or button to set the start time of the event.

If you wish to skip the event, select “– –:– –” as the time. “– –:– –”

is found between 11:50 PM and 12:00 AM.

4. Use the Item button to advance to the next available event.

5. Repeat steps 3 and 4 for each available event.

•

Sleep

Wake Occ. (Evening)

UnOcc. (Day)

Sleep

62°F

70°F

60°F

70°F

62°F

6:00 AM 8:00 AM 6:00 PM 10:00 PM

Schedule operation with 4 events and suggested start times

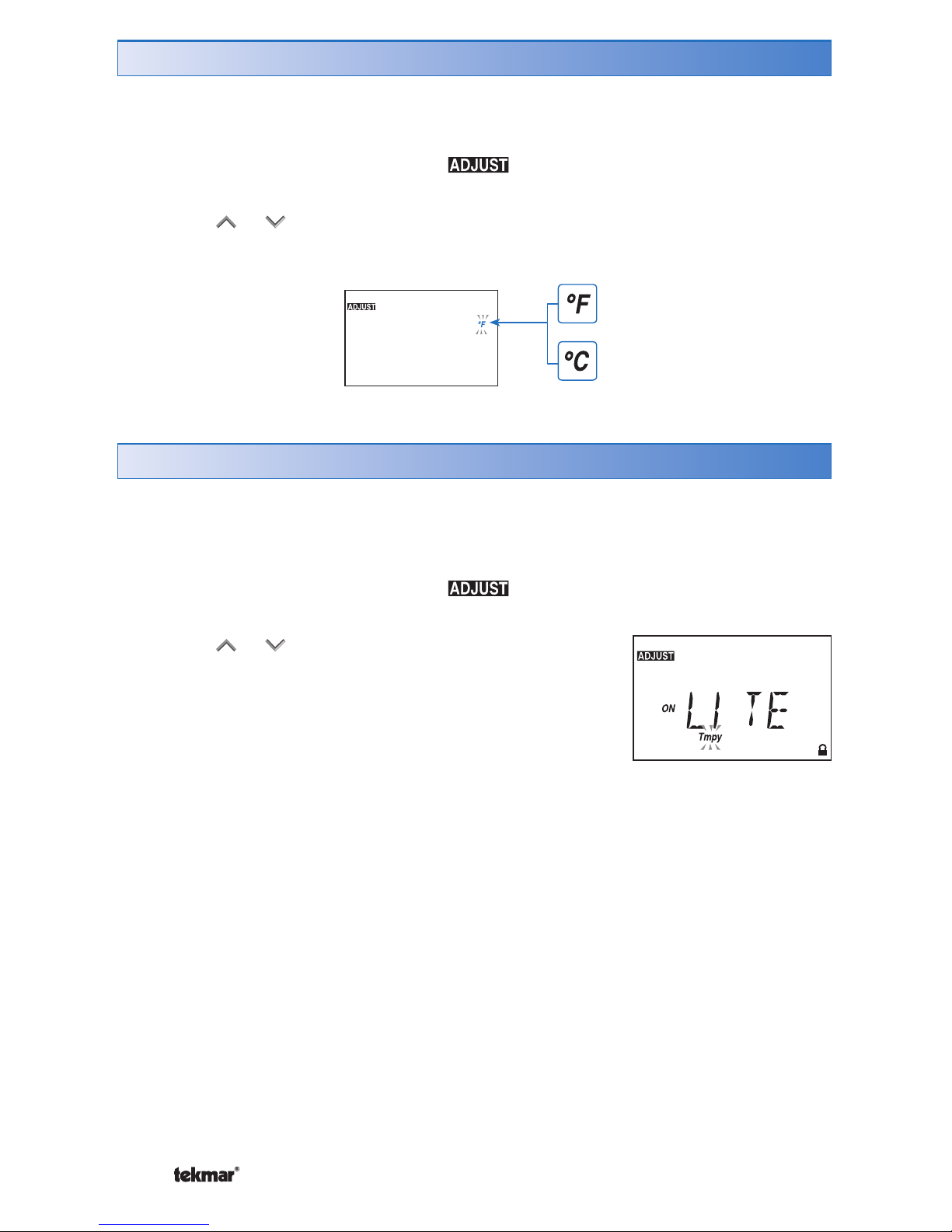

Units of Temperature

You can display temperatures in either Fahrenheit (°F) or in Celsius (°C).

To change the units of temperature:

1. Use the Menu button to select the menu.

2. Use the Item button until the units flash.

3. Use the or button to select Fahrenheit (°F) or Celsius (°C):

Backlight

The thermostat’s display has a backlight. By default the backlight is temporarily On.

You can also set the backlight to be either permanently On or permanently Off.

To change the backlight setting:

1. Use the Menu button to select the menu.

2. Use the Item button to select LITE.

3. Use the or button to select a setting:

OFF Backlight stays off.

ON Tmpy (Temporary): Backlight stays on for 30

seconds after a button is pressed.

ON: Backlight stays on permanently.

•

Other manuals for 510

Table of contents

Other Tekmar Thermostat manuals

Popular Thermostat manuals by other brands

EWELLY

EWELLY EW-181 manual

Prolon

Prolon T1100 Hardware guide

Computherm

Computherm Q20 operating instructions

Heatmiser

Heatmiser neoStat user manual

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA user manual

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat user manual

Saswell

Saswell SAS920XWHB-7-S-RF User manual and warranty card

Aircalo

Aircalo TFP1-ET85P2 operating manual

Honeywell

Honeywell CM721 user manual

Carrier

Carrier DEBONAIR 33CS Installation and operating instructions

Lennox

Lennox iHarmony Zone Thermostat Installation and setup guide

Gemtech

Gemtech GT7000 Operation

Rollei

Rollei Smartes 45000 manual

Sinope

Sinope TH1300RF user guide

Honeywell

Honeywell RLV4305 owner's guide

Honeywell

Honeywell Prestige 2.0 THX9421 manual

NuTone

NuTone NTBZ48 Installation & operation guide

Stelpro

Stelpro MAESTRO ASMT402AD user guide
