TECO TFF210WNTAM User manual
USER’S MANUAL
FROST FREE
REFRIGERATOR
Models :
TFF210WNTAM
TFF210SNTAM
TFF240WNTAM
TFF240SNTAM
TFF270WNTAM
TFF270SNTAM
To ensure proper use of the appliance and your safety, please read the
following user manual completely before use.
2
Thank you for purchasing our product and thank you for placing your
confidence in us.
Read this manual carefully before use. Follow instructions and
keep the manual for future reference.
Follow the operating instructions and safety notices in this manual.
If any trouble arise, do not attempt to fix it yourself. Please contact
TECO service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST).
This refrigerator is designed and approved for use with flammable
R600a refrigerant.
The appliance is specifically constructed for domestic
use and is therefore suitable for the refrigeration and storage
of fresh and frozen foods and the production of ice-cubes.
The appliance has not been designed or manufactured for
professional use. TECO declines all responsibility for damage
deriving from improper use of the appliance. The refrigerator
has undergone the necessary tests on the tightness of the
refrigeration circuit and complies with the safety regulations
for electrical appliances.
All images, illustrations and photos contained in this manual are for
illustration purposes only and may differ from your appliance.
WARNING ICON
This symbol indicates information concerning your personal
safety
CAUTION ICON
This symbol indicates information on how to avoid damaging
the appliance
FLAMMABLE ICON
R600a WARNING LABEL
CAUTION
WARNING
R600a
3
TABLE OF CONTENTS
Safety Information.....................................................
Name of Parts and Usage ........................................
Packing List ..............................................................
Transporting the Appliance & Installation .................
Operating Instructions ..............................................
Temperature Settings ...............................................
Energy Saving Tips ..................................................
Reversing The Door .................................................
Maintenance ......................................... ..................
Disconnection of the Appliance ...............................
Troubleshooting ......................................................
Speci�cations ...........................................................
Repairs, Service & Warranty ....................................
4
6
9
10
11
11
12
13
15
17
17
19
21
Back
cover
SPECIAL FEATURES
◊Frost Free
◊Internal LED Lighting
◊Electronic Temp. Control with LED Display
◊Spill Proof Tempered Glass Shelves
◊Portable Ice Cube Maker
◊Vegetable Crisper with Humidity Control
◊Preservation Light
(not available in TFF210WNTAM or TFF210SNTAM models)
Warranty Information ................................................
4
R600a Isobutane Refrigerant
Hydrocarbon refrigerants have excellent refrigerant
properties and minimal low global warming potential and
no ozone depletion potential.
This appliance contains a small quantity of flammable, non-
synthetic R600a refrigerant:
Hydrocarbon refrigerants cannot be ‘retrofitted’ to the appliance
that has not been designed and approved to use that type of
refrigerant.
Ensure that the tubing of the refrigerant circuit is not damaged
during transportation and installation.
Leaking refrigerant may cause eye injuries or could ignite.
The room for installing the appliance must be at least 1m3per 8g
of refrigerant. The amount of refrigerant in the appliance can be
found on the rating plate attached to the appliance.
Risk of fire
If the refrigerant circuit should become damaged. Avoid open
flames and sources of ignition. Disconnect the appliance from the
mains power. Thoroughly ventilate the room in which the
appliance is situated for several minutes.
SAFETY INFORMATION
•The refrigerator is designed to operate on a single phase power
supply within a voltage range of 220~240V/50Hz.
• The refrigeration system contains refrigerant. Do not allow any
sharp objects to come in contact with the refrigerant system to
avoid damage the refrigerant circuit.
• This product is for indoor use only.
• Do not place electrical items or cooking equipment nearby.
Keep away from substances which could cause ignition and good
ventilation shall be always maintained.
• Do not place objects on top of the appliance which are magnetic,
heavy or filled with water.
• If the supply cord is damaged, it must be replaced by authorised
TECO service personal, service agent or similarly qualified persons
in order to avoid a hazard.
• Do not store flammable, explosive, volatile and highly corrosive
materials in the refrigerator. Containers with flammable gases or
liquids can leak at low temperature. There is a risk of explosion or fire.
WARNING
WARNING
5
• Do not splash water on the appliance. It may cause malfunction or
electric shock.
• Always switch off and unplug appliance before cleaning.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety.
• WARNING: Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance.
• For appliances which use flammable insulation blowing gases, Please
keep the products away from the fire or similar glowing substance before
you dispose of the refrigerator.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
Safety of children
• Young children should be supervised to ensure that they do not
play with the appliance.
• Packing (e.g. wraps, polystyrene etc.) can be dangerous
for children. There is a risk of suffocation. Keep packaging
materials away from children.
• Contact your local authorities for correct method of disposal.
Dispose of all packaging in a responsible manner in accordance
with local regulations.
Dispose of old appliances in accordance with local regulations.
Remove the doors, cut off the main cable, break or remove
spring or bolt catches if fixed to prevent children getting trapped
or involve themselves in other dangers.
WARNING
6
NAME OF PARTS AND USAGE
12. Freezer Door
13. Freezer Door Rack
14. Middle Hinge
15. Refrigerator Door
16. Refrigerator Door Dairy Rack
17. Small Refrigerator Door Rack
18. Large Refrigerator Door Rack
19. Bottom Hinge
1. Cabinet
2. Freezer Air Duct
3. Freezer Glass Shelf
4. Freezer Vent Adjustment
5. Cold Compartment
6. Refrigerator Air Duct
7. Refrigerator Control Panel
8. Refrigerator Glass Shelf
9. LED Internal Light
10. Vegetable Crisper Glass Shelf
11. Vegetable Crisper
The refrigerator you purchased is subject to continuous improvement,
which may not be completely consistent with the manual, however, the
functions and operating methods will not change.
If you use the refrigerator for the first time, remove the adhesive tapes
from all surfaces, drawers, shelves, trays, etc.
Do not pull or push the vegetable crisper or shelves forcefully during
use as this may result in damage to the appliance.
1
2
3
5
6
8
10
11
12
13
14
16
17
18
19
15
7
9
4
TFF210WNTAM / TFF210SNTAM
7
NAME OF PARTS AND USAGE
1. Cabinet 13. Freezer Door
2. Freezer Air Duct 14. Freezer Door Rack
3. Freezer Glass Shelf 15. Middle Hinge
4. Freezer Vent Adjustment 16. Refrigerator Door
5. Cold Compartment 17. Refrigerator Door Dairy Rack
6. Refrigerator Air Duct 18. Small Refrigerator Door Rack
7. Refrigerator Control Panel 19. Large Refrigerator Door Rack
8. LED Internal Light
9. Preservation Light*
10. Refrigerator Glass Shelf
11. Vegetable Crisper Glass Shelf
12. Vegetable Crisper
*The Preservation Light utilizes light waves to stimulate the
photosynthesis effect of fresh fruit and vegetables within the refrigerator.
This assists fruit and vegetables to stay fresh for longer.
NOTE: Not available in TFF210WNTAM & TFF210SNTAM models.
1
2
3
5
6
8
10
12
11
13
14
15
17
18
19
16
7
9
4
TFF240WNTAM / TFF240SNTAM
8
NAME OF PARTS AND USAGE
1. Cabinet 12. Freezer Door
2. Freezer Air Duct 13. Freezer Door Rack
3. Freezer Glass Shelf 14. Middle Hinge
4. Freezer Vent Adjustment 15. Refrigerator Door
5. Cold Compartment 16. Refrigerator Door Rack
6. Refrigerator Air Duct 17. Small Refrigerator Door Rack
7. Refrigerator Control Panel 18. Large Refrigerator Door Rack
8. LED Internal Light 19. Bottom Hinge
9. Refrigerator Glass Shelf 20. Preservation Light*
10. Vegetable Crisper Glass Shelf
11. Vegetable Crisper
*The Preservation Light utilizes light waves to stimulate the
photosynthesis effect of fresh fruit and vegetables within the refrigerator.
This assists fruit and vegetables to stay fresh for longer.
NOTE: Not available in TFF210WNTAM & TFF210SNTAM models.
1
3
7
9
5
2
4
6
8
20
10
11
12
13
14
16
17
18
19
15
TFF270WNTAM / TFF270SNTAM
9
PACKING LIST
Check the packing list that all items have been included.
Note: Product specifications are subject to change without prior notice.
Item
User’s Manual
Portable Twist Ice
Cube Maker
Top Hinge Cover
Warranty
Information Sheet
1 Copy
1 Piece
1 Piece
1 Copy
2
3
4
1
Part No.
10
TRANSPORTING THE APPLIANCE &
INSTALLATION
The appliance must be transported only in a vertical position. The packing
must be intact during the transportation.
When unpacking and re-packing the appliance, please memorise the
position of each accessory of the appliance when unpacking it. When
re-packing the appliance for transportation, ensure all accessories are
secured before transportation.
Do not lift or pull the doors during transportation.

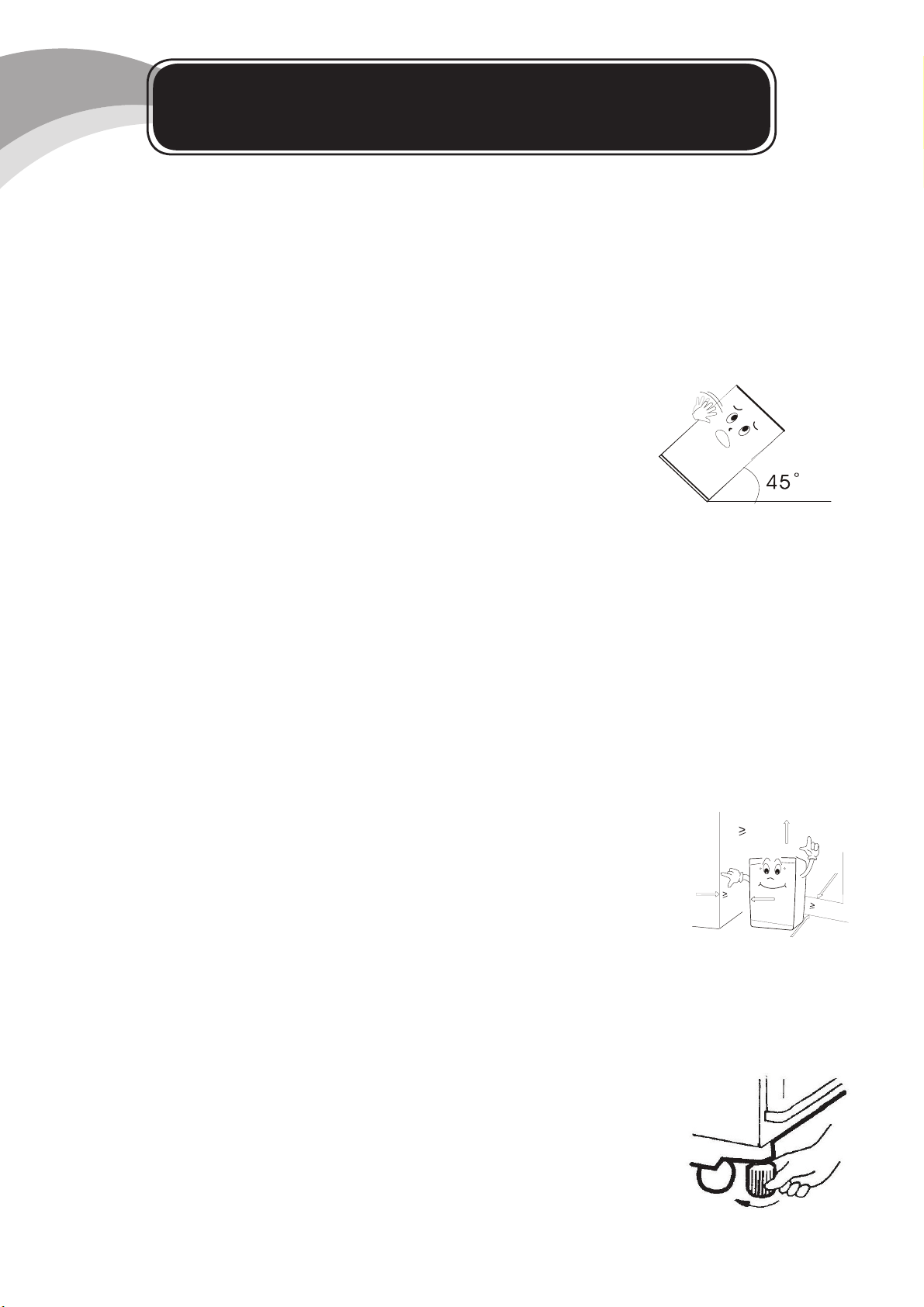

When moving the appliance, do not tilt >45 degrees
(the angle of the vertical direction). Please avoid strong
vibration and impacts that could cause damage to the appliance.
The refrigerator should be located on a firm and flat surface. An uneven
surface may cause excess operating noise or vibration.
(a) The noise may be increased if the floor is not firm.
(b) If the appliance is to be positioned on carpet flooring and heat
emitted from the appliance is a concern, place a solid sheet
under the appliance.
Choose a location which is not exposed to sunlight, high temperature or
humid, as humidity may cause staining or damage.
It is recommended a clearance of at least 50mm away
from objects and walls on both sides and back. Ensure the
clearance above the appliance is not less than 100mm and
160° clear for the doors to swing open.
If the appliance is unstable, rotating either of the front two legs in a
clockwise direction will raise the appliance.
When adjusting the front legs, ensure the appliance
slopes backwards slightly to keep the door closed.
Remove all internal packaging before operating.
●
●
●
●
●
●
●
●
●
●
100mm
50mm
50mm
This manual suits for next models
5
Table of contents
Other TECO Refrigerator manuals
TECO
TECO TSXS582SNCM User manual
TECO
TECO TFF400WNTCM User manual
TECO
TECO TFF411WNBRM User manual
TECO
TECO TFF203WNTDM User manual
TECO
TECO TBF134WMDB User manual
TECO
TECO TFF278WNTAG User manual
TECO
TECO TBF117WMDE User manual
TECO
TECO TFF536WNMATEBF User manual
TECO
TECO TBF84WMTA User manual
TECO
TECO TSXS580WNA User manual
TECO
TECO TAF237WMPA User manual
TECO
TECO THCF200WMGM User manual
TECO
TECO TFF470WNTA User manual
TECO
TECO THF268WNTAM User manual
TECO
TECO TFF210WNTBM User manual
TECO
TECO THCF145WMGM User manual
TECO
TECO TFF270WNTBM User manual
TECO
TECO TBF75WMDA User manual
TECO
TECO TFF400WNTBM User manual
TECO
TECO TBF86WMTAG User manual
