Taurus LEG PRESS IT95 User manual

Owner‘s Manual

TF-IT9510

LEG

PRESS IT95

TAURUS® is a registered brand of the company Sport-Tiedje GmbH.

Table Of Contents

CAUTION!

Read all precautions and instructions in this manual before using this equipment.

Please assemble according to the actual Weights you buy !

Important Safety Instructions----------------------------------------------------------- 3

Instructions-------------------------------------------------------------------------------- 5

Exploded View and Parts List------------------------------------------------------------ 6

Measurement Guide--------------------------------------------------------------------- 19

Assembly Instructions------------------------------------------------------------------ 20

Assembly--------------------------------------------------------------------------------- 21

Adjust Instructions---------------------------------------------------------------------- 33

Exercise Instructions-------------------------------------------------------------------- 34

Maintenance Schedule------------------------------------------------------------------ 35

General Maintenance Information----------------------------------------------------- 36

Weight Training Tips-------------------------------------------------------------------- 37

Important Safety Instructions

Before beginning any fitness program, you should obtain a complete physical

examination from your physician. When using exercise equipment, basic

precautions should always be taken, including the following:

1. Read all instructions before using the equipment.

These instructions are written to ensure your safety and to protect the unit.

2. Use the equipment only for its intended purpose as described in this guide.

Do not use accessory attachments that are not recommended by the

manufacturer: such attachments might cause injuries.

3. The product should only be used on a level surface and is with 0.5 meters

space around the product.

Do not use the equipment outdoors.

4. Do not allow children on or near the equipment. And children are not allowed

to use this equipment.

Teenagers should use this equipment with adult supervision.

5. Do not overexert yourself or work to exhaustion.

Do not attempt to lift more weight than you can control safely.

If you feel any pain or abnormal symptoms, stop your workout immediately

and consult your physician.

6. This equipment is not used as medical apparatus and instruments.

7. Never operate the unit when it has been dropped or damaged.

Never drop or insert anything into any opening in the equipment.

Always check the unit and its cables before each use. Make sure that all

fasteners and cables are secure and in good working condition.

Frayed or worn cables can be dangerous and may cause injury. Periodically

check these cables for any indication of wear.

Keep hands, limbs, loose clothing and long hair well out of the way of moving

parts.

8. Be careful when getting on or off the equipment.

9. Wear proper exercise clothing and shoes for your workout, no loose clothing.

Specifications

Class: S

Maximum Wt. Capacity: 134kg/ 295lbs

Maximum User Weight: 150kg/ 330lbs

Product Total Surface: 1850*1150mm

Product Total Mass: 211.3kg/ 466lbs

Training Area and Free Area

Important Safety Instructions

Personal Safety During Assembly

Read each step in the assembly instructions and follow the steps in sequence.

Do not skip ahead. If you skip ahead, you may learn later that you have to

disassemble components and that you may have damaged the equipment.

Assemble and operate the equipment on a solid, level surface. Locate the unit

a few feet from walls or furniture to provide easy access. The equipment is

designed for your enjoyment. By following these precautions and using

common sense, you will have many safe and pleasurable hours of healthful

exercise with the equipment.

Instructions

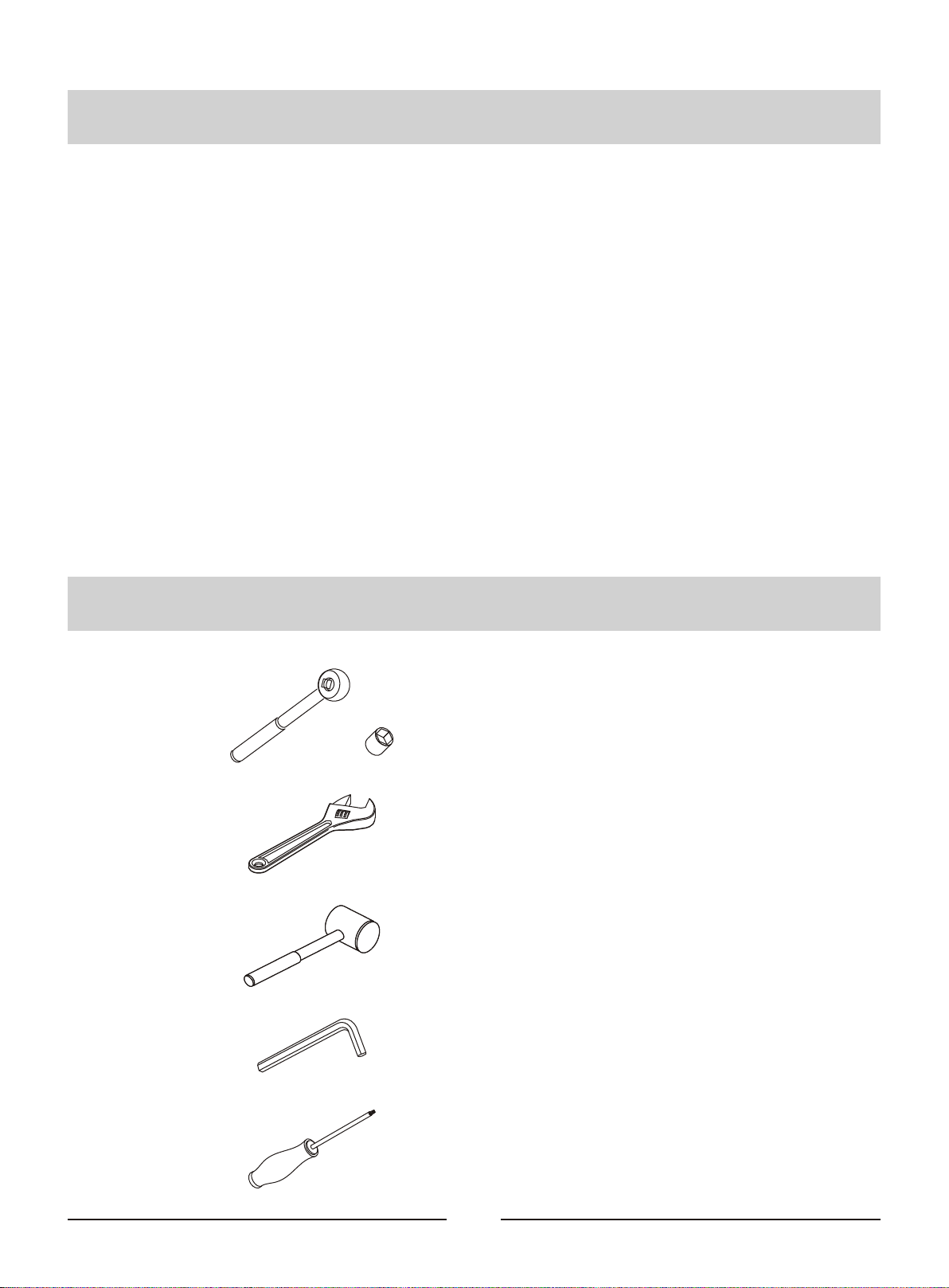

Tools Required

The equipment is designed to provide the smoothest, most effective exercise

motion possible. After assembly, you should check all functions to ensure correct

operation. If you experience problems, first recheck the assembly instructions to

locate any possible errors made during assembly. If you are unable to correct the

problem, call your authorized dealer. Be sure to have your serial number and this

manual when calling. When all parts have been accounted for, continue on.

Ratchet Wrench and Socket

Adjustable Wrench

Rubber Mallet

Hex Key Wrench Set

Phillips Screwdriver

Before beginning assembly please take the time to read instructions thoroughly.

Please use the various lists in this manual to make sure that all parts have been

included in your shipment. When ordering, use part number and description from

the lists. Use only our replacement part when servicing. Failure to do so will void

your warranty and could result in personal injury.

Exploded View and Parts List

Overall

Item No. Grade No. Part No. Description QTY

1 1 IT951001ASSY Weight Stack Frame ASSY 1

2 2 IT951002ASSY Main Frame ASSY 1

3 3 IT95100300 Bottom Frame Brace 1

4 4 IT951004ASSY Front Frame ASSY 1

5 5 IT95100500 Front Connection Frame 1

6 6 IT951005ASSY Seat Carriage Frame ASSY 1

7 7 IT951006ASSY Assist Grip Frame ASSY 1

8 8 IT951012ASSY Front Pedal ASSY 1

9 9 IT95101000 Sliding Guide Rod 2

10 10 IT95101700 Connecting Plate 1

11 11 IT95101800 Cable ASSY 1

12 12 IT95101900 Big Spring 2

13 13 IT95102000 Nylon Baffle Ring 4

14 14 IT95081800 Seat Pad 1

15 15 IT950172ASSY Head Pad ASSY 1

16 16 IT950171ASSY Back Pad ASSY 1

17 17 IT95031200 Ellipse Plate 1

18 18 SG500110400V5 4.5" Pulley 3

19 19 SD1000B3000ASSY Adjustable Foot Plate 4

20 20 IT801210300P11C Cup Holder 1

21 21 IT950121ASSY Top Bracket ASSY 1

22 22 IT950122ASSY Bottom Bracket ASSY 2

23 23 IT95012300 Rear Bracket 1

24 24 IT95014200 Top Plate 1

25 25 IT95014400 Guide Rod φ19*1242 2

26 26 IT95015100 Top Cover 1

27 27 IT95015200 Training Placard Cover 1

28 28 IT95015500 Top Rear Shroud 1

29 29 IT95015300 Front Shroud 1

30 30 IT95015400 Right Front Shroud 1

Exploded View and Parts List

Overall

Item No. Grade No. Part No. Description QTY

31 31 IT95015600 Rear Shroud 1

32 32 IT80023000 Weight Rubber Bumper 2

33 33 IT90012000V1 Selector Pin W/Coil 1

34 34 IT95016100 Guide Rod Fixing Sleeveφ25*φ19*45 2

35 35 HFOPT900-04A0602 Spring 2

36 36 IT95016500 Spout Plug φ16.5*6.88 2

37 37 IT95031300 Support Sleeve 6

38 38 GB70BTM12*90DN18NL Socket Head Cap Screw M12*90 2

39 39 GB70BTM12*80DN18 Socket Head Cap Screw M12*80 4

40 40 GB70BTM10*45DN18 Socket Head Cap Screw M10*45 2

41 41 GB70BTM12*30DN18 Socket Head Cap Screw M12*30 12

42 42 GB70BTM10*80DN18 Socket Head Cap Screw M10*80 6

43 43 GB70BTM10*75DN18 Socket Head Cap Screw M10*75 2

44 44 GB70BTM10*50DN18 Socket Head Cap Screw M10*50 3

45 45 GB70BTM10*30DN18 Socket Head Cap Screw M10*30 6

46 46 GB70M8*30*30DN19 Socket Head Cap Screw M8*30 4

47 47 GB70M8*20N19 Socket Head Cap Screw M8*20 2

48 48 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 18

49 49 GB818M6*16DHS2 Cross Recessed Pan Head Screw M6*16 4

50 50 GB818M6*10DHS2 Cross Recessed Pan Head Screw M6*10 4

51 51 GB9512DN2 Flat Washer φ13*φ24*2.5 14

52 52 GB9510DN2 Flat Washer φ11*φ20*2 24

53 53 GB958DN2 Flat Washer φ9*φ16*1.6 6

54 54 NM12DN2 Nylon Lock Nut M12 2

55 55 NM10DN2 Nylon Lock Nut M10 7

56 56 NBS6DHS Hex Key S=6 1

57 57 NBS8DHS Hex Key S=8 1

58 58 LW200BS Wrench φ6*117 1

59 59 YHY Lube 1

60 72 CNLM8*20N19 Flat Head Cap Screw M8*20 3

61 71 IT95101600 Auxiliary Pedal 1

62 73 NBS5DHS Hex Key S=5 1

63 74 GB9310N19 Washer φ10 2

Exploded View and Parts List

Overall

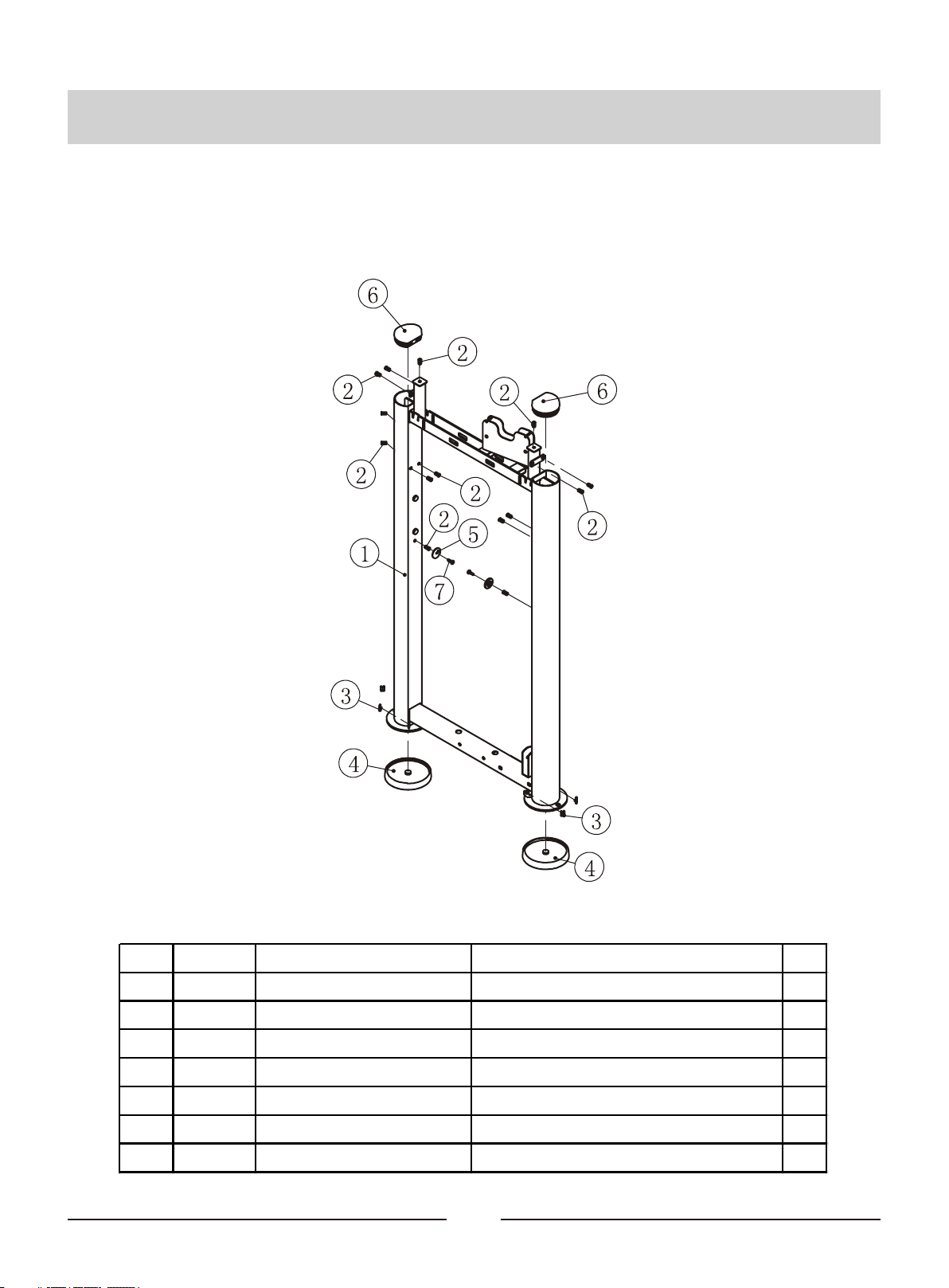

Exploded View and Parts List

Weight Stack Frame ASSY

Item No. Grade No. Part No. Description QTY

1 1.1 IT95100100 Weight Stack Frame 1

2 1.2 GB17880.5M6*16.5DS17 Rivet Nut M6 14

3 1.3 AC32705800 U-nut M6 4

4 1.4 IT95015700 Foot Plate 2

5 1.5 IT95015900 Plastic Block 2

6 1.6 IT95015800 Plug φ95*81.1 2

7 1.7 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 2

Exploded View and Parts List

Main Frame ASSY

Item No. Grade No. Part No. Description QTY

1 2.1 IT95100200 Bottom Frame 1

2 2.2 IT90013800P11C Plug RT50*100 2

3 2.3 IT95016400 Pulley Cover 1

4 2.4 FE97122300 Limit Shaft 1

5 2.5 IT95057800 4.5" Pulley 1

6 2.6 FE97122100 Bushing φ22*φ17.5*7.5 1

7 2.7 DQ10N19B Flat Washer φ11*φ25*2 1

8 2.8 GB70BTM10*25DN18 Socket Head Cap Screw M10*25 1
