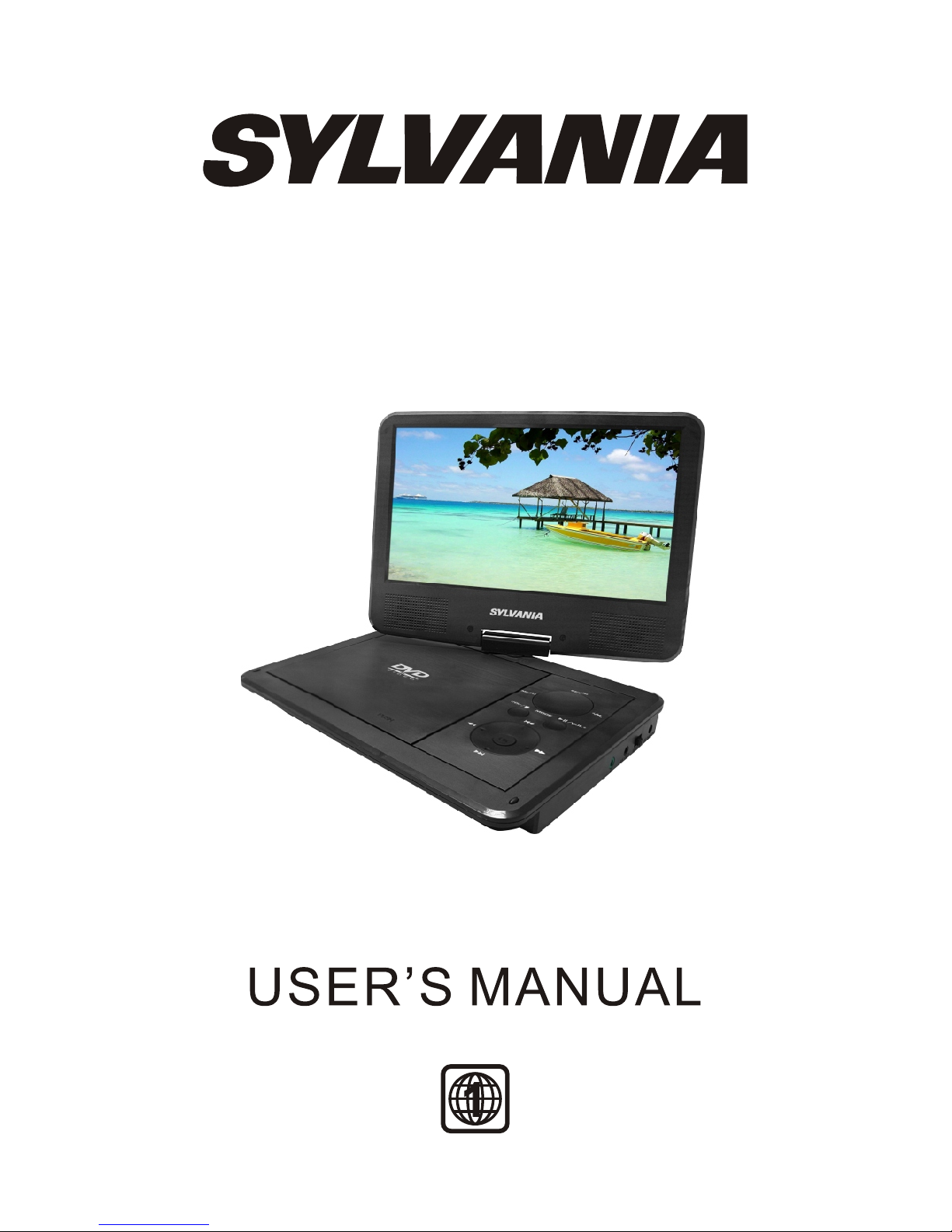

Sylvania SDVD9321 User manual

SDVD9321

Table Of Contents

Safety Precaution

Package

Main Features

Main Unit Controls

System Connection

Basic operation

System Setup

Specification

Troubleshooting

Virtual Remote Operation

Safety Precaution

Warning: To reduce the risk of fire or electric shock, do not expose this

apparatus to rain or moisture.

1) Please read the instruction manual carefully and follow all the requirements

of safe operation to operate the device.

2) Do not use this unit near water. Do not place over the unit any container

with liquid inside.

3) Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

4) Unplug this unit during lightning storms or when unused for long time.

5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use

liquid detergent or aerosol.

6) Only use accessories specified by the manufacturer.

7) Refer all servicing to qualified service personnel, servicing is required when

the unit has been damaged in any way, such as power supply cord or plug

is damaged, liquid has been spilled or objects have fallen into the unit,

exposed to moisture, does not operate normally. Don't try to repair the

machine by yourself because of the danger of high voltage and electric

shock.

8) Do not use irregular shaped discs such as heart or star-shaped discs as

they may cause the unit to malfunction.

Thank you for choosing our portable DVD player.

The unit applies the latest state of art electronics and is designed for use at

home, in hotels and in offices etc for relaxation. The compact size makes

carrying easier as well as installation. Please read the manual carefully prior

to use and keep it well for later consultation.

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful

interference, and (2) This device must accept any interference received,

including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the

party responsible for compliance could void the user's authority to operate the

equipment.

NOTE: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

High brightness color 9” LCD screen

Built-in stereo speaker

Built-in rechargeable Lithium polymer battery

Support PAL or NTSC system

Support Multi-language OSD, speed forward/backward, repeat function

Compatible with disc of DVD, VCD, MP3, MPEG4, CD, JPEG, etc.

Package

Main Features

DVD Player

AC power Wall adapter

User Manual

DC power car adapter

Swiveling LCD Screen

You can swivel the LCD screen of this player clockwise a maximum of 180

for use.

90° 180°

180°

Main Unit Controls

8. button

9. button

10. OK button

11. DC IN 9-12V

12. Power ON/OFF switch

13. AV OUT

14. Earphone jack

15. Open knob

16. Rating label position

1. USB Port

2. SETUP button

3. MENU button

4. FUNC. button

5. MODE button

6. STOP / VOL

( press shortly to stop, press

longly to reduce volume.)

7. Play/Pause / VOL+

( press shortly to play /pause,

press longly to add volume.)

1.when put in

USB flash,press "MODE" will switch

to USB status, if no USB ,will keep

DVD status unchanged. 2.Press this

button 4 times continuously to be

the password for children)

System Connection

Powering And Installation

Using USB

Upon using an USB, insert it into the USB slot directly.

Plug one end of the AC power Wall adapter into the DC IN9-12V jack on the

right of the machine, then plug the other end into the AC power receptacle.

Please refer to the following illustration.

If using DC power car adapter to connect to the power: Plug one end of

the DC power car adapter into the DC IN 9-12V jack on the unit, plug the

other end into the car cigarette lighter socket. See illustration below.

Note

1. DC power car adapter is available to use only when the car cigarette

lighter with DC 12V negative grounding.

2. The mains plug is used as the disconnect device, the disconnect device

should remain readily operable.

Connecting With External Speaker

Note:

There is no 5.1 channel in the unit, however, after connecting to APM it is

available to output audio in 5.1 channel.

AMPLIFIERTV

SUBWOOFER

Left front

speaker

Right front

speaker

Center speaker

Left rear speaker Right rear speaker

AUDIO INVIDEO IN

AV CABLE

Not supplied

The unit can be connected with external speaker. Please see the following

illustration.

Basic Operation

1. Connect the unit to the power;

2. Open the unit and adjust the monitor to the best position for viewing.

3. Turn on the unit by sliding the ON/OFF switch to ON.

4. Open the disc door and insert a disc into the door with the label side facing

up.

5. Close the disc door. The unit will load the disc and start playing.

6. During playback,press " " to pause; press it again to resume playback.

7. When playing disc of DVD, CD, Press " ", the unit will search forward.

Press it repeatedly, the unit will play at 2, 4, 8, 16, 32 times of speed. press

" " , the unit will search backward. Press it repeatedly, the unit will play at

2, 4, 8, 16, 32 times of speed.

8. Press " " once to stop playback; then press " " to resume playback from

the point where you stopped; press " " twice to stop playback completely.

9. When the playing is finished, please turn off the power by sliding ON/OFF

switch to OFF.

10.Mode function: When press "MODE" button will auto swith to USB status

when put in USB flash disc card. Moreover, no matter put in disc or not,

will show DVD status.

Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3, XVID.

DVD MPEG4 SVCD VCD CD MP3 XVID

Note:

Please do not disconnect USB devices while they are working with the unit.

Functional failure may occur in case of wrong operations.

Virtual Remote Operation

1. SRH (Search): Press the"SRH" key ,you can see the number bar below,

Use left/right key to move the cursor, press " " to confirm, when playing

DVD, you can change the chapter and the title, press the "T/C " icon

change the item you want to change. When playing CD, you can select the

track.

Note: To select the title, you need to enter two numbers.

2. M (Menu): to enter or exit menu root.

0 1 2 3 4 5 6 7 8 9 OK T/C

SRH

OSD

ADO SUB

SLOW

ANGLE

ZOOM

Subtitle Off

Repeat Off Mute Off

Angle Mark Null

Virtual Remote Operation

1. Press "MODE" button when disc is playing, you will see a virtual

remote control as below, and the playback will be paused.

2. The virtual key is shown on the left of

the menu, and the current playback

status is displayed on the right.

3. Use the / / / button to choose

the icon, when the icon is selected,

you can see the description at the

bottom.

4. Press " " button, the selected virtual

key will be activated, " =Selected

function" icon will be shown at top left for 10 seconds, in these 10 seconds

you just need to press " " button to change the style of the function. If the

icon disappear, the " " key will not work. ( For Search, Return, Mute, the

icon won't be shown).

5. You can also press "MODE" button to close virtual remote menu. The

player will resume playing after the menu exit.

Note:

1. When the disc is in the submenu, press the function key can go back the

title menu.

2. Open or no disc state, the "MODE" is setup function.
