Swisher PowerBlade PBA-6540 Installation guide

PBA-6540

Arctic Cat Models

400i 2X4 & 4X4 02-05

400i 4X4 TBX 04

500i 4X4 Manual

& Auto 20-04

500i 4X4 TBX 03-04

500i Two Seater 03

650 Twin 04

May fit additional models see Master List

Front

Caution: Do not exceed 5 MPH with the blade or it’s brackets installed

Remove the mount plate(s) for trail riding where extra ground clearance is needed

1602 Corporate drive

P.O. Box 67

Warrensburg, MO 64093

1-877-627-5860

13051

Partial Frame View

1

2

34

5

6

7

9

8

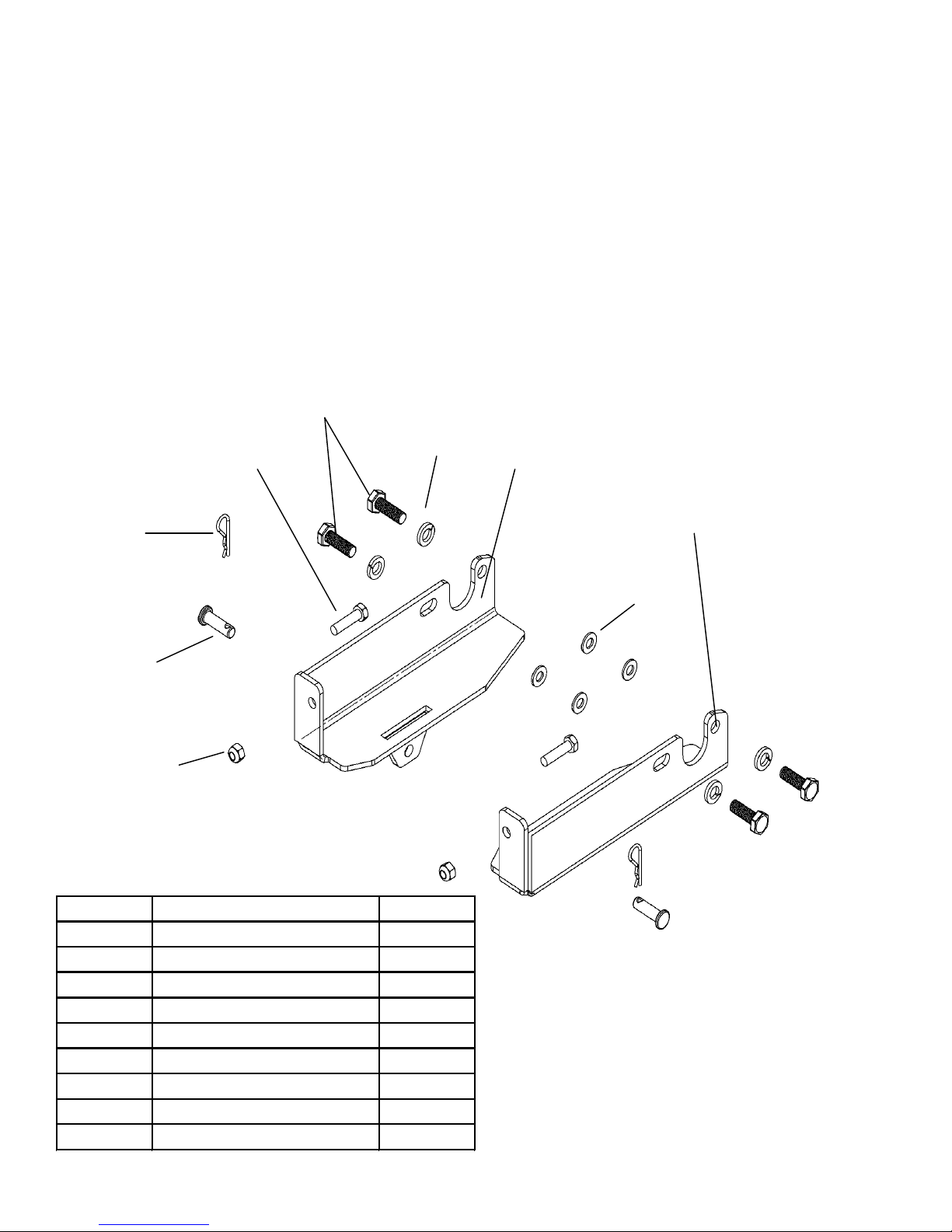

Item # Description Part #

1 Right Mount Plate 10313TK

2 Left Mount Plate 10316 TK

3 Bolt 5/16-18 X1.1/4 NB504

4 Lock Washer 10146

5 Hair Pin #39 NB127

6 Clevis Pin 10305

7 Bolt M10-1.25 X30 10304

8 Washer Flat NB275

9 Nylock Nut 5/16-18 NB181

Assembly Instructions

Note. Right and Left direction are from the operator position. The lower skid plate, If so equipped, may need

to be removed. Please retain plate and hardware to be reinstalled if the plate is removed..

1. Remove the foot rest bolts. You may need to Remove the front bolts to assist in the mounting.

2. With the mounting tabs toward the front, mount the brackets using the longer bolt and lock

washers provided.

3. Check the spacing on the outside of the mount tabs ( 14.187 Inches)

4. Add Spacing washers as needed to achieve the correct space.

5. Install the front bolts(Item 3) through the frame

6. Tighten all hardware
