Supermicro BPN-SAS3-743A User manual

Rev. 1.0

BPN-SAS3-743A Backplane

USER'S GUIDE

BPN-SAS3-743A Backplane User's Guide

Manual Revision 1.0

Release Date: May 1, 2017

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this manual at any time and without notice. This product, including software, if any,

and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or

reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO

USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE

COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH

HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all

claims will not exceed the price paid for the hardware product.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate

warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this

product may expose you to lead, a chemical known to

the State of California to cause birth defects and other

reproductive harm.

Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

iii

Preface

Table of Contents

Contacting Supermicro.......................................................................................iv

Returning Merchandise for Service.....................................................................v

Chapter 1 Safety Guidelines

1-1 ESD Safety Guidelines ................................................................................... 1-1

1-2 General Safety Guidelines .............................................................................. 1-1

1-3 An Important Note to Users ............................................................................ 1-2

1-4 Introduction to the BPN-SAS3-743A Backplane ............................................. 1-2

Chapter 2 Connectors and Pin Denitions

2-1 Front Connectors ............................................................................................ 2-1

2-2 FrontConnectorPinDenitions...................................................................... 2-2

2-3 FrontJumperLocationsandPinDenitions................................................... 2-3

2-4 Rear Connectors and LED Indicators............................................................. 2-4

BPN-SAS3-743A Backplane User's Guide

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: [email protected] (General Information)

[email protected] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Asia-Pacic

Address: Super Micro Computer, Inc.

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Taipei County

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Technical Support:

Email: [email protected]

Tel: 886-2-8226-1900

Preface

Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required be-

fore any warranty service will be rendered. You can obtain service by calling your

vendor for a Returned Merchandise Authorization (RMA) number. When returning

to the manufacturer, the RMA number should be prominently displayed on the

outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and

handling charges will be applied for all orders that must be mailed when service

is complete.

For faster service, RMA authorizations may be requested online (http://www.super-

micro.com/support/rma/).

Whenever possible, repack the backplane in the original Supermicro box, using the

original packaging materials. If these are no longer available, be sure to pack the

backplane in an anti-static bag and inside the box. Make sure that there is enough

packaging material surrounding the backplane so that it does not become damaged

during shipping.

This warranty only covers normal consumer use and does not cover damages in-

curred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

Duringthewarrantyperiod,contactyourdistributorrstforanyproductproblems.

1-1

Chapter 1: Safety Guidelines

Chapter 1

Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps

listed below when accessing your system or handling the components.

1-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally sucient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing a component from the antistatic

bag.

• Handle the backplane by its edges only; do not touch its components, peripheral

chips, memory modules, or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the card and peripherals back into their antistatic bags when not in use.

1-2 General Safety Guidelines

• Always disconnect power cables before installing or removing any components

from the computer, including the backplane.

• Disconnect the power cable before installing or removing any cables from the

backplane.

• Make sure that the backplane is securely and properly installed on the mother-

board to prevent damage to the system due to power shortage.

1-2

BPN-SAS3-743A Backplane User's Guide

1-3 An Important Note to Users

• All images and layouts shown in this user's guide are based upon the latest PCB

revision available at the time of publishing. The card you have received may or

may not look exactly the same as the graphics shown in this manual.

1-4 Introduction to the BPN-SAS3-743A Backplane

The BPN-SAS3-743A backplane has been designed to utilize the most up-to-date

technology available, providing your system with reliable, high-quality performance.

ThismanualreectsBPN-SAS3-743ARevision1.00,themostcurrentreleaseavail-

able at the time of publication. Always refer to the Supermicro Web site at www.su-

permicro.comforthelatestupdates,compatibleparts,andsupportedcongurations.

2-1

Chapter 2: Connectors and Pin Denitions

Chapter 2

Connectors and Pin Denitions

2-1 Front Connectors

1. Chip: CPLD

2. JTAG Connector: J16

3. SAS3 Port #1: JSM1

4. SAS3 Port #0: JSM0

5. Power Connector (4-pin) #3:

JPW3

6. Power Connector (4-pin) #2:

JPW2

7. Power Connector (4-pin) #1:

JPW1

Figure 2-1. Front Connectors

65 7

2-2

BPN-SAS3-743A Backplane User's Guide

#5. - #7. Backplane Main Power Connectors

The 4-pin connectors, designated JPW1,

JPW2, and JPW3, provide power to the

backplane. See the table on the right for

pindenitions.

2-2 Front Connector Pin Denitions

#2. JTAG Connector

The JTAG connector, designated J16, is

used for diagnostic purposes. This connec-

tor should not be used as it is for internal

testing only.

Backplane

Main Power

4-Pin Connector

Pin#Denition

1+12V

2 and 3 Ground

4 +5V

#3. - 4. SAS3 Ports

The SAS3 ports are used to connect the

SAS3 drive cables. The 2 ports are desig-

nated JSM0, for drives at SAS #0-#3, and

JSM1, for drives at SAS #4-#7 (see section

2-4 for SAS drive locations). Each port is

also compatible with SATA drives. However,

mixing SAS3 and SATA drives in the same

enclosure is not recommended.

#1. CPLD Chip

The CPLD is an enclosure management

chip that supports the SGPIO and LED

management.

2-3

Chapter 2: Connectors and Pin Denitions

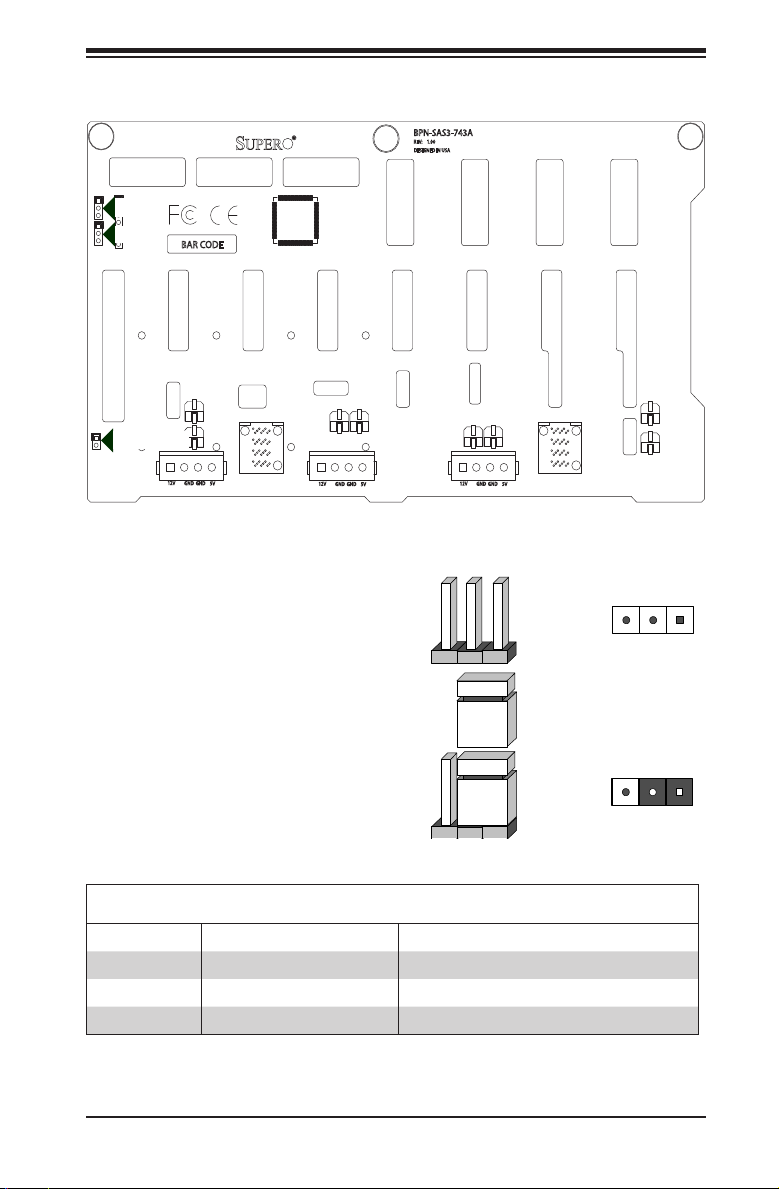

2-3 Front Jumper Locations and Pin Denitions

JP8

Figure 2-2. Front Jumpers

Explanation of Jumpers

To modify the operation of the backplane,

jumpers can be used to choose between

optional settings. Jumpers create shorts

between two pins to change the function

of the connector. Pin 1 is identied with

a square solder pad on the printed circuit

board.

Note: On two pin jumpers, "Closed" means

the jumper is on and "Open" means the

jumperiso󰀨thepins.

Connector

Pins

Jumper

Setting

3 2 1

Jumper Settings

Jumper Jumper Settings Note

JP8 2-3: Default This is used for internal testing only.

JP9 1-2: Default This is used for internal testing only.

ACTLED Open: Default This is used for internal testing only.

ACTLED

JP9
