Supermicro Supero SAS-743TQ User manual

SUPER ®

Rev. 1.0b

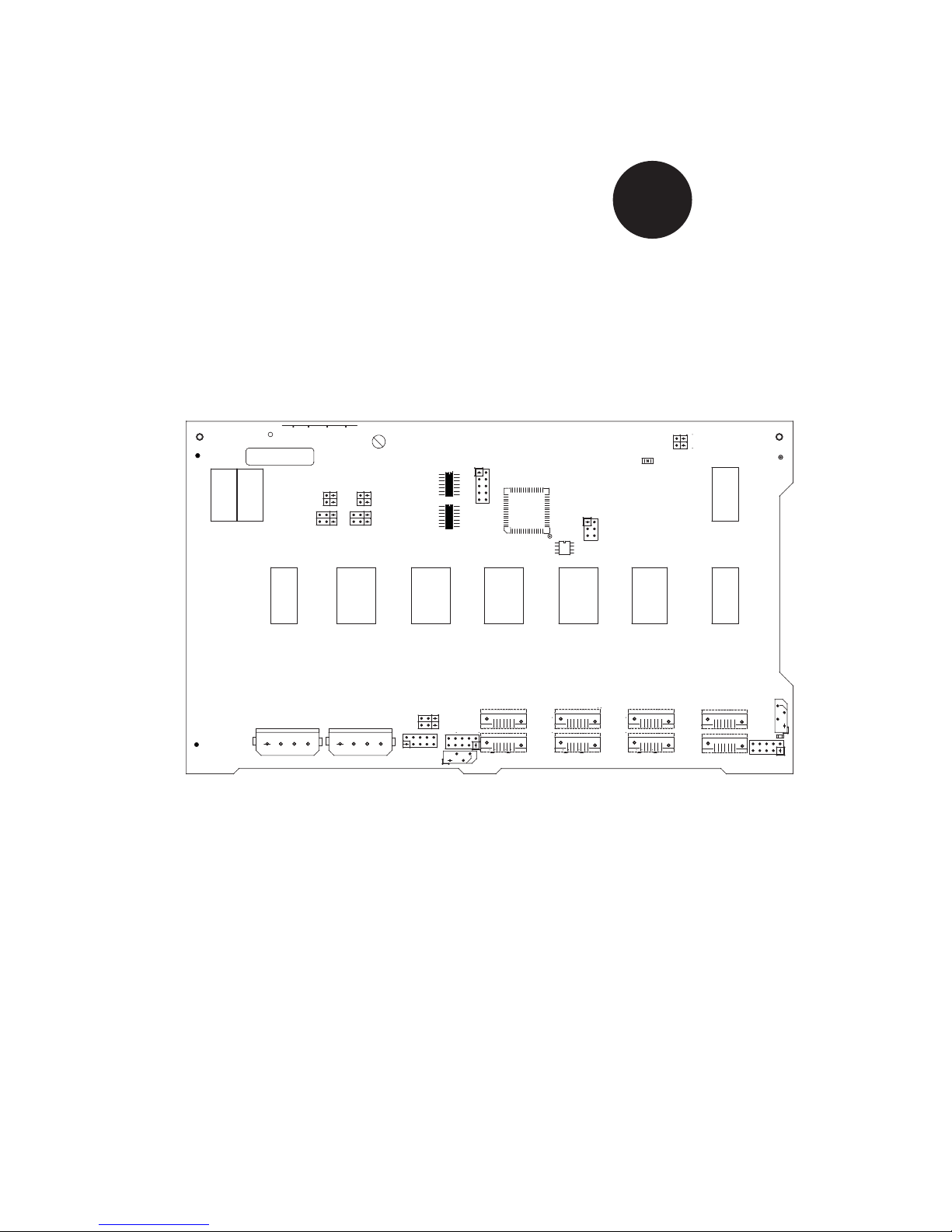

SAS-743TQ Backplane

USER'S GUIDE

+12V

GND

+5V

H12

M71

M75

M86

M87

M90

M91

M96

M97

MM2

MM3

SAS743TQ

REV 3.00

UPER

SAS-743TQ Backplane User's Guide

Manual Revision 1.0b

Release Date: December 4, 2009

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this manual at any time and without notice. This product, including software, if any,

and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or

reduced to any medium or machine without prior written consent.

IN NO EVENT WILLSUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO

USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATASTORED OR USED WITHTHE PRODUCT, INCLUDING THE

COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH

HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all

claims will not exceed the price paid for the hardware product.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate

warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this

product may expose you to lead, a chemical known to

the State of California to cause birth defects and other

reproductive harm.

Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

iii

Safety Information and Technical Speciﬁcations

Table of Contents

Contacting Supermicro.......................................................................................iv

Returning Merchandise for Service.....................................................................v

Chapter 1 Safety Guidelines ....................................................................1-1

1-1 ESD Safety Guidelines ................................................................................... 1-1

1-2 General Safety Guidelines.............................................................................. 1-1

1-3 An Important Note to Users............................................................................ 1-1

1-4 Introduction to the SAS-743TQ Backplane.....................................................1-2

Chapter 2 Jumper Settings and Pin Deﬁnitions ....................................2-1

2-1 Front Connectors and Jumpers ...................................................................... 2-1

Front Connectors ............................................................................................ 2-1

2-2 Front Connector and Pin Deﬁnitions............................................................... 2-2

2-3 Front Jumper Locations and Pin Deﬁnitions...................................................2-4

I2C and SGPIO Mode Jumper Settings ..........................................................2-6

SAS Port Connections in I2C and SGPIO Settings .......................................2-7

Front LED Indicators.......................................................................................2-8

2-4 Rear Connectors and LED Indicators............................................................. 2-9

SAS-743TQ Backplane User's Guide

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: [email protected] (General Information)

[email protected] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Asia-Paciﬁc

Address: Super Micro Computer, Inc.

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Taipei County

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Technical Support:

Email: [email protected]

Tel: 886-2-8226-1900

Safety Information and Technical Speciﬁcations

Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required be-

fore any warranty service will be rendered. You can obtain service by calling your

vendor for a Returned Merchandise Authorization (RMA) number. When returning

to the manufacturer, the RMA number should be prominently displayed on the

outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and

handling charges will be applied for all orders that must be mailed when service

is complete.

For faster service, RMA authorizations may be requested online (http://www.super-

micro.com/support/rma/).

Whenever possible, repack the backplane in the original Supermicro box, using the

original packaging materials. If these are no longer available, be sure to pack the

backplane in an anti-static bag and inside the box. Make sure that there is enough

packaging material surrounding the backplane so that it does not become damaged

during shipping.

This warranty only covers normal consumer use and does not cover damages in-

curred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

During the warranty period, contact your distributor ﬁrst for any product problems.

1-1

Safety Information and Technical Speciﬁcations

Chapter 1

Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps

listed below when accessing your system or handling the components.

1-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally sufﬁcient to protect your equipment from ESD.

Use a grounded wrist strap designed to prevent static discharge.

•

Touch a grounded metal object before removing a component from the antistatic•

bag.

Handle the backplane by its edges only; do not touch its components, peripheral

•

chips, memory modules or gold contacts.

When handling chips or modules, avoid touching their pins.

•

Put the card and peripherals back into their antistatic bags when not in use.•

1-2 General Safety Guidelines

Always disconnect power cables before installing or removing any components•

from the computer, including the backplane.

Disconnect the power cable before installing or removing any cables from the

•

backplane.

Make sure that the backplane is securely and properly installed on the mother-

•

board to prevent damage to the system due to power shortage.

1-2

SAS-743TQ Backplane User's Guide

1-3 An Important Note to Users

All images and layouts shown in this user's guide are based upon the latest PCB•

revision available at the time of publishing. The card you have received may or

may not look exactly the same as the graphics shown in this manual.

1-4 Introduction to the SAS-743TQ Backplane

The SAS-743TQ backplane has been designed to utilize the most up-to-date tech-

nology available, providing your system with reliable, high-quality performance.

This manual reﬂects SAS-743TQ Revision 3.00, the most current release available

at the time of publication. Always refer to the Supermicro Web site at www.supermi-

cro.com for the latest updates, compatible parts and supported conﬁgurations.

2-1

Safety Information and Technical Speciﬁcations

+12V

GND

+5V

H12

M71

M75

M86

M87

M90

M91

M96

M97

MM2

MM3

SAS743TQ

REV 3.00

UPER

Chapter 2

Jumper Settings and Pin Deﬁnitions

2-1 Front Connectors

JTAG Connector: JP471.

Upgrade Connector: JP462.

Chip: MG90723.

Power Connectors (4-pin): JP10,4. and JP13

ACT IN: JP265.

Sideband Connector #2 JP526.

Sideband Connector #1 JP517.

I8. 2C Connector #2 JP45

I9. 2C Connector #1 JP44

SAS Port #0 J510.

SAS Port #1 J611.

SAS Port #2 J712.

SAS Port #3 J813.

SAS Port #4 J1014.

SAS Port #5 J1215.

SAS Port #6 J1416.

SAS Port #7 J1617.

16 12

15 11

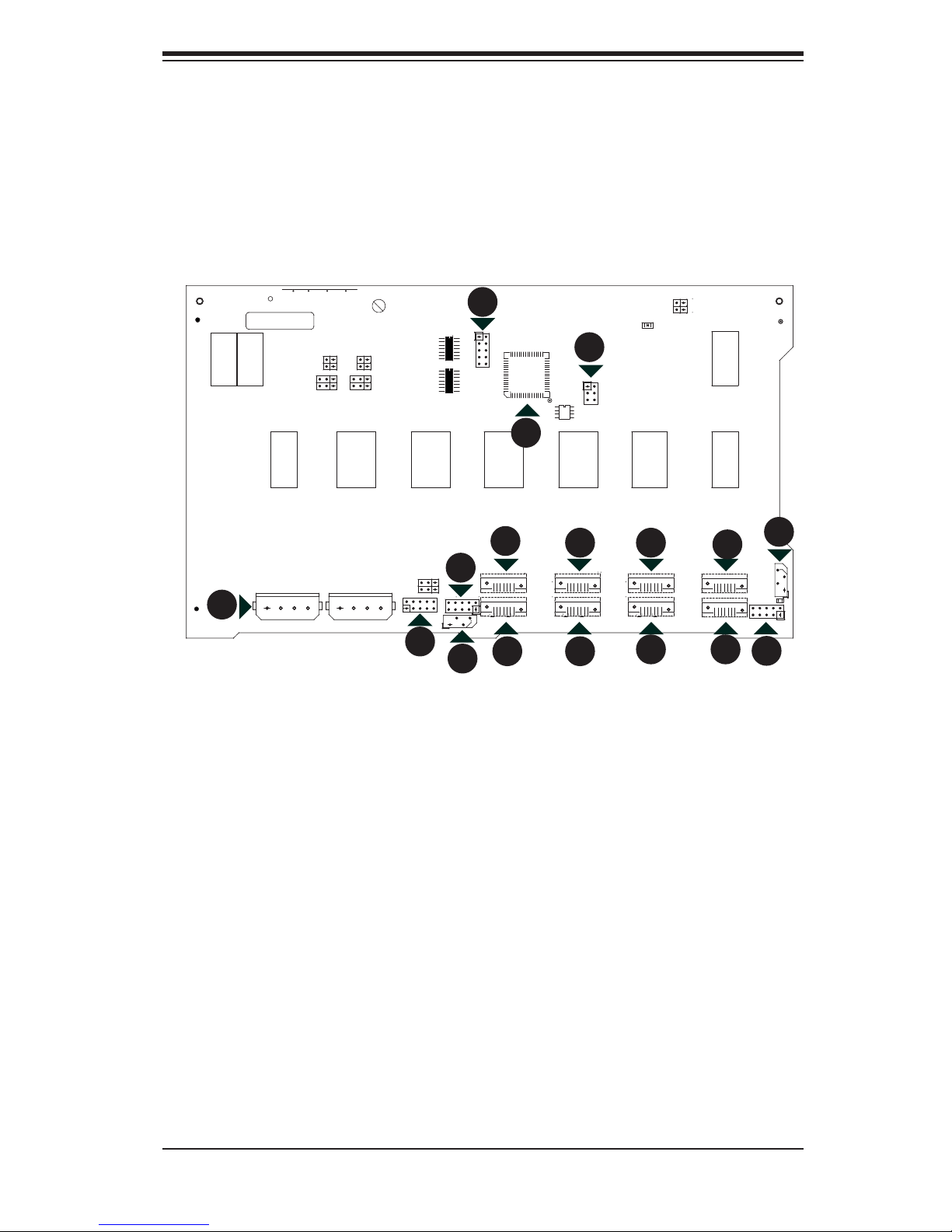

Figure 2-1: Front Connectors

2-2

SAS-743TQ Backplane User's Guide

2-2 Front Connector and Pin Deﬁnitions

#5. Activity LED Header

The activity LED header, designated JP26,

is used to indicate the activity status of

each SAS drive. TheActivity LED Header is

located on the front panel. For the Activity

LED Header to work properly, connect using

a 10-pin LED cable.

#3. MG9072 Chip

The MG9072 is an enclosure management

chip that supports the SES-2 controller and

SES-2 protocols.

Backplane

Main Power

4-Pin Connector

Pin# Deﬁnition

1 +12V

2 and 3 Ground

4 +5V

#4. Backplane Main Power Connectors

The 4-pin connectors, designated JP10 and

JP13, provide power to the backplane. See

the table on the right for pin deﬁnitions.

#1. and 2. JTAG Connector and Upgrade

Connectors

The JTAG and Upgrade connectors, des-

ignated JP47 and JP46, are used for diag-

nostic purposes. These connectors should

be used by a certiﬁed and experienced

technician.

2-3

Safety Information and Technical Speciﬁcations

#6. and #7. Sideband Headers

The sideband headers are designated JP51

and JP52. For SES-2 to work properly, you

must connect an 10-pin sideband cable.

See the table to the right for pin deﬁni-

tions.

Sideband Headers

Pin # Deﬁnition Pin # Deﬁnition

2 Backplane

Addressing

(SB5)

1 Controller

ID (SB6)

4 Reset (SB4) 3 GND (SB2)

6 GND (SB3) 5 SDA (SB1)

8 Backplane

ID (SB7) 7 SCL (SB0)

10 No Connec-

tion 9 No Connec-

tion

#8. and #9. I2C Connectors

The I2C Connectors, designated JP44 and

JP45, are used to monitor HDD activity and

status. See the table on the right for pin

deﬁnitions.

I2C Connector

Pin Deﬁnitions

Pin# Deﬁnition

1 Data

2 Ground

3 Clock

4 No Connection

#10. - #17. SAS Ports

The SAS ports are used to connect the SAS

drive cables. The 8 ports are designated

#0 - #7. Each port is also compatible with

SATA drives. However, do NOT mix SAS

and SATA drives in the same enclosure.

Table of contents

Other Supermicro Computer Hardware manuals

Supermicro

Supermicro AOC-SLG3-2E4R-F User manual

Supermicro

Supermicro SuperServer 5019S-L User manual

Supermicro

Supermicro B13SEG User manual

Supermicro

Supermicro AOC-SLG4-4E4T User manual

Supermicro

Supermicro AOC-S25GC-i2S User manual

Supermicro

Supermicro SAS 828TQ User manual

Supermicro

Supermicro AOC-R1UG-IBQ User manual

Supermicro

Supermicro AOM-S3108M-H8 User manual

Supermicro

Supermicro BPN-SAS3-833A User manual

Supermicro

Supermicro AOC-STG-i4S User manual

Supermicro

Supermicro SC846 JBOD Series User manual

Supermicro

Supermicro X12SPA-TF User manual

Supermicro

Supermicro AOC-STGC-i2T User manual

Supermicro

Supermicro SAS-836A User manual

Supermicro

Supermicro Supero SAS-827B User manual

Supermicro

Supermicro X11DPFF-SN User manual

Supermicro

Supermicro AOC-UIBQ-m1 User manual

Supermicro

Supermicro AOC-STG-i4T User manual

Supermicro

Supermicro X13SRN-H User manual

Supermicro

Supermicro SuperStorage SSG-1129P-ACR10N4L User manual

Supermicro

Supermicro AOM-C25G-i2SM-12 User manual

Supermicro

Supermicro BPN-SAS3-116A-N10 User manual

Supermicro

Supermicro B2SC1-CPU User manual

Supermicro

Supermicro AOC-URG4N4-b2XT User manual

Popular Computer Hardware manuals by other brands

EMC2

EMC2 VNX Series Hardware Information Guide

Panasonic

Panasonic DV0PM20105 Operation manual

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 user manual

Gigabyte

Gigabyte B660M DS3H AX DDR4 user manual

Raidon

Raidon iT2300 Quick installation guide

National Instruments

National Instruments PXI-8186 user manual

Hauppauge

Hauppauge WinTV-HVR-2250 Quick installation guide

Kontron

Kontron CP6002 user guide

Manhattan

Manhattan 702843 user manual

Aphex

Aphex 230 instruction manual

AMD

AMD Phenom II Product data sheet

Intel

Intel NUC 12 Pro user guide

dbx

dbx Zone Pro 1260 user manual

Galaxy

Galaxy GHDX2-2430S-24F4D Installation and hardware reference manual

Intel

Intel AXXRMFBU4 Quick installation user's guide

Kontron

Kontron DIMM-PC/MD product manual

ST X-NUCLEO-SAFEA1B How to use

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 installation manual
