Installation and Operation Instructions

Superior™ Residential and Outdoor Wood-Burning

Fireplace

Models

P127020-01

P/N 127020-01 Rev. C 02/2015 Report No. F10-078

WRE3036WS

WRE3036WH

WRE3036RS

WRE3036RH

Superiorﬁreplaces.US.com 127020-01C2

SAFETY

WARNING: Improper installation, adjustment,

alteration, service or maintenance can cause injury,

property damage or loss of life. Refer to this manual

for assistance or additional information. Consult a

qualiﬁed installer or local distributor.

IMPORTANT: Check local codes before installing this

ﬁreplace.

Before beginning installation of this ﬁreplace, read these instructions

through completely.

• This INNOVATIVE HEARTH PRODUCTS (IHP) replace and its

components are safe when installed according to this installa-

tionmanual.UnlessyouuseIHPcomponents,whichhavebeen

designed and tested for the ﬁreplace system, you may cause a ﬁre

hazard.

• TheIHPwarrantywillbevoidedbyandIHPdisclaimsanyrespon-

sibility for the following actions.

a. Modiﬁcation of the ﬁreplace, components, doors, air inlet system

and damper control.

b.Useofanycomponentpartnotmanufacturedorapprovedby

IHPincombinationwithanIHPreplacesystem.

Properinstallationisthemostimportantstepinensuringsafeand

continuousoperationofreplace.Consultthelocalbuildingcodes

as to the particular requirements concerned with the installation of

all factory built ﬁreplaces.

WARNING: Do not install a ﬁreplace insert in this

box unless the manufacturer's instructions with the

insert speciﬁcally state this ﬁreplace has been tested

for use with this insert.

TABLE OF CONTENTS

Safety.............................................................................................2

Specications.................................................................................4

FireplaceInstallation ......................................................................5

VentingInstallation ........................................................................7

OptionalGasLineInstallation ......................................................12

OperationandMaintenanceGuidelines........................................13

TechnicalService .........................................................................14

ReplacementParts.......................................................................14

Parts ............................................................................................15

Accessories..................................................................................18

Warranty ......................................................................................23

Thank you for your purchase. We appreciate your

business!

Pleasecarefullyreadandfollowallinstructionsinthismanual.Pay

special attention to all warnings and safety information.

Following these safety, care, and operation instructions will help

ensuremanyyearsofdependableandenjoyableservicefromyour

ﬁreplace.

To help us keep you up-to-date on product information and

offers,pleasetakeafewmomentstoregisteryourproducton-

lineatSuperiorfireplaces.US.com(Owner Resources/Product

Registration).

Please read and understand these instructions before installing

or operating.

FOR YOUR SAFETY

•Donotstoreorusegasolineoranyotherammable

vapors or liquids in the vicinity of this or any other

appliance.

•Duetohightemperatures,theapplianceshouldbe

located out of trafﬁc and away from furniture and

draperies.

•Donotplaceclothingorotherammablematerials

on or near the appliance.

•Neverleavechildrenunattendedwhenareisburn-

ing in the ﬁreplace.

WARNING: Use solid wood or processed solid fuel

ﬁrelogs only. When processed wood fuel ﬁre logs are

used, do not poke or stir the logs while they are burning.

Use only ﬁre logs that have been evaluated for the ap-

plication in ﬁreplace and refer to ﬁre log warnings and

caution markings on packaging prior to use.

This ﬁreplace is not intended to be used as a substitute

for a furnace to heat an entire home. Use for supple-

mental heat only.

Oveﬁring of a ﬁreplace is a condition where excessive

temperaturesarereached,beyondthedesigncapabilities

of the appliance. The damage that occurs from oveﬁring

isnotcoveredunderthemanufacturer’slimitedwarranty.

Superiorﬁreplaces.US.com

127020-01C 3

SAFETY Continued

WARNING: CONTINUED OVERFIRING CAN PER-

MANENTLY DAMAGE YOUR FIREPLACE SYSTEM.

SOME EXAMPLES OF CONDITIONS THAT COULD

CAUSE OVERFIRING ARE:

• BURNINGQUANTITIESOFSCRAPLUMBER,PINE

BRANCHES, PAPER OR CARDBOARD BOXES

WHICHEXCEEDTHEVOLUMEOFTHENORMAL

LOGFIRE.

• BURNINGTRASH,CHEMICALSORCHEMICALLY

TREATEDCOMBUSTIBLES.

"Disposal of Ashes

Ashes should be placed in a metal container with a

tight-ﬁtting lid. The closed container of ashes should

be placed on a noncombustible ﬂoor or on the ground,

well away from all combustible materials, pending

ﬁnal disposal. If the ashes are disposed of by burial

in soil or otherwise locally dispersed, they should be

retained in the closed container until all cinders have

thoroughly cooled."

"WHEN USING THE DECORATIVE APPLIANCE, THE

FIREPLACE DAMPER MUST BE SET IN THE FULLY

OPEN POSITION."

"Neverusegasoline,gasoline-typelanternfuel,kero-

sene, charcoal lighter ﬂuid, or similar liquids to start

or ’freshen up’ a ﬁre in this ﬁreplace. Keep all such

liquidswell awayfrom theﬁreplace whileit isin use."

Use SOLID WOOD only for fuel. It is best to use dry

and well seasoned hardwood. Softwoods tend to burn

veryquickly.DONOTusetreatedwood,charcoal,coal,

trash,driftwoodorwoodsthathavebeendippedintar,

pitch, pine tar, creosote, etc. Wood products made

with synthetic binders, such as plywood, produce ab-

normally high temperatures and sputtering, smoking

ﬁres. When burning artiﬁcial logs, please read and

follow the instructions provided by the manufacturer.

Never burn treated construction lumber or scraps.

These woods burn excessively hot and may contain

chemicals used to treat insects and fungus. When

burned,thesechemicalscanposeasigniﬁcanthazard.

WARNING: BURNING IMPROPER FUEL (I.E.

CHARCOAL) CAN RESULT IN CARBON MONOXIDE

POISONING, WHICH MAY LEAD TO DEATH!

Carbon Monoxide Poisoning – Early signs of carbon

monoxidepoisoningresembletheﬂuwithheadaches,

dizziness, or nausea. If you have these signs, get

fresh air at once! Have the appliance inspected by a

qualiﬁed service technician. Some people are more

affected by carbon monoxide than others. These

include pregnant women, people with heart or lung

disease or anemia, those under the inﬂuence of al-

cohol, and those at high altitudes.

Ventilation Requirements - Provide adequate air for

combustion. The fresh air requirements of this ap-

pliance must be met within the space where it will

be installed.

Smoke Detectors - Since there are always several

potential sources of ﬁre in any home, we recommend

installing smoke detectors. If possible, install the

smoke detector in a hallway adjacent to the room (to

reduce the possibility of occasional false activation

fromtheheatproducedbytheappliance). Ifyourlocal

coderequiresasmokedetectorbeinstalledwithinthe

same room, you must follow the requirements of your

localcode.Check with yourlocalbuildingdepartment

for requirements in your area.

"Creosote – Formation and Need for Removal

Whenwoodis burnedslowly, itproducestarand other

organicvapors,whichcombinewithexpelledmoisture

to form creosote. The creosote vapors condense in

the relatively cool chimney ﬂue of a slow-burning

ﬁre. As a result, creosote residue accumulates on

the ﬂue lining. When ignited this creosote makes an

extremely hot ﬁre.

The chimney shall be inspected at least twice a

year during the heating season to determine when a

creosote buildup has occurred. When creosote has

accumulated(1/8"[3mm]ormore)itshallberemoved

to reduce the risk of a chimney ﬁre."

Superiorﬁreplaces.US.com 127020-01C4

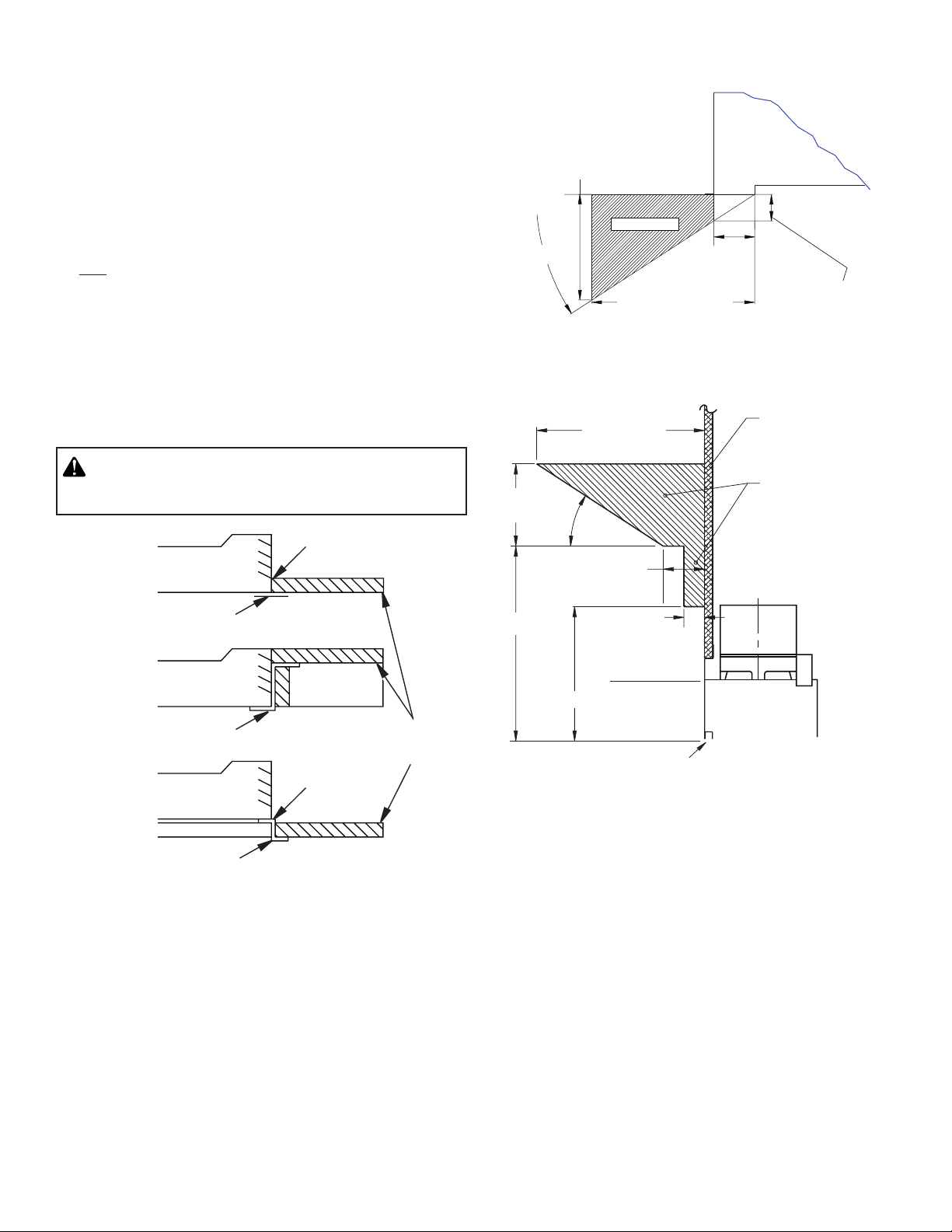

SPECIFICATIONS

0" TO

BOTTOM

OUTSIDE

AIR (LEFT

SIDE ONLY)

0.75"

AIR

SPACE

BACK

AND

SIDES

HEARTH

EXTENSION

52" X 18"

8" EACH

SIDE

NOT LESS

THAN 12" TO

PERPENDICULAR

SIDEWALL

1" AIRSPACE

TO COMBUSTIBLE

MATERIAL

COMBUSTIBLE

WALL BOARD

0" TO

TOP

SPACERS

NO COMBUSTIBLE

MATERIAL ON FACE

GAS LINE

KNOCK

OUTS

AIR KIT

KNOCK OUT

GAS LINE

KNOCK

OUTS

ELECTRICAL

OUTLET

LEFT SIDE

RIGHT SIDE

9.125"

11.435"

14.437"

41.250"

37"

41"

35"

21"

32.5"

14.25"

22"

3.5"

8.717"

11.217"

3.5" 9.125"

7.092"

8.717"

12.5"

41"

0.625"

29"

21"

SQUARE CHASE-TOP

TERMINATION

ROUND TOP TERMINATION

CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL, AND CEILING/

ROOF MUST BE MAINTAINED.

Superiorﬁreplaces.US.com

127020-01C 5

FIREPLACE INSTALLATION

4. Checkthelevelofthereplaceandshimwithsheetmetalifneces-

sary.

5. Before securing ﬁreplace to prepared framing, the ember protector

(provided)mustbeplacedbetweenthehearthextension(notsup-

plied)andunderbottomfrontedgeofreplacetoprotectagainst

glowingembersfallingthrough.Ifreplaceistobeinstalledona

raisedplatform,aZ-typeemberprotector(notsupplied)mustbe

fabricatedtotyourrequiredplatformheight.Theemberprotec-

torshouldextendunderreplaceaminimumof11/2".Theember

protectorshouldbemadeofgalvanizedsheetmetal(28gauge

minimum)topreventcorrosion.

6. Usingscrewsornails,securereplacetoframingthroughanges

located on sides of ﬁreplace.

DRAIN PAN (DP36)

For outdoor installations, the ﬁreplace enclosure must allow for

adequatedrainageandfreshairventilation.Itisrecommendedthat

asealed,corrosionresistantcatchpanwithprovisionfordrainage

beinstalledunderthereplacewithinthereplaceenclosure(see

Accessoriesonpage18).

41 3/4"

41 3/4"21 7/8"

Figure 1 - Framing Dimensions

52.183"

17.253"

24.399"

73.798"

MAINTAIN 3/4"

CLEARANCE AT

SIDES AND BACK

OF FIREPLACE

3/4" CLEARANCE

NOT REQUIRED AT

NAILING FLANGES

Figure 2 - Corner Installation

SELECTING LOCATION

WARNING: DO NOT INSTALL IN SLEEPING ROOM

OF MOBILE HOMES.

Todeterminethesafestandmostefcientlocationforthereplace,

youmusttakeintoconsiderationthefollowingguidelines:

1. Thelocationmustallowforproperclearances(seeFigures1and

2).

2. Consideralocationwherethereplacewillnotbe affectedby

drafts, air conditioning ducts, windows or doors.

3. Alocationthatavoidsthecuttingofjoistsorroofrafterswillmake

installation easier.

4. Anoutsideairkitisavailablewiththisreplace(seeOptionalOutside

AirKitonpage7).

MINIMUM CLEARANCE TO COMBUSTIBLES

Ceiling  40"minimum

Backandsidesofreplace  3/4"minimum*

Floor**  0"minimum

Perpendicularwalltoopening  12"minimum

Topspacers  0"minimum

Mantel clearances see Mantels, page 6.

Chimneyouterpipesurface  1"minimum

*Notrequiredatnailinganges

**Seestep2ofFraming

WARNING: Do not pack required air spaces with

insulation or other materials.

Minimum/Maximum Chimney Height for Residential Installation

Theminimumheightofthechimney,measuredfromthebaseof

thereplacetotheuegasoutletofthetermination,is14.5feetfor

straightueorauewithoneelbowset.Themaximumdistance

between elbows is 6 feet. For systems with two elbow sets, the

minimumheightis22feet.Themaximumheightofanysystemis

50feet.Thismeasurementincludesthereplace,chimneysections

andtheheightoftheterminationassemblyattheleveloftheuegas

outlet(seeFigure18,page11).

Minimum/Maximum Chimney Height for Outdoor Installation

Theminimumheightofthechimney,measuredfromthebaseofthe

replacetotheuegasoutletofthetermination,is71/2feet(minimum

of4feetofchimneypipesectionsrequiredforoutdoorinstallation).

FRAMING

1. Frame opening for ﬁreplace using the dimensions shown in Figures

1 and 2.

2. Ifreplaceistobeinstalleddirectlyoncarpeting,tile(otherthan

ceramic)oranycombustiblematerialotherthanwoodooring,the

replacemustbeinstalleduponametalorwoodpanelextending

the full width and depth of ﬁreplace.

3. Setreplacedirectlyinfrontofthisopeningandslideunitback

untilnailingangestouchsideframing.

Superiorﬁreplaces.US.com 127020-01C6

HEARTH EXTENSION

Ahearthextensionprojectingaminimumof16"infrontofanda

minimum of 8" beyond each side of the ﬁreplace opening is required

toprotectcombustibleoorconstructioninfrontofthereplace.

Fabricateahearthextensionusingamaterialwhichmeetsthefol-

lowingspecications:alayerofnoncombustible,inorganicmaterial

havingathermalconductivityofK=0.84BTUIN/FT,HR.F(orless)at

1"thick.Forexample,ifthematerialselectedhasaKfactorof0.25,

suchasglassber,thefollowingformulawouldapply:

0.25x1.0"=0.30"thicknessrequired

 0.84

Thermal conductivity "K" of materials can be obtained from the

manufacturer or supplier of the noncombustible material. If the

hearth extension is to be covered, use noncombustible material

suchastile,slate,brick,concrete,metal,glass,marble,stone,etc.

Provideameanstopreventthehearthextensionfromshiftingand

sealgap betweenthereplaceframeandhearthextensionwith a

noncombustiblematerial(seeFigure3).

WARNING: Hearth extension is to be installed only

as shown in Figure 3.

Figure 3 - Hearth Extension

Seal Gap

Fireplace Front

Ember Protector

Fireplace Front

Raised Hearth

Fireplace Front

Elevated

Ember Protector

Seal Gap

Hearth

Extension

MANTELS

Amantelmaybeinstalledifdesired(seeFigure4).Woodworksuch

as wood trims, mantels or any other combustible material project-

ing from the front face must not be placed within 12" of the ﬁreplace

opening.Combustiblematerialsabove12"andprojectingmorethan

11/2" from the ﬁreplace must not be placed less than 15" from the top

openingofthereplace(NFPASTD211,Sec.7-3.3.3).

Mantels or any other combustible material also may come up to the

sideedgeoftheblackmetalfaceofthereplacejustaslongasthe

projection from the front face fall within the limit shown in Figure 4.

12 1/4" Ref.

Ref.

12" Min.

9" Min.

11/2" Max.

3" Nom.

33°

Combustible

Material

Safe

Zone for

Projection of

Combustible

Materials

Fireplace Opening

Upper

Section of

Fireplace

Figure 4 - Mantel Clearances to Combustible Material

FIREBOX

SAFE ZONE

TopViewofFireplace

2" Max.

3.0"

Min. to

Perpendicular

Side Wall

12"

8.0"

33°

Combustible

Material Must

Not Overlap

Front Face

FIREPLACE INSTALLATION Continued

Superiorﬁreplaces.US.com

127020-01C 7

Figure 6 - Lineal Gain

Hemmed

End

8" Stainless

Inner Pipe

12 3/8" Galvanized

Outer Pipe

WARNING: The opening in collar around chimney

at top of ﬁreplace must not be obstructed. Never use

blown insulation to ﬁll chimney enclosure.

LINEAL GAIN

PART NO. DESCRIPTION GAIN

36" Fireplace 40

12-8DM

12-8HT PipeSection 105/8

18-8DM

18-8HT PipeSection 16 5/8

24-8DM

24-8HT PipeSection 23 5/8

36-8DM

36-8HT PipeSection 34 5/8

48-8DM

48-8HT PipeSection 46 5/8

RT-8DM RoundTermination 6 7/8

RTL-8DM RoundTermination 7 3/4

RTT-8DM RoundTerminationwithSlipSection 6 7/8

" to

23 1/8"*

RTTL-8DM RoundTerminationwithSlipSection 8 1/2

" to

21 1/2"*

ET-8DM SquareChase-Top 12

ETO-8DM SquareChase-TopwithMesh 12

ETL-8DM SquareChase-TopwithSlipSection 7" to

15"*

ETLO-8DM SquareChase-TopwithMesh&SlipSec-

tion

25 1/2"

*Thelinealgainfortheterminationsismeasuredtotheuegas

outlet height.

Figure 5 - Outside Air Kit

Secure to Collars with Metal Tape, Screws

or Straps (Min. of 1/4" x 20" in size)

Air Inlet

Location

Must Allow

For Bushes

or Snow

Vent Hood

Required for

Wall Installation

Air Inlet

Eyebrow

Vented Crawl Space

(Check Local Codes

Before Installing in a

Vented Crawl Space)

VENTING INSTALLATION

OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F)

The installation of an outside air kit should be performed during the

roughframingofthereplaceduetothenatureofit'slocation.Outside

combustion air is accessed through a vented crawl space (AK4F) or

throughasidewall(AK4).

SeeFigure22onpage13forinstructionof

operatingairkit.

CAUTION: Combustion air inlet ducts shall not

terminate in attic space.

The maximum height for the air vent can not exceed

3 feet below the ﬂue gas outlet of the termination.

CHIMNEY PIPE

TheIHPchimneysystemconsistsof12",18",24",36"and48"snap-

lock,double-wallpipesegments,plannedformaximumadaptabilityto

individualsiterequirements.Actuallengthsgainedafterttingoverlaps

mustbetakenintoconsideration(linealgain)andaregiveninthelineal

gainchart(seeFigure6).Linealgainistheactualmeasurablelengthof

apartaftertwoormorepartsareconnected.ForCanada,usechimney

partsdesignated"HT".

SSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY

SYSTEM

Eachdoublewallchimneysectionconsistsofagalvanizedouterpipe,

astainlesssteelinneruepipeandawirespacer.Thepipesections

must be assembled independently as the chimney is installed.

When connecting chimney directly to the replace, the inner ue

pipesectionmustbeinstalledrstwiththelancedsideup.Theouter

pipesectioncanthenbeinstalledovertheuepipesectionwiththe

hemmedendup.Pressdownoneachpipesectionuntilthelances

securelyengagethehemonthereplacestarter.Thewirewillas-

sure the proper spacing between the inner and outer pipe sections.

Continuetoassemblechimneysections as outlined, making sure

thatboththeinnerandouterpipesectionsarelockedtogether.When

installingdoublewallsnap-lockchimneytogether,itisimportantto

assurethejointbetweenthechimneysectionsislocked.Checkby

pullingchimneyupwardafterlocking.Thechimneywillnotcome

apartifproperlylocked.Itisnotnecessarytoaddscrewstokeepthe

chimneytogether(exception-seeFigure9,page9).

The height of a vertical chimney pipe supported ONLY by the

replace,mustnotexceed20feet.Chimneyheightsabove20feet

must be supported.

Superiorﬁreplaces.US.com 127020-01C8

VENTING INSTALLATION Continued

Figure 7 - Typical Offset Terminations

Return

Elbow

Offset

Elbow

Return

Elbow

Offset

Elbow

6' Max.

Return

Elbow

Offset

Elbow

Offset

Elbow

Return

Elbow

ABC

Offset

Elbow

Ceiling

Support Pipe

12S-8DM

Return

Elbow

Figure 8 - Ceiling Support Pipe 12S-8DM

2" Min.

Straps Straps

Straps

Detail A

Return Elbow

Detail B

Angle

Firestop

See Detail A

See Detail B

Ceiling Support

Pipe 12S-8DM

USING ELBOW OFFSETS (30E-8DM)

1. Toachievedesiredoffset,youmayinstallcombinationsof12",

18",24",36"and48"lengthofdoublewallpipe(seeoffsetchart

andFigure7).

2. Chimneyweightaboveoffsetrestsonreturnelbow.Strapsmust

besecurelynailedtoraftersorjoists(seeFigure8,detailsAand

B).

3. Maximumlengthofpipebetweensupports(returnelbowor12S-

8DM)is6'ofanglerun.Maximumoftwo6'anglerunsections

perchimneysystem(seeFigure7).

4. Allpipeconnectionsbetweenoffsetandreturnmustbesecured

withtwoscrewsonouterpipeonly(seeFigure9,page9).Donot

penetrate inner stainless.

Superiorﬁreplaces.US.com

127020-01C 9

OFFSET

RISE CHIMNEY LENGTH

A B 48" 36" 24" 18" 12"

4 3/8" 16 3/8"

ELBOWSETONLY

93/4" 25 1/2"

12 3/4"303/4"

15" 34 3/4"

18" 40"

1 1

21 1/4" 46 1/4"

23 3/4"491/4"

1 1

27 3/4" 56 3/4"

30" 603/4"

1 1

33" 66"

1 1

36" 71"

1 1

38 1/4" 75"

41 1/4"801/4"

1 1 1

45" 86 3/4"

46 3/4"891/2"

1 1 1

51" 97"

1 1

53 1/4"101"

2 1

56 1/4"1061/4"

591/4" 111 1/2"

1 1 1

61 3/4" 115 1/2"

2 1

64 3/4"1203/4"

2 1

68 1/4" 127"

1 2

70" 130"

2 1 1

74 1/4" 137 1/2"

1 2 1

76 3/4" 141 1/2"

1 2 1

793/4" 146 3/4"

OFFSET CHART (22-50 FT. SYSTEM HEIGHT)

Figure 9 - Elbow Offset

Figure 10 - Firestop Spacer with Living Space Above Ceiling

Figure 11 - Firestop Spacer with Attic Space Above Ceiling

Existing

Ceiling

Frame

Firestop

Spacer

Screws or

Staples

(Min. of 8)

Firestop

Spacer

Screws or Staples

(Min. of 8)

Existing

Ceiling

Frame

Screws

VENTING INSTALLATION Continued

FIRESTOP SPACERS (3600FS-8DM-1)

Firestop spacers are required at each point where the chimney penetrates

aoorspace.Theirpurposeistoestablishandmaintaintherequired

clearance between the chimney and the combustible materials. When

thepipepassesthroughaframedopeningintoalivingspaceabove,the

restopmustbeplacedontotheceilingfrombelowasshowninFigure10.

Theyalsoprovidecompleteseparationfromoneoorspacetoanother

or attic space as required by most codes. When the double wall pipe

passes through a framed opening into an attic space, the ﬁrestop must

beplacedintoanatticoorasshowninFigure11.

NOTICE: The installation of a ﬁrestop thimble (FST30

or 38FST) is recommended when negotiating a joist

and to prevent intrusion from insulation.

Superiorﬁreplaces.US.com 127020-01C10

(36.5 cm)

30"

(76.2 cm)

(2.5

cm)

(2.5

cm)

Minimum Measurements

(2.5 cm)

Opening "A"

Pitch Slope Opening "A"

Max.

Used Flashing

Model No.

Flat 0° 15" V6F-8DM

0-6/12 26.6° 16 1/8"V6F-8DM

6/12-

12/12 45.0° 203/8"V12F-8DM

Figure 12 - Roof Opening Measurements

Nail Only

Outer

Perimeter

of Flashing

Storm Collar

Flashing

Cone

Underlap Shingles

at Bottom

Overlap

Shingles Top

and Sides Only

Figure 13 - Flashing Installation

Figure 14 - Storm Collar

Chimney

Pipe

Waterproof

Caulk

Storm

Collar Flashing

VENTING INSTALLATION Continued

PENETRATING ROOF

Tomaintaina1"clearancetothepipeonaroofwithapitch,arect-

angular opening must be cut.

1. Determinecenterpointthroughwhichpipewillpenetrateroof.

2. Determinecenterpointofroof.Pitchisthedistancetheroofdrops

overagivenspan,usually12".A6/12pitchmeansthattheroof

drops 6" for each 12" one measure horizontally down from the

roof rafters.

3. Useroofopeningchart(Figure12)todeterminethecorrectopen-

inglengthandashingrequired.

4. Remove the shingles around opening measured. Cut out this

section.

5. Addnextsectionsofpipeuntilendpenetratesroofline.Checkto

seethattheproperclearancesaremaintained.Extendchimneyby

addingsectionsofdoublewallpipeuntilpipeisminimumof30"

abovethehighestpointoftheroofcutout.Terminationandchimney

mustextendaminimumof36"abovethehighestpointwhereit

passes through the roof.

FLASHING INSTALLATION (V6F-8DM OR V12F-8DM)

Determinetheashingtobeusedwiththeroofopeningchart.Slide

ashingoverpipeuntilbaseisatagainstroof.Replaceasmany

shinglesasneededtocoverexposedareaandashingbase.Secure

inpositionbynailingthroughshingles(seeFigure13).DONOTNAIL

THROUGHFLASHINGCONE.

Installing Flashing on a Metal Roof

Wheninstallingashingonametalroof,itisrequiredthatputtytapebe

usedbetweentheashingandroof.Theashingmustbesecuredtothe

roofusing#8x3/4"screwsandthensealedwithroofcoatingtoprevent

leakagethroughscrewholes.Aroofcoatingmustalsobeappliedaround

perimeterofashingtoprovideaproperseal.

Storm Collar Installation (SC1 or SC2)

Placestormcollaroverpipeandslidedownuntilitissnugagainsttheopen

edgeoftheashing(seeFigure14).UseSC1forallroundterminations

andSC2forallterminationswithslipsections.Applywaterproofcaulk

aroundtheperimeterofthecollartoprovideaproperseal.

Terminations/Spark Arrestor

Thereplacesystemmustbeterminatedwiththelistedroundtopor

chaseterminations.Inanycase,refertotheinstallationinstructions

suppliedwiththetermination.Theterminationapprovedforthisre-

placearetheRT-8DMandRTL-8DMthatcanbeusedforashingor

chaseandET-8DM,ETO-8DM,ETL-8DMandETLO-8DMforchasestyle

terminationonly.Figure15showsanRTL-8DMroundtoptermination.

CAUTION: Do not seal openings on the rooftop

ﬂashing. Follow the installation instructions provided

with the termination being used.

Terminationswith16"slippipesectionsareavailable.TheRTT-8DM

andRTTL-8DMareapprovedforashinginstallations.Whenneeded,

these adjustable terminations may be used in combination with the

pipeassemblytoachievethecorrectchimneyheight.

Note:Intherareinstancethereisaproblemwiththesidedrivenrain

orwindorthechimneyisnotdraftingproperly,anADS-8DM(Anti-

DraftShield)canbeusedwithroundterminations.

This manual suits for next models

Table of contents

Other Superior Indoor Fireplace manuals

Superior

Superior VRT2536WS User manual

Superior

Superior VF4-CHN User manual

Superior

Superior VRT4032ZEN Owner's manual

Superior

Superior DRT4036TEN User manual

Superior

Superior MULTI-OPEN SERIES User manual

Superior

Superior B-40REN User manual

Superior

Superior SSBV-3530CNE User manual

Superior

Superior VD1824PM User manual

Superior

Superior VRT4536RS User manual

Superior

Superior BR-36 User manual

Superior

Superior VRT2536WS User manual

Superior

Superior BCF-3885 User manual

Superior

Superior DS-36RN User manual

Superior

Superior DT-400 User manual

Superior

Superior WRE6036RS User manual

Superior

Superior MICAELA Quick start guide

Superior

Superior HC-3320A User manual

Superior

Superior VRE4536WS User manual

Superior

Superior SDVST-N-B User manual

Superior

Superior UVFCE-40 User manual

Superior

Superior DRC6340TEP User manual

Superior

Superior STANDARD Series User manual

Superior

Superior Signature DRT63STTEN User manual

Superior

Superior GHC-6500 SERIES User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual

Miles Industries

Miles Industries Vogue 1300IRN Installation & operating instructions
