Superior WRE6036RS User manual

Installation and Operation Instructions

Superior™ Outdoor Wood Burning Firebox

P/N 127008-01 Rev. A 01/2014

PFS

USC

Models

WRE6036RS

WRE6036IS

WRE6036RH

WRE6036IH

WRE6042RS

WRE6042IS

WRE6042RH

WRE6042IH

WRE6050RS

WRE6050IS

WRE6050RH

WRE6050IH

P127008-01

SAVE THIS BOOK

This book is valuable. In addition to instructing you on how to install and manintain your appliance, it also contains

information that will enable you to obtain replacement parts or accessory items when needed. Keep it with your other

important papers.

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

Installateur : Laissez cette notice avec l’appareil.

Consommateur : Conservez cette notice pour consultation ultérieure.

This wood burning ﬁreplace complies with

UL127 CAN/ULC-S610-M87 standard as a

FACTORY BUILT FIREPLACE.

Ce foyer au bois est conforme aux UL 127 CAN/ULC-

S610-M87 norme comme une USINE CONSTRUITE

CHEMINÉE.

This ﬁreplace is approved for use as a wood furning ﬁreplace or for use with a vented gas log approved to

ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard.

FOR CANADA: The authority having jurisdiction

(such as the municipal building department, ﬁre

department, etc.) should be contacted before

installation to determine the need to obtain a

permit.

POUR LE CANADA: L’autorité compétente (comme le

service municipal du bâtiment, les pompiers, etc.) doit

être contacté avant l’installation aﬁn de déterminer la

nécessité d’obtenir un permis.

This appliance may be installed in an aftermarket permanently located, manufactured home (USA only)

or mobile home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated

on the rating plate. This appliance is not convertible for use with other gases, unless a certiﬁed kit is used.

WARNING: If the information in these

instructions is not followed exactly, a ﬁre or

explosion may result causing property damage,

personal injury or death.

AVERTISSEMENT : Assurez-vous de bien suivre les

instructions données dans cette notice pour réduire au

minimum le risque d’incindie ou d’explosion ou pour éviter

tout dommage matériel, toute blessure ou la mort.

—Do not store or use gasoline or other

ﬂammable vapors and liquids in the vicinity

of this or any other appliance.

—WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from

a neighbor’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier, call

the ﬁre department.

—Installation and service must be performed

by a qualiﬁed installer, service agency or the

gas supplier.

—Ne pas entreposer ni utilizer d’essence ni d’autres

vapeurs ou liquides inﬂammables dans le voisinage

de cet appareil ou de tout autre appareil.

—QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne pas tenter d’allumer d’appareil.

• Ne touchez à aucan interrupteur. Ne pas vous

servir des téléphones se trouvant dans le bâtiment

où vous trouvez.

• Appelez immédiatement votre fournisseur de

gaz depuis un voisin. Suivez les instructions du

fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz,

appelez le service des incindies.

—L’installation et l’entretien doivent être assurés par un

installateur ou un service d’entretien qualiﬁé ou par

le fournisseur de gaz.

WARNING: Improper installation, adjustment, altera-

tion, service or maintenance can cause injury, property

damage or loss of life. Refer to this manual for assis-

tance or additional information. Consult a qualied

installer or local distributor.

TABLE OF CONTENTS

Safety .................................................................. 2

Specications ...................................................... 3

Fireplace Installation............................................ 6

Venting Installation .............................................. 8

Firebrick Wall Installation................................... 13

Optional Gas Line Installation............................ 16

Glass Door Installation ...................................... 17

Operation and Maintenance Guidelines ............ 18

Parts ................................................................. 20

Technical Service............................................... 27

Replacement Parts............................................ 27

Accessories ....................................................... 28

SAFETY

FOR YOUR SAFETY

• Do not store or use gasoline

or any other ammable vapors

or liquids in the vicinity of this

or any other appliance.

• Due to high temperatures, the

appliance should be located

out of trafc and away from

furniture and draperies.

• Do not place clothing or other

ammable materials on or near

the appliance.

• Never leave children unat-

tended when a re is burning

in the replace.

WARNING: Use solid wood

or processed solid fuel relogs

only. When processed wood fuel

re logs are used, do not poke or

stir the logs while they are burn-

ing. Use only re logs that have

beenevaluated for the application

in replace and refer to re log

warnings and caution markings

on packaging prior to use.

This replace is not intended to be

used as a substitute for a furnace

to heat an entire home. Use for

supplemental heat only.

IMPORTANT: Check local codes

before installing this replace.

Before beginning the installation of the

fireplace, read these instructions through

completely.

• This INNOVATIVE HEARTH PRODUCTS

(IHP) replace and its components are safe

when installed according to this installation

manual. Unless you use IHP components,

which have been designed and tested for

the replace system, you may cause a re

hazard.

• The INNOVATIVE HEARTH PRODUCTS

warranty will be voided by and IHP dis-

claims any responsibility for the following

actions.

a. Modification of the fireplace, com-

ponents, doors, air inlet system and

damper control.

b. Use of any component part not manu-

factured or approved by INNOVATIVE

HEARTH PRODUCTS in combination

with a IHP replace system.

Proper installation is the most important step

in ensuring safe and continuous operation

of the replace. Consult the local building

codes as to the particular requirements

concerned with the installation of all factory

built replaces.

WARNING: Do not install a

replace insert in this box unless

the manufacturer's instructions

with the insert specically state

this replace has been tested for

use with this insert.

SPECIFICATIONS

36" MODEL

29"

14 1/2"

22 1/2"

26 5/8"

4 1/2"

15 5/8"

4 1/2"

58"

7 1/4"

11"

15 1/4"

3 1/2"

9 1/2"

10 1/2"

67"

61"

49"

11"

30"

1" 45 1/8"

36"

OUTSIDE AIR

ACCESS

GAS LINE

ACCESS

36" HEARTH

1 1/4"

20 1/4"

(Ref.)

35 1/4"

19"

22 1/2"

Figure 1 - 36" Model Series

www.SuperiorFireplaces.US.com 127008-01A4

SPECIFICATIONS Continued

42" MODEL

22 3/4"

30 1/2"

29"

4 3/8"

15 3/4"

5/8"

17 5/8"

67"

61"

49"

30"

11"

58"

42"

4 1/2"

3 1/2"

9 1/2"

10 1/2"

81/2"

13"

17"

OUTSIDE

AIR

ACCESS

GAS LINE

ACCESS

42" HEARTH

1 1/4"

23"

(Ref.)

41 3/8"

26 3/8"

21 3/4"

Figure 2 - 42" Model Series

www.SuperiorFireplaces.US.com

127008-01A 5

SPECIFICATIONS Continued

50" MODEL

38 1/2"

28 1/2"

43/8"

17 5/8"

19 1/4"

24"

49"

30"

11"

61"

67" 58"

59"

50" 4 1/2"

3 1/2"

9 1/2"

10 1/2"

8 1/2"

13"

17"

GAS LINE

ACCESS

OUTSIDE

AIR

ACCESS

50" HEARTH

1 1/4"

23"

(Ref.)

49 3/8"

34 3/8"

21 3/4"

Figure 3 - 50" Model Series

www.SuperiorFireplaces.US.com 127008-01A6

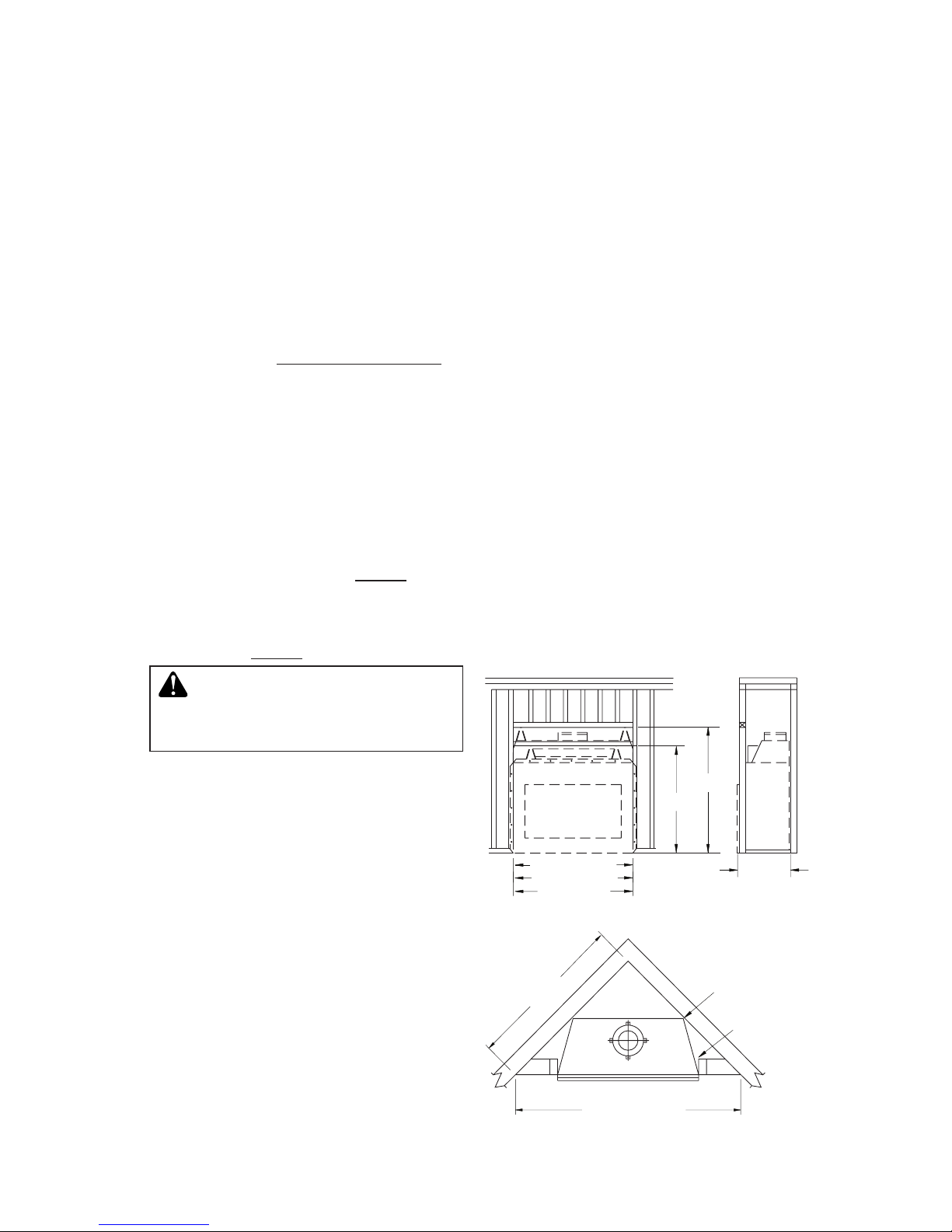

FIREPLACE INSTALLATION

FRAMING

1. Frame opening for replace using dimen-

sions shown in Figures 4 and 5.

2. If replace is to be installed directly on

carpeting, tile (other than ceramic) or any

combustible material other than wood

ooring, replace must be installed upon

a metal or wood panel extending full width

and depth of replace.

3. Set replace directly in front of this open-

ing and slide unit back until nailing anges

touch side framing.

4. Check level of the replace and shim with

sheet metal if necessary.

5. Before securing fireplace to prepared

framing, ember protector (provided) must

be placed between hearth extension (not

supplied) and under bottom front edge of

replace to protect against glowing embers

falling through. If replace is to be installed

on a raised platform, a Z-type ember pro-

tector (not supplied) must be fabricated to

t your required platform height. Ember

protector should extend under replace a

minimum of 1 1/2". Ember protector should

be made of galvanized sheet metal (28

gauge minimum to prevent corrosion.

6. Using screws or nails, secure replace to

framing through anges located on sides

of replace.

30.125"

59" (50" Models)

58.125"

67.125"

51.25" (42" Models)

45.25" (36" Models)

28.250" (36" Models)

Figure 4 - Framing Dimensions

71" (50" Models)

100" (50" Models)

65" (42" Models)

92" (42" Models)

86.5" (36" Models)

61" (36" Models)

Maintain 1 1/2"

Clearance

at Sides and

Back of Fireplace

1 1/2" Clearance

Not Required at

Nailing Flanges

Figure 5 - Corner Installation

SELECTING LOCATION

To determine the safest and most efcient

location for the replace, you must take into

consideration the following guidelines:

1. The location must allow for proper clear-

ances (see Figures 4 and 5).

2. Consider a location where replace will

not be affected by drafts, air conditioning

ducts, windows or doors.

3. A location that avoids cutting of joists or

roof rafters will make installation easier.

4. An outside air kit is available with this

replace (see Optional Outside Air Kit on

page 8).

MINIMUM CLEARANCE TO

COMBUSTIBLES

Back and sides of replace 1 1/2" min.*

Front of replace 48" min.

Floor** 0" min.

Perpendicular wall to opening 18" min.

36" Models 12" min.

Top spacers 0" min.

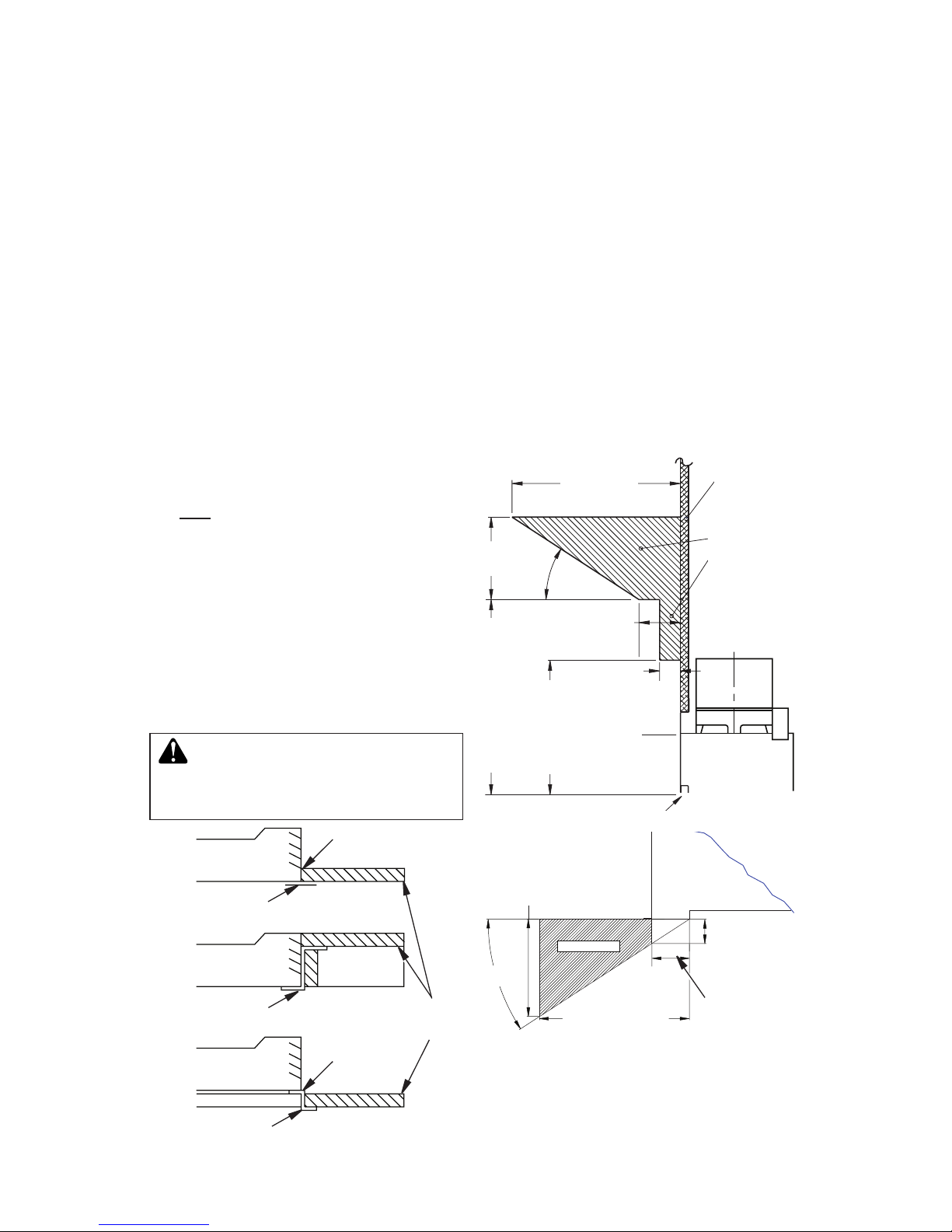

Mantel clearances

see Mantels, page 7

Chimney outer pipe surface 2" min.

36" Model 1" min.

* Not required at nailing anges

** See step 2 of Framing

WARNING: Do not pack re-

quired air spaces with insulation

or other materials.

Minimum/Maximum Chimney Height for

Residential Installation

Minimum height of chimney, measured from

base of replace to ue gas outlet of termina-

tion, is 16 feet for straight ue or a ue with

one elbow set. Maximum distance between

elbows is 6 feet. For systems with two elbow

sets, minimum height is 22 feet. Maximum

height of any system is 50 feet. This measure-

ment includes replace, chimney sections and

height of termination assembly at level of the

ue gas outlet (see Figure 15, page 11).

Minimum/Maximum Chimney Height for

Outdoor Installation

Minimum height of chimney, measured from

base of replace to ue gas outlet of termina-

tion, is 9.5 feet (minimum of 4 feet of chimney

pipe sections required for outdoor installation).

www.SuperiorFireplaces.US.com

127008-01A 7

Note: For outdoor installations, fireplace

enclosure must allow for adequate drainage

and fresh air ventilation. It is recommended

that a sealed, corrosion resistant catch pan

with provision for drainage be installed under

replace within replace enclosure.

HEARTH EXTENSION

A hearth extension projecting a minimum of

20" in front of and a minimum of 12" beyond

each side of replace opening is required to

protect combustible oor construction in front

of replace. Fabricate a hearth extension

using a material which meets the following

specications: a layer of noncombustible,

inorganic material having a thermal conduc-

tivity of K=0.84 BTU IN/FT, HR. F (or less) at

1" thick. For example, if the material selected

has a K factor of 0.25, such as glass ber, the

following formula would apply:

0.25 x 1.0" = 0.30" thickness required

0.84

Thermal conductivity "K" of materials can be

obtained from manufacturer or supplier of

noncombustible material. If hearth extension

is to be covered, use noncombustible mate-

rial such as tile, slate, brick, concrete, metal,

glass, marble, stone, etc. Provide a means

to prevent hearth extension from shifting and

seal gap between replace frame and hearth

extension with a noncombustible material

(see Figure 6).

WARNING: Hearth extension

is to be installed only as shown

in Figure 6.

FIREPLACE INSTALLATION

Continued

Figure 6 - Hearth Extension

Seal Gap

Fireplace Front

Ember Protector

Fireplace Front

Raised Hearth

Fireplace Front

Elevated

Ember Protector

Seal Gap

Hearth

Extension

MANTELS

A mantel may be installed if desired (see Figure

7). Woodwork such as wood trims, mantels or

any other combustible material projecting from

front face must not be placed within 12" (36"

Models) or 18" (42/50" Models) of replace

opening. Combustible materials above 12" (36"

Models) or 18" (42/50" Models) and projecting

more than 1 1/2" from replace must not be

placed less than 15" (36" Models) or 21" (42/50"

Models) from the top opening of the replace

(NFPA STD 211, Sec. 7-3.3.3).

Mantels or any other combustible material

also may come up to side edge of black metal

face of replace as long as projections from

front face fall within limit shown in Figure 7.

12 1/4" Ref.

Ref.

15" Min. (36" Models)

21" Min. (42/50"

Models)

12" Min.

(36" Models)

18" Min.

(42/50"

Models)

11/2" Max.

3" Nom.

33°

Combustible

Material

Safe

Zone for

Projection of

Combustible

Materials

Fireplace Opening

Upper

Section of

Fireplace

Figure 7 - Mantel Clearances to

Combustible Material

FIREBOX

SAFE ZONE

Top View of Fireplace

3" Max.

4.5"

Min. to

Perpendicular

Side Wall

7.75" (36" Models)

11.5" (42/50" Models)

33° Combustible

Material Must

Not Overlap

Front Face

12" - 36" Models

18" - 42/50" Models

www.SuperiorFireplaces.US.com 127008-01A8

Figure 9 - Lineal Gain

LINEAL GAIN

PART NO. DESCRIPTION GAIN

Georgian Fireplace 66 1/2

12-12DM

12-12HT Pipe Section 10 5/8

18-12DM

18-12HT Pipe Section 16 5/8

24-12DM

24-12HT Pipe Section 23 5/8

36-12DM

36-12HT Pipe Section 34 5/8

48-12DM

48-12HT Pipe Section 46 5/8

RLT-12D

RLT-12HT Round Termination 7 3/4

STL-12D Square Chase-Top

with Slip Section 7

to 15

* The lineal gain for the terminations is mea-

sured to the ue gas outlet height.

Hemmed

End

12 3/8"

Stainless

Inner Pipe

15" Galvanized

Outer Pipe

ASSEMBLY AND INSTALLATION OF

DOUBLE WALL CHIMNEY SYSTEM

Each double wall chimney section consists of a

galvanized outer pipe, a stainless steel inner ue

pipe and a wire spacer. The pipe sections must

be assembled independently as the chimney is

installed. When connecting chimney directly to

the replace, the inner ue pipe section must

be installed rst with the lanced side up. The

outer pipe section can then be installed over

5 the ue pipe section with the hemmed end

up. Press down on each pipe section until the

lances securely engage the hem on the replace

starter. The wire will assure the proper spacing

between the inner and outer pipe sections.

Figure 8 - Outside Air Kit

Secure to Collars with Metal Tape,

Screws or Straps (Min. of 1/4" x 20"

in size)

Air Inlet

Location

Must Allow

For Bushes

or Snow

Vent Hood

Required for

Wall Installation

Air Inlet

Eyebrow

Vented Crawl Space

(Check Local Codes

Before Installing in a

Vented Crawl Space)

CHIMNEY PIPE

The INNOVATIVE HEARTH PRODUCTS

chimney system consists of 12", 18", 24",

36" and 48" snap-lock, double-wall pipe seg-

ments, planned for maximum adaptability to

individual site requirements. Actual lengths

gained after tting overlaps must be taken

into consideration (lineal gain) and are given

in the lineal gain chart (see Figure 9). Lineal

Gain is the actual measurable length of a part

after two or more parts are connected. For

Canada, use chimney parts designated "HT".

VENTING INSTALLATION

OPTIONAL OUTSIDE AIR KIT

(MODEL AK4/AK4F)

The installation of an outside air kit should

be performed during the rough framing of

the replace due to the nature of it's location.

Outside combustion air is accessed through

a vented crawl space (AK4F) or through a

sidewall (AK4).

CAUTION: Combustion air

inlet ducts shall not terminate

in attic space.

The maximum height for the

air vent can not exceed 3 feet

below the ue gas outlet of the

termination.

WARNING: The opening in

the collar around the chimney at

the top of the replace must not

be obstructed. Never use blown

insulation to ll the chimney

enclosure.

www.SuperiorFireplaces.US.com

127008-01A 9

VENTING INSTALLATION

Continued

OFFSET

RISE CHIMNEY LENGTH

A B 12" 18" 24" 36" 48"

4 3/8" 16 3/8"

ELBOW SET ONLY

9 3/4" 25 1/2"

12 3/4" 30 3/4"

15" 34 3/4"

18" 40"

1 1

21 1/4" 46 1/4"

23 3/4"49 1/4"

1 1

27 3/4" 56 3/4"

30" 60 3/4"

1 1

33" 66"

36" 71"

1 1

38 1/4" 75"

41 1/4" 80 1/4"

1 1 1

45" 86 3/4"

46 3/4"89 1/2"

1 1 1

51" 97"

1 1

53 1/4" 101"

56 1/4" 106 1/4"

59 1/4"111 1/2"

1 1 1

61 3/4" 115 1/2"

1 2

64 3/4" 120 3/4"

1 2

68 1/4" 127"

2 1

70" 130"

1 1 2

74 1/4" 137 1/2"

1 2 1

76 3/4" 141 1/2"

1 2 1

79 3/4" 146 3/4"

OFFSET CHART (22-50 FT. SYSTEM HEIGHT)

Figure 11 - Ceiling Support Pipe

12S-12DM

2" Min.

Straps Straps

Straps

Detail A

Return Elbow

Detail B

Angle Firestop

See Detail A

See Detail B

Continue to assemble chimney sections as

outlined above, making sure that both the

inner and outer pipe sections are locked to-

gether. When installing double wall snap-lock

chimney together, it is important to assure

the joint between the chimney sections is

locked. Check by pulling chimney upward

after locking. The chimney will not come apart

Figure 10 - Elbow Offset

Screws

if properly locked. It is not necessary to add

screws to keep the chimney together (excep-

tion, see Figure 10).

USING ELBOW OFFSETS (30E-12DM)

To achieve desired offset, you may install

combinations of 12", 18", 24", 36" and 48"

length of double wall pipe (see offset chart

and Figure 10).

Chimney weight above offset rests on

return elbow. Straps must be securely

nailed to rafters or joists (see Figure 11,

details A and B).

3. Maximum length of pipe between sup-

ports (return elbow or 12S-12DM) is 6'

of angle run. Maximum of two 6' angle

run sections per chimney system (see

Figure 12, page 10).

4. All pipe connections between the offset

and return must be secured with two

screws on the outer pipe only (see

Figure 10). Do not penetrate the inner

stainless.

CAUTION: THE STRUCTURAL

INTEGRITY OF THE

MANUFACTURED HOME FLOOR,

WALL, AND CEILING/ROOF MUST

BE MAINTAINED.

WARNING: DO NOT INSTALL IN

SLEEPING ROOM OF MOBILE HOMES.

www.SuperiorFireplaces.US.com 127008-01A10

VENTING INSTALLATION

Continued

FIRESTOP SPACERS (FS-10,

1100EFS-10DM FOR 36" MODELS)

Firestop spacers are required at each point

where the chimney penetrates a oor space.

Their purpose is to establish and maintain

the required clearance between the chimney

and the combustible materials. When the pipe

passes through a framed opening into a living

space above, the restop must be placed onto

the ceiling from below as shown in Figure 13.

They also provide complete separation from

one oor space to another or attic space as

required by most codes. When the double wall

pipe passes through a framed opening into an

attic space, the restop must be placed into an

attic oor as shown in Figure 14.

Figure 13 - Firestop Spacer with Living

Space Above Ceiling

Figure 14 - Firestop Spacer with Attic

Space Above Ceiling

Existing

Ceiling

Frame

Firestop

Spacer

Screws or

Staples

(Min. of 8)

Firestop

Spacer

Screws or Staples

(Min. of 8)

PENETRATING ROOF

To maintain a 1" (36" Models) or 2" (42/50"

Models) clearance to the pipe on a roof with a

pitch, a rectangular opening must be cut.

1. Determine center point through which pipe

will penetrate roof.

2. Determine center point of roof. Pitch is

distance the roof drops over a given span,

usually 12". A 6/12 pitch means that roof

drops 6" for each 12" measured horizon-

tally down from roof rafters.

3. Use roof opening chart (Figure 15, page

11) to determine correct opening length

and ashing required.

4. Remove shingles around opening mea-

sured. Cut out this section.

Existing

Ceiling

Frame

Figure 12 - Typical Offset Terminations

Return

Elbow

Offset

Elbow

Return

Elbow

Offset

Elbow

6' Max.

Return

Elbow

Offset

Elbow

Offset

Elbow

Return

Elbow

A B C

Offset

Elbow

Ceiling

Support Pipe

12S-12DM

Return

Elbow

This manual suits for next models

Table of contents

Other Superior Indoor Fireplace manuals

Superior

Superior MHW36R User manual

Superior

Superior DRL3042TEN User manual

Superior

Superior MULTI-OPEN SERIES User manual

Superior

Superior VRE4536WS User manual

Superior

Superior DRT6345TEN User manual

Superior

Superior DRT4040DMN Owner's manual

Superior

Superior Signature DRT63STTEN User manual

Superior

Superior VRE4336ZEN User manual

Superior

Superior VCM3026ZTN User manual

Superior

Superior WOOD BURNING FIREPLACE User manual

Superior

Superior WRT3042RS User manual

Superior

Superior WRT6036RS User manual

Superior

Superior UVFCE Series User manual

Superior

Superior BR-42 User manual

Superior

Superior SSDVT-3328CNM User manual

Superior

Superior HCD36MH User manual

Superior

Superior MHW36R User manual

Superior

Superior SLDVT Series User manual

Superior

Superior BC36MH User manual

Superior

Superior SSDVPF-CNE-B User manual

Superior

Superior VRT2536WS User manual

Superior

Superior BBV-36RMN User manual

Superior

Superior VRE6036 Owner's manual

Superior

Superior VCM3026ZMP User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual

Miles Industries

Miles Industries Vogue 1300IRN Installation & operating instructions
