Sunny SF-T808M User manual

MANUAL TREADMILL

Owner’s Manual

SF-T808M

Table of Contents

■

Features of the Equipment /

Safety Precautions

■

Parts List

■

Hardware Packing List /

Overview Drawing

■

Assembly Instructions

■

Folding and Moving

■

Running Belt Adjustment

■

Maintenance and Treatment

■

Operating Instructions

■

Warm Up Exercises

1. Features of the Equipment

This foldable treadmill integrates the functions of running and jogging with its computer displaying

Scan, Time, Speed, Distance, Calories, and Total Distance. This treadmill‘s set up dimension is

48 L x 25 W x 48 H inch and the fold up dimension is 16 L x 25 W x 49 H inch. It is easy to move

with wheels at the base of the treadmill.

2. Safety Precautions

Warning: Consult your physician and make a suitable schedule before exercise. This is

particularly important to the person who is over 35 years old or who has medical history.

In order to attain an ideal exercise result, besides executing a suitable amount of exercise,

it is also very important to insist on doing exercise every day.

1) This foldable treadmill is a home stationary fitness equipment, and also an aerobic training

equipment that can help you to develop your cardio-vascular function.

2) Check every part of the equipment before exercise. If there is any defective component,

replace it immediately; keep the equipment out of use until repair.

3) Make sure all parts, bolts and nuts are well assembled and locked before exercise.

4) Do not put your finger or clothes on the joint of moving parts to avoid injury to your body and

harm to the equipment.

5) Do not use this equipment one hour before or after dinner.

6) Please wear suitable clothes including athletic shoes during exercise for safety and better

exercise result.

7) Hold the handrails with your hands when starting or stopping exercise and increasing or

decreasing the speed.

8) If feeling chest pains, nausea, dizziness, or short of breath, you should stop exercising

immediately and consult your physician before continuing.

9) The minimum free space required for safety operation is 80×40 inch.

10) The maximum capacity of user is 250 lbs.

11) The equipment should be placed on the flat ground when using.

12) Keep the children and pets away from the equipment while using the equipment; the adults

should take care of the children if they are permitted to use the equipment.

13) The walker is not suitable for medical purpose.

Warning: Incorrect use or excessive exercise could cause injuries to the user

and do harm to the equipment.

3. Parts List

No.

Description

Qty

No.

Description

Qty

Main frame

Left rail

Left handlebar support

Front wheel

Right handlebar support

End plug

Front handlebar

Buffer cushion

Computer

Emery cloth

Base support

Magnetic sensor

Ball bearing

Sensor

Ball bearing

M8X35 Bolt

Connection bolt

M6X70 Bolt

Flywheel cover

M3X8 Crosshead bolt

Running deck

M4X16 Screw

Running belt

M3X10 Screw

Ф21×Ф15.2×1 washer

M8X40 Bolt

Ф21×Ф15.2×2.5 washer

M10X40 Bolt

Roller’s bearing bracket

M6 X35 Bolt

Right rail

M8 Lock nut

Right end cap

M6 Lock nut

Foot cushion

Ф8 Flat washer

Hole plug

Ф10 Flat washer

Handlebar end plug

Ф8 Arc washer

Left end cap

Ф6 Flat washer

Front end cap

Ф4 Flat washer

Lock knob

Sensor wire II

Hand foam

Ф12 Spring spacer

Roller spacer

Ф15 Spring spacer

Front roller axis

Sensor wire I

Front roller

Screwdriver (S=5)

Rear roller axis

Wrench

Rear roller

Lubricant box

4. Hardware Packing List

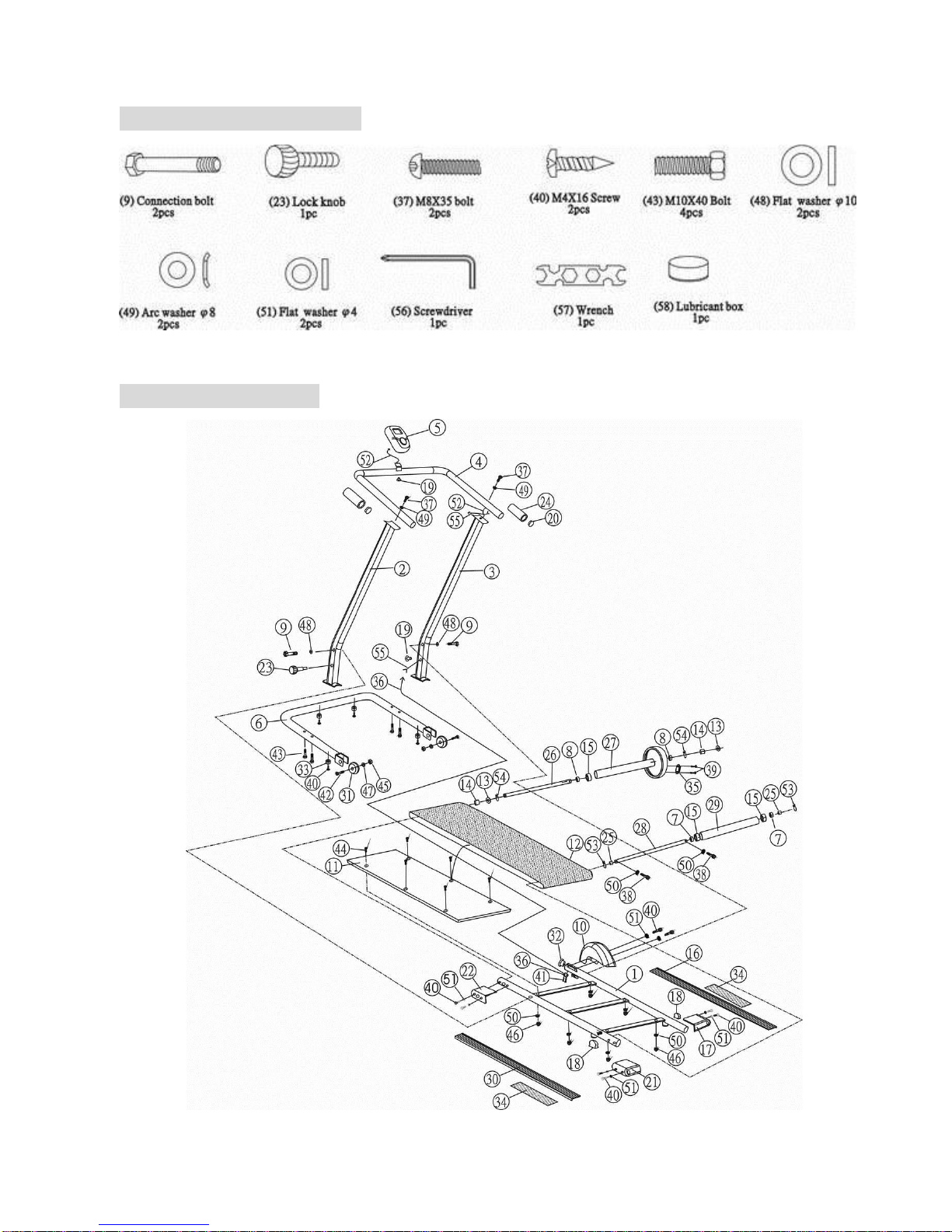

5. Overview Drawing

6. Assembly Instructions

This treadmill needs two people to assemble it. Put all the parts on the floor, and follow the below

assembly instructions to assemble this treadmill.

Step 1: Install the Flywheel Cover

Attach the Flywheel cover (10) to the Main frame (1) with two Screws (40) and Flat washers (51).

(See figure 1)

Step 2: Install the Base Support

Attach the Base support (6) to the Left and Right handlebar supports (2,3) with four Bolts (43).

(See figure2)

Step 3: Install the Main Frame

Raise up the front part of Main frame (1) by two people.

Attach the front part of Main frame (1) to Left and Right

handlebar supports (2,3) with two Connection bolts (9)

and Flat washers (48).Attach the Lock Knob (23) to

the lower hole at the Left handlebar (2) and secure it

with the Main frame (1). Connect the Sensor wire (55)

from the Right handlebar support (3) to the Sensor (36)

from the Main frame (1). (See figure 3)

Step 4: Install the Front Handlebar

Connect the Sensor wire I (55) from the Right handlebar support (3) to the Sensor wire II (52)

from the Front handlebar (4). (See figure 4a).

Attach the Front handlebar (4) on the arc plates of Left and Right handlebar supports (2, 3) with

two Bolts (37) and Arc washers (49). Finally, cover two Hand foams (24) to the Front

handlebar (4). (See figure 4b)

Step 5: Install the Computer

Connect the Sensor wire II (52) to the wire that comes

from the Computer (5). Insert the Computer (5) to the

computer plate of Front handlebar (4). (See figure 5)

Warning: Be sure you tighten all the

bolts before exercise.

7. Folding and Moving

Folding: To fold up the treadmill please turns the Lock knob (23) counterclockwise and remove it

from the Left handlebar support (2). Raise the rear part of the Main frame (1) all the way up by

your right hand then insert the Lock knob (23) to the upper hole of Left handlebar support (2) and

tighten it. (See figure 6a)

Moving: After folding up the treadmill, hold the handlebars with your hands, lean back the

treadmill, then you can move it when the wheels touch the ground. (See figure 6b)

Warning:

1) Make sure the Lock knob is inserted correctly when folding or unfolding the equipment,

and then tighten the Lock knob.

2) Keep the children away from the folded equipment.

8. Running Belt Adjustment

After assembly, please try running and check the following points:

1) Check if the values of the Computer can display properly or not; be sure the wire and the plug

are correctly connected and the batteries are placed.

2) Check if the running belt turns smoothly or not and the running belt deviates or not when

operating. Under normal condition, the running belt will turns freely and keep its position in the

middle since the belt is adjusted at factory. It may run defectively if after rude transportation,

please adjust it referring to the Figure 7.

3) Please screw bolts in the end caps to adjust the tension of running belt. Be sure that you must

adjust both bolts at the same time to avoid deviate the belt. Screw counterclockwise on both

bolts can release the belt, clockwise can tighten the belt. (See Figure 7)

4) If the running belt deviates to left side, please insert the hex end of the screwdriver into the

hexangular hole at the left or right side of the rear roller, turn 1/2 circle counterclockwise in the

right side, try running again till the belt runs in the middle; or turn 1/2 circle clockwise in the left

side, try running again. Please operate conversely if the running belt deviates to right side.

During the operation, keep the belt in a proper tension state. (See Figure 7)

9. Maintenance and Treatment

Maintenance

1) You may feel the resistance of the running belt getting bigger after using for a long time

because the running belt and the plate need cleaning and lubricating, user’s normal maintenance

is very essential. Please clean and lubricate the belt and belt plate as below:

Raise up the belt in one side, wipe some lubricant to the belt plate and do it the same in the other

side.

2) Check the bolts in each part of the equipment regularly, and tighten them. The moving parts

should turn freely and quietly. Abnormality of moving parts will affect the safety of the equipment.

3) Keep the equipment clean, do not clean the equipment with strong solvent.

4) The running belt is easy to wear out, if you find it worn or broken, you should contact the

technician to replace it. You should not use the equipment until the belt is repaired.

Malfunction

Reason

Treatment

Base is unstable.

1) The ground is not flat or there is

small object on the ground.

2) The lock knob is not tightened.

1) Remove the objects.

2) Tighten the lock knob.

Noise from the

moving parts.

The magnets are too close.

Contact the technician to open

the cover for a check.

The running belt

deviates when

operating.

See article 7.
