Sun StorageTekTM T9840D

Tape Drive

Security Policy

Part Number 316055201

Revision: AA

Sun Microsystems, Inc.

February 5, 2010

Sun Microsystems Sun StorageTe ™ T9840D Tape Drive Security Policy February 5, 2010

TABLE OF CONTENTS

1 MODULE OVERVIEW .............................................................................................................................. 4

2 SECURITY LEVEL ................................................................................................................................... 5

3 MODES OF OPERATION (AREA 1) ........................................................................................................ 6

3.1 APPRO ED ALGORITHMS ............................................................................................................................ 6

3.2 NON-APPRO ED ALGORITHMS ...................................................................................................................... 7

3.3 DETERMINING FIPS MODE ......................................................................................................................... 7

3.4 CONFIGURING THE DRI E IN FIPS MODE ........................................................................................................ 8

4 PORTS AND INTERFACES ................................................................................................................... 10

5 IDENTIFICATION AND AUTHENTICATION POLICY ............................................................................ 12

5.1 ASSUMPTION OF ROLES ............................................................................................................................. 12

6 DEFINITION OF CRITICAL SECURITY PARAMETERS (CSPS) .......................................................... 14

6.1 DEFINITION OF PUBLIC KEYS ...................................................................................................................... 15

ACCESS CONTROL POLICY ................................................................................................................ 15

7.1 ROLES AND SER ICES .............................................................................................................................. 15

8 OPERATIONAL ENVIRONMENT (AREA 6) .......................................................................................... 18

9 SECURITY RULES ................................................................................................................................. 18

9.1 FIPS 140-2 SECURITY REQUIREMENTS ...................................................................................................... 18

10 PHYSICAL SECURITY ......................................................................................................................... 19

10.1 PHYSICAL SECURITY MECHANISMS ............................................................................................................ 19

11 MITIGATION OF OTHER ATTACKS POLICY ..................................................................................... 19

12 REFERENCES ...................................................................................................................................... 19

13 DEFINITIONS AND ACRONYMS ......................................................................................................... 21

Page 2

Sun Microsystems Sun StorageTe ™ T9840D Tape Drive Security Policy February 5, 2010

TABLE OF TABLES

TABLE 1: MODULE SECURITY LEVEL SPECIFICATION........................................................................5

TABLE 2: PORTS AND INTERFACES DESCRIPTION............................................................................10

TABLE 3: ROLES AND REQUIRED IDENTIFICATION AND AUTHENTICATION...................................12

TABLE 4: STRENGTHS OF AUTHENTICATION MECHANISMS............................................................13

TABLE 5: DESCRIPTION OF CRITICAL SECURITY PARAMETERS (CSPS)........................................14

TABLE 6: DESCRIPTION OF PUBLIC KEYS WITHIN THE ETD.............................................................15

TABLE : SERVICES AUTHORIZED FOR ROLES..................................................................................15

TABLE 8: UNAUTHENTICATED SERVICES............................................................................................18

Release History

Date Rev Description Name

02/05/10 AA Initial version of Security Policy. Engineering Change: EC001056 Matt Ball

Page 3

Sun Microsystems Sun StorageTe ™ T9840D Tape Drive Security Policy

1 Module Overview

The Sun StorageTekTM T9840D Tape Drive (“Encrypting Tape Drive”, or ETD) (HW P/N:315479501;

Firmware ersion: 1.44.710) is a hardware cryptographic module with a multi-chip standalone physical

embodiment as defined by FIPS 140-2. The primary purpose of this device is to provide FIPS 140-2 Level

1 security to data on magnetic tape.

The ETD is intended to be used in conjunction with the Sun Key Management System (KMS), which

provides centralized key management. The Sun StorageTek Crypto Key Management System (version

2.1 and higher), consists of two or more Key Management Appliances (KMAs). Key Management

Appliances are the individual components within the system and in the context of this FIPS 140-2 Security

Policy, can be viewed as Key Loaders. For more information on these system components please see the

website http://docs.sun.com and browse under Hardware->Tape Storage->Tape Drives.

The cryptographic boundary of the ETD is the external surface of the tape drive’s commercial-grade

metallic enclosure. Figure 1.1 and Figure 1.2 illustrate the cryptographic boundary as defined:

Feb 5, 2010 Part 316055201, Rev: AA Page 4

Figure 1.1: Front, side, and top of T9840D

Sun Microsystems Sun StorageTe ™ T9840D Tape Drive Security Policy

Note: Figure 1.2 appears to be upside-down to show bottom plate.

2 Security Level

The ETD meets the overall requirements applicable to Level 1 security of FIPS 140-2, as is detailed in

Table 1.

Table 1: Module Security Level Specification

Security Requirements Section Level

Cryptographic Module Specification 3

Module Ports and Interfaces 1

Roles, Services and Authentication 1

Finite State Model 1

Physical Security 1

Operational Environment N/A

Cryptographic Key Management 1

EMI/EMC 1

Feb 5, 2010 Part 316055201, Rev: AA Page 5

Figure 1.2: Back, side and bottom cover of T9840D

Sun Microsystems Sun StorageTe ™ T9840D Tape Drive Security Policy

Security Requirements Section Level

Self-Tests 1

Design Assurance 1

Mitigation of Other Attacks N/A

3 Modes of Operation (Area 1)

3.1 Approved Algorithms

Once configured per the procedures as defined in Section 3.4 the module is only able to operate in a FIPS

140-2 Approved Mode of operation. Within the FIPS 140-2 Approved Mode of operation the following

Approved algorithms are available:

•AES CCM supporting 256-bit keys in both hardware (AES Certificate # 495) and firmware (AES

Certificate # 1063)

•AES ECB encryption (AES Certificate # 1059) as used in CCM encryption in firmware (AES

Certificate # 1063)

•RSASSA-PKCS1-v1_5 supporting 2048-bit keys (RSA Certificate # 503) for digital signature

verification (firmware load test)

•HMAC SHA-1 (HMAC Certificate # 597) to create the challenge response as part of the certificate

service of the KMS 2.x Agent Toolkit.

•SHA-1 (SHS Certificate # 1005) for the following:

oas part of digital signature verification for the firmware

oas part of HMAC-SHA-1 (HMAC certificate # 597)

ofor hashing passwords used for authentication

•AES ECB (AES Certificate # 1060) supporting 256-bit keys. Used as part of the AES Key Wrap

algorithm to securely establish keying material.

•SP 800-90 CTR DRBG (DRBG Certificate # 11) for generating random numbers used for nonce

values and cryptographic keys

•AES CTR (AES Certificate # 1061) as part of the SP 800-90 CTR DRBG.

•AES CBC mode with 256-bit key (AES Certificate # 1062), used within TLS session between ETD

and KMS 2.x.

•HMAC-SHA-1 (HMAC Certificate # 598)with 160-bit key used to protect the integrity of TLS

communications between the ETD and KMS 2.x.

•SHA-1 (SHS Certificate #1006)

oas part of the TLS Key Derivation Functionality

oas part of HMAC SHA-1 (HMAC Certificate # 598)

3.2 Non-Approved Algorithms

The cryptographic module supports the following Non-Approved algorithms that are allowed for use within

FIPS Approved mode: MD5 as used within the TLS1.0 Key Derivation Function. (see [TLS1.0])

•AES Key Wrap (AES Certificate #1060) used to securely establish media keys ( endor Affirmed,

Feb 5, 2010 Part 316055201, Rev: AA Page 6

Sun Microsystems Sun StorageTe ™ T9840D Tape Drive Security Policy

key establishment methodology provides 256 bits of strength)

•RSAES-PKCS1- 1_5 supporting 2048-bit keys, for RSA public key encryption used to provide

FIPS 140-2 allowed key transport within the TLS protocol. Key establishment methodology

provides 112 bits of security.

•Non-Deterministic Random Number Generator (NDRNG) (provides entropy input to the SP800-90

DRBG, and random values for use within the TLS protocol)

•MD5, as used in the TLS protocol.

3.3 Determining FIPS Mode

The user can determine whether the ETD is operating in FIPS mode by examining the OP ( irtual

Operator Panel). OP is an external software application and the primary ETD remote management tool.

OP utilizes ETD services remotely. OP is described in more detail in the document " irtual Operator

Panel User's Guide" (see [ OPUG]).

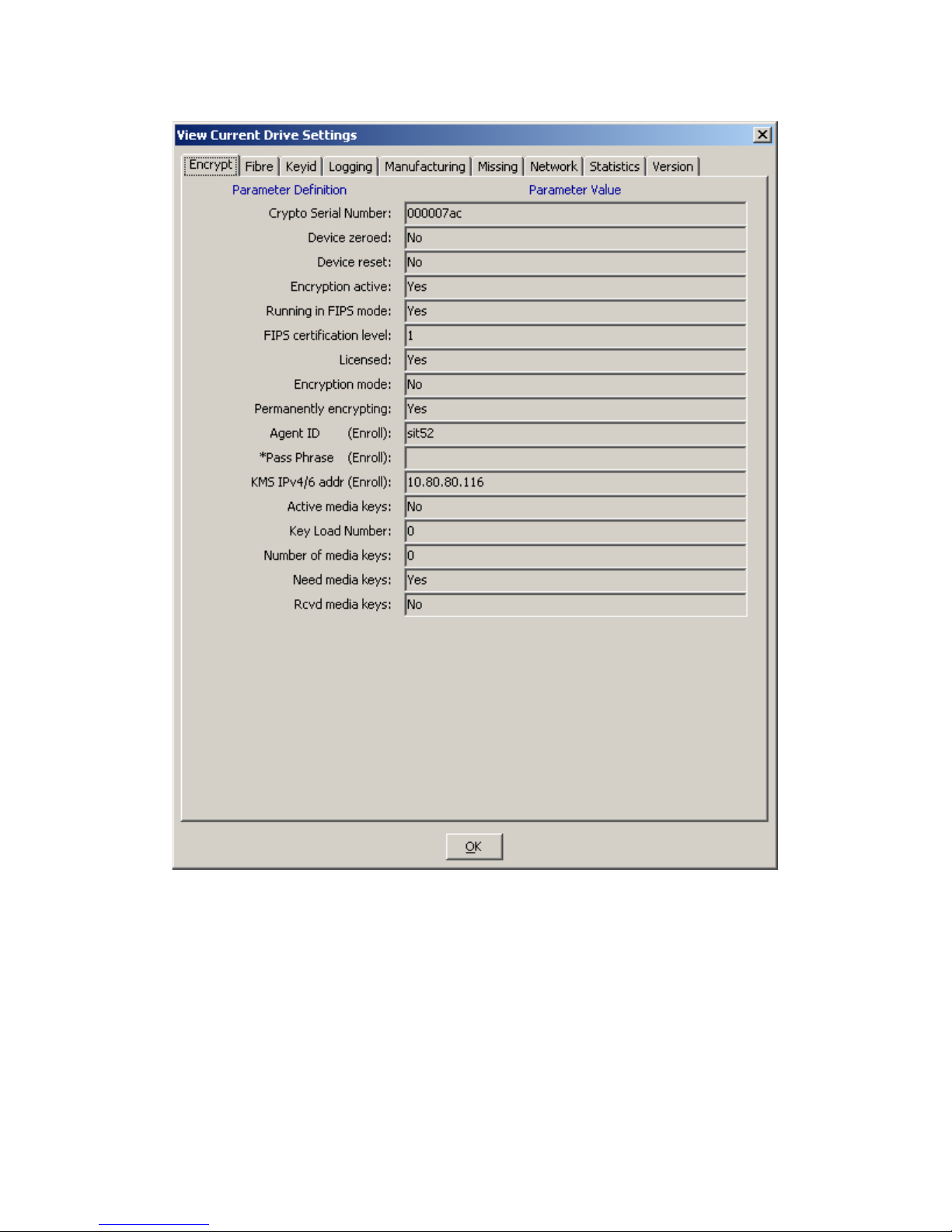

Figure 3.1 shows the " iew Current Drive Settings" of the OP application (Drive Operations → iew

Drive Data). The user can tell if the ETD has selected an Approved mode of operation by verifying that

the labels "Encryption active" and "Running in FIPS mode" are both set to "Yes". If either of these labels

is set to "No" then the ETD is not in a FIPS Approved mode.

Feb 5, 2010 Part 316055201, Rev: AA Page 7

Sun Microsystems Sun StorageTe ™ T9840D Tape Drive Security Policy

3.4 Config ring the Drive in FIPS mode

An ETD can only be configured for FIPS mode as a one-time decision taken during the encryption

enrollment process. Once an ETD is licensed for encryption, it will remain in either FIPS mode or non

FIPS compliant mode.

FIPS 140-2 configuration of ETD with OP requires the presence of both a Sun service representative

and the customer. In addition they will need to follow the licensing process as outlined in [KMS2IM] (KMS

2.x Installation and Service Manual), under “License and Enroll the Tape Drives” in Chapter 3 “T-Series

Tape Drives”.

Feb 5, 2010 Part 316055201, Rev: AA Page 8

Figure 3.1: VOP: View Current Drive Settings

Sun Microsystems Sun StorageTe ™ T9840D Tape Drive Security Policy

Both the Sun service representative and the customer (in the role of the Crypto-Officer) shall perform the

following actions to enable FIPS mode through OP:

1. The service representative shall examine the hardware part number on the rear label of the Tape

Drive to ensure that it matches the part number as listed in Section 1 of this document.

2. The service representative shall, using OP, click on the menu item Drive Operations → iew

Drive Data.

3. The service representative shall select the ersion Tab and verify that the firmware version listed

is that listed in Section 1 of this document.

4. The service representative shall license the tape drive for encryption using the process from

[KMS2IM].

5. The service representative shall set the drive offline by selecting Drive Operations → Set Offline.

6. The service representative shall add the ETD to the KMS 2.x cluster (see [KMS2IM]).

7. The service representative shall bring up the “Configure Drive Parameters” Window (see Figure

3.2) by selecting “Drive Data” from the Configure menu of the main OP window, and in this

window the customer (in the role of the Crypto-Officer) shall perform the following:

a) Set the ”Encryption Mode” field to “Yes”.

b) Set the “Permanently encrypting” field to “Yes”.

c) Set the “Set FIPS mode(permanent)” field to “On”.

d) Enter a valid Agent ID, Pass Phrase, and KMS 2.x IP address (see [KMS2IM]).

8. Click on the “Commit” button. The ETD will then reboot and come up in permanent FIPS mode.

9. erify that FIPS mode was correctly set by examining the FIPS status (see 3.3 ).

Feb 5, 2010 Part 316055201, Rev: AA Page 9

Sun Microsystems Sun StorageTe ™ T9840D Tape Drive Security Policy

4 Ports and Interfaces

This section describes all ports and interfaces supported by the Encrypting Tape Drive. Table 2 below

provides a listing of the following physical ports and logical interfaces(see [ETDOG] for details).

Table 2: Ports and Interfaces Description

Physical Port Qty Logical interface

definition

Technical Specification

DB15(RS232) 1 data output,

status output,

control input

Primarily used for tape library communications.

Feb 5, 2010 Part 316055201, Rev: AA Page 10

Figure 3.2: VOP: "Configure Drive Parameters" Window

Table of contents

Other Sun Microsystems Storage manuals

Sun Microsystems

Sun Microsystems StorageTek T9840 Assembly instructions

Sun Microsystems

Sun Microsystems StorageTek 5320 User manual

Sun Microsystems

Sun Microsystems StorEdge L400 User manual

Sun Microsystems

Sun Microsystems StorageTek T10000 Manual

Sun Microsystems

Sun Microsystems Enterprise Tape Library 7/3500 Quick start guide

Sun Microsystems

Sun Microsystems Sun Enterprise 10000 User manual

Sun Microsystems

Sun Microsystems Sun Fire B1600 Administration Parts list manual

Sun Microsystems

Sun Microsystems SUN-OCC-SMC576 User manual

Sun Microsystems

Sun Microsystems StorEdge 5310 User manual

Sun Microsystems

Sun Microsystems StorEdge N8400 User manual

Sun Microsystems

Sun Microsystems Sun StorEdge T3 User manual

Sun Microsystems

Sun Microsystems Sun StorEdge 5210 NAS Service manual

Sun Microsystems

Sun Microsystems Sun StorEdge 5310 NAS User instructions

Sun Microsystems

Sun Microsystems StorEdge 3900 Series User manual

Sun Microsystems

Sun Microsystems Sun StorEdge D240 User manual

Sun Microsystems

Sun Microsystems StorEdge N8400 Installation and operation manual

Sun Microsystems

Sun Microsystems STOREDGE A5000 Manual

Sun Microsystems

Sun Microsystems SPARCstorage Library User manual

Sun Microsystems

Sun Microsystems 2.1 Gbyte 7200 rpm User manual

Sun Microsystems

Sun Microsystems StorageTek StreamLine SL8500 Instructions for use

Sun Microsystems

Sun Microsystems StorEdge N8200 Installation and operation manual

Sun Microsystems

Sun Microsystems StorageTek SL500 Setup guide

Sun Microsystems

Sun Microsystems Sun StorageTek SL24 User manual

Sun Microsystems

Sun Microsystems StorEdge S1 Array Manual

Popular Storage manuals by other brands

QNAP

QNAP TS 32PXU Series user guide

LaCie

LaCie RUGGED RAID user manual

Freecom

Freecom CLS DOCK Quick install guide

PNY

PNY Attache P-FD64MBATT3 install guide

HP StorageWorks MSL2024 Getting started

OLT

OLT 6x6 Maximizer Assembly manual

Transcend

Transcend JetFlash 160 Specifications

LaCie

LaCie RUGGED MINI user manual

Thunderbolt

Thunderbolt 600 user manual

Panasonic

Panasonic LB-DH8 series Operator's guide

Intel

Intel RAID High Availability user guide

LaCie

LaCie 12big Thunderbolt 3 Quick install guide

Spectra Logic

Spectra Logic T-Series Spectra T50e quick start guide

Panasonic

Panasonic LKM-F931-1 instruction manual

Tabernus

Tabernus Enterprise Erase E2400 user guide

Rocstor

Rocstor COMMANDER 3F series user manual

HP P9000 user guide

Western Digital

Western Digital Ultrastar Data60 installation guide
