Sun Microsystems Netra st D130 Quick start guide

Ordering Rackmount Kits

The Netra™ st D130 storage enclosure is shipped out of the factory with

two 19-inch mounting brackets, which can be used to install the enclosure

into most 19-inch racks. Refer to the Netra st D130 Product Notes for

instructions on installing the storage enclosure with these brackets.

If you need to install the enclosure into a 23-inch, 24-inch, or 600 mm rack,

or if you prefer to use rack slide mounts, you must order a separate

rackmount kit from Sun Microsystems, Inc.

Installing the Thumbscrew Rack Brackets

The rackmount kits listed in Table 1 contain documentation describing

how to install the storage enclosure into a rack. However, you must first

replace the factory installed mounting brackets with the thumbscrew rack

brackets included in the Netra st D130 storage enclosure ship kit.

1. Unscrew the two screws that secure each mounting bracket to the

side of the storage enclosure and remove the brackets.

Retain these screws for Step 2.

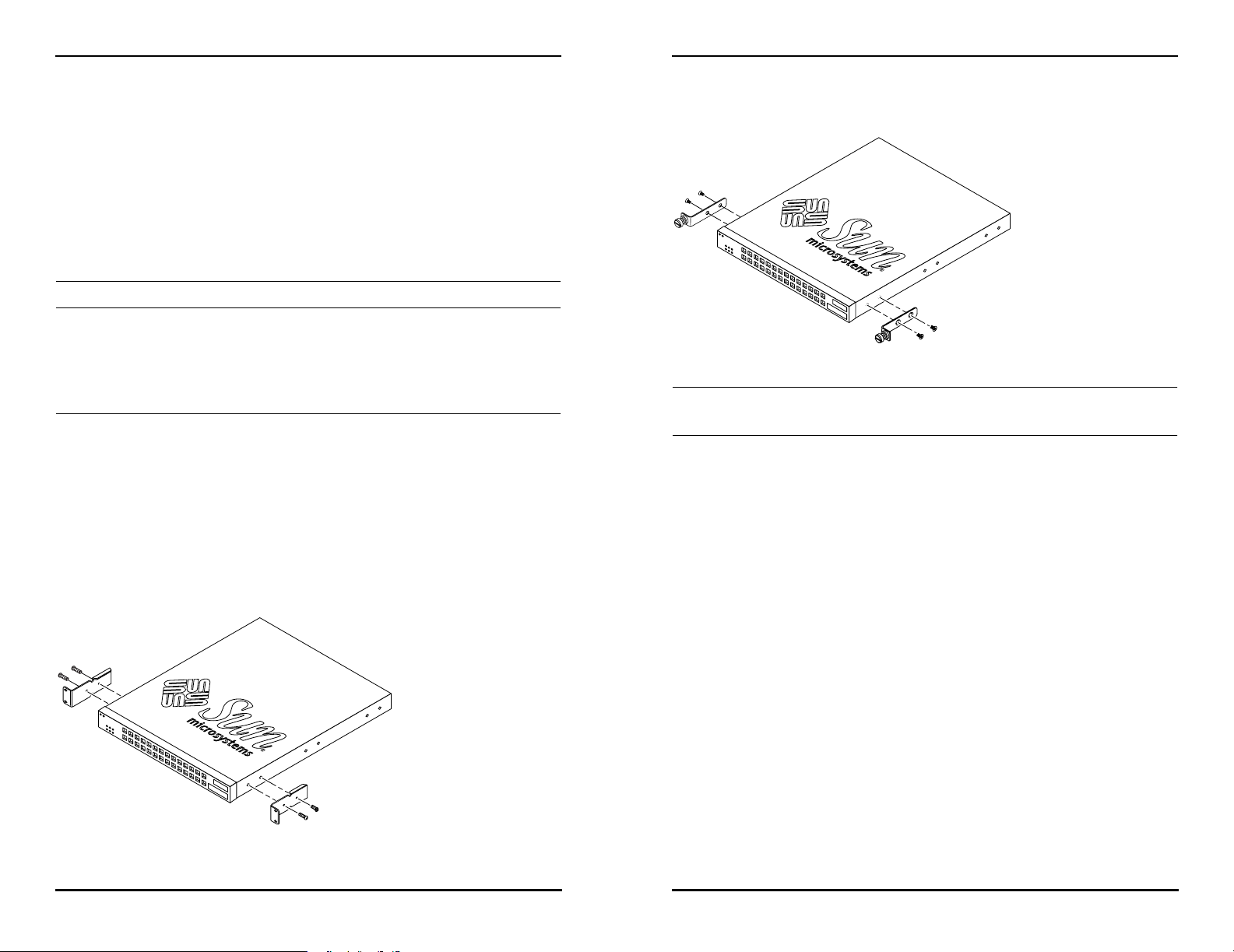

Figure 1 Removing the Rackmount Brackets

2. Secure each thumbscrew rack bracket to the side of the storage

enclosure using the screws saved from Step 1.

Figure 2 Installing the Thumbscrew Rack Brackets

Note – Refer to the rackmount kit documentation for the rack mounting

procedures.

Table 1 Rackmount Kits

Part Number Description

X6919A 19-inch Rackmount Kit

X6966A 23-inch Rackmount Kit

X6967A 24-inch Rackmount Kit

X6968A 600 mm Rackmount Kit

Please

Recycle

Sun Welcomes Your Comments

We are interested in improving our documentation and welcome your

comments and suggestions. You can email your comments to us at:

[email protected]

Please include the part number (806-4594-10) of the document in the

subject line of your email.

Caution - Do not block or cover the openings of your Sun product. Never

place a Sun product near a radiator or heat register. Failure to follow these

guidelines can cause overheating and affect the reliability of your Sun

product.

Caution - If installed in a closed or multi-unit rack assembly, the operating

ambient temperature of the rack environment may exceed the room ambient.

Ensure that rack environment ambient temperature does not exceed 55

degrees Celsius (130 degrees Fahrenheit).

Caution - Mounting of the equipment in a rack or cabinet should be such

that a hazardous condition is not created due to uneven mechanical loading

or weight distribution.

Caution - Ensure that the connection of multiple system units to the circuit

does not overload the supply overcurrent protection or supply wiring.

Consider the Sun product nameplate electrical ratings when determining the

correct branch circuit rating for your installation.

Netra™st D130 Rack Installation

Product Note

Part Number: 806-4594-10

February 2000, Revision A
