Sub-Zero Designer Series User manual
Designer Series
Undercounter Wine Storage
Installation Guide
SPECIFICATIONS, INSTALLATION,
AND MORE
2 | Sub-Zero Customer Care 800.222.7820
Designer Series Undercounter Wine Storage
Contents
3Designer Series Undercounter Wine Storage
4Opening Dimensions
6Electrical Requirements
7Preparation
7Anti-Tip Bracket
890° Door Stop
8Placement
9Alignment
10 Door Panel
12 Panel Installation
14 Completion
Features and specifications are subject to change at any
time without notice. Visit subzero.com/specs for the most
up-to-date information.
Important Note
To ensure this product is installed and operated as safely
and eciently as possible, take note of the following types
of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
important.
CAUTION indicates a situation where minor injury or prod-
uct damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specified.
IMPORTANT NOTE: Save these instructions for the local
electrical inspector.
subzero.com | 3
Designer Series Undercounter Wine Storage
Product Information

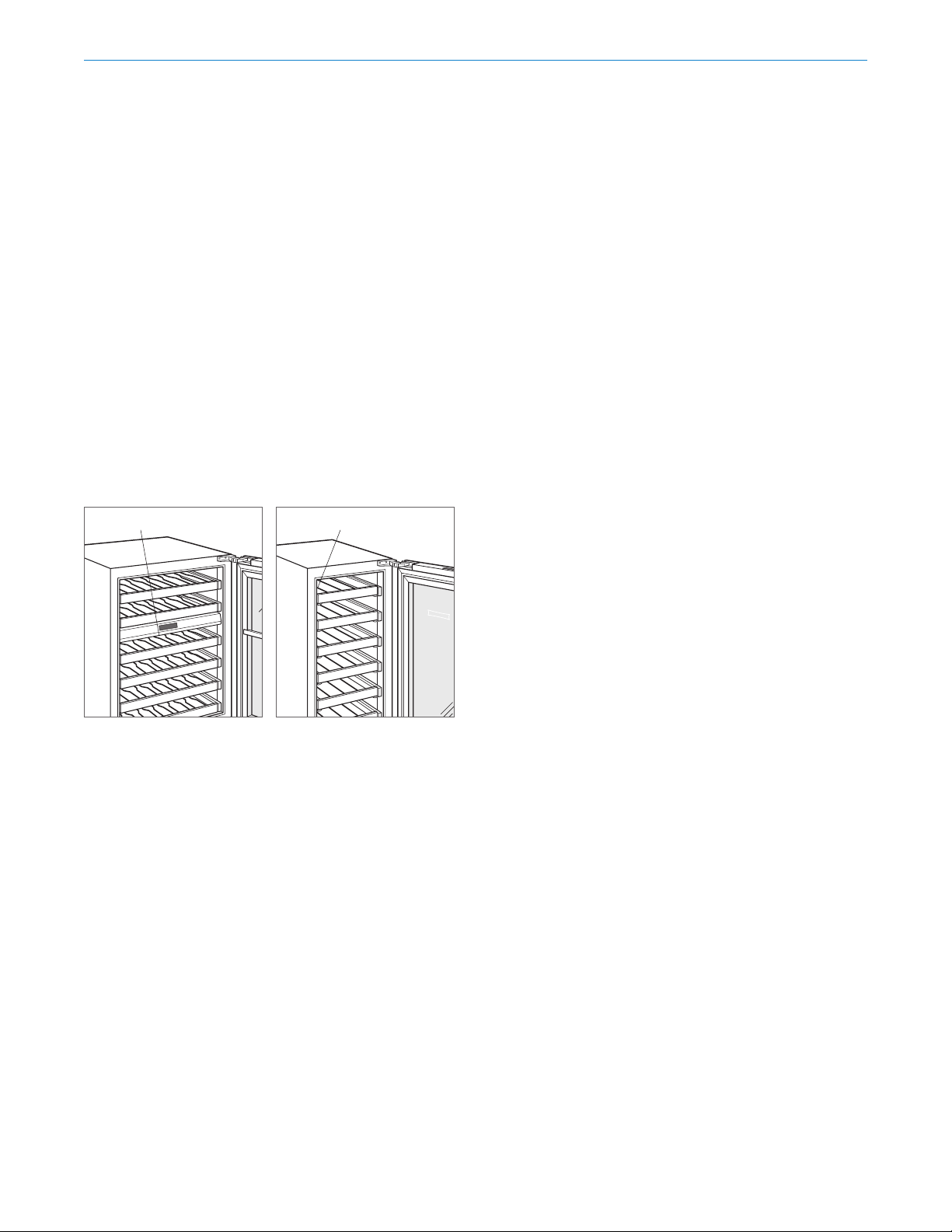

Important product information, including the model and
serial number, are listed on the product rating plate. For
the 24" model, the rating plate is located on the underside
of the control panel, on the left. For the 15" model, it is
located inside the cabinet, in the upper left. Refer to the
illustrations below.
If service is necessary, contact Sub-Zero Factory Certified
Service with the model and serial number. For the name of
the nearest Sub-Zero Factory Certified Service or for ques-
tions regarding the installation, visit the Product Support
section of our website, subzero.com, or call Sub-Zero
Customer Care at 800-222-7820.
RATING PLATERATING PLATE
Rating plate location
(24" model)
Rating plate location
(15" model)
4 | Sub-Zero Customer Care 800.222.7820
Site Preparation
Opening Dimensions
UNDERCOUNTER WINE STORAGE MODELS
W
OPENING WIDTH
H
OPENING
HEIGHT
TOP VIEW
SIDE VIEWF
RONT VIEW
NOTE: 3
1/2" (89) finished returns will be visible and should be finished to match cabinetry.
3/4" (19)
TYPICAL
FRAMED
CABINETRY
W
FILLER
31/2" (89)
FINISHED
RETURN
FRAMELESS
CABINETRY
W
3/4" (19)
TYPICAL
31/2" (89)
FINISHED
RETURN
24" (610)
OPENING
DEPTH
OPENING DIMENSIONS W H
24" Model (standard height) 24" (610) 34⁄" (876)
24" Model (ADA height) 24" (610) 32⁄" (826)
15" Model (standard height) 15" (381) 34⁄" (876)
The depth of each model is 23⁄" (587). Allow for panel
thickness when planning the finished opening depth. A
minimum 3⁄" (89) finished return is required on all sides of
the opening. Framed cabinets require additional finished
filler material behind the face frame for a proper installa-
tion. Refer to the illustration.
subzero.com | 5
Opening Dimensions
DUAL INSTALLATION
If two units are installed side by side, a dual installation kit
may be required. Installations without a custom filler strip
require a dual installation kit. If a dual installation kit is not
specified, a 2" (51) filler strip is recommended between the
units. Dual installations without a filler strip can only be
accomplished using two units with opposite hinges. Refer
to the illustrations.
Dual installation kits are available through an authorized
Sub-Zero dealer. For local dealer information, visit the find
a showroom section of our website, subzero.com. For
questions regarding the installation, call Sub-Zero Cus-
tomer Care at 800-222-7820.
DUAL OPENING WIDTH W
Two 15" Models 30" (762)
15" and 24" Models 39" (991)
Two 24" Models 48" (1219)
Dual installation kit required.
WITHOUT FILLER STRIP FILLER STRIP
Opposite hinges
Same side hinges
Site Preparation
6 | Sub-Zero Customer Care 800.222.7820
Electrical Requirements
Installation must comply with all applicable electrical codes.
The electrical supply should be located within the shaded
area shown in the illustration below. A separate circuit ser-
vicing only this appliance is required. A ground fault circuit
interrupter (GFCI) is not recommended and may cause
interruption of operation.
The electrical outlet must be positioned with the ground-
ing prong to the right of the thinner blades.
ELECTRICAL REQUIREMENTS
Electrical Supply 115 VAC, 60 Hz
Service 15 amp dedicated circuit
Receptacle 3-prong grounding-type
CAUTION
The outlet must be checked by a qualified electrician
to be sure it is wired with the correct polarity. Verify
the outlet is properly grounded.
WARNING
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly quali-
fied persons in order to avoid a hazard.
WARNING
Do not locate multiple portable socket-outlets,
power strip, or portable power supplies at the rear of
the appliance.
WARNING
Do not use an extension cord, two-prong adapter, or
remove the power cord ground prong.
Site Preparation
5"
(127) 2"
(51)
4"
(102)
FLOOR
OPENING
Electrical supply location
subzero.com | 7
Preparation
Uncrate the unit and inspect for damage. Remove and
recycle packing materials. Do not discard the kickplate,
anti-tip bracket, and hardware.
Remove the kickplate by extracting the two mounting
screws. Refer to the illustration below.
SCREW
Kickplate removal
Site Preparation
Anti-Tip Bracket
WARNING
To prevent the unit from tipping forward, the anti-tip
bracket must be installed.
The anti-tip bracket should be attached to the wall behind
the unit with the bracket flange located ⁄" (6) above the
top of the unit. Refer to the illustration below. Failure to
properly position the anti-tip bracket will prevent proper
engagement.
1/4" (6)
ANTI-TIP
BRACKET
Anti-tip bracket
8 | Sub-Zero Customer Care 800.222.7820
Placement
CAUTION
Before moving the unit into position, secure the door
closed and protect any finished flooring.
WARNING
When positioning the appliance, ensure the supply
cord is not trapped or damaged.
Use an appliance dolly to move the unit near the opening.
If the unit has been on its back or side, it must stand
upright for a minimum of 24 hours before connecting
power.
Plug the power cord into the grounded outlet and slide
the unit into position. Verify the anti-tip bracket is properly
engaged.
Site Preparation
90° Door Stop
The door stop pins provided with the unit limit the door
swing to 90°.
IMPORTANT NOTE: If a 90° door opening is desired, the
pins must be installed prior to installing the unit into the
opening.
To install, open the door to approximately 80°. Insert one
pin into each hinge. Refer to the illustration below.
DOOR STOP PIN
90° door stop
subzero.com | 9
Alignment
LEVELING
Once the unit is in position, rotate the front legs clockwise
to raise and counterclockwise to lower. Rear height adjust-
ment can be made from the front. Using a Phillips drive,
turn clockwise to raise the unit or counterclockwise to
lower. Use the lowest torque setting when using a power
drill. Do not turn the leveling legs by hand. Refer to the
illustration below.
When the unit is properly leveled, door adjustments are
less likely to be necessary.
IMPORTANT NOTE: Level the unit to the floor, not the
surrounding cabinetry. This could aect the operation of
the unit, such as door closing.
WARNING
To reduce the possibility of the unit tipping forward,
the front leveling legs must be in contact with the
floor.
REAR
ADJUSTMENT
FRONT
ADJUSTMENT
Leveling
Installation
ANCHORING
CAUTION
If using a power drill to predrill holes or install
screws, verify the drill chuck does not contact the
units face frame.
Adjust the depth of the unit to fit flush with the surround-
ing cabinetry. Allow for panel thickness. Once aligned,
verify the door opens properly, then install a #8 x ⁄" flat-
decorative head screw in each bracket.
WARNING
To avoid a hazard due to instability of the appliance,
it must be fixed in accordance with the instructions.
Anchoring
10 | Sub-Zero Customer Care 800.222.7820
Custom Panel
A custom door panel and handle hardware must be
installed.
A ⁄" (16) minimum to ⁄" (19) maximum thick panel is
required. The panel cannot exceed the maximum panel
weight indicated in the chart below. The depth of each
model is 23⁄" (587). Allow for panel thickness when plan-
ning the finished opening depth.
Minimum ⁄" (3) reveals are required.
PANEL WEIGHT MAX
24" Model 22 lb (10 kg)
15" Model 15 lb (7 kg)
Finish all sides of the custom panel. They will be visible
when the door is open.
A D-style handle is recommended. Locate the door handle
near the edge of the panel opposite the hinge and cen-
tered top to bottom. Stainless steel tubular and pro handles
are available through an authorized Sub-Zero dealer. For
local dealer information, visit the find a showroom section
of our website, subzero.com.
Stainless Steel Panel
Stainless steel door panels are available through an autho-
rized Sub-Zero dealer. For local dealer information, visit the
find a showroom section of our website, subzero.com.
Minimum ⁄" (3) reveals are required.
Door Panel
