Sub-Zero DEU1550B/L User manual

Designer Series

Undercounter Refrigeration

Installation Guide

SPECIFICATIONS, INSTALLATION,

AND MORE

2 | Sub-Zero Customer Care 800.222.7820

Designer Series Undercounter Refrigeration

Contents

3Designer Series Undercounter Refrigeration

4Opening Dimensions

5Electrical Requirements

6Plumbing Requirements

6Preparation

7Anti-Tip Bracket

790° Door Stop

8Placement

8Alignment

9Water Line

10 Door Panel

12 Panel Installation

14 Completion

Features and speciﬁcations are subject to change at any

time without notice. Visit subzero.com/specs for the most

up-to-date information.

Important Note

To ensure this product is installed and operated as safely

and eciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or prod-

uct damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise speciﬁed.

IMPORTANT NOTE: Save these instructions for the local

electrical inspector.

subzero.com | 3

Designer Series Undercounter Refrigeration

Product Information

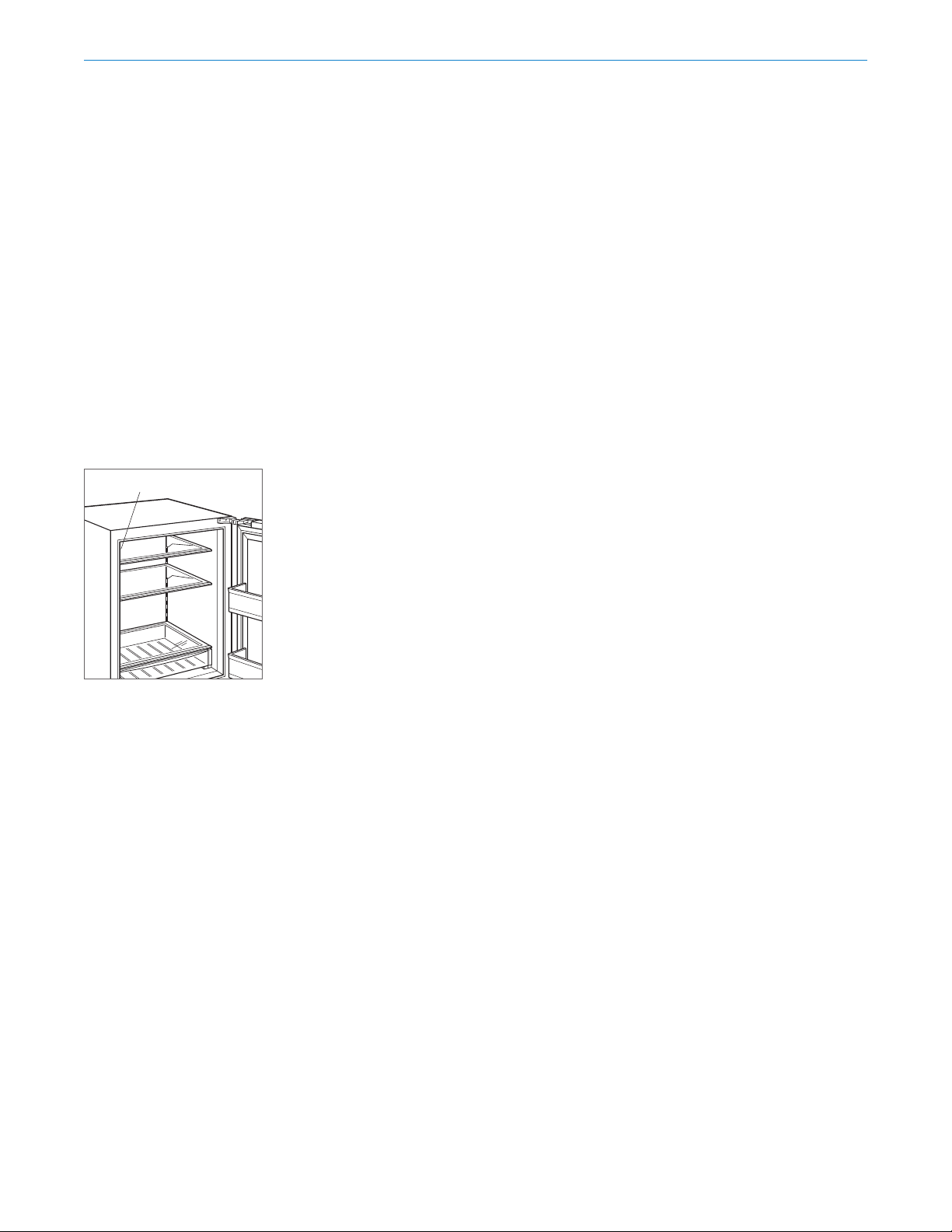

Important product information, including the model and

serial number, are listed on the product rating plate. The

rating plate is located inside the cabinet, in the upper left

area of the unit. Refer to the illustration below.

If service is necessary, contact Sub-Zero Factory Certiﬁed

Service with the model and serial number. For the name of

the nearest Sub-Zero Factory Certiﬁed Service or for ques-

tions regarding the installation, visit the Product Support

section of our website, subzero.com, or call Sub-Zero

Customer Care at 800-222-7820.

RATING PLATE

Rating plate location

4 | Sub-Zero Customer Care 800.222.7820

Site Preparation

The depth of each model is 23⁄" (587). Allow for panel

thickness when planning the ﬁnished opening depth. A

minimum 3⁄" (89) ﬁnished return is required on all sides of

the opening. Framed cabinets require additional ﬁnished

ﬁller material behind the face frame for a proper installa-

tion. Refer to the illustration.

DUAL INSTALLATION

If two units are installed side by side, a dual installation kit

may be required. Installations without a custom ﬁller strip

require a dual installation kit. If a dual installation kit is not

speciﬁed, a 2" (51) ﬁller strip is recommended between the

units. Dual installations without a ﬁller strip can only be

accomplished using two units with opposite hinges. Refer

to the illustrations below.

Dual installation kits are available through an authorized

Sub-Zero dealer. For local dealer information, visit the

ﬁnd a showroom section of our website, subzero.com.

For questions regarding the installation, call Sub-Zero

Customer Care at 800-222-7820.

DUAL OPENING WIDTH W

Two 15" Models 30" (762)

15" and 24" Models 39" (991)

Two 24" Models 48" (1219)

Dual installation kit required.

Opening Dimensions

DESIGNER SERIES UNDERCOUNTER MODELS

OPENING WIDTH

OPENING

HEIGHT

TOP VIEW

SIDE VIEWF

RONT VIEW

NOTE: 3

1/2" (89) finished returns will be visible and should be finished to match cabinetry.

3/4" (19)

TYPICAL

FRAMED

CABINETRY

FILLER

31/2" (89)

FINISHED

RETURN

FRAMELESS

CABINETRY

3/4" (19)

TYPICAL

31/2" (89)

FINISHED

RETURN

24" (610)

OPENING

DEPTH

WITHOUT FILLER STRIP FILLER STRIP

Opposite hinges

Same side hinges

OPENING DIMENSIONS W H

24" Model (standard height) 24" (610) 34⁄" (876)

24" Model (ADA height) 24" (610) 32⁄" (826)

15" Model (standard height) 15" (381) 34⁄" (876)

subzero.com | 5

Electrical Requirements

Installation must comply with all applicable electrical codes.

The electrical supply must be located within the shaded

area shown in the illustration below. A separate circuit

servicing only this appliance is required.

IMPORTANT NOTE: For indoor models, a ground fault cir-

cuit interrupter (GFCI) is not recommended and may cause

interruption of operation.

For the outdoor model, a ground fault circuit interrupter

(GFCI) is required to reduce the risk of electrical shock.

The electrical outlet must be positioned with the ground-

ing prong to the right of the thinner blades.

ELECTRICAL REQUIREMENTS

Electrical Supply 115 VAC, 60 Hz

Service 15 amp dedicated circuit

Receptacle 3-prong grounding-type

(127) 2"

(51)

(102)

FLOOR

OPENING

Electrical supply location

CAUTION

The outlet must be checked by a qualiﬁed electrician

to be sure it is wired with the correct polarity. Verify

the outlet is properly grounded.

WARNING

If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly quali-

ﬁed persons in order to avoid a hazard.

WARNING

Do not locate multiple portable socket-outlets,

power strip, or portable power supplies at the rear of

the appliance.

WARNING

Do not use an extension cord, two-prong adapter, or

remove the power cord ground prong.

Site Preparation

6 | Sub-Zero Customer Care 800.222.7820

Plumbing Requirements

MODEL DEU2450CI

Installation must comply with all applicable plumbing

codes.

For ease of installation, recess the water shut-o into the

wall or place it in an adjacent cabinet. Locate the water

supply line within the shaded area shown in the illustra-

tion below. Connect the water supply line to the house

supply with an easily accessible shut-o valve. Do not use

self-piercing valves.

An in-line ﬁlter is required when water conditions have a

high sediment content.

A reverse osmosis system can be used provided there is

constant water pressure of 35–120 psi (2.4–8.3 bar) supplied

to the unit at all times. A copper line is not recommended

for this application.

PLUMBING REQUIREMENTS

Water Supply Line ⁄" OD copper, braided

stainless steel, or PEX tubing

Water Pressure 35–120 psi (2.4–8.3 bar)

Excess Water Line for Connection 5' (1.5 m)

Preparation

Uncrate the unit and inspect for damage. Remove and

recycle packing materials. Do not discard the kickplate,

anti-tip bracket, and hardware.

Remove the kickplate by extracting the two mounting

screws. Refer to the illustration below.

SCREW

Kickplate removal

(51)

(102)

(51)

OPENING

AREA EXTENDS

1/2" (13) FORWARD ON FLOOR

Water supply location

Site Preparation

subzero.com | 7

90° Door Stop

The door stop pins provided with the unit limit the door

swing to 90°.

IMPORTANT NOTE: If a 90° door opening is desired, the

pins must be installed prior to installing the unit into the

opening.

To install, open the door to approximately 80°. Insert one

pin into each hinge. Refer to the illustration below.

DOOR STOP PIN

90° door stop

Anti-Tip Bracket

WARNING

To prevent the unit from tipping forward, the anti-tip

bracket must be installed.

The anti-tip bracket should be attached to the wall behind

the unit with the bracket ﬂange located ⁄" (6) above the

top of the unit. Refer to the illustration below. Failure to

properly position the anti-tip bracket will prevent proper

engagement.

1/4" (6)

ANTI-TIP

BRACKET

Anti-tip bracket

Site Preparation

8 | Sub-Zero Customer Care 800.222.7820

Alignment

LEVELING

Once the unit is in position, rotate the front legs clockwise

to raise and counterclockwise to lower. Rear height adjust-

ment can be made from the front. Using a Phillips drive,

turn clockwise to raise the unit or counterclockwise to

lower. Use the lowest torque setting when using a power

drill. Do not turn the leveling legs by hand. Refer to the

illustration below.

When the unit is properly leveled, door adjustments are

less likely to be necessary.

IMPORTANT NOTE: Level the unit to the ﬂoor, not the

surrounding cabinetry. This could aect the operation of

the unit, such as door closing.

WARNING

To reduce the possibility of the unit tipping forward,

the front leveling legs must be in contact with the

ﬂoor.

REAR

ADJUSTMENT

FRONT

ADJUSTMENT

Leveling

Installation

Placement

CAUTION

Before moving the unit into position, secure the door

closed and protect any ﬁnished ﬂooring.

WARNING

When positioning the appliance, ensure the supply

cord is not trapped or damaged.

Use an appliance dolly to move the unit near the opening.

If the unit has been on its back or side, it must stand

upright for a minimum of 24 hours before connecting

power.

Plug the power cord into the grounded outlet. For model

DEU2450CI, insert the water supply line into the hole on

the back of the unit. Refer to the illustration below. Pull the

excess water line forward as the unit is slid into the open-

ing. Verify the anti-tip bracket is properly engaged.

BACK OF UNIT

HOLE FOR

WATER LINE

Water line (model DEU2450CI)

subzero.com | 9

Water Line

MODEL DEU2450CI

Under the unit, ⁄" plastic tubing is connected to the unit

with a preassembled ⁄" compression connection. The

water line ﬁtting connection kit, provided with the unit,

contains a ⁄" compression union ﬁtting for connection to

the household water line.

Purge the water line prior to ﬁnal connection to the unit.

This will remove any debris that may be present in the

tubing from installing the new water line. Connect the

plastic tubing from the unit to the house water supply line

with the ﬁtting connection kit provided. Refer to the

illustration below. Check all water line ﬁttings for leaks.

IMPORTANT NOTE: Water lines cannot be exposed to

freezing temperatures.

WARNING

Connect to potable water supply only.

WATER LINE

CONNECTION

Water line connection

Installation

Alignment

ANCHORING

CAUTION

If using a power drill to predrill holes or install

screws, verify the drill chuck does not contact the

units face frame.

Adjust the depth of the unit to ﬁt ﬂush with the surround-

ing cabinetry. Allow for panel thickness. Once aligned,

verify the door opens properly, then install a #8 x ⁄" ﬂat-

decorative head screw in each bracket.

WARNING

To avoid a hazard due to instability of the appliance,

it must be ﬁxed in accordance with the instructions.

Anchoring

10 | Sub-Zero Customer Care 800.222.7820

Custom Panel

A custom door panel and handle hardware must be

installed.

A ⁄" (16) minimum to ⁄" (19) maximum thick panel is

required. The panel cannot exceed the maximum panel

weight indicated in the chart below. The depth of each

model is 23⁄" (587). Allow for panel thickness when plan-

ning the ﬁnished opening depth.

Minimum ⁄" (3) reveals are required.

PANEL WEIGHT MAX

24" Model 22 lb (10 kg)

15" Model 15 lb (7 kg)

Finish all sides of the custom panel. They will be visible

when the door is open.

A D-style handle is recommended. Locate the door handle

near the edge of the panel opposite the hinge and cen-

tered top to bottom. Stainless steel tubular and pro handles

are available through an authorized Sub-Zero dealer. For

local dealer information, visit the ﬁnd a showroom section

of our website, subzero.com.

Door Panel

Stainless Steel Panel

Stainless steel panels are available through an authorized

Sub-Zero dealer. Stainless steel panels include a stainless

steel kickplate cover. The outdoor model requires the use

of a Sub-Zero stainless steel outdoor accessory panel. For

local dealer information, visit the ﬁnd a showroom section

of our website, subzero.com.

Minimum ⁄" (3) reveals are required.

This manual suits for next models

Table of contents

Languages:

Other Sub-Zero Wine Cooler manuals

Sub-Zero

Sub-Zero 424FS Instructions for use

Sub-Zero

Sub-Zero 400-2 Series Service manual

Sub-Zero

Sub-Zero 424HAG/O-2 User manual

Sub-Zero

Sub-Zero Designer Series User manual

Sub-Zero

Sub-Zero 315W User manual

Sub-Zero

Sub-Zero IW-18 User manual

Sub-Zero

Sub-Zero 427R User manual

Sub-Zero

Sub-Zero 430 User manual

Sub-Zero

Sub-Zero 427 User manual

Sub-Zero

Sub-Zero 424 Owner's manual

Sub-Zero

Sub-Zero 315W User manual

Sub-Zero

Sub-Zero 427RB User manual

Sub-Zero

Sub-Zero 424 User manual

Sub-Zero

Sub-Zero WINE STORAGE User manual

Sub-Zero

Sub-Zero IW-30-LH User manual

Sub-Zero

Sub-Zero IW-18 User manual

Sub-Zero

Sub-Zero 427G Guide

Sub-Zero

Sub-Zero 430 User manual

Sub-Zero

Sub-Zero 315W Guide

Sub-Zero

Sub-Zero Wolf 400 Series User manual

Sub-Zero

Sub-Zero WINE STORAGE Owner's manual

Sub-Zero

Sub-Zero UW24ORH User manual

Sub-Zero

Sub-Zero 424 User manual

Sub-Zero

Sub-Zero DEU1550B/R User manual

Popular Wine Cooler manuals by other brands

U-Line

U-Line Echelon Wine Captain 2075WC Features & benefits

Haier

Haier WS50GA user manual

Cavist

Cavist 62 instruction manual

Kenmore

Kenmore 461.99130 owner's manual

Miele

Miele KWT 6422 iG Operating and installation instructions

Danby

Danby DWC113BLSDB owner's manual

Caple

Caple Wi6128 instruction manual

Avanti

Avanti WC1001 instruction manual

Frigidaire

Frigidaire FFWC38F6LS Factory parts catalog

Titan

Titan TT-W2454SZ User guide & service manual

Klarstein

Klarstein Botella 166 Uno manual

Costway

Costway FP10130WL manual

Lemair

Lemair LWC59 instruction manual

Haier

Haier JC-125GEA user manual

Caple

Caple WCi46B Instructions for use

Climadiff

Climadiff CLI24 use instructions

Viking

Viking VCWB301LSS Use & care manual

Caple

Caple WC6511 instruction manual
