Streak Ultra Etorque X5 User manual
X5 Full-TOWER GAMING CASE
X10 Double/Full-TOWER GAMING CASE
User Manual
2
Contents
1.1 Specifications X5 3
1.2 Specifications X10 4
1.3 AccessoryX5 & X10 5
1.4 Additional Accessory X10 5
2.1 Side Panel Disassembly 6
2.2 Motherboard Installation 7
2.3 5.25” Device Installation 8
2.4 External 3.5” Device Installation 9-10
2.5 2.5” HDD Installation 11
2.6 Power Supply Installation 12
2.7 Fan Installation 13-15
2.8 Water Cooling Installation 16
2.9 Supporting Feet Installation 17
2.10 Front I/O Installation Guide 18
3.1 Mini ITX Installation X10 19
3.2 Second Power Supply Installation X10 20
3
Chapter 1. Product Introduction
1.1 Specifications X5
Dimension 230（W）x 580（H）x 605（D）mm
Material SECC
Front Panel：ABS + Mesh Design
Device & HDD 5.25 '' X 4（Exposed）
2.5 '' X 4（Hot Swappable Tray）
3.5 '' X 6（Hot Swappable Tray）
3.5 '' X 2（Hidden）
Slot 10
Front I/O USB3.0×2+USB2.0×4+ HD Audio
LED Indicator Power & HDD
Cooling Fan Front：LED 120mm × 2 (included)
Rear：140mm × 1 (included)
Side：230mm x 1 or 120mm x 2 or 140mm x 2
Top: 230mm x 1 or 120mm x3 or 140mm x 2
Bottom: 230mm x 1 or 120mm x 2 or 140mm x 1
Motherboard ITX, mATX, ATX, E-ATX, XL-ATX, HTPX
Power Supply ATX
4
1.2 Specifications X10
Dimension 230（W）x 780（H）x 605（D）mm
Material SECC
Front Panel：ABS + Mesh Design
Device & HDD 5.25 '' X 6（Exposed）
2.5 '' X 4（Hot Swappable Tray）
3.5 '' X 8（Hot Swappable Tray）
3.5 '' X 2（Hidden）
Slot 10
Front I/O Main Case: USB3.0×2 +USB2.0×4 + HD Audio
Top System: USB2.0×2 + HD Audio
LED Indicator Power & HDD
Cooling Fan Main Case:
Front：LED 120mm × 2 (included)
Rear：140mm × 1 (included)
Side：230mm x 1 or 120mm x 2 or 140mm x 2
Top: 230mm x 1 or 120mm x3 or 140mm x 2
Bottom: 230mm x 1 or 120mm x 2 or 140mm x 1
Top System:
Top: 230mm x 2 or 120mm x 4 or 140mm x 3
Motherboard ITX, mATX, ATX, E-ATX, XL-ATX, HTPX
Power Supply ATX (Main System) + SFX (Top System)
5
1.3 Accessory X5 & X10
- User Manual x 1
- Supporting Feet x 2
- Cable Tie x 5
- Screw Bag container the following screws:
Standoff
5H-6#*4- 6#*6.5HCu
Screw
6*5KM
Screw
3*5KM
15PCS 32PCS 32PCS
Screw
M4*10
Screw Supply
6#6HW-TC
Screw
6#*5B-C
8PCS 8PCS 19PCS
1.4 Accessory X10
Cover for the I/O slot if not used
(Top System)
Switching cable for connecting
two ATX PSU to one motherboard
Three different back plates for the top system
6
Chapter 2. Installation Guide
2.1 Side Panel Disassembly
Remove the thumb screws from the rear side of the case and pull the
side panel rearwards.
To close again place the side panel into the guide rails and push it
forwards with care, then screw in the two thumb screws on the rear
side.
X10 only: To open the side panel of the top unit, push the two indented
handgrips inward to release the door.
7

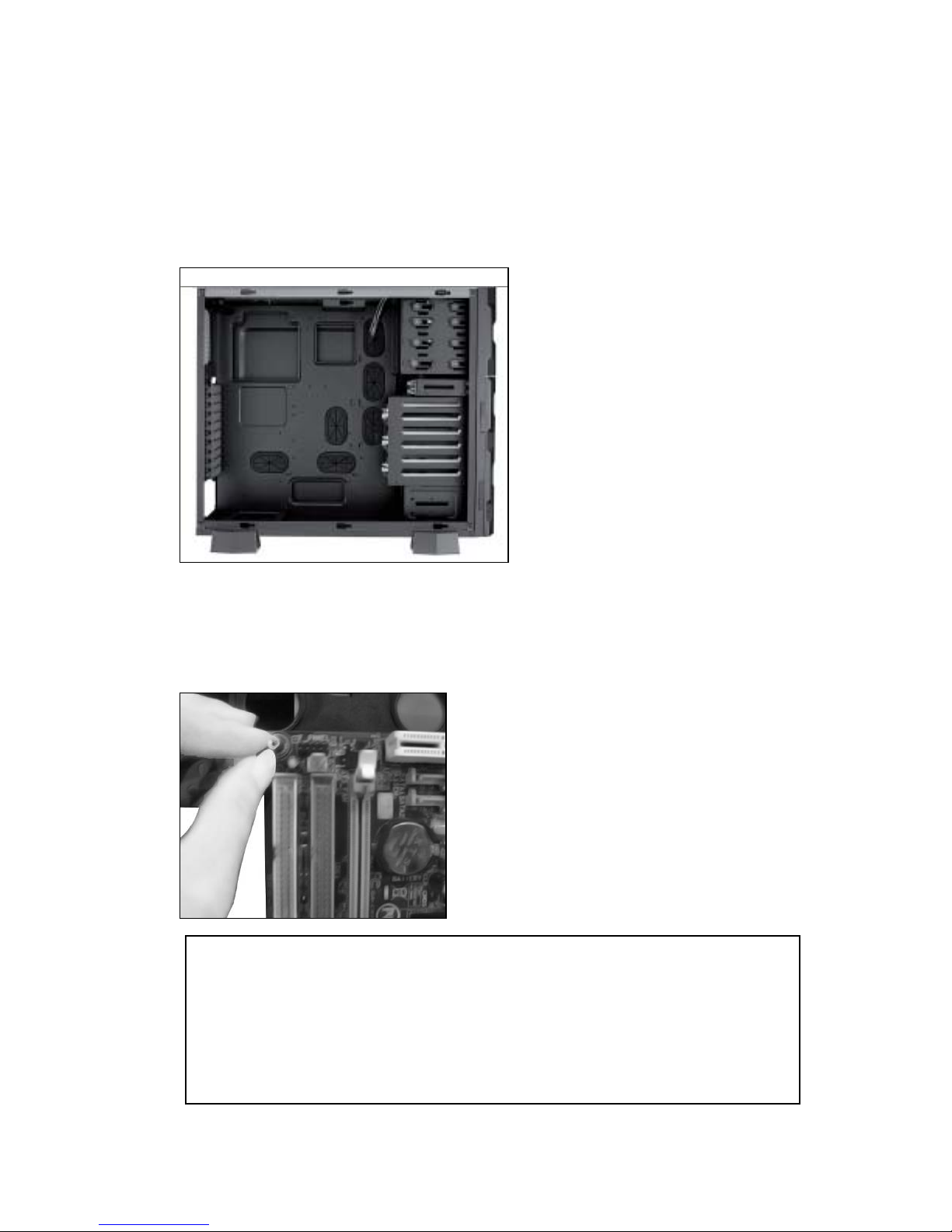

2.2 Motherboard Installation
Install the I/O panel that comes with your motherboard package.
Secure the standoffs on the motherboard tray.
Install the motherboard in proper location and secure it with provided
screws.
NOTE:
CPU, RAM and any peripheral installation are not included in
this manual. Please refer to your motherboard manual for
related mounting instructions and troubleshooting.
8

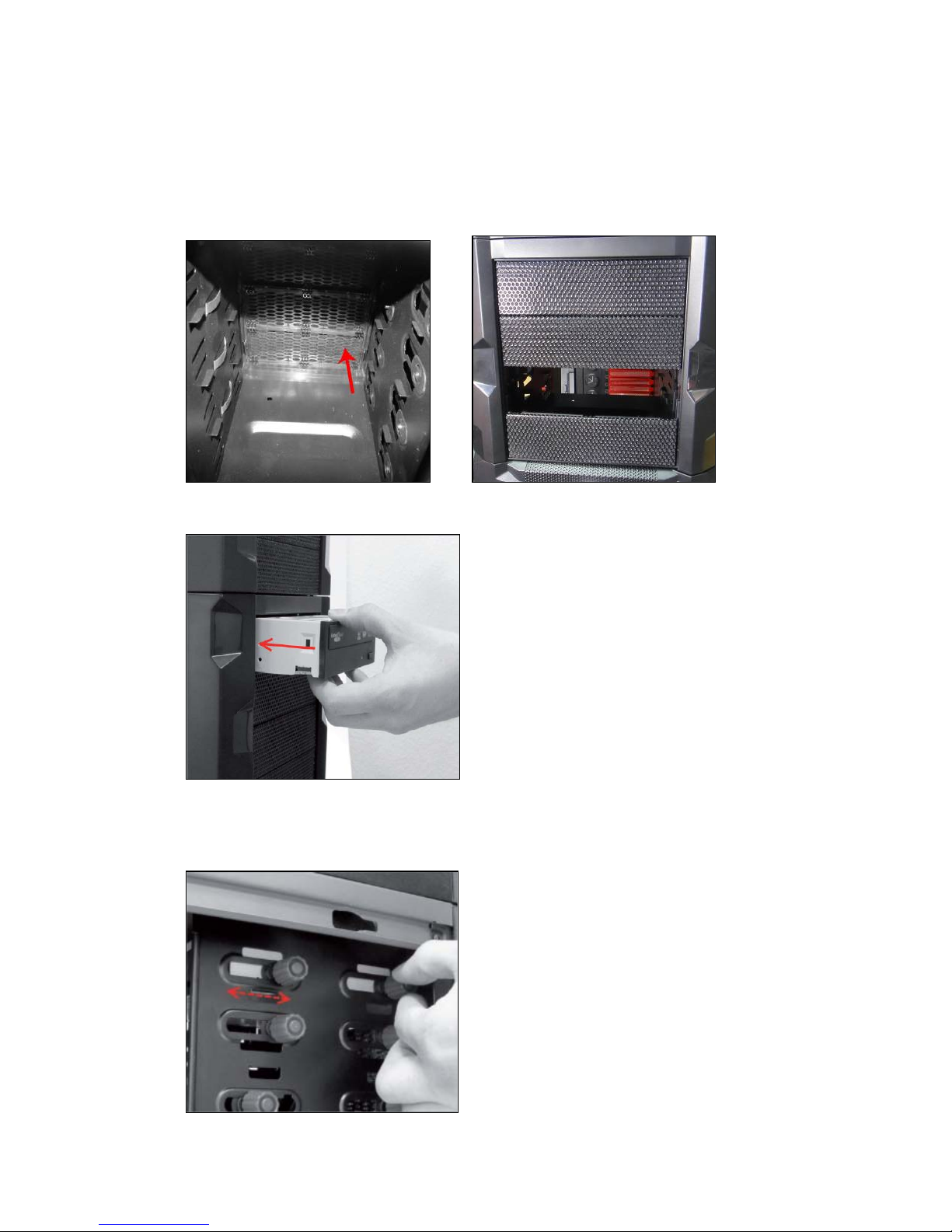

2.3 5.25” Device Installation
From the interior of the case, use a firm device of your choice to push
the 5.25” drive bay cover out.
Place the 5.25” device into the drive bay.
Match the ODD drive holes with the drive cage. Then turn the knob
clockwise to secure the drive cage.
9
2.4 External 3.5” Device Installation
Open the front panel on the left hand side.
Remove the hard drive tray by pushing the tray tab to the right to
release the hard drive tray.
Install hard drive by placing each individually into the hard drive tray.
Secure each from the bottom of tray with the provided screws.
10

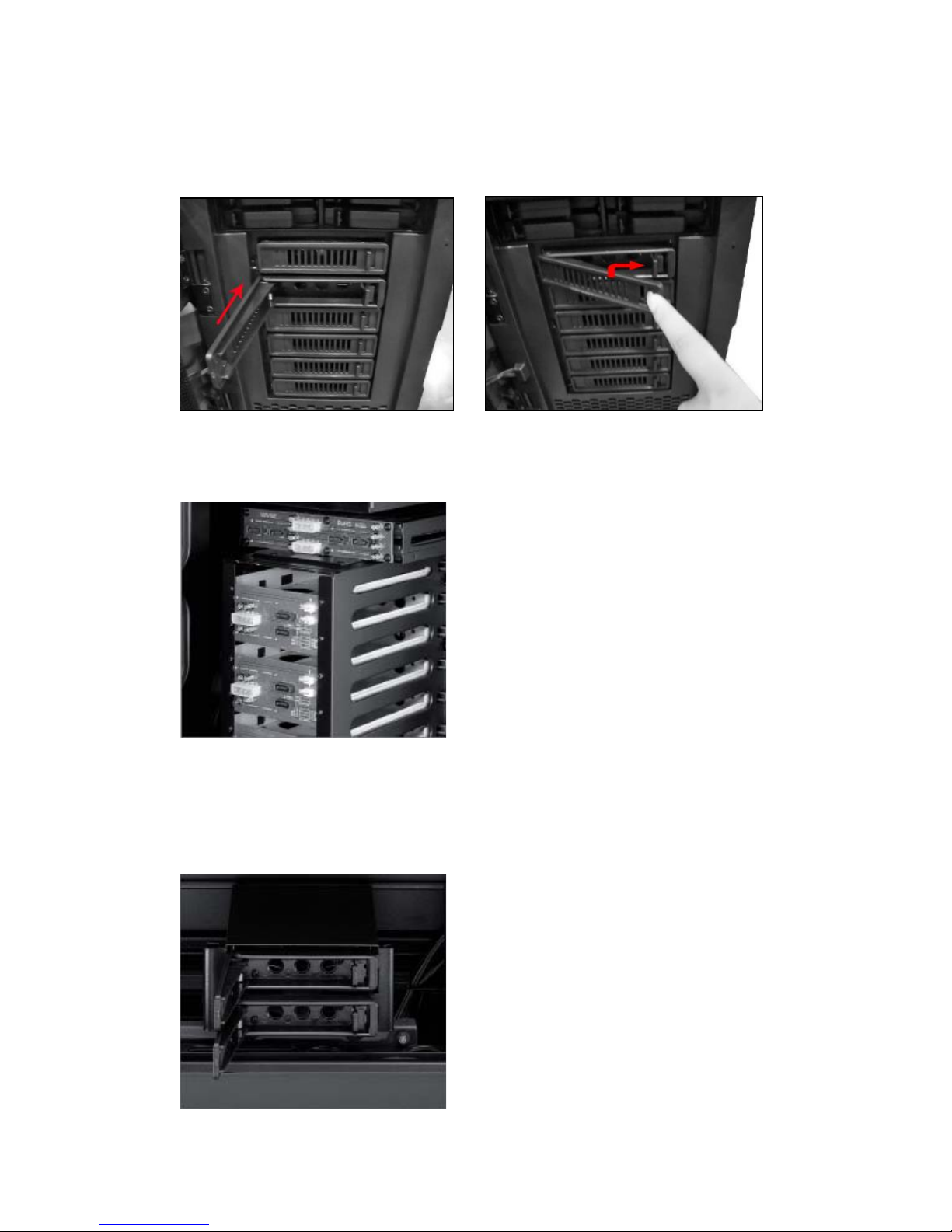

Place the tray back into to the case and lock it in place by pushing the
tray in. The rear of the hard drive will connect to the backplane.
Find the 4-Pin Molex on the power supply and connect it to the
backplane. Connect the backplane to motherboard with SATA cable.
X10 only:
There are two more HDD trays at the top of the case.
