Storage Canopy C3340S User manual
SHELTER
ASSEMBLY MANUAL
Model # W10xL12xH 3.6m
C3340S Container Shelter
SPECIFICATION
Width:10m Length:12m Height:3.6m
IMPORTANT ----READ MANUAL FIRST
Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and
costly mistake. If you have any questions contact your local dealer.
For User Friendly assembly we have identified each individual component with the part code as indicated in
the parts list. Please refer to the part code numbers and drawing to ensure problem free assembly.
It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or
twice again after a few months of use. This is important when assembly in cold weather (autumn and winter)
because the fabric is stiff then and when we got the sun and warm weather afterwards it will make the fabric
“slack” again and need to be re-tighten before next winter.
It’s the owners responsibility to take of snow immediately if not slide off by itself.
READ ALL INSTRUCTIONS BEFORE ASSEMBLY
1.
Keep work area clean. Cluttered areas invite injuries. Do not set up near snow drifts, in slippery places, in
high winds, or wet location.
2.
Keep children away. All children should be kept away from the work area.
3.
Don’t over reach. Keep proper footing and balance at all times.
4.
Do not assemble in under the influence of alcohol or drugs. Read warning labels on prescriptions to
determine if your judgment or reflexes are impaired while taking drugs. If there is any doubt, do not
assemble.
5.
Be aware of possible windy conditions; fasten the bases in concrete if these conditions are likely to occur.
Remove the cover during hurricane.
6.
Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to
open flame.
7.
Be aware of personal safety during assembly and use. Be carful not to pinch fingers with clips and tubes
when assembling: when using makes sure there is adequate ventilation for exhaust and other dangerous
fumes.
PartsList
Part Code
Description
Qty
L1
Base Plate
5
R1
Base Plate
5
A1
Angle seat
10
1
Top bent tube
5
2
Middle bent tube
10
3
Bottom bent tube
10
4
Connection purlin
28
5
Support tube
12 groups
6
Clip
24
7
Lower tensioning tube for roof cover
2groups
8
Roof cover
1
9
Bolt M8x80
80
10
Bolt M10x90
25
10A
Bolt M8x60
24 groups
11
Ropes
60m
12
∮
32 Plastic Plug for end of tensioning tube
4
13
Ratchet strap (for tie down ratchet)
10
14
Angle seat
4
15
Ratchet
10
SPECIFICATION
Width: 10m Length: 12m Height: 3.6m
IMPORTANT ---- READ MANUAL FIRST
Improper site preparation, Assembly and Maintenance may invalidate warranty and cause
unnecessary and costly mistake. If you have any questions contact your local dealer.
For User Friendly assembly we have identified each individual component with the part code as
indicated in the parts list. Please refer to the part code numbers and drawing to ensure problem
free assembly.
It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also
re-tighten once or twice again after a few months of use. This is important when assembly in cold
weather (autumn and winter) because the fabric is stiff then and when we got the sun and warm
weather afterwards it will make the fabric “slack” again and need to be re-tighten before next
winter.
It’s the owners responsibility to take of snow immediately if not slide off by itself.
READ ALL INSTRUCTIONS BEFORE ASSEMBLY
1.Keep work area clean. Cluttered areas invite injuries. Do not set up near snow drifts, in
slippery places, in high winds, or wet location.
2.Keep children away.All children should be kept away from the work area.
3.Don’t over reach. Keep proper footing and balance at all times.
4.Do not assemble in under the influence of alcohol or drugs. Read warning labels on
prescriptions to determine if your judgment or reflexes are impaired while taking drugs. If
there is any doubt, do not assemble.
5.Be aware of possible windy conditions; fasten the bases in concrete if these conditions are
likely to occur. Remove the cover during hurricane.
6.Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not
expose to open flame.
7.Be aware of personal safety during assembly and use. Be carful not to pinch fingers with clips
and tubes when assembling: when using makes sure there is adequate ventilation for exhaust and
other dangerous fumes.
EQUIPEMNT AND TOOLS FORINSTALIATION
1. Measuring tape
2. String for alignment
3. Step ladder
4. Welder
5. Sledge hammer
6. Wrench
7. Scissors
INSTALLATION PROCESS
A—BASE INSTALLATION
Please refer to the diagram (Figure 1) to place the base plates.
Figure 1
1. The measurement is from center to center of the tubes. Referring to the above diagram and
confirm the place of the base plates. ENSURE THAT THE FOUNDATIONS IS SQUARE.
2. All the base plates should be welded on the Containers.

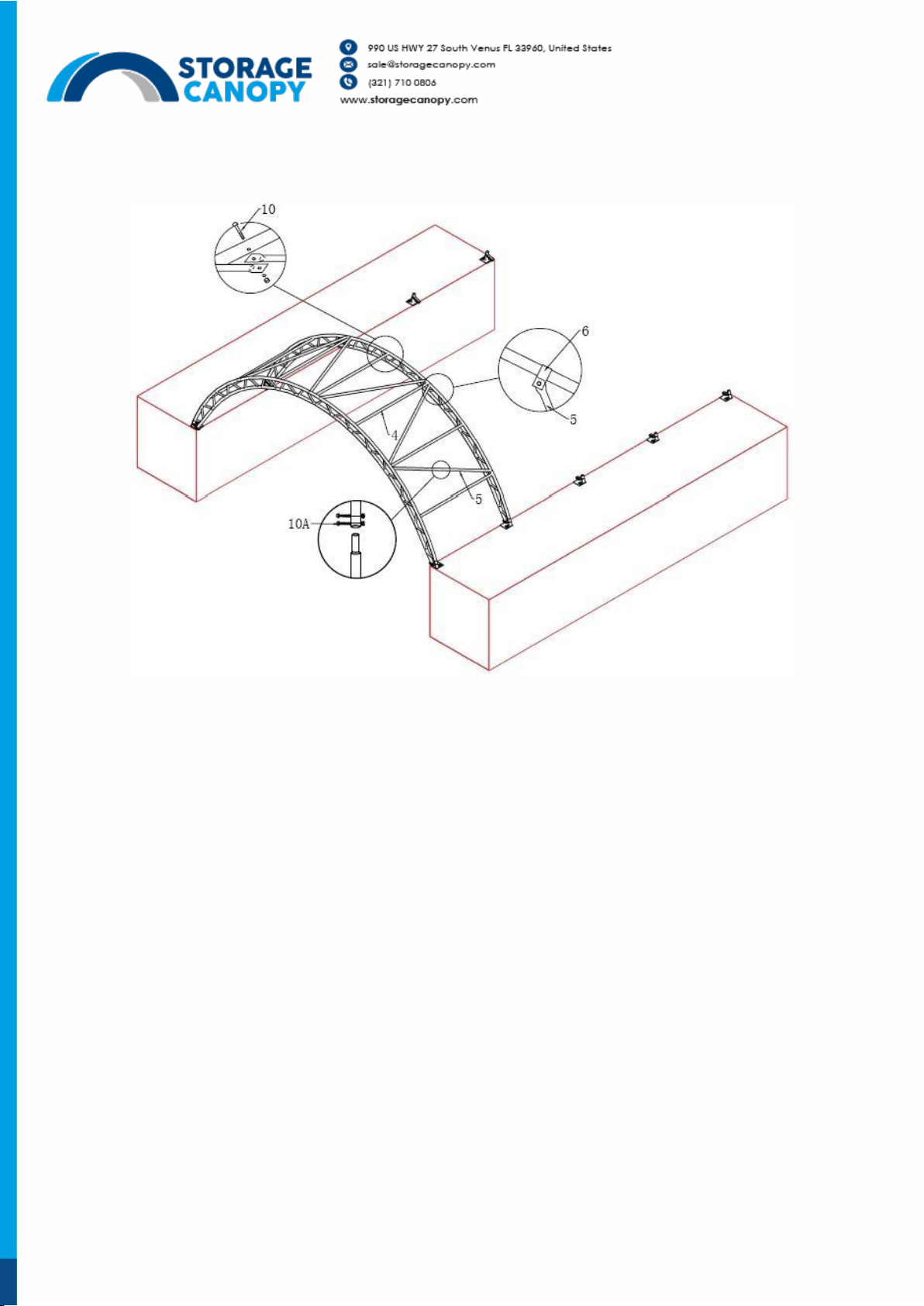

B—FRAME INSTALLATION
Please refer to the diagram (Figure 1) to install the Frame.
Figure 2
1.As Figure 2 shown find Top bent tube (part code 1), Middle bent tube (part code2) and bottom
bent tubes (part code3). To connect them by Screw M8x80（part code 9）, which makes one group
of arches. Please NOTE the direction of the screw. DO NOT install the screws on the top of the
truss where the fabric will rest.
2.Life an assembled arch into one base plate and force the other end of the arch into the opposite
base plate.
When finishing installing the first two arches, connect the Connection purlins onto them by using
screw M10x90 （part code 10 ）.There are 5 pieces of Connection purlins (part code 4)
between two groups. Then install the third arch into base plate and connect the purlins. Finally
install the Support tube (part code 5) using Screw M8x60（part code10A）and Clip (part code 6).
By turns the assembly for the frame is finished.

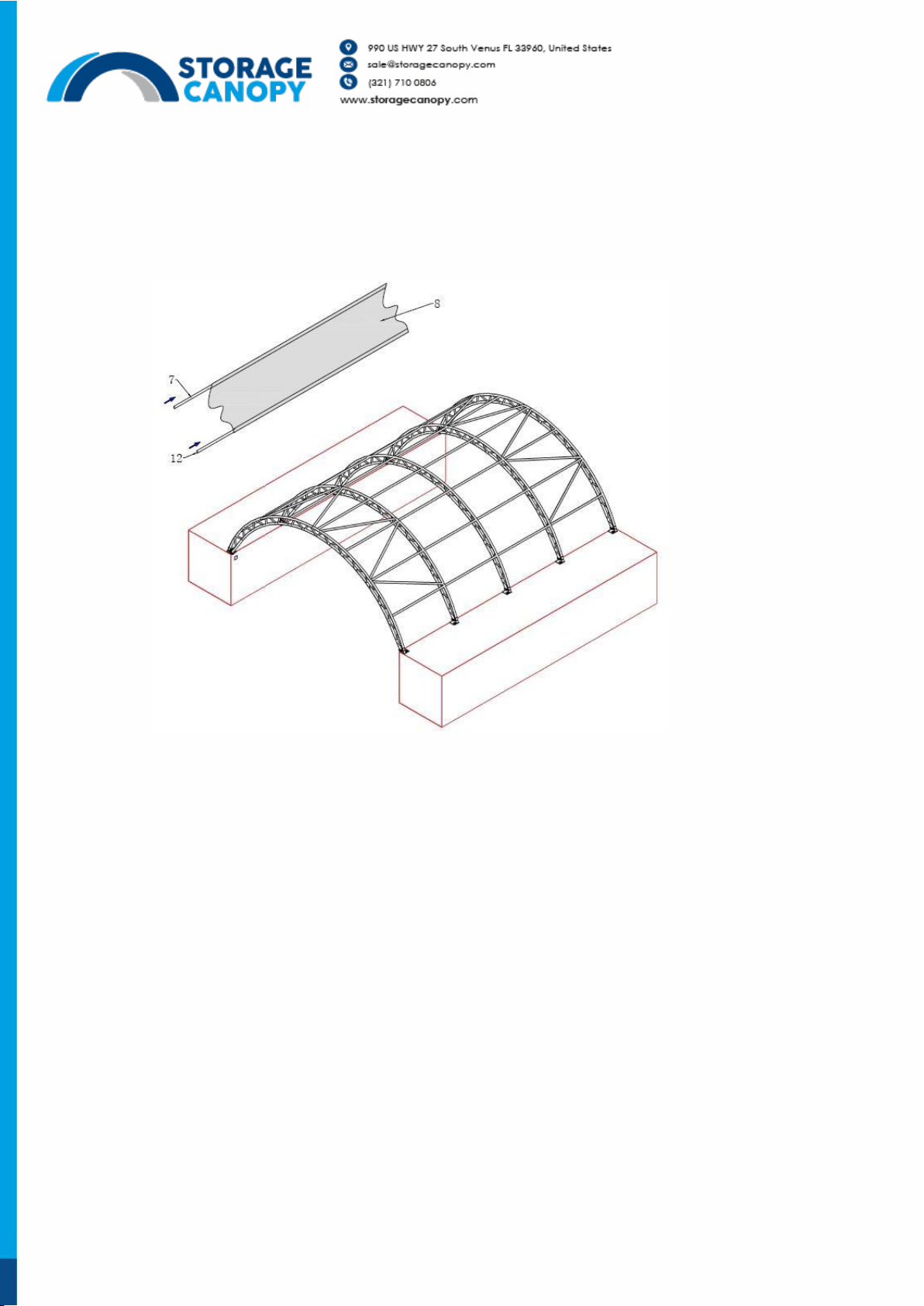

C- INSTRUCTION FOR ROOF COVER
NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A
slight breeze is the most advantageous for cover installation. To take advantage of the breeze,
pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air.
1.
Put the Roof cover (part code 8) EVENLY,CARRFULLR AND SLOWLY on the frame. Adjust the cover
so that it is square and evenly centered on the frame.
2.
Using Ropes (part code 11) to knit the cover on the two side arches, finally tie the Roof cover to the Angle
