StarTech.com P2DD46A22-KVM-SWITCH User manual

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

October 4, 2023 9:58 AM

2-Port Dual Monitor KVM Switch - DisplayPort - 4K 60Hz - Serial Control

Product IDs

P2DD46A22-KVM-SWITCH

Product Information

For the latest software, manuals, product information, technical specications, and declarations of conformance, please visit:

www.StarTech.com/P2DD46A22-KVM-SWITCH

Hotkey Commands

Hotkey commands are keystroke sequences that initiate computer/device functions and can be used to initiate KVM Switch

functions. A hotkey command sequence must be initiated by the HK_LCode (HotKey Leading Code), followed by 1-2 additional

keystrokes. Successful hotkey command inputs result in a high-pitched beep. Unsuccessful hotkey command inputs result in a

low-pitched beep.

Notes:

- All keystroke combinations must be entered in rapid succession.

- Press and release the indicated keys, unless otherwise specied.

HK_LCode

Option 1.1

• Scr Lck + Scr Lck

Option 1.2

To change the HK_LCode:

• HK_LCode + H + CapsLk, NumLk, Left Ctrl or Right Ctrl

• Alternatively, press and hold the front Host Selection Button for PC2, until 2 beeps are emitted, then press the desired leading

hotkey of CapsLk, NumLk, Left Ctrl or Right Ctrl

Hotkey Command Chart

Hotkey Command Function

HK_LCode + Space • Bring up the On Screen Display (OSD) Menu.

HK_LCode + 1 ~ 2

HK_LCode + F1 ~ F2

• Select PC 1 or PC 2.

HK_LCode + W

• Disable the binding between PC (USB/Video) and Audio

when switching between PC 1 or PC 2.

• Allows switching of PC Ports USB and Video functions,

while Audio does not switch.

HK_LCode + Q

• Enable the binding of PC (USB/Video) and Audio

switching. (Enabled by default)

• Audio will switch with the PC Ports USB and Video

functions.

HK_LCode + F5 ~ F6

• Audio Unbound: Selects only the audio and mic source

between PC 1 or PC 2, does not switch USB and Video.

• Audio Bound: Select PC 1 or PC 2 and their respective

USB/Video/Audio Ports.

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

October 4, 2023 9:58 AM

HK_LCode + V

• Disable the binding between PC (USB/Video) and Serial

when switching between PC 1 or PC 2.

• Allows switching of PC Ports USB and Video functions,

while Serial does not switch.

HK_LCode + C

• Enable the binding of PC (USB/Video) and Serial

switching. (Enabled by default)

• Serial will switch with the PC Ports USB and Video

functions.

HK_LCode + F9~F10

• Serial Unbound: Selects only the Serial source between

PC 1 or PC 2, does not switch USB and Video.

• Serial Bound: Select PC 1 or PC 2 and their respective

USB/Video/Serial Ports.

HK_LCode + Up Arrow

Key

HK_LCode + Down

Arrow Key

• Select the next/previous PC Port.

• If Audio is unbound, the audio will not switch

• If Serial is unbound, the serial ports will not switch

HK_LCode + B • Enable or Disable the Beep that indicates HotKey Com-

mand Inputs. (Enabled by default)

HK_LCode + H + 0~9

• Start Autoscan and set time delay.

• “x” = 1 - 10sec, 2 - 20sec, 3 - 30sec, 4 - 40sec, 5

- 50sec, 6 - 60sec, 7 - 70sec, 8 - 80sec, 9 - 90sec, 0 -

100sec

• Press any key to stop Autoscan

HK_LCode + R • Reset all Hotkey Commands to factory defaults

Serial Commands

The following Serial Commands are intended to be used with the KVM Serial Connection Port, allowing control over the function

of the KVM Switch. The Host Device that controls the KVM Switch requires the following parameters:

Baudrate: 115200bps

Parity: None

Data Bits: 8

Stop Bits: 1

Serial Command Function

sw 1~2 • Switch the active PC Port

audio 1~2 • Switch the active Audio Port

com 1~2 • Switch the active RS232 Port

bind 2~3

• Bind selected peripheral with the active PC Port

• 2 = Audio

• 3 = RS232

unbind 2~3

• Unbind selected peripheral from the active PC Port

• 2 = Audio

• 3 = RS232

hotkey 0~4

• Change the hotkey prex

• 0 = ScrLk

• 1 = CapsLk

• 2 = NumLk

• 3 = Left Ctrl

• 4 = Right Ctrl

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

October 4, 2023 9:58 AM

osdtime 1~7

• Set the OSD displayed time

• 1 = 10

• 2 = 20

• 3 = 30

• 4 = 40

• 5 = 50

• 6 = 60

• 7 = Manual

titletime 0~7

• Set the title bar timeout duration

• 0 = o

• 1 = 5

• 2 = 10

• 3 = 15

• 4 = 20

• 5 = 25

• 6 = 30

• 7 = Always On

setname 1~2 [name] • Set the PC Port name

• Max of 16 characters

version • Show the Firmware version

help [command] • Show the format of the command

list • List all available commands

default • Set the KVM to factory defaults

Onscreen Display Menu

Bring up the Onscreen Display (OSD) by using the keyboard shortcut HK_LCode + Space. The OSD provides the ability to modify

settings, switch host ports, and perform other actions.

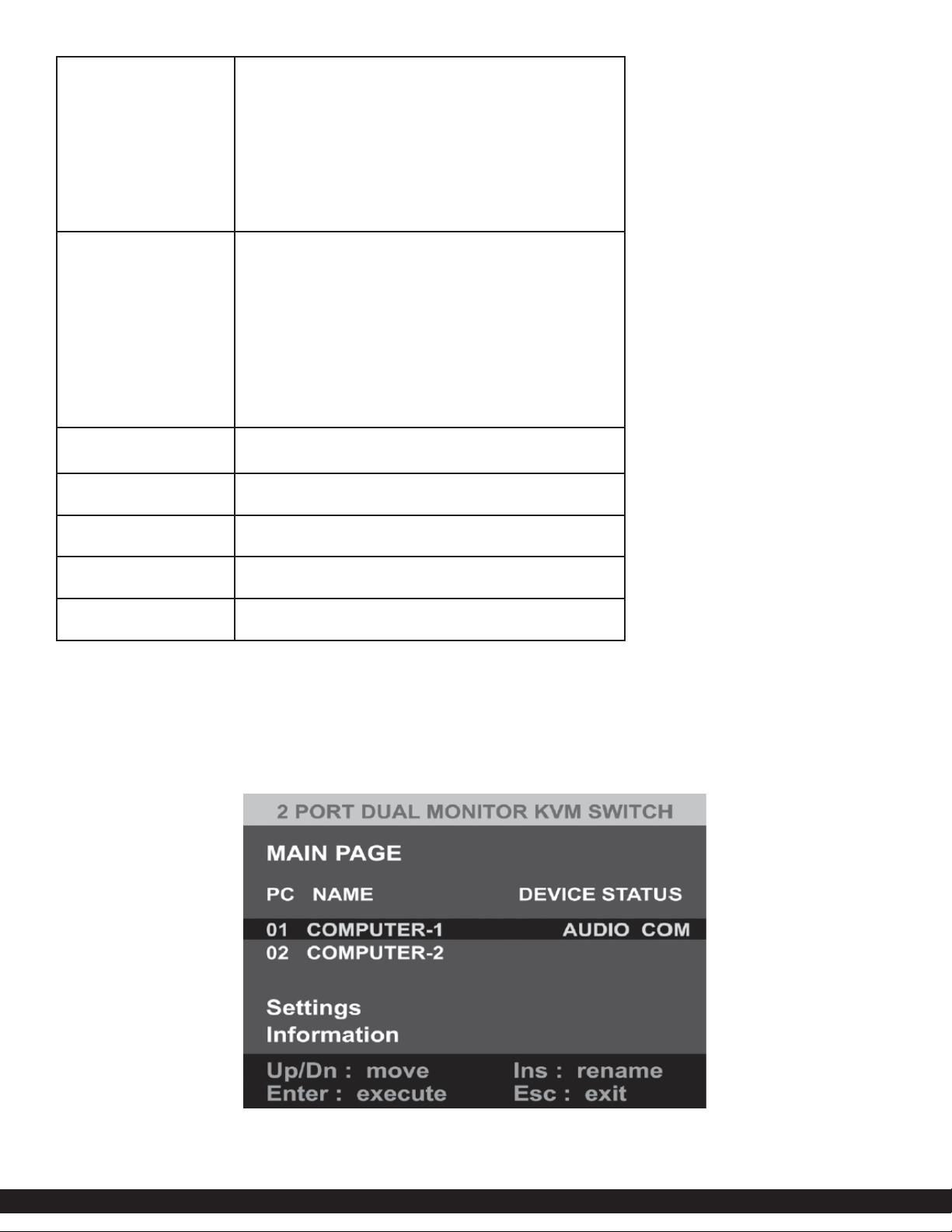

OSD Main Menu

The Main Menu of the OSD displays the names of the connected Computers, along with the status of Audio and RS232 (COM)

binding. Settings and device information are accessible from this menu.

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

October 4, 2023 9:58 AM

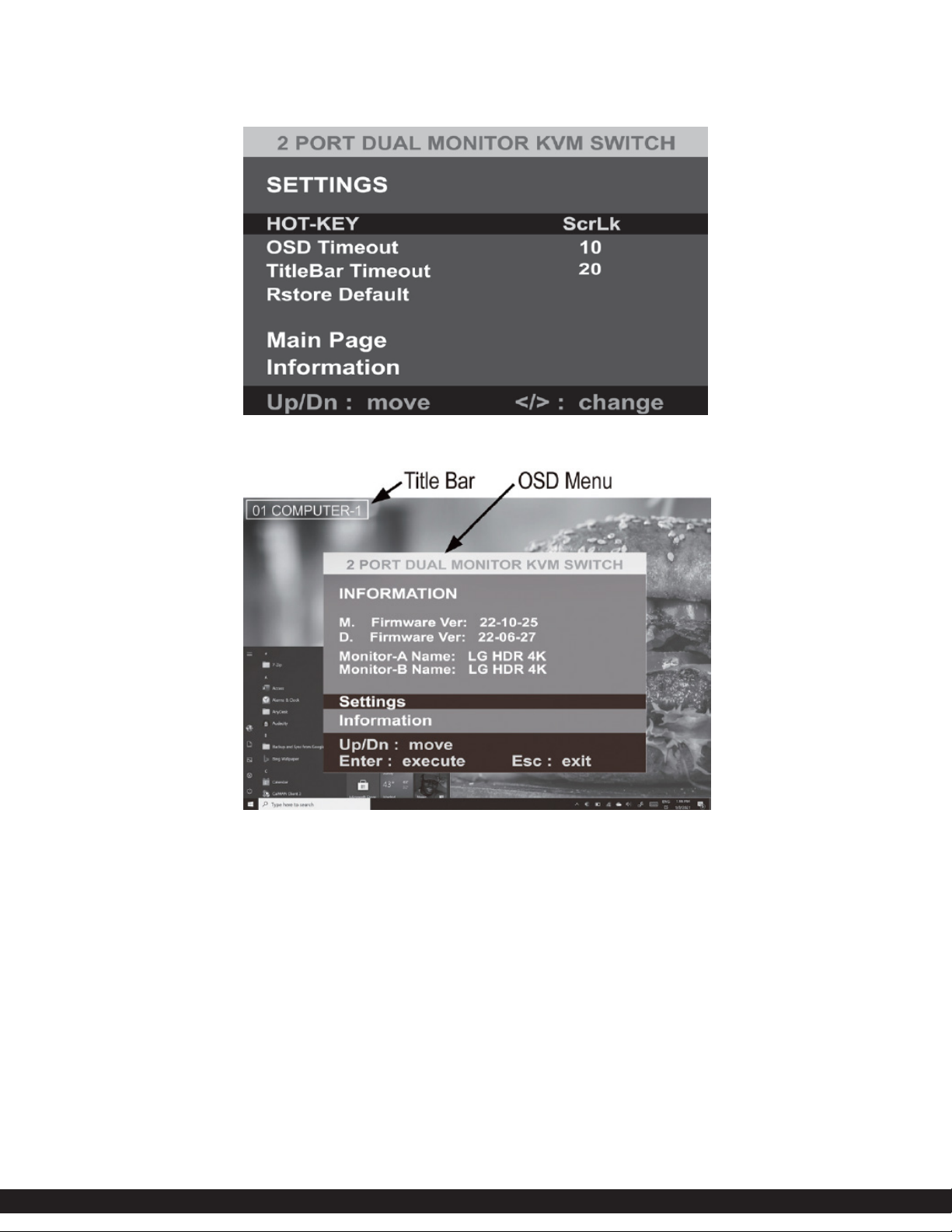

OSD Settings Menu

The OSD Settings enable the modication of the primary hotkey, OSD timeout, titlebar timeout, or restore the KVM Switch to its

factory default settings.

Example Screenshot
