PEXUSB312EIC

5-Port USB 3.1 (10Gbps) Combo Card - 1x USB-C™,

2x USB-A + 2x IDC (5Gbps)

*actual product may vary from photos

Instruction manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction manual

Table of Contents

Product diagram ....................................................................................1

Front view .................................................................................................................................................... 1

Rear view...................................................................................................................................................... 1

Introduction............................................................................................2

Packaging contents.................................................................................................................................. 2

Requirements ............................................................................................................................................. 2

Motherboard header pinout (19-pin USB 3.0)...................................3

About USB 3.0, USB 3.1 Gen 1, and USB

3.1 Gen 2..................................................................................................4

About the card’s USB-C port.................................................................4

Hardware installation............................................................................4

Install the low-prole bracket............................................................................................................... 4

Driver installation ..................................................................................5

Install the driver......................................................................................................................................... 5

Technical support...................................................................................7

Warranty information............................................................................7

Instruction manual

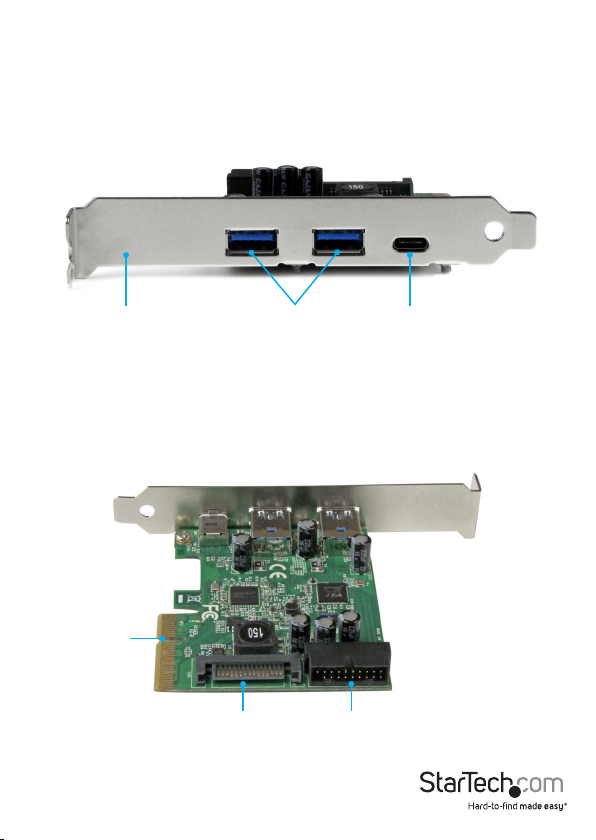

Product diagram

Front view

Rear view

Bracket (full-prole

pictured)

SATA power

connector

19-pin USB 3.0 port

(two-port motherboard

header)

PCI Express x4

connector

USB 3.0 ports

(USB-A)

USB 3.1 port

(USB-C)

Instruction manual

Introduction

This 5-port USB 3.1 combo card lets you add a variety of types and generations

(speeds) of USB ports to your computer through a PCI Express slot. It oers:

• One external USB-C™ port (USB 3.1 Gen 2 - 10Gbps)

• Two external USB-A ports (USB 3.1 Gen 1 - 5Gbps)

• Two internal USB-A motherboard header ports (USB 3.1 Gen 1 - 5Gbps)

By oering both USB Type-A and USB Type-C™ ports, as well as USB motherboard-style

headers, you can easily connect a range of modern and legacy USB devices both inside

and outside your computer. It’s a perfect solution for upgrading your desktop or server

to support a variety of USB 3.0 and USB 3.1 devices.

The card allocates USB 3.1 Gen 2 (10Gbps) bandwidth to the USB-C port, while USB 3.0

(5Gbps) bandwidth is shared equally between the card’s remaining ports (two USB-A

ports, and two motherboard-style headers).

Packaging contents

• 1 x 5-port USB 3.1 combo card

• 1 x low-prole bracket

• 1 x quick-start guide

Requirements

• A computer enabled with PCI Express, and an available PCI Express x4, x8, or x16 slot

• An available 15-pin SATA power connector (optional, but recommended)

• Any of the following operating systems:

o Windows® 10 (32-bit or 64-bit)

o Windows 8.1 (32-bit or 64-bit)

o Windows 8 (32-bit or 64-bit)

o Windows 7 (32-bit or 64-bit)

o Windows Server® 2012

o Windows Server 2008 R2

o Mac OS 10.8 and later (tested up to 10.10)

o Linux® 3.5

• Optional: An available 19-pin USB 3.0 2-port header on your computer’s

motherboard or case

• Optional: An available 19-pin USB 3.0 2-port header cable

Instruction Manual

About USB 3.0, USB 3.1 Gen 1, and USB

3.1 Gen 2

USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard oers speeds up

to 5Gbps. Any mention of USB 3.0 in this manual or on the StarTech.com website for

PEXUSB312EIC refers to the 5Gbps USB 3.1 Gen 1 standard. Any mention of USB 3.1

Gen 2 refers to the 10Gbps Gen 2 standard.

The PEXUSB312EIC has both USB 3.1 Gen 1 (5Gbps) and USB 3.1 Gen 2 (10Gbps) ports.

About the card’s USB-C port

Not all USB-C ports support the full functionality of the USB Type-C standard. Some

ports might only provide data transfer, and might not support video (DP alt mode), or

USB power delivery 2.0.

The card’s USB-C port is USB 3.1 Gen 2 (10Gbps). This port supports data throughput

only. It does not support DP alt mode or USB power delivery.

Hardware installation

Install the low-prole bracket

The card can be installed in a low-prole or a full-prole computer. The full-prole

bracket comes preinstalled on the card, but if you have a small form-factor computer

you can install the low-prole bracket instead.

1. Use a Phillips head screwdriver to remove the two bracket screws from the card.

2. Remove the full-prole bracket from the adapter.

3. Line up the low-prole bracket with the bracket holes on the back of the card.

4. Insert the two bracket screws you removed in step 1 and tighten them in place.

Install the PCIe card

Warning! PCIe cards can be severely damaged by static electricity. If an anti-static strap

isn’t available, discharge any built-up static electricity by touching a large grounded

metal surface for several seconds.

1. Turn o your computer and any devices or peripherals that are connected to it (for

example, printers, external storage, and so on).

2. Unplug the power cable from the back of your computer.

System requirements are subject to change. For the latest requirements, please visit

www.startech.com/PEXUSB312EIC.

Instruction Manual

3. Disconnect any peripheral devices that are connected to your computer.

4. Remove the cover from your computer case. Consult the documentation that came

with your computer for details about how to do this safely.

5. Locate an open PCIe slot and remove the corresponding metal cover plate from

the back of your computer case. Consult the documentation that came with your

computer for details about how to do this safely. This card works in PCIe slots of x4,

x8, or x16 lanes.

6. Gently insert the card into the open PCIe slot and fasten the bracket to the back of

the case.

Note: If you install the card into a low-prole (small form-factor) desktop system, it

may be necessary to replace the preinstalled full-prole bracket with the included low-

prole (half-height) installation bracket.

7. Optional: Connect a 15-pin SATA power connector from your computer’s power

supply to the card’s SATA power connector.

Note: It’s highly recommended that you connect SATA power to ensure sucient

power is provided to the card as well as to each USB port.

8. Optional: Connect a 19-pin USB 3.0 motherboard header cable to the

card’s motherboard header, and to USB 3.0 header on your computer’s case or

motherboard.

9. Place the cover back onto your computer case.

10. Reconnect the power cable to the back of your computer.

11. Reconnect all of the peripheral devices that you disconnected in step 3.

12. Turn on your computer.

Driver installation

Install the driver

Depending on your operating system, once the card is installed in your host computer

the required drivers might automatically install. If drivers do not automatically install

once the card is inserted into your computer’s PCI Express slot, follow the instructions

below to manually install the driver.

1. If the Found New Hardware dialog box appears on your screen, close the dialog

box or click Cancel.

2. To download the latest drivers, open a web browser and navigate to

www.startech.com/PEXUSB312EIC.

3. Click the Support tab.

4. Download the driver.

Instruction Manual

5. When the download is complete, extract the contents of the compressed le that

you downloaded.

6. Double-click the appropriate driver for the version of operating system that you’re

running and follow the on-screen instructions to complete the installation.

7. If prompted, restart your computer to complete the installation.

Instruction manual

Technical support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship

for the periods noted, following the initial date of purchase. During this period,

the products may be returned for repair, or replacement with equivalent

products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.

Table of contents

Other StarTech.com PCI Card manuals

StarTech.com

StarTech.com 8STPEXUSB3S25 User manual

StarTech.com

StarTech.com DUAL-M2-PCIE-CARD-B User manual

StarTech.com

StarTech.com PEX4S553S User manual

StarTech.com

StarTech.com 6P6G-PCIE-SATA-CARD User manual

StarTech.com

StarTech.com PCIE1RIS User manual

StarTech.com

StarTech.com PCIUSB3S2 User manual

StarTech.com

StarTech.com 8P6G-PCIE-SATA-CARD User manual

StarTech.com

StarTech.com PCI220USB User manual

StarTech.com

StarTech.com PEX1S952 User manual

StarTech.com

StarTech.com PCI1PECPDV User manual

StarTech.com

StarTech.com PEXUSB312C2 User manual

StarTech.com

StarTech.com PEX1P User manual

StarTech.com

StarTech.com PEXUSB3S2EI User manual

StarTech.com

StarTech.com PEX867WAC22 User manual

StarTech.com

StarTech.com PEXUSB400 User manual

StarTech.com

StarTech.com 8STPEX1S953LP User manual

StarTech.com

StarTech.com PCISCSIUW User manual

StarTech.com

StarTech.com PEX8M2E2 User manual

StarTech.com

StarTech.com PEX1394B3 User manual

StarTech.com

StarTech.com PCISAT2IDE1 User manual

StarTech.com

StarTech.com PEX1S1PMINI User manual

StarTech.com

StarTech.com PEX1394A2DV User manual

StarTech.com

StarTech.com 8STPEX2S953LP User manual

StarTech.com

StarTech.com PEX1000SFP2 User manual

Popular PCI Card manuals by other brands

ERMA

ERMA SSI 1417 instruction manual

SIIG

SIIG CyberSerial Dual PCI Software installation

Moxa Technologies

Moxa Technologies CP-102E Quick installation guide

I-Bus

I-Bus IBC2602 user guide

Exsys

Exsys EX-60102 manual

Chelsio Communications

Chelsio Communications T5 Series Installation and user guide

Conrad Electronic

Conrad Electronic 97 46 71 operating instructions

Micro Innovations

Micro Innovations USB650A Quick installation guide

KTI Networks

KTI Networks KF-310 user guide

Asus

Asus SpaceLink WL230 user manual

SIIG

SIIG SC2475 Quick installation guide

TRENDnet

TRENDnet TEW-703PI Quick installation guide

Belkin

Belkin F5D7000F user manual

Pericom

Pericom PI7C7100 manual

ADLINK Technology

ADLINK Technology cPCI-3548 user manual

Digium

Digium TE200 Series user manual

Allo.com

Allo.com 2nd Gen E1/T1/J1 Quick installation guide

Western Digital

Western Digital FireWire PCI Adapter installation guide
