StarTech.com PEX400USB2 User manual

Manual Revision: 03/29/2011

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

For the most up-to-date information, please visit: www.startech.com

PEX400USB2

5 Port PCI Express USB 2.0 Card

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com.

Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to

which this manual applies by the third-party company in question. Regardless of any direct

acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges

that all trademarks, registered trademarks, service marks, and other protected names and/or

symbols contained in this manual and related documents are the property of their respective

holders.

Instruction Manual i

Table of Contents

Introduction........................................................................................................................................................1

Packaging Contents ................................................................................................................................1

System Requirements ............................................................................................................................1

Installation............................................................................................................................................................2

Hardware Installation..............................................................................................................................2

Driver Installation......................................................................................................................................2

Specications.....................................................................................................................................................3

Technical Support...........................................................................................................................................4

Warranty Information....................................................................................................................................4

Instruction Manual 1

Introduction

The StarTech.com 5-Port PCI Express USB 2.0 Adapter Card lets you connect up to four USB 2.0

peripherals (4 external and 1 shared internal) to your computer, with support for high speed USB

data transfer rates of up to 480 Mbps. Backwards compatible with USB 1.1/1.0 devices as well, for

support for older or slower peripherals.

Packaging Contents

• 1 x PCI Express USB 2.0 Adapter Card

• 1 x Driver CD

• 1 x Instruction Manual

System Requirements

• PCI Express enabled computer system with available full prole slot

• Microsoft®Windows®2000/XP/Vista/Server 2003/Server 2008 R2/7 (32/64-bit), or Linux®

External USB 2.0

Connectors

USB 2.0 Connector

(shared)

Instruction Manual 2

Installation

WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static

electricity. Be sure that you are properly grounded before opening your computer case or

touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap

when installing any computer component. If an anti-static strap is unavailable, discharge

yourself of any static electricity build-up by touching a large grounded metal surface (such as the

computer case) for several seconds. Also be careful to handle the PCI Express card by its edges

and not the gold connectors.

Hardware Installation

1. Turn your computer o and any peripherals connected to the computer (i.e. Printers, external

hard drives, etc.). Unplug the power cable from the rear of the power supply on the back

of the computer and disconnect all peripheral devices.

2. Remove the cover from the computer case. See documentation for your computer system

for details.

3. Locate an open PCI Express slot and remove the metal cover plate on the rear of the

computer case (Refer to documentation for your computer system for details.). Note that

this card will work in PCI Express slots of additional lanes (i.e. x4, x8 or x16 slots).

4. Insert the card into the open PCI Express slot and fasten the bracket to the rear of the case.

5. Place the cover back onto the computer case.

6. Insert the power cable into the socket on the power supply and reconnect all other

connectors removed in Step 1.

Driver Installation

No driver installation is required for the compatible operating systems, as this adapter card is

natively supported, so the drivers are already installed.

Instruction Manual 3

Specications

Bus Interface

PCI Express revision 1.0

(x1 slot connector)

USB 2.0

Form Factor Full Prole

Chipset ID NEC D720101GU

External Connectors 4 x USB type A female

Internal Connectors 1 x USB type A female (shared)

Maximum Data Transfer Rate USB 2.0: 480 Mbps

Operating Temperature 0°C ~ 57°C (32°F ~ 134.6°F)

Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F)

Humidity 5% ~ 95% RH

Dimensions 87.0mm x 80.0mm x 9.6mm

Compatible Operating Systems

Windows 2000/XP/Server 2003/

Vista/Server 2008 R2/7

(32/64-bit), Linux

Instruction Manual 4

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commit-ment to provide industry-

leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the

periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor

costs only. StarTech.com does not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors,

employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, conse-

quential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to

the use of the product exceed the actual price paid for the product. Some states do not allow the exclu-

sion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old

and new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they

need to go. Just talk to one of our tech advisors or visit our website. You’ll be

connected to the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products

and to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.

Other manuals for PEX400USB2

Table of contents

Other StarTech.com PCI Card manuals

StarTech.com

StarTech.com PCI1S550 User manual

StarTech.com

StarTech.com PCI2S650DVLP User manual

StarTech.com

StarTech.com PCI4S422ISO Manual

StarTech.com

StarTech.com PCI4S954PW User manual

StarTech.com

StarTech.com PCISATA2A133 User manual

StarTech.com

StarTech.com PEX1P User manual

StarTech.com

StarTech.com DUAL-M2-PCIE-CARD-B User manual

StarTech.com

StarTech.com PEX4S952LP User manual

StarTech.com

StarTech.com PEX1PCI1 User manual

StarTech.com

StarTech.com PCI2S1P2 User manual

StarTech.com

StarTech.com PCI1224PUSB User manual

StarTech.com

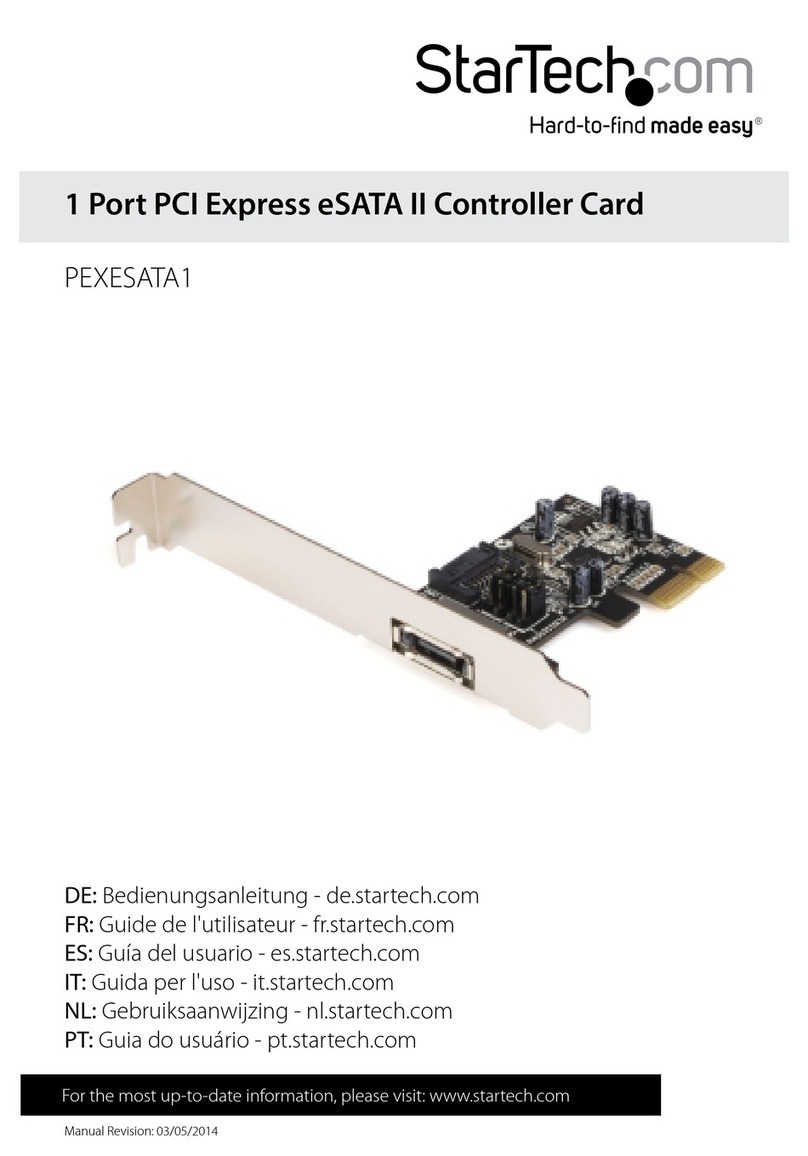

StarTech.com PEXESATA1 User manual
