StarTech.com PCISCSI2 User manual

SCSI PCI Card

PCISCSI2 Instruction Manual

Actual product may vary from photo

Fast 10 MBytes/sec SCSI PCI Controller Card

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other

Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installing the Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Connecting and Terminating Your SCSI Devices . . . . . . . . . . . . . . . . . . . . . .3

Installing the Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Verifying Your Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com Fast SCSI host adapter card. This reliable

synchronous PCI card can control up to 7 SCSI devices like CD-ROMs, CD-RWs,

scanners and removable media devices. The dedicated on-board processor provides

high-speed single-ended SCSI bus transfers at up to 10 MBytes/sec. The card also

comes with a 50-pin ribbon cable so that you can start attaching your internal SCSI

peripherals right away.

Features

•Supports up to 7 SCSI or SCSI-2 devices

•Transfers data at 10 MBytes/sec

•Includes on-board automatic SCSI termination

•Backed by StarTech.com’s lifetime warranty and technical support

Before You Begin

WARNING! PCI cards, like all computer equipment, can be severely damaged by static

electricity. Be sure that you are properly grounded before opening your computer case or

touching your PCI card. StarTech.com recommends that you wear an anti-static strap

when installing any computer component. If an anti-static strap is unavailable, discharge

yourself of any static electricity build-up by touching a large grounded metal surface

(such as the computer case) for several seconds. Also be careful to handle the PCI card

by its edges and not the gold connectors.

System Requirements

•An IBM-compatible computer running Windows XP/2000/ME/98/98SE/95/3.x, NT 4.0,

DOS, NetWare, or OS/2

•An available PCI slot

Contents

This package should contain:

•1x PCI SCSI card

•1x 50-pin internal SCSI cable

•2x Installation disks

•1x Instruction Manual

Instruction Manual

Installation

This section will guide you through the installation of your PCI card and the related

software. Please read through the instructions carefully and complete each step in the

order listed.

Installing the Card

1. Make sure that your system is unplugged and you are grounded.

2. Remove the cover of your system (see your computer's user manual for details, if

necessary) and gently turn your computer onto its side.

3. Locate an empty PCI slot (usually white in colour) and remove the metal plate that

covers the rear bracket. You may need a Phillips screwdriver to perform this step.

Retain the screw! You will need it to secure the card later.

4. Gently insert the card into the empty slot, making sure it is firmly seated.

5. Secure the card in place using the screw you removed in Step 3.

6. Physically install your SCSI devices into your case, following the instructions in their

documentation. If you need more information about connecting and terminating your

devices on the SCSI card, please see the next subsection, “Connecting and

Terminating Your SCSI Devices” below before closing the case. Otherwise, connect

the data cables to both the card and your devices(s) as needed, and complete step 7.

7. Put your computer case back on.

Instruction Manual

PCI

Slots

Connecting and Terminating Your SCSI Devices

1. Connect one end of your internal SCSI ribbon cable to your SCSI card, making sure

that the red stripe faces pin 1 (marked). The connector that is furthest away from the

other connectors should be connected to the card.

NOTE: The cable connectors have been formed so that it is difficult to connect the

devices in an improper fashion.

2. Connect the SCSI cable to your SCSI device, again making sure that the red stripe

faces pin 1.

3. Repeat step 2 for any other SCSI devices you wish to attach at this time.

4. When you have connected all your devices, you must make sure that both the

internal and external chains of the SCSI bus are terminated. Most SCSI peripherals

will come with their own terminators. Follow the instructions in the peripheral’s user

guide to terminate the SCSI chain.

NOTE: StarTech.com offers a wide range of internal and external SCSI cables and

terminators to suit your needs. Refer to the “Accessory Products from StarTech.com”

section of this manual or visit www.startech.com for more information.

Installing the Drivers

Windows 98/98SE/ME/2000/XP

1. On startup, Windows will detect that new hardware has been installed and launch the

Add New Hardware Wizard. Click Next and choose the Search for the best driver

for your device (Recommended) (or Search for a suitable driver... if using

Windows 2000/XP) option. Click Next.

2. Uncheck all boxes on this screen and click Next.

3. The Wizard will inform you that “Windows is now ready to install the best driver for

this device...” Click Next.. The Wizard will complete the installation. Click Finish.

4. Restart the computer if prompted.

Other Operating Systems

Drivers are included on the installation disk for several other operating systems, including

Windows 95 and NT 4.0. For more information about installing and configuring the card

under those operating systems, please refer to the text files contained in the folder on

the disk that matches your operating system.

Instruction Manual

Verifying Your Installation

Windows 98SE/ME

1. Go to Start >Settings >Control Panel.

2. Double click System.

3. Click the Hardware tab.

4. If the card does not appear with a red xor yellow exclamation point (!) next to it,

Windows has not detected a problem with the installation and the card should

function normally.

Windows 2000/XP

1. Go to Start >Settings >Control Panel.

2. Double click System.

3. Click the Hardware tab and choose Device Manager.

4. If the card does not appear with a red xor yellow exclamation point (!) next to it,

Windows has not detected a problem with the installation and the card should

function normally.

Specifications

Instruction Manual

Form Factor/Interface PCI, full-length card

Standards Supported SCSI-1, Fast SCSI (SCSI-2)

Maximum Data Transfer Rate 10 MBytes/sec. (with Fast SCSI devices)

Supports auto-negotiation of transfer rate for Fast/Ultra devices

Connectors 1 x 50-pin half-pitch female (external)

1 x 50-pin male (internal)

Included Cables 1 x 50-pin ribbon cable (2 female device connections)

Number of Devices Supported 7 (maximum)

OS Drivers Included Windows 3.1x/95/98/98SE/ME/NT4/2000/XP or later (all versions

subsequent to Windows 95 include native drivers), DOS, Netware,

Linux, UNIX, OS/2)

Regulatory and Other Certifications FCC Class B, CE, UL

Accessory Products from StarTech.com

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

37-inch 4-Drive Internal SCSI Cable

SCSIINT5

6 ft. External SCSI2 Cable HPDB50 M/M

SCSI22

3 ft. External SCSI2 Cable HPDB50 M/M

SCSI22EX3

6 ft. External Macintosh SCSI Cable DB25M to HPDB50M

SCSI25HP50

3 ft. External SCSI2 Cable HPDB50M to Cent50M

SCSI2EX3

6 ft. External SCSI2 Cable HPDB50M to Cent50M

SCSI2EXT

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

Warranty Information

This product is backed by a lifetime warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Instruction Manual

Revised: 30 September 2004 (Rev. B)

Table of contents

Other StarTech.com PCI Card manuals

StarTech.com

StarTech.com PCI1PECPDV User manual

StarTech.com

StarTech.com PCIPOST User manual

StarTech.com

StarTech.com PEXUSB312C2 User manual

StarTech.com

StarTech.com PEX1000SFP2 User manual

StarTech.com

StarTech.com PCI2S950 User manual

StarTech.com

StarTech.com PEX1P User manual

StarTech.com

StarTech.com UVCHDCAP User manual

StarTech.com

StarTech.com 8STPEX2S953LP User manual

StarTech.com

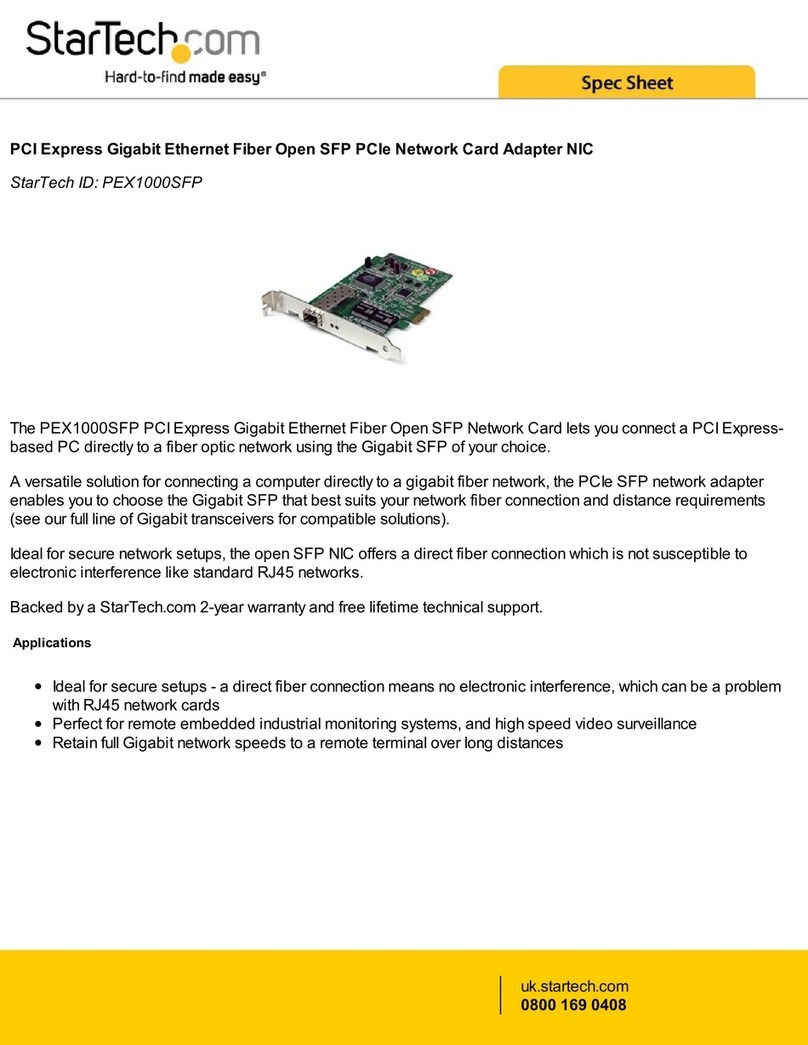

StarTech.com PEX1000SFP System manual

StarTech.com

StarTech.com PEXMSATA343 User manual

StarTech.com

StarTech.com PEX2ECOP User manual

StarTech.com

StarTech.com P021GI-NETWORK-CARD User manual

StarTech.com

StarTech.com 8STPEX1394B3LP User manual

StarTech.com

StarTech.com PCI1394MP User manual

StarTech.com

StarTech.com PCI1S550 User manual

StarTech.com

StarTech.com PEXUSB312C User manual

StarTech.com

StarTech.com PR42GI-NETWORK-CARD User manual

StarTech.com

StarTech.com PEX400USB2 User manual

StarTech.com

StarTech.com PCISCSIUW User manual

StarTech.com

StarTech.com PEX1S1P952 User manual

StarTech.com

StarTech.com PCI1394 2LP Manual

StarTech.com

StarTech.com PCIIDE2 System manual

StarTech.com

StarTech.com PCI1P2 User manual

StarTech.com

StarTech.com PCIBT User manual

Popular PCI Card manuals by other brands

ERMA

ERMA SSI 1417 instruction manual

SIIG

SIIG CyberSerial Dual PCI Software installation

Moxa Technologies

Moxa Technologies CP-102E Quick installation guide

I-Bus

I-Bus IBC2602 user guide

Exsys

Exsys EX-60102 manual

Chelsio Communications

Chelsio Communications T5 Series Installation and user guide

Conrad Electronic

Conrad Electronic 97 46 71 operating instructions

Micro Innovations

Micro Innovations USB650A Quick installation guide

KTI Networks

KTI Networks KF-310 user guide

Asus

Asus SpaceLink WL230 user manual

SIIG

SIIG SC2475 Quick installation guide

TRENDnet

TRENDnet TEW-703PI Quick installation guide

Belkin

Belkin F5D7000F user manual

Pericom

Pericom PI7C7100 manual

ADLINK Technology

ADLINK Technology cPCI-3548 user manual

Digium

Digium TE200 Series user manual

Allo.com

Allo.com 2nd Gen E1/T1/J1 Quick installation guide

Western Digital

Western Digital FireWire PCI Adapter installation guide
