Instruction Manual 1

Introduction

The SATDOCK4U3RE USB 3.0 and eSATA Standalone 1-to-3 Hard Drive Duplicator

allows for a single SATA hard drive to be duplicated/cloned on up to three other SATA

drives simultaneously. It can also function as a regular 4-bay hard drive docking station

by connecting to a host computer system. Able to perform 1:3 sector duplication,

including HPA, from a single SATA drive onto three others simultaneously at a rate of

up to 72 MB/s, this duplicator can save time and eort. As an external dock, it can be

connected to your host computer through USB 3.0 or eSATA, providing data transfer

speeds up to 5 Gbps or 3Gbps respectively from the hard drives to your computer

system. Features Quick and Secure Erase functions and support for IDE hard drives with

an included SATA to IDE hard drive adapter (SAT2IDEADP).

Packaging Contents

• 1 x SATA Duplicator Dock

• 1 x USB 3.0 Cable

• 1 x eSATA Cable

• 1 x SATA to IDE Adapter

• 1 x 40-pin IDE Cable

• 1 x 44-pin to 40-pin IDE Cable

• 1 x SP4 to LP4 Power Cable

• 1 x Package of Mounting Screws

• 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)

• 1 x Instruction Manual

System Requirements

• Available USB and/or eSATA* port(s) on computer system

*eSATA port requires Port Multiplier support

• Available AC electrical outlet

• Microsoft®Windows®2000/XP/Server 2003/Vista/Server 2008 R2/7 (32/64-bit), or

Apple®Mac OS®X, or Linux®

*If using USB with the Apple Mac OS operating system, this device will function in USB 2.0 mode only as

USB 3.0 is not currently supported by Apple. eSATA is fully compatible.

Instruction Manual 2

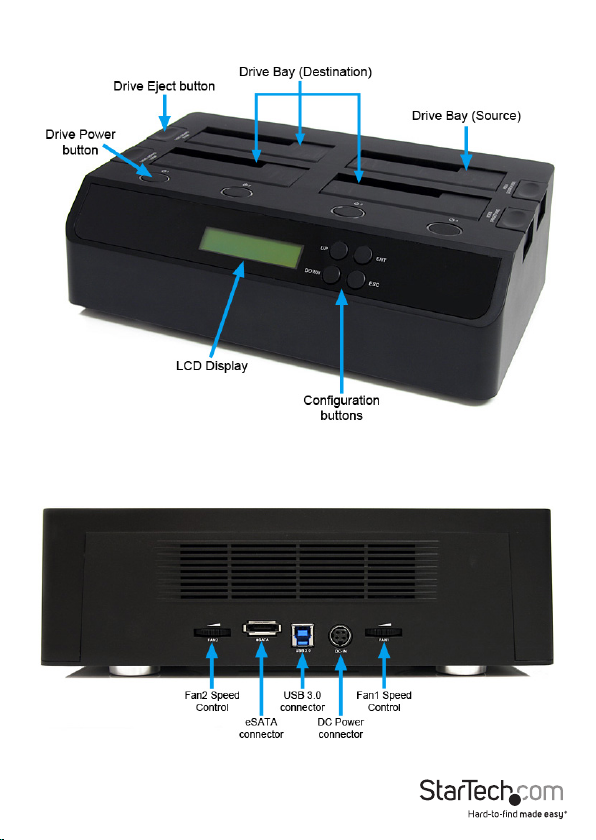

Front View

Rear View

Instruction Manual 3

Installation

WARNING! Hard drives and storage enclosures require careful handling,

especially when being transported. If you are not careful with your hard disk,

lost data may result. Always handle your hard drive and storage device with

caution. Be sure that you are properly grounded by wearing an anti-static

strap when handling computer components or discharge yourself of any

static electricity build-up by touching a large grounded metal surface (such

as the computer case) for several seconds.

Hardware Installation (Docking Station/PC Mode)

1. Connect the external power adapter from the hard drive docking station to an AC

power outlet.

2. Insert 2.5in or 3.5in hard drive(s) into the top loading drive bay(s). Make sure that

the SATA connectors on the hard drive are facing the same corner of the drive bay

that has the 2.5in cutout in the door. The label on the hard drive should face the

front of the SATA docking station.

3. Connect the included USB cable or eSATA cable from the hard drive docking station

to an available USB or eSATA port on the computer system. The computer can be ON

or OFF.

NOTE: If using eSATA, please note that the eSATA port on the host computer

system must provide Port Multiplier support. If the eSATA port does not oer Port

Multiplier support, only one of the installed SATA drives will be accessible.

4. Press the power buttons on the top of the hard drive docking station for each of the

bays that contain a hard drive. The Power LED around the power buttons will light

up. The LCD display will also light up and display”PC Mode”. This indicates the unit

is in Docking Station mode.

5. To remove the hard drive, make sure it is currently not being accessed by the

computer and the Activity LED is not ashing, then unmount or uninstall the disk

drive from the operating system (see documentation for your operating system).

Press the appropriate power button to turn o the hard drive and wait for the drive

to power down. Press the drive ejection button on the top of the hard drive dock to

the release the drive, then pull the drive from the slot.

Instruction Manual 4

Hardware Installation (Duplicator)

1. Connect the external power adapter from the hard drive docking station to an AC

power outlet.

2. Insert 2.5”or 3.5”hard drive(s) into the top loading drive bay(s). The drive containing

the data to copy (Source) needs to be inserted into the“Source” bay (HDD4). Make

sure that the SATA connectors on the hard drives are facing the same corner of the

drive bay that has the 2.5in cutout in the door. The label on the hard drive should

face the front of the SATA docking station.

3. Press the power buttons on the top of the hard drive docking station for each of the

bays that contain a hard drive. The Power LED around the power buttons should

light up. The LCD display will also light up and display”PC Mode”.

4. Press the“ENT” button on the front panel of the unit. A message will appear

advising that this will change the unit to Duplicator Mode.

5. Press the“ENT” button again and a conrmation message will appear. Press the

“ENT”button again to switch to Duplicator Mode. Pressing “ESC”will cancel this

action.

6. The LCD display will now show Duplication mode.

7. Press the“ENT” or Up/Down buttons to access the menu options.

Driver Installation

No driver installation is required for the supported operating systems, as this hard

drive dock is natively supported, so the drivers are already installed.

Instruction Manual 5

How to Use

Menu Options

1. Copy HDD

Perform a 1:1 sector clone from the Source disk to the Destination disks. Each disk

sector on the Source disk will be copied, regardless if it contains data or not. If using

a Destination disk larger than the Source, any extra space will be untouched and left

unallocated.

2. Compare HDD

Compares the sectors on the Source disk to the Destination disk. Used to ensure

that the Copy operation was successful.

3. Rescan Bus

Rescans each hard drive bay to detect for new/swapped hard drives.

4. Source Size

Displays the total storage capacity of the Source disk.

Instruction Manual 6

5. Setup

5-1. Auto Compare

Automatically runs the Compare HDD function after copying. OFF by default.

5-2. Button Sound

Turn audio feedback (beeping) ON/OFF. OFF by default.

5-3. Device Info

Lists information about the Source/Destination disks.

6. PC Mode

Returns the Duplicator to Docking Station mode.

7. Advance Setup

7-1. Read Error Skip

Ignore any read errors (sector or block) detected during the copying process.

Normally, read errors result in cancellation of the copying process.

7-2. Quick Erase

Quickly erase all the data on the Source hard drive.

7-3. Secure Erase

Perform the Secure Erase command on any of the connected hard drives.

7-4. System Info

Lists the current rmware version.

Duplicator (Copy) Mode

Use the “UP”and “DOWN” buttons on the duplicator dock to select the Copy HDD

mode and press the “ENT”button to conrm the selection. The duplication will begin

immediately from the Source disk to all available Destination disks. The LCD screen will

display transfer rates, progress percentage, amount of data copied and a countdown

timer to an estimated time for completion.

NOTE: As the duplicator dock creates a 1:1 copy from the Source to the Destination,

the Destination disk(s) must be of equal or greater capacity than the Source disk.

The duplication can be paused at any time by accessing the menu and selecting the

Copy HDD option again. When prompted to conrm pausing the duplication, press

the “ENT”button. When paused, to resume the duplication, select the Copy HDD

option from the main menu.

Instruction Manual 7

Specications

Hard Drive Bays 4

Host Interface SuperSpeed USB 3.0

SATA revision 2.x

Chipset ID JMicron JMB394 + JMS539

External Connectors

1 x USB 3.0 type B female

1 x eSATA female*

1 x DIN (4-pin) Power female

LEDs 4 x Power/Activity

Fans 2 x 60mm

Insertion Rating 15,000 cycles per bay

Maximum Data Transfer Rate USB: 5 Gbps

eSATA: 3 Gbps

Duplication Rate Up to 72 MBps

Compatible Hard Drives 2.5in and 3.5in SATA revision 1/2/3 hard

drives

Power Adapter 12VDC, 6500mA

Operating Temperature 5°C ~ 80°C (41°F ~ 176°F)

Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)

Humidity 8% ~ 90% RH

Dimensions 170.0mm x 290.0mm x 83.0mm

Weight 1110g

Compatible Operating Systems

Windows 2000/XP/Server 2003/Vista/

Server 2008 R2/7 (32/-64-bit), Mac OS

X, Linux

*eSATA connection requires host computer with Port Multiplier support

This manual suits for next models

Table of contents

Other StarTech.com Docking Station manuals

StarTech.com

StarTech.com 8STSATDOCK5U3ER User manual

StarTech.com

StarTech.com DK30CHDPD User manual

StarTech.com

StarTech.com USBDOCK2 User manual

StarTech.com

StarTech.com DK31C3HDPD User manual

StarTech.com

StarTech.com USB3SMDOCK4K User manual

StarTech.com

StarTech.com Thunderbolt TB3CDOCKDP User manual

StarTech.com

StarTech.com TB3DK2DPW User manual

StarTech.com

StarTech.com UNIDOCKU33 User manual

StarTech.com

StarTech.com SATADOCK22UE User manual

StarTech.com

StarTech.com DK30CHDDPPD User manual

StarTech.com

StarTech.com USBVGADOCK User manual

StarTech.com

StarTech.com SDOCKU33HW System manual

StarTech.com

StarTech.com SATDOCK4U2E User manual

StarTech.com

StarTech.com 8STSDOCK2U33 User manual

StarTech.com

StarTech.com USB7N1DOCKGB User manual

StarTech.com

StarTech.com ST4300U3C1 User manual

StarTech.com

StarTech.com SATADOCKU2 User manual

StarTech.com

StarTech.com DK30BACDD User manual

StarTech.com

StarTech.com USB3VDOCKD User manual

StarTech.com

StarTech.com SATADOCKU2 User manual

StarTech.com

StarTech.com USBDOCK2 User manual

StarTech.com

StarTech.com DK30CH2DEPUE User manual

StarTech.com

StarTech.com USB3SDOCKD User manual

StarTech.com

StarTech.com SDOCK1EU3P2 User manual

Popular Docking Station manuals by other brands

Sony

Sony Dream Machine XDR-DS12iP user manual

Acer

Acer USB Type-C Dock II user manual

ATEN

ATEN UC-2000 user manual

Xcellon

Xcellon HDD-202 user manual

Dok

Dok CR09 user guide

Philips

Philips BTM630/12 quick start guide

IOGear

IOGear Travel Pro GUD3C09 quick start guide

RKI

RKI SDM-E2 Operator's manual

iHome

iHome iP15 instruction manual

VITURE ONE

VITURE ONE MOBILE DOCK quick start guide

Lindy

Lindy 42984 user manual

CipherLab

CipherLab 8001 quick guide

Pyle

Pyle PIPDSP2 owner's manual

Avol

Avol AS2350 user manual

Datalogic

Datalogic JoyaTouch quick start guide

Philips

Philips DC190/79 user manual

Targus

Targus DOCK315EUZ user guide

Akasa

Akasa DuoDockX3 AK-DK08U3-BK user manual
