StarTech.com USB3S2SAT3CB User manual

SATA to USB Cable with UASP

Product ID: USB3S2SAT3CB

This SATA to USB cable is an external drive adapter that gives you quick and easy access to a SATA drive through

the USB-A port on a laptop.

This SATA solid-state (SSD) or hard drive (HDD) adapter lets you upgrade to an external 2.5" SATA SSD or HDD.

The cable lets you:

• Add drive space

• Perform backups

• Create disk images

• Implement data recovery

• Transfer content between the drive and the laptop

The cable supports USB 3.0 data transfer speeds of 5Gbps. But, you can experience transfer speeds up to 70%

faster than conventional USB 3.0, when connected to a computer that also supports UASP. With UASP you can

utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows 8, Mac OS X (10.8 or above), and

Linux.

In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak

performance.

At the same peak in testing, UASP also shows an 80% reduction in required processor resources.

The SATA to USB cable is a portable solution that tucks away nicely in a laptop bag -- no external power is required.

The cable lets you easily swap between drives with no need to install the drive inside an enclosure. It's plug-and-play

and doesn't require drivers.

Note: This product is not compatible with 3.5 in. hard drives. For 3.5 in. drive support, please see our USB to SATA

Cable with Supplemental Power (USB312SAT3).

USB3S2SAT3CB is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Certifications, Reports and Compatibility

Applications

• Back up important data to an external storage device

• Retrieve data from an old SATA drive

• Perform a data migration or clone a drive

• Take advantage of USB 3.0 laptops or desktops with UASP for faster transfer speeds

• Upgrade your laptop HDD to an SSD via USB 3.0

Features

• Access a SATA SSD or HDD from your laptop with this SATA to USB cable

• Experience 70% faster read speed and 40% fast write speeds with UASP support

• Connect to external drives anywhere with this SATA to USB adapter -- no power adapter required

• Save setup time with plug-and-play installation

• Supports USB 3.0 data transfer speeds of 5Gbps and is backward compatible with USB 2.0

Hardware

Warranty

2 Years

Fan(s)

Interface

USB 3.0

Bus Type

USB 3.0

Number of Drives

Drive Size

2.5in

Compatible Drive Types

SATA

Chipset ID

ASMedia - ASM225CM

Performance

Type and Rate

USB 3.0 - 5 Gbit/s

UASP Support

Yes

TRIM Support

Yes

4Kn Support

Yes

Type and Rate

SATA III (6 Gbps)

Hardware Raid Supported

Max Drive Capacity

Currently tested with up to 2TB 5900 RPM hard drives

General Specifications

Max power of the attached drive is 900 mA

MTBF

1,609,297 Hours

Connector(s)

Drive Connectors

SATA Data & Power Combo (7+15 pin)

SATA Power (15 pin)

Host Connectors

USB Type-A (9 pin) USB 3.0 (5 Gbps)

Software

OS Compatibility

OS independent; No software or drivers required

Special Notes /

Requirements

Note

Cable will work only with 2.5" SATA drives

3.5"/5.25" drives are not supported

Windows 7 and earlier Windows versions do not support TRIM

with USB to SATA devices.

Power

Power Source

USB-Powered

Environmental

Operating Temperature

0C to 60C (32F to 140F)

Storage Temperature

-10C to 70C (14F to 158F)

Humidity

40%-85%RH

Physical

Characteristics

Color

Black

Product Length

19.7 in [50.0 cm]

Product Width

1.9 in [49.0 mm]

Product Height

0.4 in [9.0 mm]

Weight of Product

1.5 oz [42.5 g]

Packaging

Information

Package Length

7.8 in [19.8 cm]

Package Width

8.7 in [22.0 cm]

Package Height

0.4 in [10.0 mm]

Shipping (Package)

Weight

2.2 oz [61.0 g]

What's in the Box

Included in Package

USB 3.0 to SATA 2.5" HDD Adapter Cable

Instruction Manual

*Product appearance and specifications are subject to change without notice.

Other manuals for USB3S2SAT3CB

Other StarTech.com Cables And Connectors manuals

StarTech.com

StarTech.com USBC3LINK User manual

StarTech.com

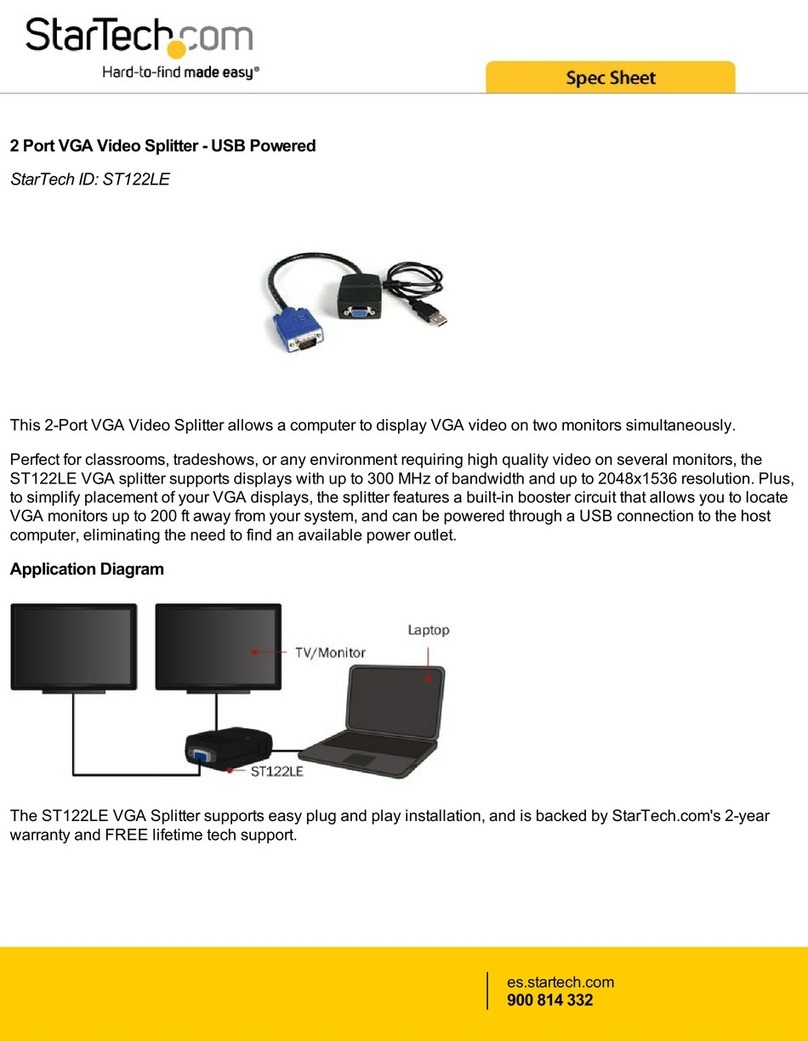

StarTech.com ST122LE System manual

StarTech.com

StarTech.com ST122PROA User manual

StarTech.com

StarTech.com ST122W User manual

StarTech.com

StarTech.com ICUSB1284D25 System manual

StarTech.com

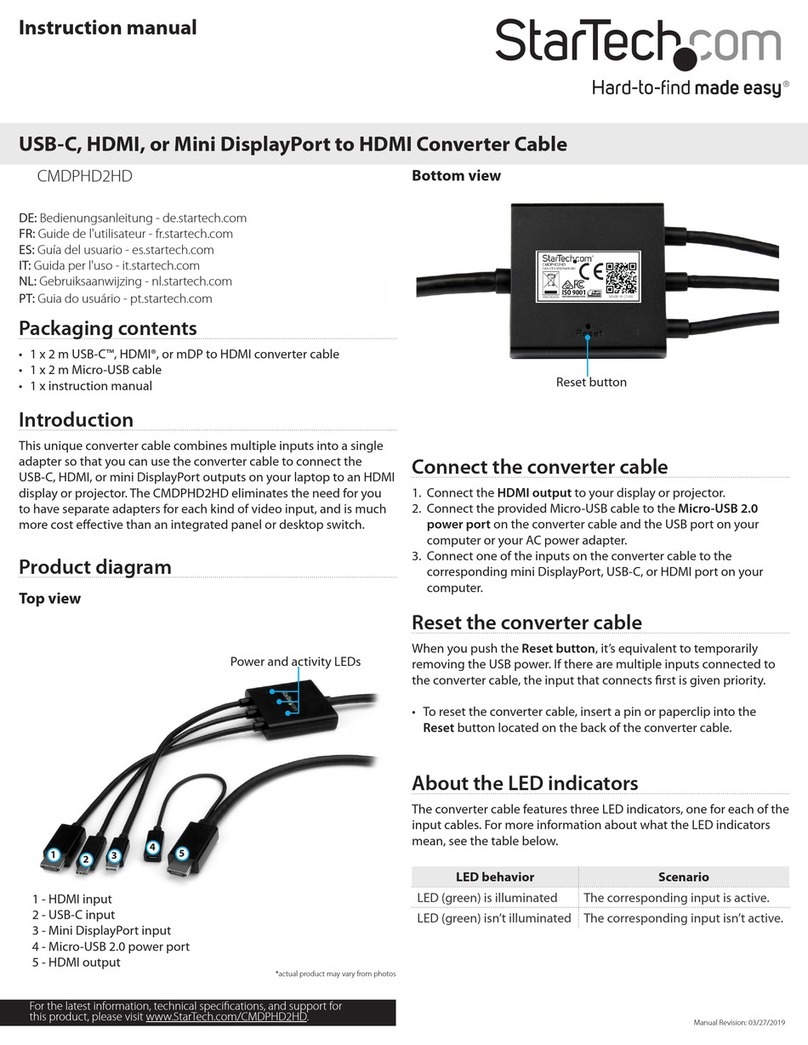

StarTech.com CMDPHD2HD User manual

StarTech.com

StarTech.com 35BAYPANEL User manual

StarTech.com

StarTech.com ICUSB232FTN System manual

StarTech.com

StarTech.com ICUSBCPLLD25 User manual

StarTech.com

StarTech.com Spiral Cable-Management Sleeve - Black User manual

StarTech.com

StarTech.com U02442-USB-EXTENDER User manual

StarTech.com

StarTech.com USB2SATAIDE User manual

StarTech.com

StarTech.com SVID2USB2NS User manual

StarTech.com

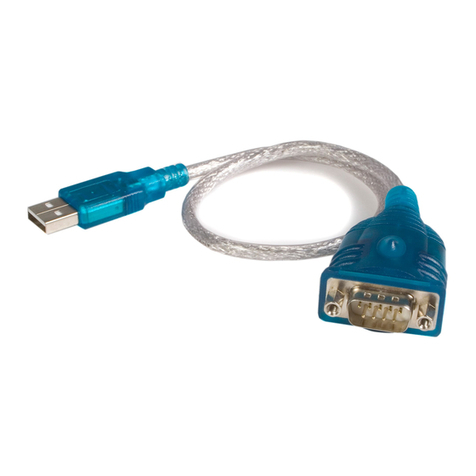

StarTech.com ICUSB232 User manual

StarTech.com

StarTech.com ST122HD4KU User manual

StarTech.com

StarTech.com ICUSBROLLOVR User manual

StarTech.com

StarTech.com SVID2USB23 User manual

StarTech.com

StarTech.com SATRD60CM User manual

StarTech.com

StarTech.com ICUSB232C2 User manual

StarTech.com

StarTech.com 1P3FPC-USB-SERIAL User manual

StarTech.com

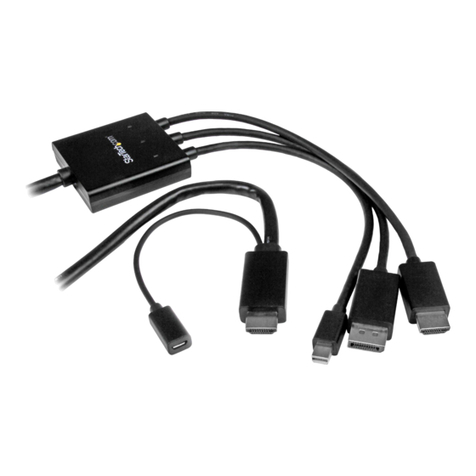

StarTech.com DPMDPHD2HD User manual
