3Bill of materials

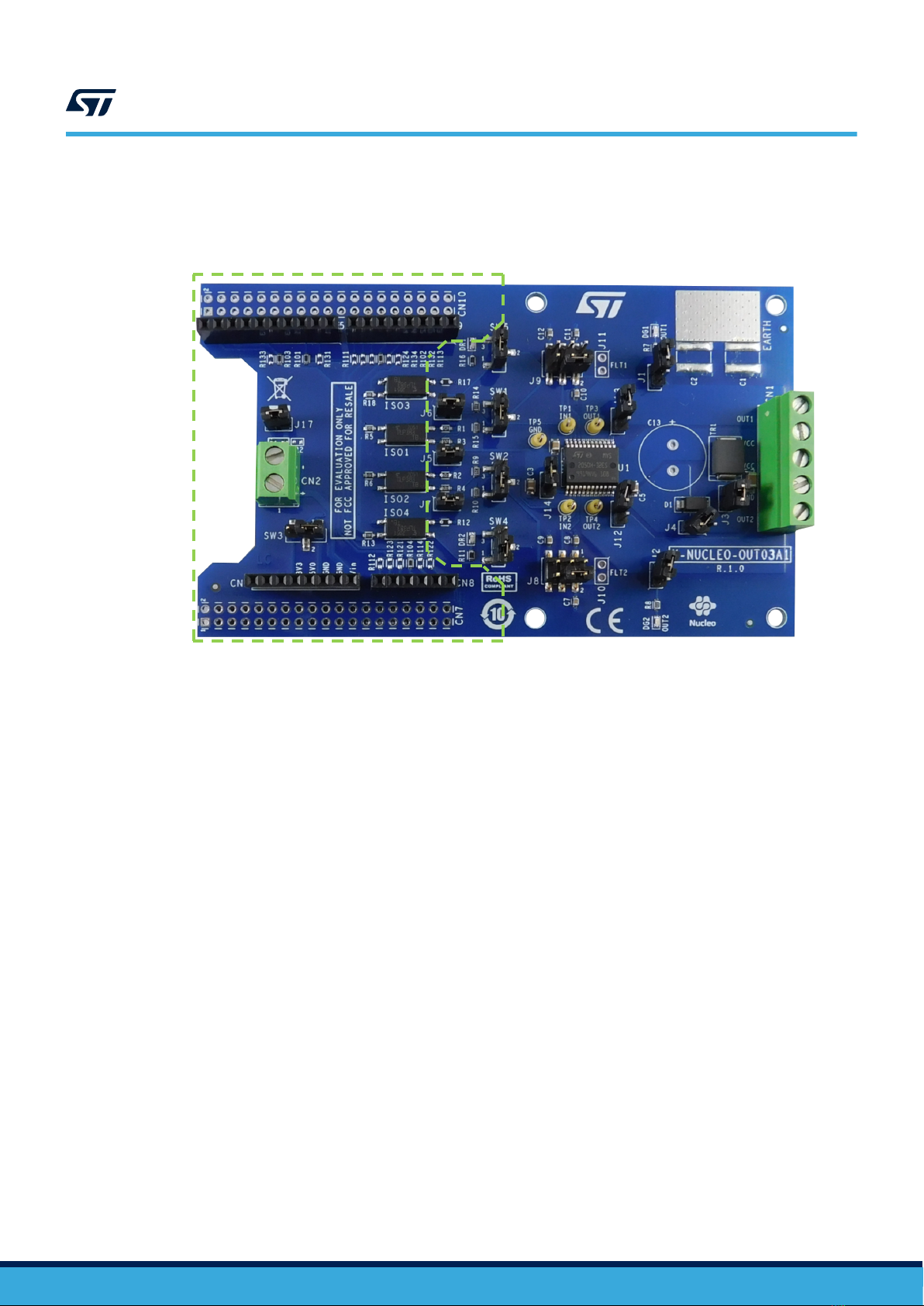

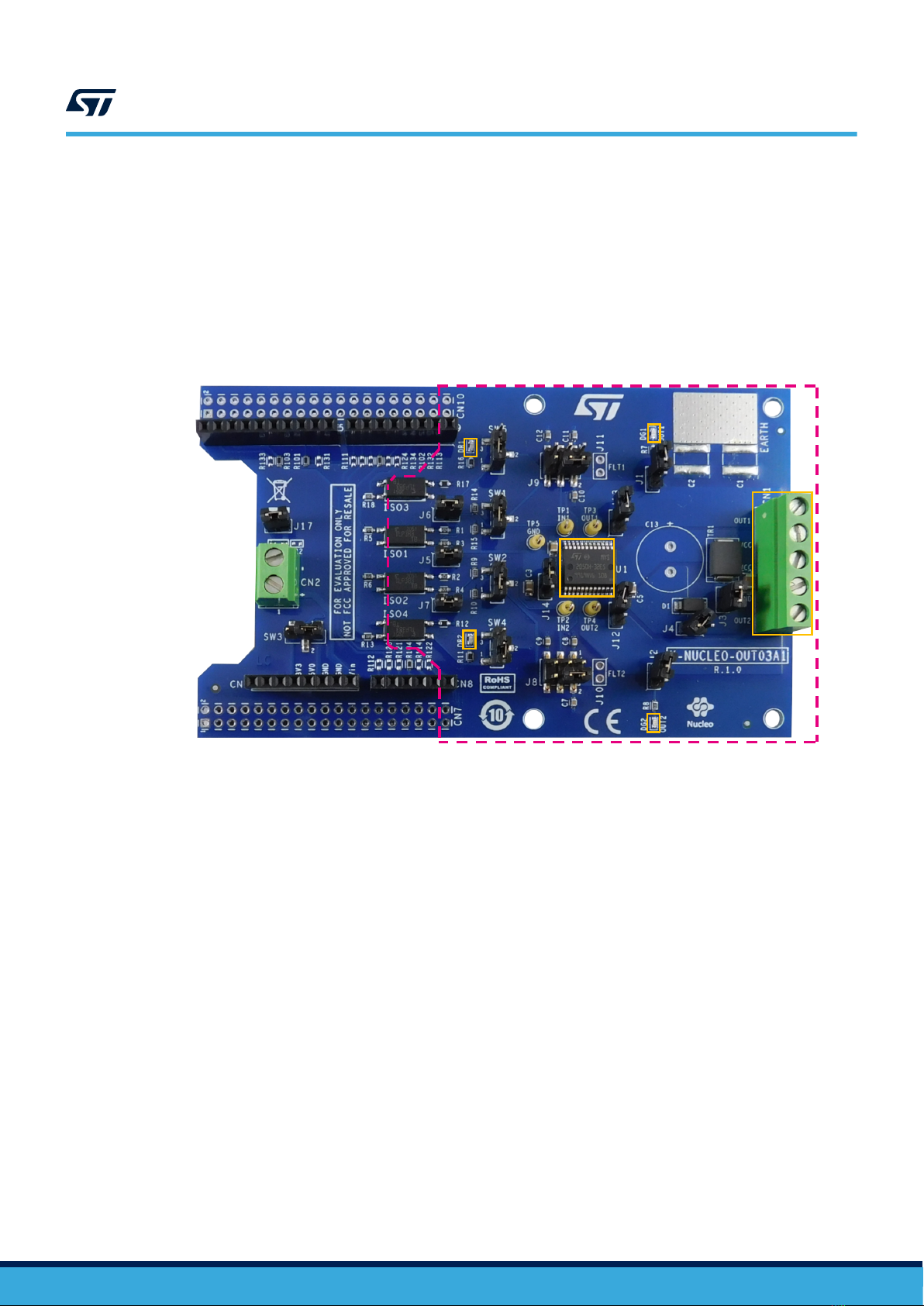

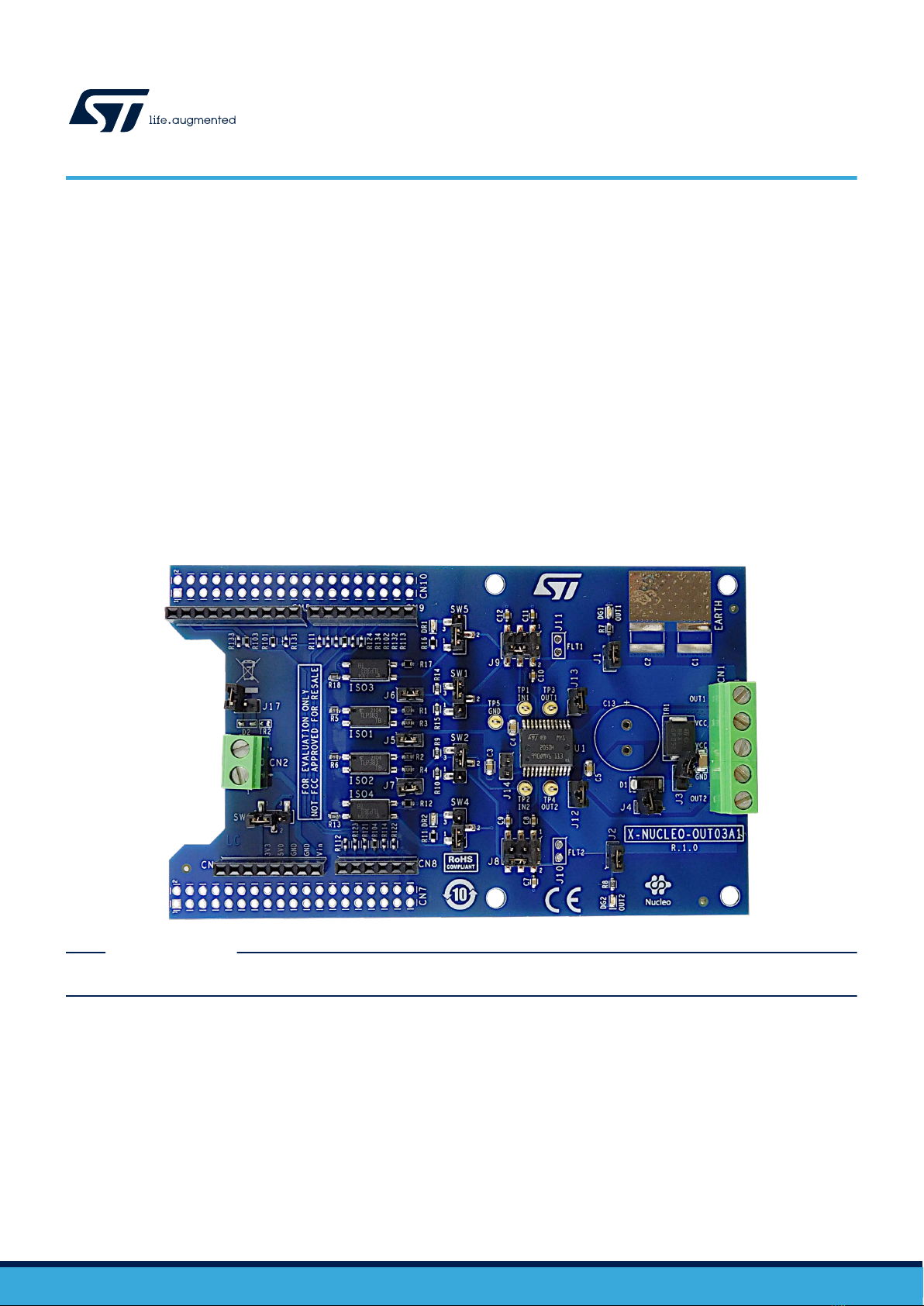

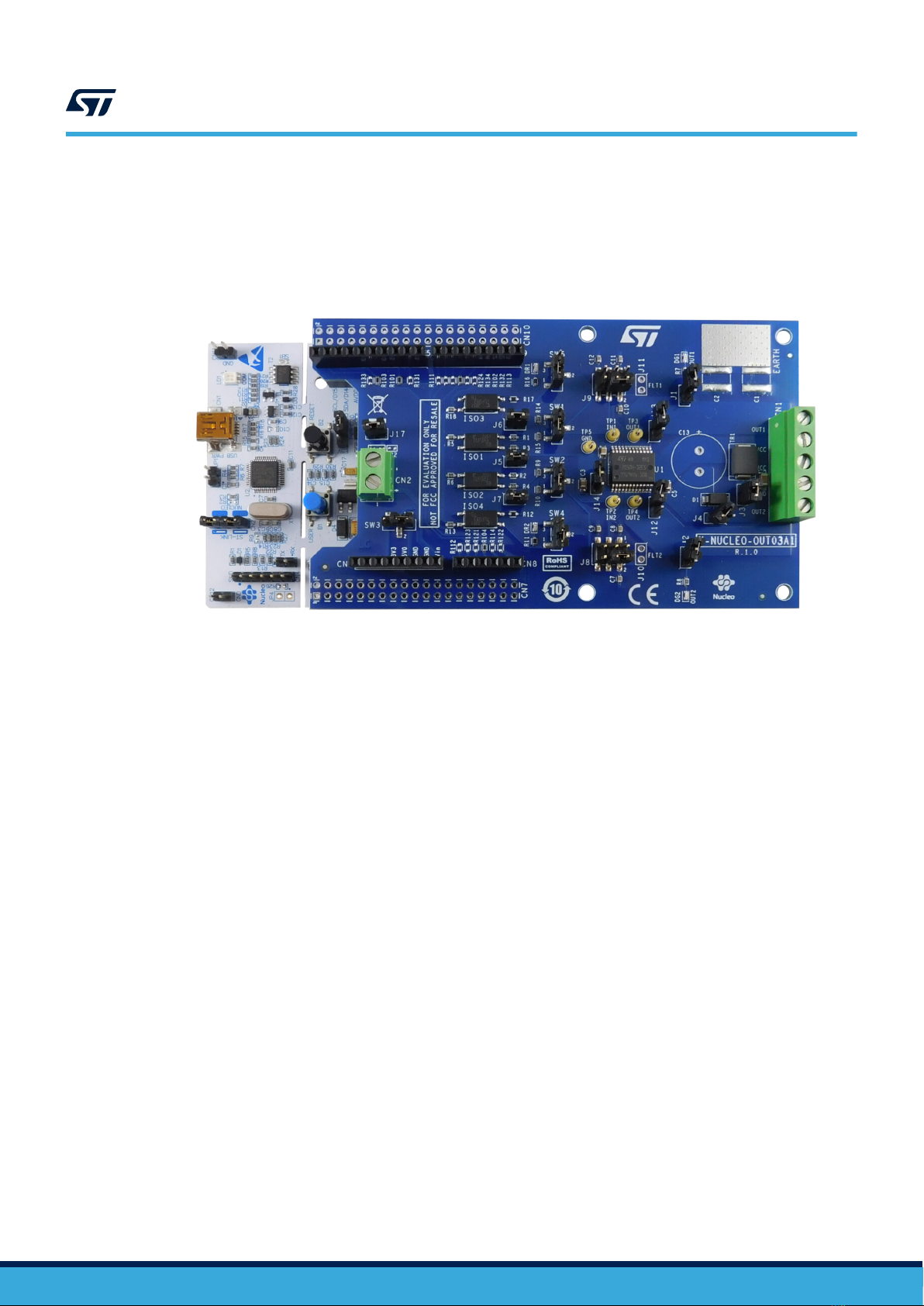

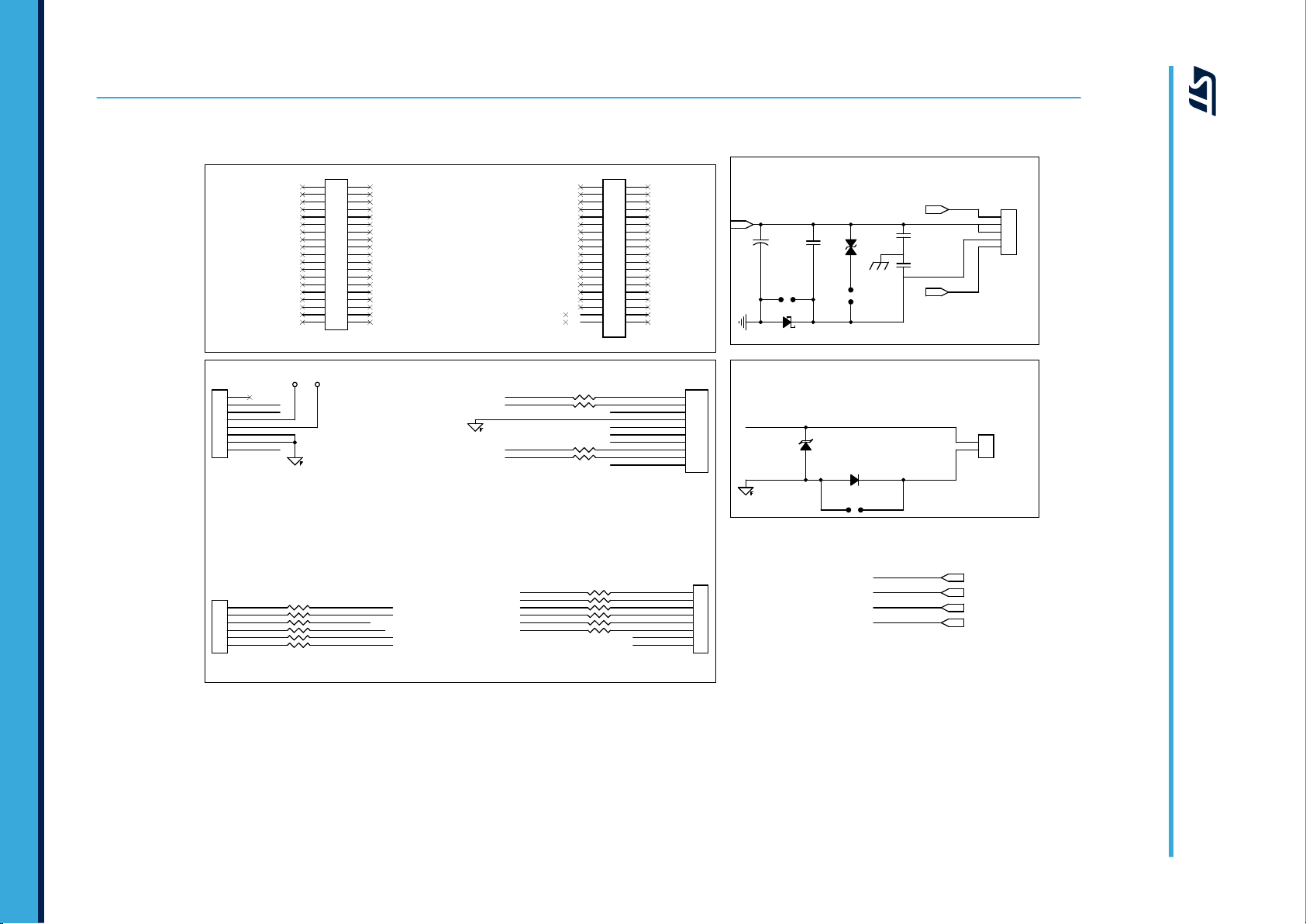

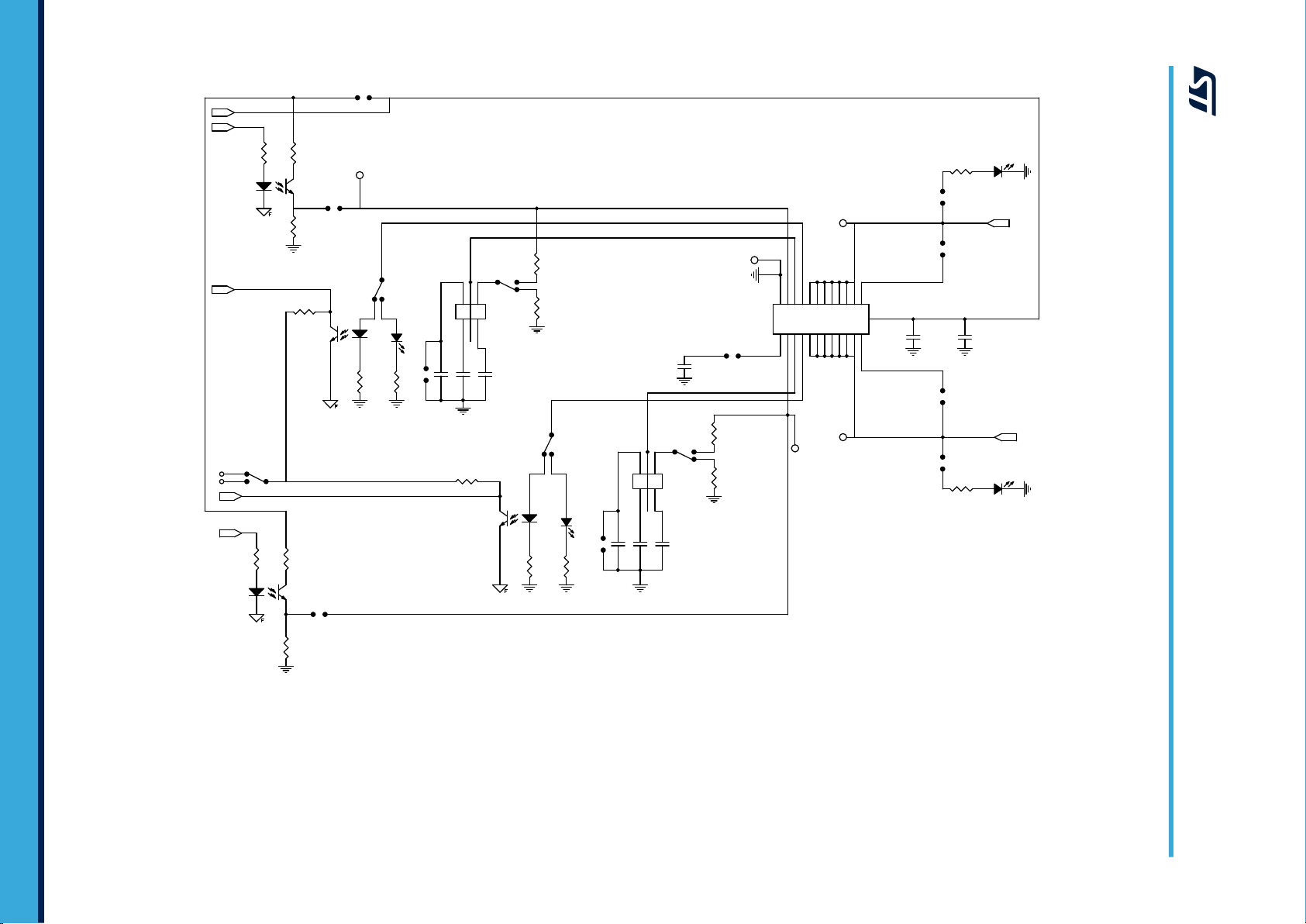

Table 4. X-NUCLEO-OUT03A1 bill of materials
Item Q.ty Ref. Part / Value Description Manufacturer Order code
1 1 U1 IPS2050H PSSO24
Dual high-side
smart power solid
state relay
ST IPS2050H-TR
2 1 CN1 5 ways, 1 row 24 A TH 5
mm Connector WURTH 691137710005
3 0 C1,C2 4.7 nF 3kV 1825 Connectors (not
mounted) Vishay HV1825Y472KXHATHV
4 1 TR1
1.5 kW
Vbr = 39 V
Vcl = 53.9 V
SMC
1500 W, 33.3 V
TVS in SMC ST SM15T39CA
5 1 D1 1 A, 100 V SMA 100 V, 1 A power
Schottky rectifier ST STPS1H100A
6 11
J1, J2, J3, J4,
J5, J6, J7, J12,
J13, J14 J17
2 ways, 1 row TH 2.54
mm Jumpers WURTH 61300211121
7 0 J10, J11 TH 2.54 mm Jumpers (not
mounted) Any Any
8 3 C3, C4, C5 100 nF 100 V 0805 X7R Capacitors WURTH 885012207128
9 1 C6 2.2 µF 100 V 1206 X7R Capacitor AVX 12061C225KAT2A
10 2 C7, C10 470pF 16V 0603 X7R Capacitors WURTH 885012206032
11 2 C8, C11 47nF 16V 0603 X7R Capacitors WURTH 885012206044
12 2 C9, C12 470nF 25V 0603 X7R Capacitors WURTH 885012206075
13 0 C13 Capacitor (not
mounted) Any Any
14 4 ISO1, ISO2
ISO3, ISO4
VCE = 80V VISO=5kV
11-4P1A Optocouplers
TOSHIBA TLP383
WURTH 140100146000
15 2 R1, R2 27 kΩ 0.1 W 0603 Resistors MULTICOMP MCMR06X2702FTL
16 2 R3, R4 22 kΩ 0.1 W 0603 Resistors VISHAY CRCW060322K0FKEA
17 2 R5, R6 390 Ω 0.1 W 0603 Resistors YAGEO RC0603FR-07390RL
18 2 DG1, DG2 150060GS75000 Green LEDs WURTH 150060GS75000
19 2 R7, R8 22 kΩ 0.2 W 0603 Resistors TE-CONN CRGH0603J22K
20 2 DR1, DR2 150060RS75000 Red LEDs WURTH 150060RS75000
21 2 J8, J9 6 ways, 2 rows connector
SMD 2.54 mm Jumpers WURTH 61030621121
22 4 R9, R10, R14,
R15 10kΩ 0.1W ±1% 0603 Resistors Bourns CR0603-FX-1002ELF
23 4 R11, R12, R16,
R17 0Ω 0.1W 0603 Resistors MULTICOMP MCWR06X000 PTL
24 2 R13, R18 2.2kΩ 0.1W 0603 Resistors MULTICOMP MCMR06X2201FTL
25 4 R101, R102,
R103, R104 100Ω 0.1W ±0.5% 0603 Resistors Panasonic ERJ3BD1000V
UM2727
