SR Instruments SR Scales SRV957 Service manual

Model SRV957 24 X 48 Wall Mount Display Platform

Operating and Service Manual

Part No. MAN957_220721 Page 1 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

SRV957

WALL MOUNT DISPLAY

PLATFORM SCALE

by SR Instruments, Inc.

Operating and Service

Manual

Model SRV957 24 X 48 Wall Mount Display Platform

Operating and Service Manual

Part No. MAN957_220721 Page 2 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

TABLE OF CONTENTS

TABLE OF FIGURES......................................................................................................................2

PACKING CHECKLIST –MODEL SRV957...............................................................................3

ASSEMBLY.......................................................................................................................................3

SYSTEM DESCRIPTION AND INTENDED USE.......................................................................4

STORAGE AND TRANSPORTATION ........................................................................................6

CLEANING AND DISINFECTING...............................................................................................5

SPECIFICATIONS...........................................................................................................................6

DISPLAY FUNCTIONS ..................................................................................................................7

BASIC SYSTEM OPERATION......................................................................................................8

SYSTEM SETTINGS.......................................................................................................................9

REMOTE DISPLAY......................................................................................................................10

CALIBRATION..............................................................................................................................10

TROUBLESHOOTING.................................................................................................................12

WARRANTY...................................................................................................................................13

DISPLAY MOUNTING TEMPLATE..........................................................................................15

TABLE OF FIGURES

Figure 1: Display Screen ................................................................................................................7

Figure 2: Settings Menu ..................................................................................................................9

Figure 3: Wi-Fi Icon .....................................................................................................................10

Figure 4: Calibration Table .........................................................................................................11

Model SRV957 24 X 48 Wall Mount Display Platform

Operating and Service Manual

Part No. MAN957_220721 Page 3 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

PACKING CHECKLIST –Model SRV957

Wall Mount Display Platform Scale

ASSEMBLY

STEP 1: Unpack the scale system and check parts against the PACKING CHECKLIST. If

there are any missing or damaged parts, call the Service Hotline at: 1-800-654-6360.

STEP 2: Determine installation location for scale and display, keeping in mind the display cable

length is eight (8) feet and the display power cord length is five (5) feet. If desired, provisions for

wall mount have been incorporated, and can be accomplished in the manner described below.

A. The display should be installed by qualified personnel. The mounting hardware provided

will cover most wall applications.

B. Determine a position on the wall comfortable to the user. Mark the location of the two (2)

mounting holes on the wall (holes are spaced 2.5” on center apart) using the template

provided on page 15.

C. Drill the two (2) pilot holes, no larger than ¼” diameter in the locations marked. Install the

two (2) self-drilling screw anchors.

D. Install the two (2) #8 x 1” flat head screws supplied, leaving approximately ¼” projecting

from the wall.

STEP 3: Connect signal cable to the underside of the platform.

STEP 4: Place SRV957 scale platform on a flat, hard floor surface. Ensure all six feet of the

scale are in contact with the floor and scale does not rock.

NOTE: Scale should not be placed on carpet or uneven floor surfaces as this may interfere

with scale accuracy.

STEP 5: Connect the signal cable to the scale display, then connect the power cable to the scale

display and plug power adapter into wall.



DESCRIPTION

QUANTITY

SCALE PLATFORM

1 ea.

SCALE DISPLAY

1 ea.

SIGNAL CABLE

1 ea.

AC WALL POWER SUPPLY (MEDICAL GRADE)

1 ea.

MOUNTING HARDWARE

1 ea.

CERTIFICATE OF CALIBRATION

1 ea.

MANUAL

1 ea.

Model SRV957 24 X 48 Wall Mount Display Platform

Operating and Service Manual

Part No. MAN957_220721 Page 4 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

REPLACEMENT PARTS AND ACCESSORIES

SYSTEM DESCRIPTION AND INTENDED USE

SYSTEM DESCRIPTION

The SRV957 Portable Platform Scale is a low profile design, 2 in. height, which allows the animal

easy step access. The SRV957 Scale can be used in a fixed location or as a portable scale. The

scale employs the latest in microprocessor and load cell technology to provide accurate and

repeatable weight data. Six (6) identically matched transducers are strategically placed to ensure

an accurate representation of the animal’s weight.

The animal’s weight is displayed on an LCD screen and can be viewed in either pounds or

kilograms.

INTENDED USE

The SRV957 Portable Platform Scale is a lightweight portable scale designed for use as a

weighing system for animals not exceeding 400 pounds or 182 kilograms, gross weight. Please

read the following warnings to avoid injury to the animal or attendant.

Part #

Description

SE6000-14

Signal Cable

FBM1012000

Replacement Foot

FSAS751444BA

Replacement Foot Spacer

FR95X-AUX

Wireless Auxiliary Display (optional)

FRWR9HA2000

5V Medical Power Supply, USB Micro B

WARNING

DO NOT USE FOR ANIMAL TRANSPORT

DO NOT EXCEED MAXIMUM LIMIT OF 400 LBS / 182 KG

Model SRV957 24 X 48 Wall Mount Display Platform

Operating and Service Manual

Part No. MAN957_220721 Page 5 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

CLEANING and DISINFECTING

CLEANING

Use water and mild detergent to clean scale surfaces.

Do not use abrasive material to disinfect / clean scale surfaces to prevent damage to the

surface finish.

To clean the display / user interface:

Wipe surface with clean soft cloth dampened with water and then dry with clean soft cloth.

Do not spray liquid directly onto interface surfaces. Use only a damp cloth.

To clean platform / patient contact areas:

Use a soft bristle brush with mild detergent and water when cleaning platform / patient

contact areas. Pat dry with a clean cloth, or allow to air dry.

DISINFECTION

Follow manufacturer’s instruction on the proper use of commercially available

disinfectants.

Disinfectant solutions with 1% sodium hypochlorite or 70% isopropyl alcohol are suitable

for display / user interface and other scale contact surfaces.

To disinfect the display / user interface:

Use a soft cloth dampened with disinfectant or a damp disposable disinfectant cloth. Cloth

cannot be dripping wet.

After disinfecting, use a soft cloth dampened with clean water and dry with a soft clean

cloth to prevent buildup of material on display.

Do not spray liquid directly onto interface surfaces. Use only a damp cloth.

To disinfect platform / patient contact areas:

Apply disinfectant solution to platform / patient contact areas.

Patient contact area should remain wet with disinfectant solution for six minutes. Pat dry

with a clean cloth, or allow to air dry.

WARNING: EXPOSURE TO EXCESSIVE LIQUID WILL DAMAGE USER

INTERFACE KEYPAD.

WARNING: DO NOT USE PRESSURIZED WATER OR STEAM. THE SCALE

SYSTEM CONTAINS ELECTRONIC COMPONENTS THAT MAY BE

ADVERSELY AFFECTED BY EXPOSURE TO SUCH AN

ENVIRONMENT.

Model SRV957 24 X 48 Wall Mount Display Platform

Operating and Service Manual

Part No. MAN957_220721 Page 6 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

STORAGE and TRANSPORTATION

STORAGE

To maintain proper operation of this instrument, storage and transport conditions should not vary

outside the following conditions: Relative Humidity 0% to 85%, Ambient Temperature 14°F to

122°F (-10°C to +50°C).

TRANSPORTATION

The SRV957 Portable Platform Scale has four (4) recessed handles on the underside of the scale

for easy portability.

SPECIFICATIONS

MAXIMUM WEIGHT CAPACITY

400 lb / 182 kg

PLATFORM SIZE

24 in x 48 in x 2 in

(61 cm x 122 cm x 5 cm)

DISPLAY TYPE

4.3”TFT Color LCD / Resistive Touch

DISPLAY RESOLUTION

0.1 lb / 0.1 kg

ACCURACY

0.2% +/- 2 digits of displayed resolution for calibrated

range

AUTO ZERO

One touch operation

AVERAGING

Automatic digital filter

POWER SUPPLY

AC Wall Power Supply (Medical Grade)

CALIBRATION

Calibration is traceable to NIST

OPERATING CONDITIONS

Normal operating conditions for this product:

Ambient Temperature Range: 68F to 85F (20C to

30C), Relative Humidity Range: 0%-85%. Avoid

exposure to high-pressure water or steam.

TRANSPORT and STORAGE

Storage and transport conditions should not vary

outside the following conditions: Relative Humidity

0% to 85%, Ambient Temperature 14F to122F (-10C

to +50C). Remove batteries if storing longer than

three (3) months.

Model SRV957 24 X 48 Wall Mount Display Platform

Operating and Service Manual

Part No. MAN957_220721 Page 7 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

DISPLAY FUNCTIONS

Figure 1: Display Screen

The “WEIGH” button is used to clear the Recall memory and start a new weighing

cycle.

The “RECALL” button is used to recall the last saved weight. Recalled weight

reading will be displayed in orange. The “RECALL” button is only displayed in the

Auto Hold weigh mode and when there is a weight value stored.

The “ZERO” button is used to zero the system before placing a patient onto the scale

system and to erase the last saved weight. Ensure that nothing is in contact with the

weighting surface during the procedure. The display will read “0.0 LB” (or “KG”).

The Stable Weight icon blinks while actively weighing and then becomes steady

when weight is stable.

The Settings icon enters the system settings to view system information, pairing

with the optional Auxiliary Display, perform calibration, or set weight units (LB or

KG) as well as Continuous or Auto Hold weigh modes.

Touching the displayed weight will switch the weight to a QR Code for easy

scanning. Touch again to switch back.

RECALL

WEIGH

ZERO

SETTINGS

STABLE

WEIGHT

QR CODE

WEIGHT

Model SRV957 24 X 48 Wall Mount Display Platform

Operating and Service Manual

Part No. MAN957_220721 Page 8 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

BASIC SYSTEM OPERATION

TURNING SYSTEM ON

Make sure the scale is free and clear of any obstructions and all six feet are touching a level

surface. Touch the screen to awaken from sleep mode and press the “ZERO” button. The display

will read “ZERO” then display “0.0” when system is ready for weighing.

WEIGH

The “WEIGH” button is used to clear the “RECALL” memory and start a new weighing cycle.

RECALL

The “RECALL” button is used to recall the last stored weight. Recalled weight will be displayed

until the display is zeroed again, or until the “RECALL” button is pressed again.

NOTE: The “RECALL”button is not displayed when there is no stored weight or when in

Continuous weigh mode.

SLEEP MODE

With no weight on the platform, or after the display is zeroed, the display will “power down” to a

sleep mode after 20 seconds. Touch the screen to wake it up.

CONTINUOUS WEIGH

With Continuous Weight enabled (in the System Settings menu), the RECALL mode will be

disabled. “RECALL” button will not appear after a stable weight is seen.

AUTO HOLD

With Auto Hold enabled (in the System Settings menu), the RECALL mode will be enabled.

When the system detects a stable weight, that value will be stored in system memory. This value

can later be recalled by pressing the “RECALL” button with no weight on the platform.

UNITS

Weight Units can be changed in the System Settings menu. The system will remain in the same

mode as last used unless manually changed.

Model SRV957 24 X 48 Wall Mount Display Platform

Operating and Service Manual

Part No. MAN957_220721 Page 9 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

SYSTEM SETTINGS

ACCESSING THE SETTINGS MENU

STEP 1: From the Home screen, press the System Settings button

STEP 2: Enter password “12345”

STEP 3: Press the green checkmark )

SETTINGS

Weight Data

Weight units can be set to “LB” or “KG”

Display can be set to “Auto Hold” or “Continuous” weigh modes

Remote Display

Main display can be paired to a remote display (sold separately)

See Remote Display section for pairing instructions

Calibrate Scale

Recalibrate Scale platform

System Info

View SRI Contact information, Model Number and Software Version

information

Home

Exit Settings Menu by pressing Home Icon

Figure 2: Settings Menu

Model SRV957 24 X 48 Wall Mount Display Platform

Operating and Service Manual

Part No. MAN957_220721 Page 10 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

WIRELESS AUXILIARY DISPLAY

NOTE: IF ORDERED SIMULTANEOUSLY, THE WIRELESS AUXILIARY DISPLAY

WILL SHIP PAIRED TO THE PRIMARY DISPLAY. NO FURTHER ACTION IS

NEEDED.

If the Wireless Auxiliary Display was purchased separately, follow the instructions below

TO PAIR A REMOTE DISPLAY:

STEP 1: Standing near Primary display, connect power cord to remote display

STEP 2: Access System Setting Menu and select “Remote Display”

STEP 3: Press the “PAIR” button on Wireless Auxiliary Display

STEP 4: Verify that Wi-Fi icon on Wireless Auxiliary Display is illuminated green

NOTE: A WIRELESS AUXILIARY DISPLAY CAN ONLY BE PAIRED TO ONE

PRIMARY DISPLAY AT A TIME

If more than one SRV957 is in use, open the “Remote Display” menu on both the Wireless

Auxiliary Display and the desired Primary Display. Verify matching “Primary MAC” addresses

on both displays.

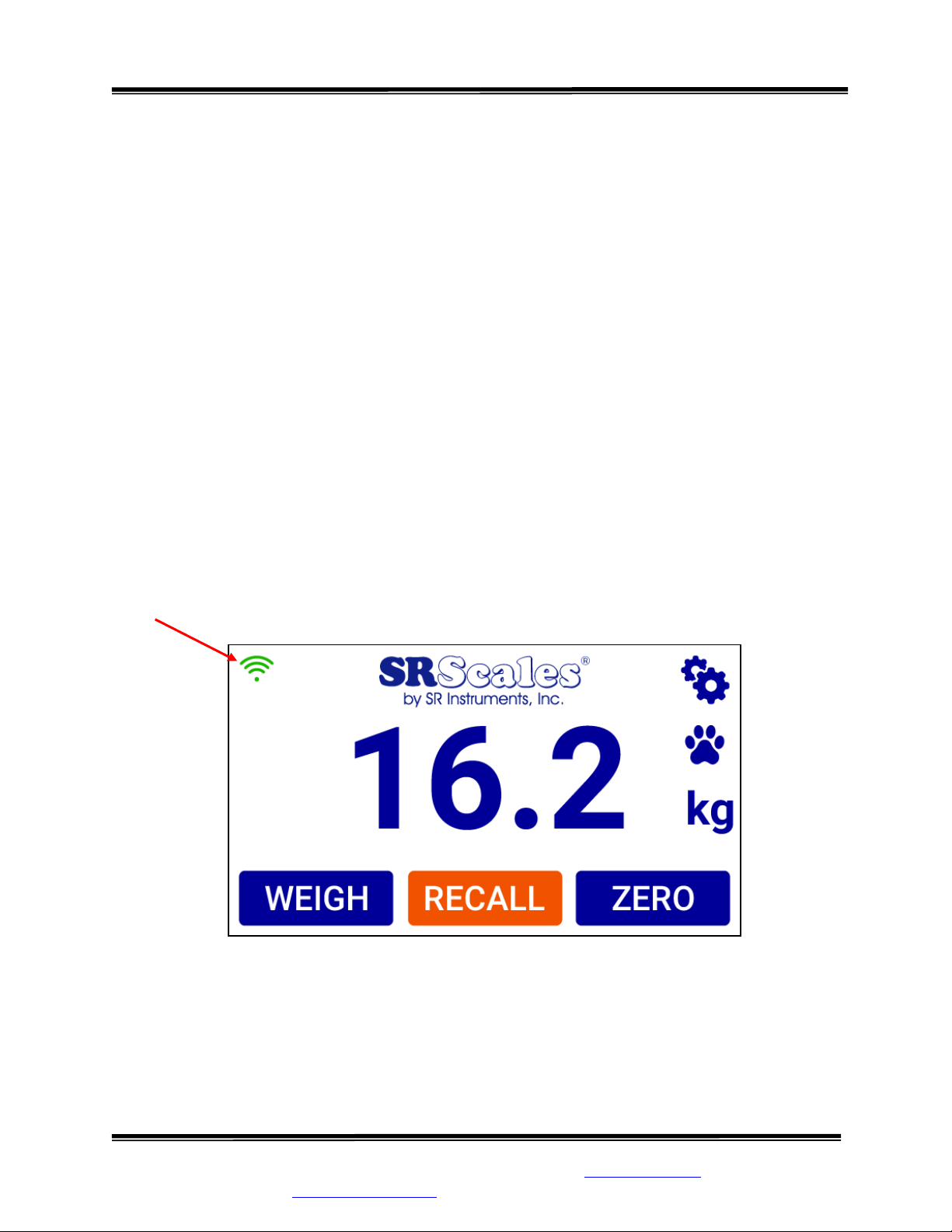

Figure 3: Wi-Fi Icon

Table of contents

Other SR Instruments Scale manuals

SR Instruments

SR Instruments SR Scales SR615i Service manual

SR Instruments

SR Instruments SR Scales SR463iR-PH Series Service manual

SR Instruments

SR Instruments SR Scales SRV930 Service manual

SR Instruments

SR Instruments SRScales SRV949-BT Service manual

SR Instruments

SR Instruments SR Scales SR630i-KG Service manual

SR Instruments

SR Instruments SR Scales SRV947-BT Service manual

SR Instruments

SR Instruments SRV710W Series Service manual

SR Instruments

SR Instruments SRScales SR7000i Service manual

SR Instruments

SR Instruments SR Scales SR241 Service manual

SR Instruments

SR Instruments SR300 Series User manual

SR Instruments

SR Instruments SRScales SRV945 Service manual

SR Instruments

SR Instruments SR Scales SRV415 Service manual

SR Instruments

SR Instruments SRScales SR7000i-KG Service manual

SR Instruments

SR Instruments SR Scales SRV945-BT Service manual

SR Instruments

SR Instruments SR Scales SR585i-KG Service manual

SR Instruments

SR Instruments SRScales SR555 Service manual

SR Instruments

SR Instruments SR Scales SR7005i Service manual

SR Instruments

SR Instruments SR Scales SRV957IFS Service manual

SR Instruments

SR Instruments SR Scales SR 735i Service manual

SR Instruments

SR Instruments SR Scales SR463iR-PH Series Service manual

SR Instruments

SR Instruments SR Scales SRV947KG Service manual

SR Instruments

SR Instruments SR Scales SRV713 Service manual

SR Instruments

SR Instruments SRScales SRV947IFS Service manual

SR Instruments

SR Instruments SR Scales SR555i-KG Service manual

Popular Scale manuals by other brands

AWS

AWS ZEO-50 user manual

Gima

Gima Glass Body Fat Analyzer Use and maintenance book

Seca

Seca 374 user manual

TEC

TEC TEC SL59 SERIES owner's manual

Axis

Axis B/E Series user manual

Alecto

Alecto ACW-40 user manual

Rice Lake

Rice Lake MSI-4260 IS Technical manual

IKA

IKA RCT basic safety control operating instructions

ADE

ADE M20011 operating manual

Duronic

Duronic KS3000 manual

Digi

Digi SM-720 Service manual

Cardinal

Cardinal CS Series Operation manual

Korona

Korona Kastella Instructions for use

A&D

A&D FC-50Ki instruction manual

BDA

BDA CAMARGUE installation guide

Tanita

Tanita HD-357 Instructions for use

Leifheit

Leifheit 03173 quick start guide

Lumme

Lumme LU-1340 user manual
