Sportop E80 Operation manual

E80

Owner’s Operating Manual ENGLISH

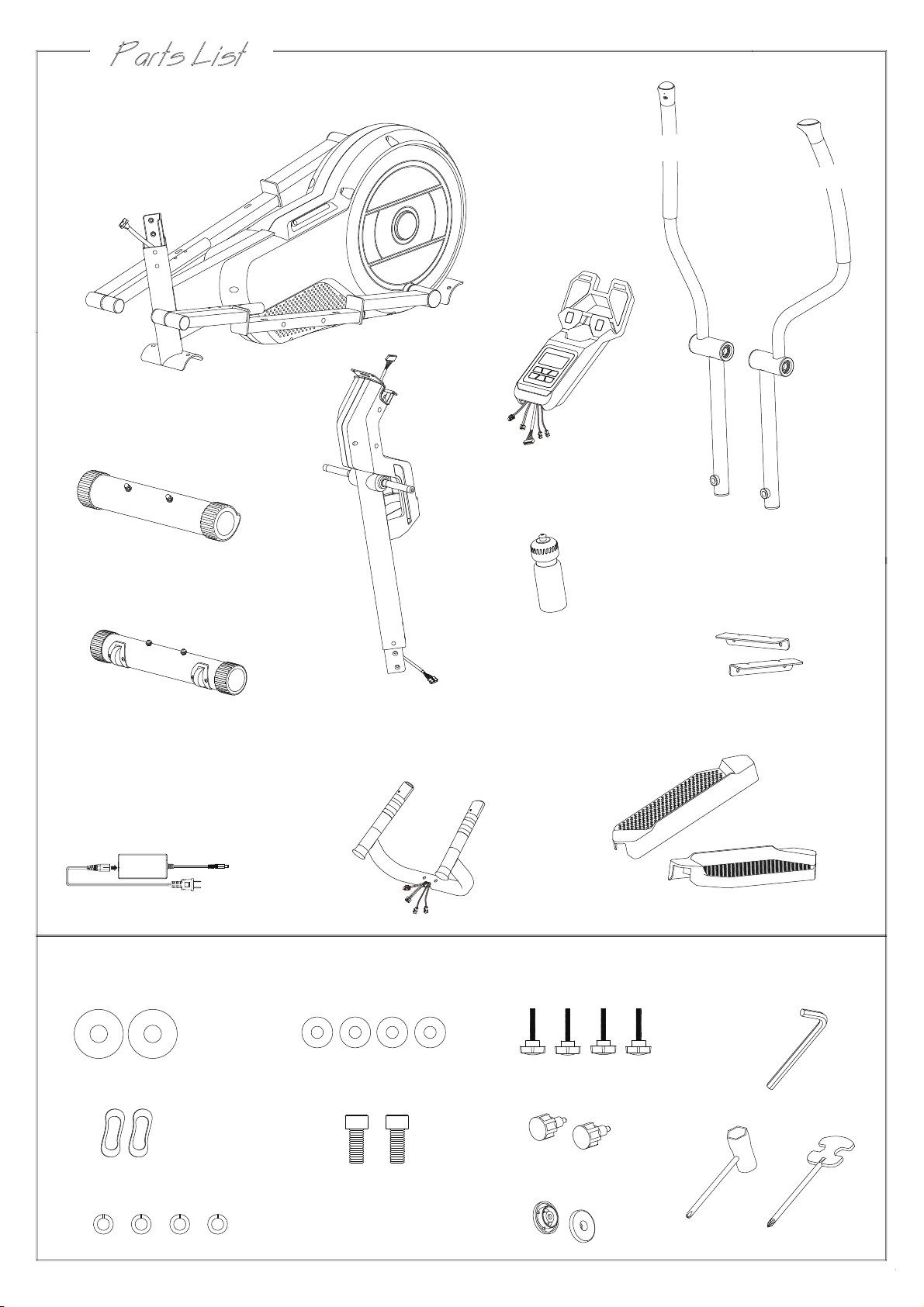

MODEL :

Main frame

DFront stabilizer

Rear stabilizer

Central supporting

tube

E1 Handle bar (L)

Console

Small handle barF

Adaptor

E2 Handle bar (R)

PedalH

)4E( bonK

)1H( bonK

Reinforcing plate

(A54)

Tool

(N1) End cap

Water bottleK

(N2) Screw M8x20L

(J7) Washer M8

(J8) Wave washer D17

(J10) Spring washer M6

(J11) Washer M6

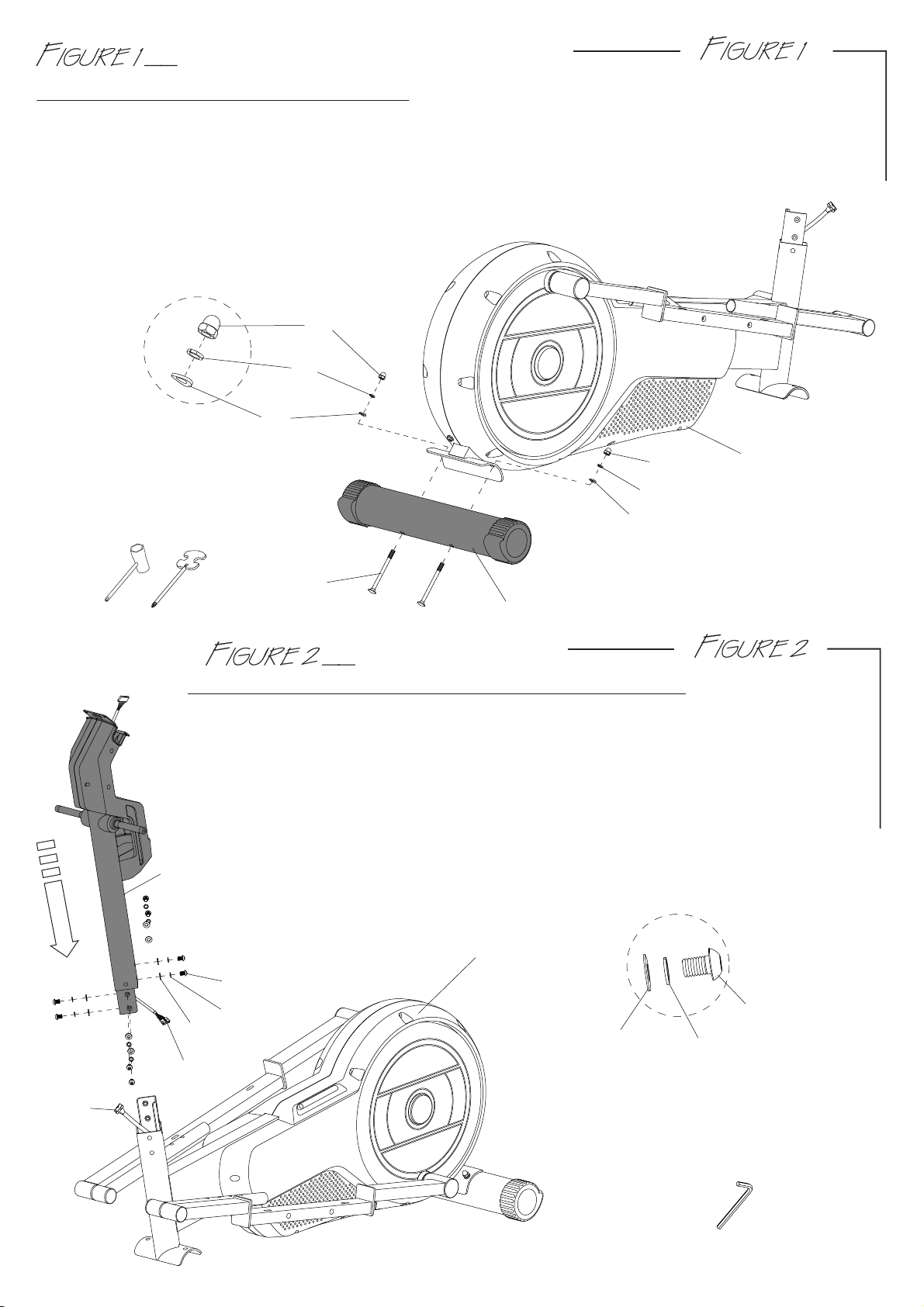

ASSEMBLY FOR REAR STABILIZER

ASSEMBLY FOR CENTRAL SUPPORTING TUBE

First, remove the nuts(J1), spring washers(J2), washers(J3)and screws(J17)

from the rear stabilizer(C).

Mount the rear stabilizer(C) to attach to the bracket at the back of the main frame(A).

Then, secure it with nuts(J1), spring washers(J2), washers(J3)and screws(J17).

Step1. First, remove the screws(J4), washers(J5) and spring washers(J15)

from the main frame(A).

Step2. Connect the sensor wire(L1) with the sensor wire(L2).Then,assemble

the central supporting tube(B) onto the main frame(A) with the screws(J4),

, washers(J5) and spring washers(J15).

NOTE: When pushing the tubes together make sure not to

pinch the cable!

J17

J1 A

Use tool :

J15

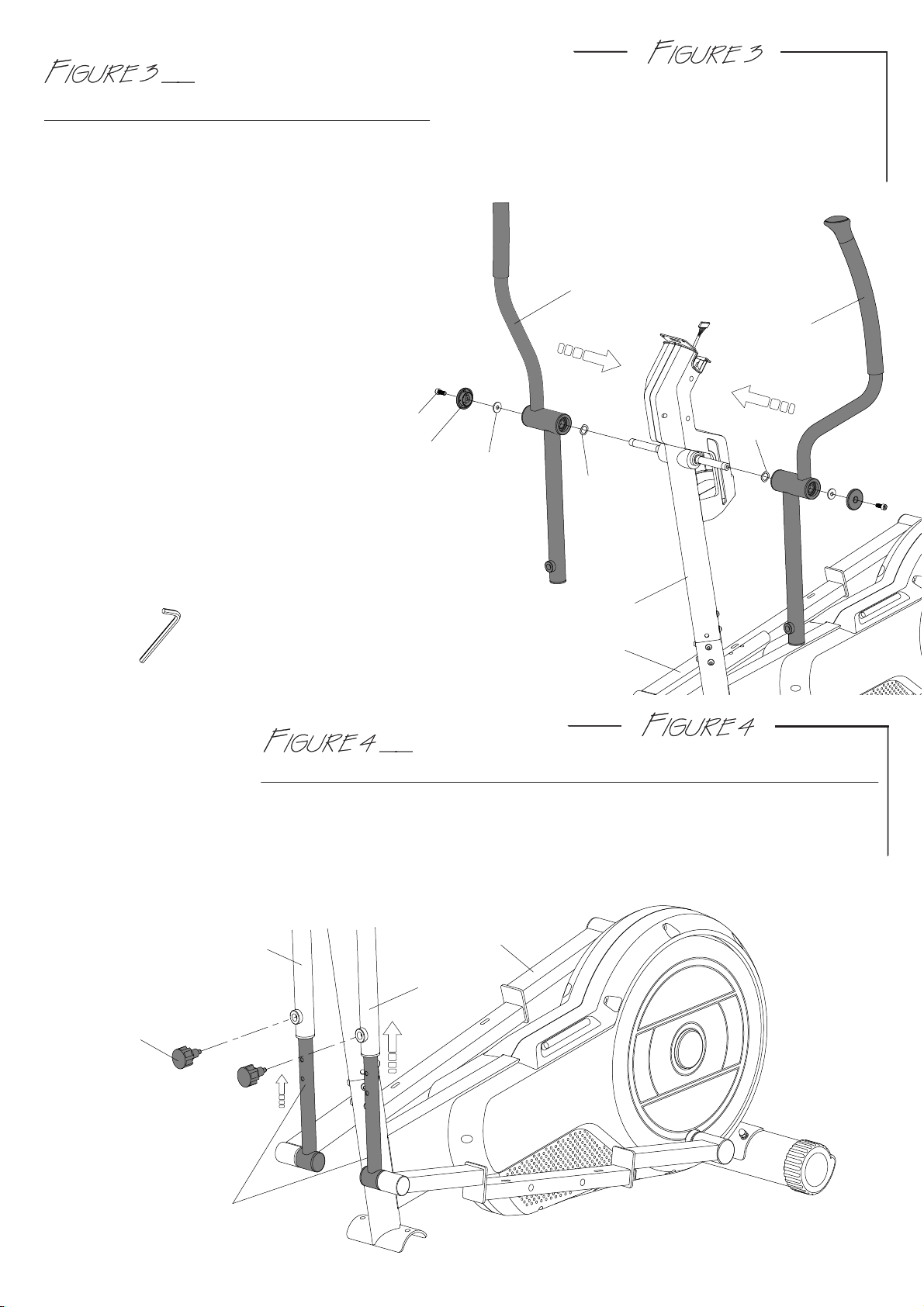

ASSEMBLY FOR SIDE HANDLE BAR

Step1. Put the wave washers(J8) into the axle on the central supporting tube(B) both side first.

Step2. Put the right side handle bar(E2) into the axle and secure it by the washer(J7),

end cap (N1), and screw(N2).

Step3. The left side handle bar(E1) assembly

is the same as the right side.

CONNECT THE PEDAL TUBE WITH THE SIDE HANDLE BAR

Pull up the pedal connect tube and turn the Knob(E4) into the hole on the side handle

bar(E1&E2). Adjust the suitable position which 4 holes are available when loosing the

pop-pin.

Attention: Please make sure the knob(E4) is turning tightly after choosing the position to

avoid user falling down.

Pedal Connect Tube

Use tool :

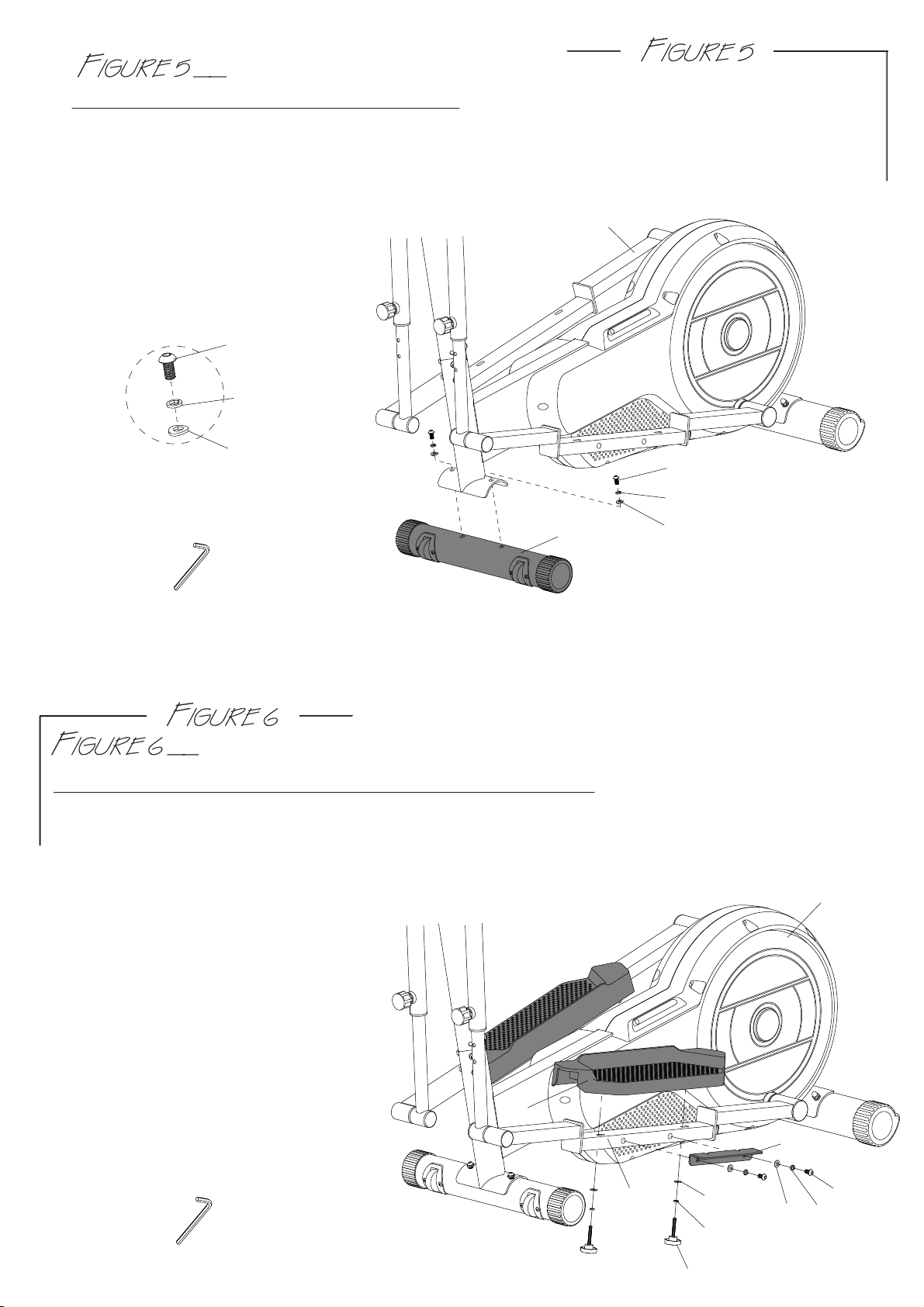

ASSEMBLY FOR FRONT STABILIZER

First, remove the screws(J9), spring washers(J2) and washers(J3) from the front stabilizer(D).

Mount the front stabilizer(D) to attach to the bracket at the front of the main frame(A).

Then, secure it with screws(J9), spring washers(J2) and washers(J3).

Use tool :

ASSEMBLY FOR REINFORCING PLATE AND PEDAL

Step2. Assemble the reinforcing plate(A54) with screws(J9), spring washers(J2), washers(J5).

Step3. Assemble the pedal(H) with knobs(H1), spring washers(J10), washers(J11).

Repeat again to finish other side assemble.

A54

J10

J11

Step1. First, remove the screws(J9), spring washers(J2), washers(J5) from the pedal tube-L (A49).

A49

Use tool :

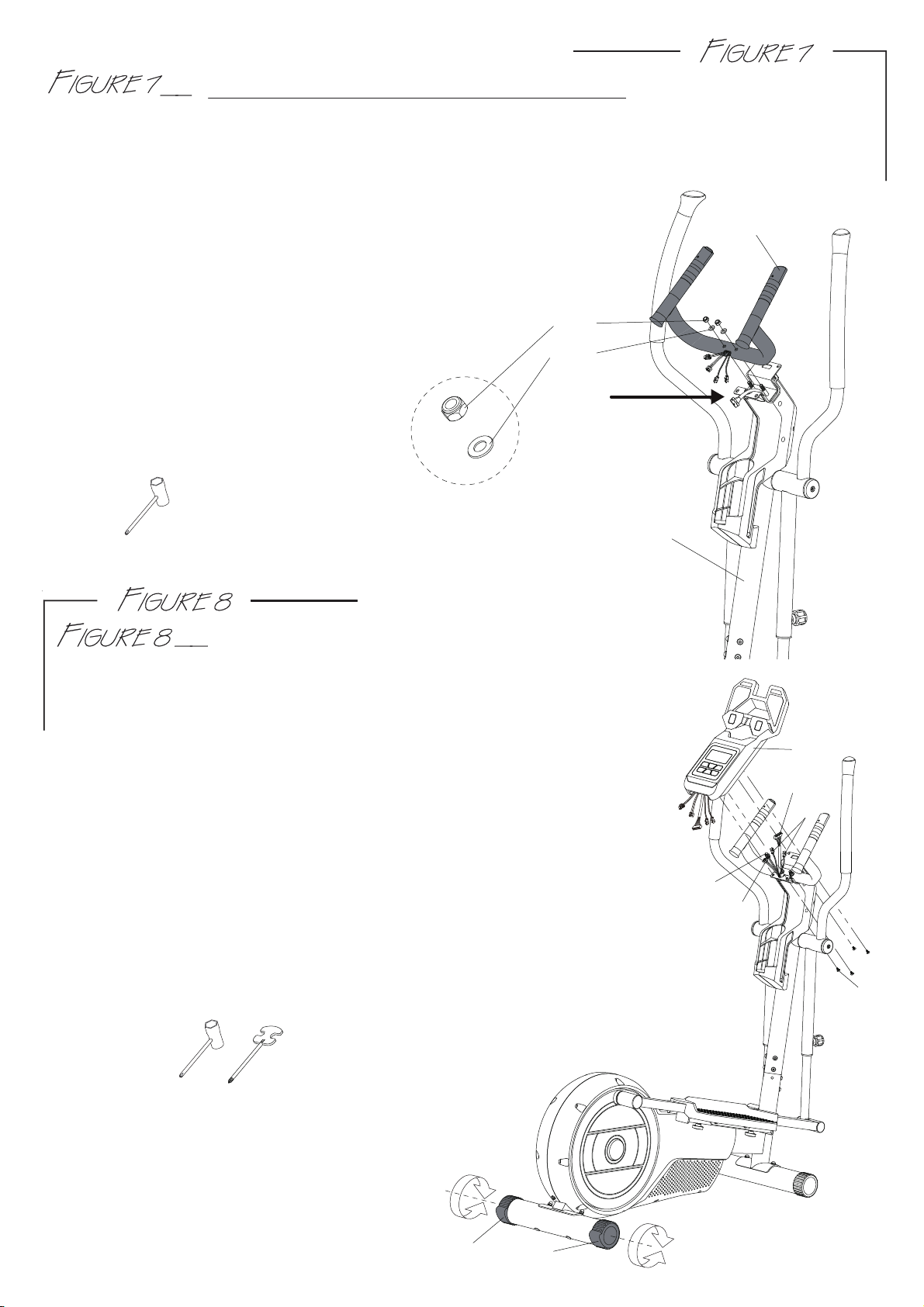

ASSEMBLY FOR SMALL HANDLE BAR

Note : Do not pinch the sensor wire when assembling

Step1. Remove the preinstalled washers(J13) and nuts(J14) from

the central supporting tube(B).

Step2. Put the small handle bar(F) on the central supporting tube(B),

Step3. Assembly the small handle bar(F) with washers(J13) and

nuts(J14).

J13

J14

Note!

ASSEMBLY FOR CONSOLE

Step2. Connect the sensor wires(L2, L3, L4, L5) with console wires

and put the console on the fixing plate.

Step3. Assembly the console with screws(G1).

Note: Do not pinch the sensor wire when assembling.

Step1. Remove the preinstalled screws(G1) from the console(G).

NOTE:

if the machine dose not sit level, you

can use the two adjustable end

caps(C2&C3) to compensate for uneven

floors.

C2 C3

Use tool :

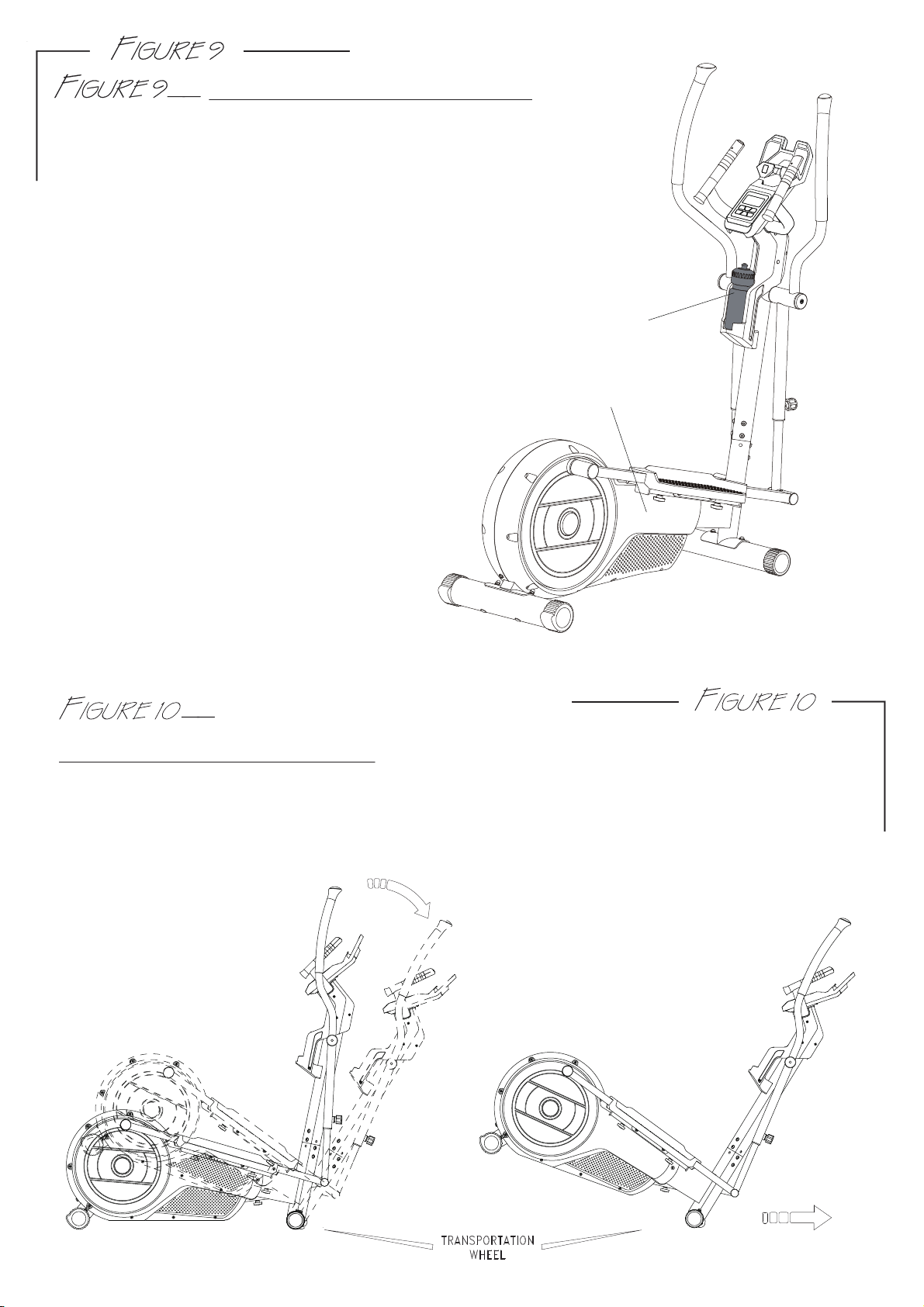

INSTALL THE WATER BOTTLE

HOW TO MOVE THE MACHINE

The front stabilizer has built-in transport wheels.

To move the machine, stand at the front and lift it up until the weight of the machine is

transferred to the transport wheels.

You can now easily move the machine to a new location.

Put the water bottle (K) on the main frame (A).

IOS

QR CODE

ANDROID

QR CODE

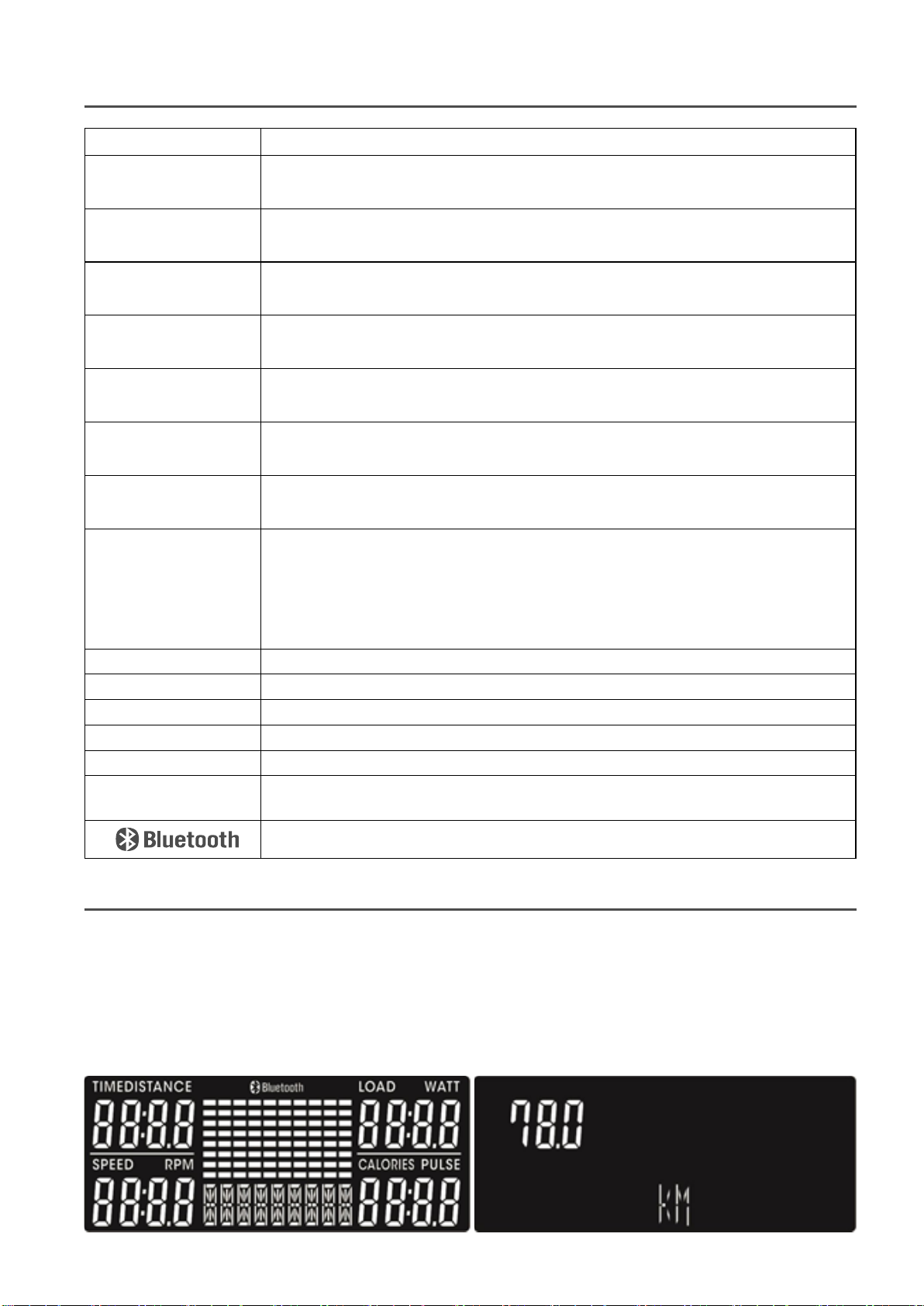

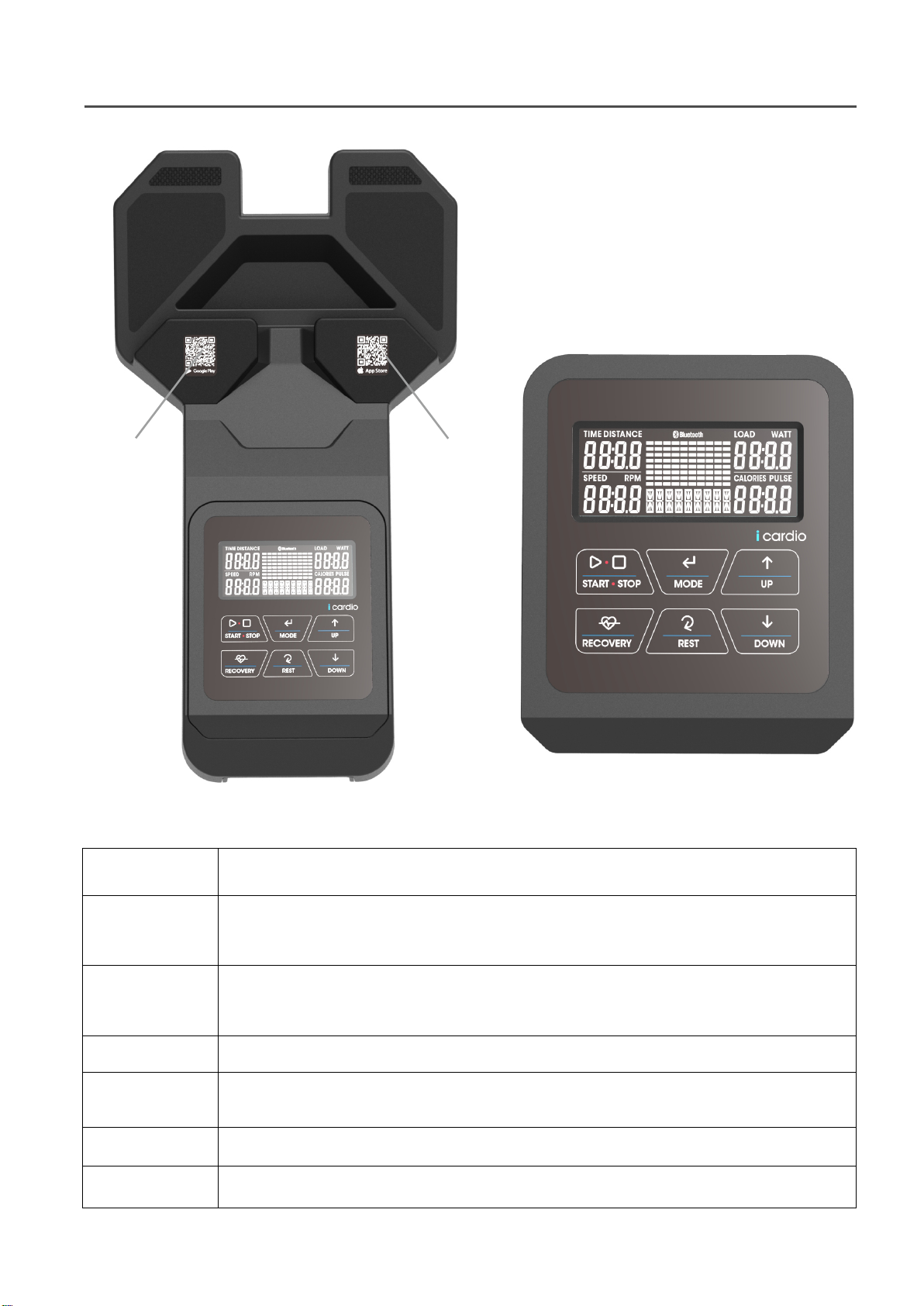

Console Dlsplay

LCD Display

Button’s function

Function Function description

UP (+)

· Adjust value by increasing the value, e.g.: LOAD/WATT/TIME

· Setting selection

DOWN(-) · Adjust value by decreasing the value, e.g.: LOAD/WATT/TIME

· Setting selection

MODE · Conrm setting or selection.

RESET ·Press and hold for 2 seconds, console will reboot

· Reverse to main menu during pause mode.

START/STOP · Start or Stop workout.

RECOVERY · Test heart rate recovery status.

Function

Function description

· SPEED

· RPM

· TIME

· DISTANCE

Display Function

· CALORIES

· WATT

· PULSE

· U1~U4

· MANUAL

· WATTS

· H.R.C

· USER

· PROGRAM

· Resistance

Display

range

1~16.

OPERATION PROCEDURE

POWER ON

Plug

in power supply(or press and hold RESET KEY for 2 seconds), console will power on and display

all segments on LCD for 2 seconds (Drawing 1).

Drawing 1 Drawing 2

LCD will display Wheel diameter and Metric (KM or ML) for 1 second (Drawing 2), the resistance

returns to LOAD=1.

Display current training speed.

Display range 0.0 ~ 99.9.

Display the Rotation Per Minute.

Display range 0 ~ 999.

Display time.

Display range 0:00 ~ 99:59

Display accumulates total distance

Display range 0.0 ~ 99.9

Display accumulates calories consumption during training

Display range 0 ~ 9999.

Display current workout watts.

Display range 0~999.

Display user’s pulse.

Display

range0-30~230.

U1~U4 user prole setting：

Gender：male/female

Age(A)：1~99 (default value 25)

Height(H) 100~200 (default value 160(cm)

Weight(W)：20~150 (default value 50kg)

Manual mode workout.

Watts mode, the resistance will change according to Target Watts/RPM.

Target HR training mode. The resistance will vary according to Target HR.

User creates resistance level prole. Four in total.

12 PROGRAM selection.

Bluetooth Connection

Drawing 3 Drawing 4

Drawing 5

Drawing 7

Drawing 6

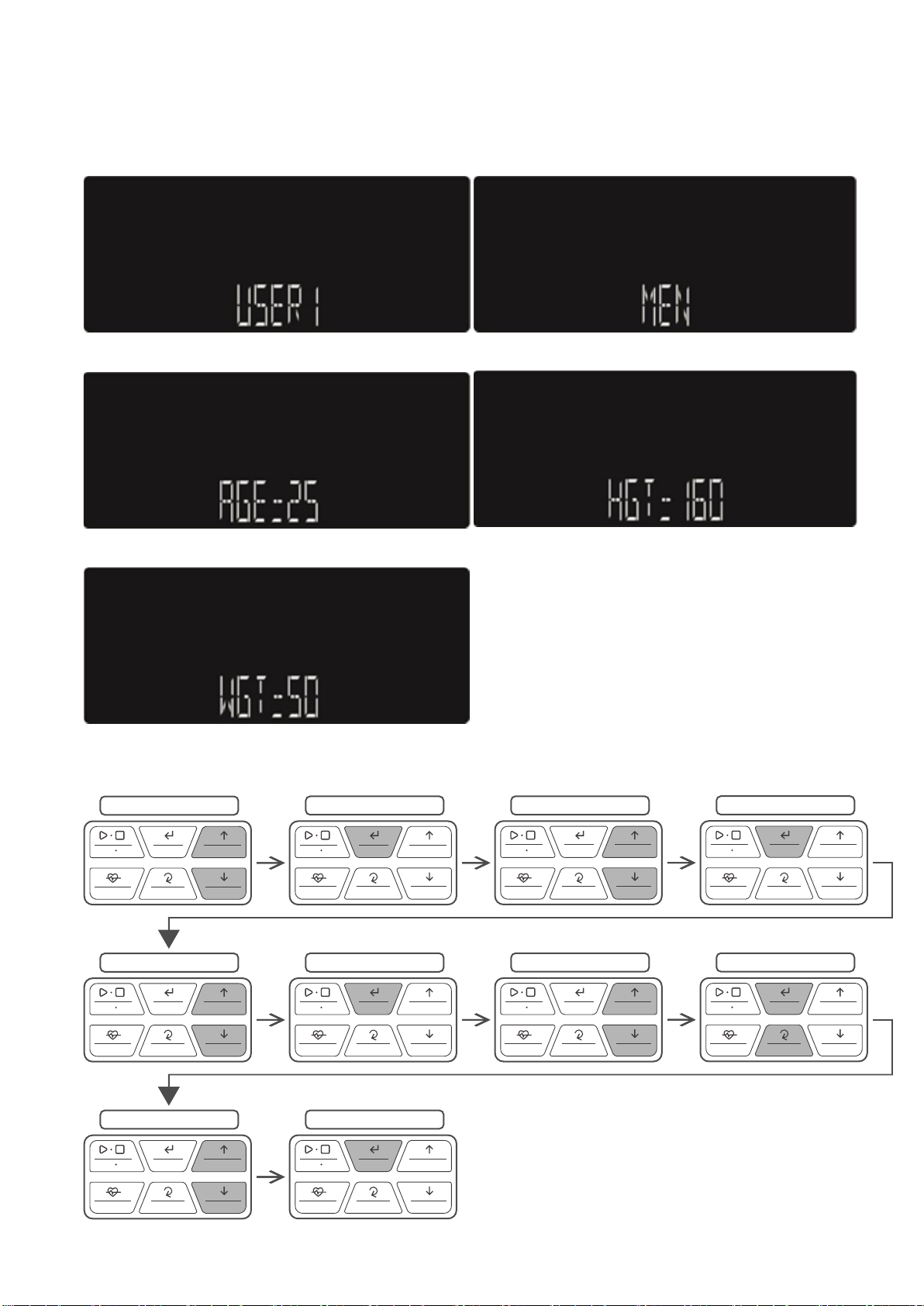

WORKOUT SELECTION

The console will then enter USER setting, the user can select from U1~U4(drawing 3), then select

SEX,AGE,HEIGHT,WEIGHT(drawing 4~7), then enter WORKOUT SELECTION (drawing 8).

RECOVERY

START STOP

REST

MODE

DOWN

USER SELECT

RECOVERY

START STOP

REST

MODE

DOWN

RECOVERY

START STOP

REST

MODE

DOWN

SEX SELECT

RECOVERY

START STOP

REST

MODE

DOWN

RECOVERY

START STOP

REST

MODE

DOWN

AG SELECT

RECOVERY

START STOP

REST

MODE

DOWN

RECOVERY

START STOP

REST

MODE

DOWN

RECOVERY

START STOP

REST

MODE

DOWN

RECOVERY

START STOP

REST

MODE

DOWN

RECOVERY

START STOP

REST

MODE

DOWN

PRESS MODE PRESS MODE

PRESS MODE

PRESS MODEHEIGHT SELECT

WEIGHT SELECT
