Spectra Logic Spectra 10000 User manual

Spectra®4000-10000

Unified Control Module (UCM) Board

Replacement Guide

Notices

EXCEPT AS EXPRESSLY STATED HEREIN, SPECTRA LOGIC CORPORATION MAKES AVAILABLE

ITS PRODUCTS AND ASSOCIATED DOCUMENTATION ON AN “AS IS” BASIS, WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED

TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL SPECTRA LOGIC BE LIABLE FOR ANY LOSS OF

PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS, OR FOR

INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND, EVEN IF

SPECTRA LOGIC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING

FROM ANY DEFECT OR ERROR.

Information furnished in this manual is believed to be accurate and reliable. However, no responsibility

is assumed by Spectra Logic for its use. Because of continuing research and development, Spectra Logic

may revise this publication from time to time without notice, and reserves the right to change any

product specification at any time without notice.

Some products or services mentioned in this manual are provided by companies other than Spectra

Logic. Inquiries about one or more of these products or services should be sent directly to the company

in question. This manual refers to the following brand or product names, registered trademarks, and

trademarks that are listed according to their respective owners. These trademarks may be registered in

this country, other countries, or both.

Spectra Logic Corporation

Spectra 4000TM

Spectra 5000TM

Spectra 5100TM

Spectra 9000TM

Spectra 10000TM

Spectra® 4000-10000 Unified Control Module (UCM) Board Replacement Guide

Contents

Introduction ................................................................................................ 6

Powering Down the Library ....................................................................... 8

Removing the Library Cover....................................................................... 9

Removing the UCM Board in Spectra 4000-9000 Libraries ..................... 10

Removing the UCM Board in the Spectra 10000 Library ........................ 13

Replacing the UCM Board in Spectra 4000-9000 Libraries...................... 17

Replacing the UCM Board in the Spectra 10000 Library......................... 19

Finish......................................................................................................... 22

Spectra® 4000-10000 Unified Control Module (UCM) Board Replacement Guide

Introduction

About this guide

This guide describes the procedure for replacing the Unified Control Module (UCM)

board assembly. This information is applicable to Spectra 4000, Spectra 5000, Spectra

5100, Spectra 9000, and Spectra 10000 tape libraries.

You will need:

A UCM Board Replacement Kit is needed to install a new UCM board into a Spectra

4000-10000 Tape Library. These kits are available from Spectra Logic, or an authorized

Spectra Logic reseller.

The UCM Board replacement kit has the following part numbers and contents:

4000: Part Number 90841600

• Replacement UCM Board

• Anti-Static Strap

5000: Part Number 90842002 (UCM-1)

• Replacement UCM Board

• Anti-Static Strap

5100: Part Number 90842003 (UCM-2)

• Replacement UCM Board

• Anti-Static Strap

9000: Part Number 90849009

• Replacement UCM Board

• Anti-Static Strap

10000: Part Number 92848052

• Replacement UCM Board

• Anti-Static Strap

Spectra® 4000-10000 Unified Control Module (UCM) Board Replacement Guide

You will also need:

• A #1 Phillips screwdriver

• A #2 Phillips screwdriver

• A flat head screwdriver

Time required:

This procedure should take less than one hour.

Spectra® 4000-10000 Unified Control Module (UCM) Board Replacement Guide

Powering Down the Library

Shut off all Power to the Library

1. Shut down the host system and switch off the power. Switch off the library power.

2. Remove the library’s AC power cord from the AC power outlet.

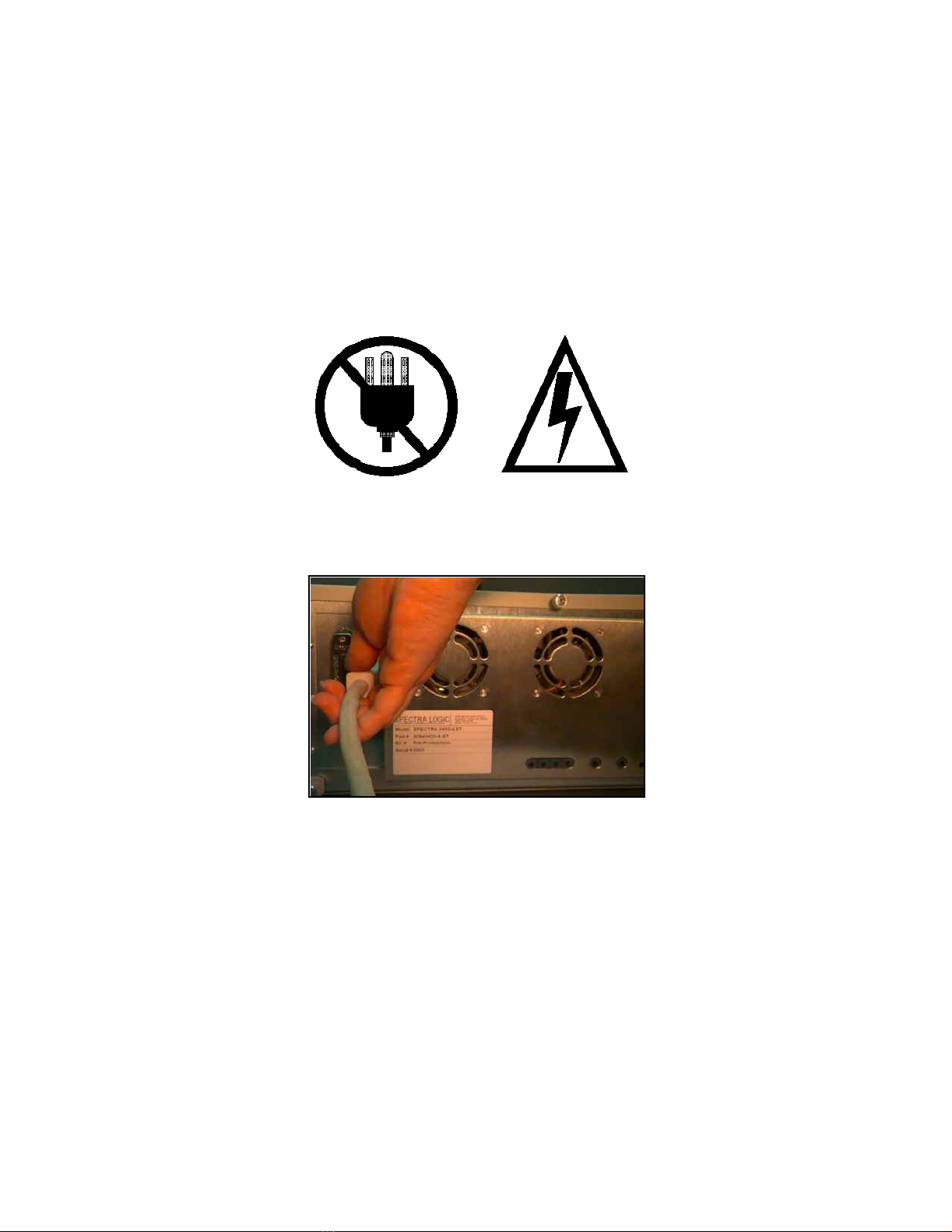

3. Carefully remove SCSI cable connections from the back of the library (Figure 1).

Figure 1 Remove SCSI cable.

Spectra® 4000-10000 Unified Control Module (UCM) Board Replacement Guide

Removing the Library Cover

1. Using the flat head screwdriver, loosen the three thumbscrews (four screws if it is a

vertical unit) which secure the library’s cover (Figure 2).

2. Slide the library cover back one half-inch away from the front panel to release the

cover’s side clips (Figure 3). Lift the cover off the library (Figure 4) and set it aside.

Figure 2 Remove thumbscrews.

Figure 3 Slide the cover back.

Figure 4 Lift the cover.

Spectra® 4000-10000 Unified Control Module (UCM) Board Replacement Guide

Removing the UCM Board in Spectra 4000-9000 Libraries

1. Locate the UCM board inside the library (Figure 5).

Caution: The UCM board is an Electrostatic Sensitive Device (ESD). Use

the static strap enclosed with the Spectra Logic UCM

replacement kit while handling assemblies inside the library.

Connect the static strap to your wrist and to the edge of the

library chassis to ensure a ground connection

2. Disconnect the gray SCSI ribbon cables from the drive(s).

3. Release the connector eject latches and remove the grey SCSI ribbon cable from the

UCM board (Figure 6).

Figure 5 UCM board location.

Figure 6 Connector eject latches.

Spectra® 4000-10000 Unified Control Module (UCM) Board Replacement Guide

4. Using the #1 Phillips screwdriver, unscrew the two captive screws on the bottom of

the UCM bracket (Figure 7).

5. Remove the UCM assembly (board and bracket) by gently lifting it straight up and

out of the library.

6. Use a #1 Phillips screwdriver to remove the two screws attaching the UCM bracket

to the UCM board (Figure 8).

Note: Previous product releases use an earlier version of the UCM

bracket. Use the new bracket shipped with the replacement part.

7. Remove the UCM board from the library.

Figure 7 Remove the two captive screws on the

UCM bracket.

Figure 8 Remove the screws attaching the UCM

bracket to the UCM board.

Spectra® 4000-10000 Unified Control Module (UCM) Board Replacement Guide

8. As soon as possible after removal, place the old UCM board into the anti-static bag

in which the new UCM board assembly was shipped.

Caution: Continue to keep the anti-static strap attached to your wrist and

to the library at all times while handling the UCM board.

9. Proceed to Replacing the UCM Board in Spectra 4000-9000 Libraries on page 17 to

continue the installation of the new UCM board.
