SPALDING 89231CA User manual
111/06 ID# M890031
IMPORTANT!
To ensure prompt and correct handling of any problems, or to answer any questions, please
contact the Sample and Display Technician at 1-800-558-5234.
DisplaySystem
OwnersManual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
Model
89231CA
7/16"
REQUIRED TOOLS AND MATERIALS:
• 2 Capable Adults
• 2 Stepladders
• Phillips Screwdriver
• (2 each) Wrenches and/or
Socket Wrenches and
Sockets.
1/2" 9/16"
7/16" 1/2" 9/16"
AND/OR
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO PROPERTY.
WARNING!
© COPYRIGHT 2006 by SPALDING
ID# M890031 11/06 2
IMPORTANT!
Remove all contents from boxes.
Be sure to check inside pole sections;
hardware and additional parts are packed inside.
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY
RESULT IN SERIOUS INJURY,
PROPERTY DAMAGE AND WILL VOID WARRANTY.
This unit is intended for display purposes only and
should not be used for play.
To ensure safety, do not attempt to assemble this system without
following the instructions carefully. Check entire box and inside all
packing material for parts. Before beginning assembly, read the
instructions and identify parts in this document. Proper and
complete assembly, use and supervision is essential for proper
operation and to reduce the risk of accident or injury. A high
probability of serious injury exists if this system is not installed,
maintained, and operated properly.
• During assembly, if using a ladder use extreme caution. Two
capable adults are recommended for this operation.
• If technical assistance is required, contact the Sample and Display
Technician.
• Serious injury could occur if teeth/face come in contact with
backboard, net or rim.
• Display recommended for 2-3/4”” ( cm) or 3-1/2” (9 cm) Round
or 4” (10 cm) Square poles only.
• All instructions and warnings MUST accompany any display item
that is sold.
Most injuries are caused by misuse and/or not following
instructions. Use caution when installing this unit.
311/06 ID# M890031
PARTS LIST (See Hardware Identifier)
Item #17 (2)
HARDWARE IDENTIFIER (Nuts, Washers & Springs)
Item #9 (8)
Item #11 (10)
Item Qty. Part No. Description
1 2 200318 Bracket, Reinforcement S/J
2 2 203223 Bolt, Carriage, 5/16-18 x 1"
3 2 908379 Board Bracket
4 2 200533 Spacer, Mounting
52** 990062 Pole, 3.5"
6 1 908378 Rim
7 8 201611 Bolt,Hex-Flange, 5/16-18 x 3"
8 4 205544 Bolt, 5/16-18 x 1.25"
9 8 203063 Lock Nut, 3/8-16 Nylon Insert
10 2 ** 912006 Extension Arm
11 10 203100 Nut, Hex-Flange 5/16-18 Whiz Lock
12 3 206987 Wedge
13 4 203294 Bolt, U, Round, 3/8-16 x 3.5"
14 4 203309 Washer
Item Qty. Part No. Description
15 2 203470 Washer, Flat, S/J
16 2 203472 Spring
17 2 203795 Nut, 3/8-16 Special S/J
18 2 203796 T-bolt, 3/8-16 x 5"
19 3 203798 Bolt, Hex 5/16-18 x 1.5"
20 3 204290 Net
21 2 Rim
22 2 ** 207103 Pole Cap, 3.5"
23 2 900033 Bracket, S/J
24 1 FR908359 Pole, 2.75"
25 1 909271FR Board, 44" Rectangular, Ball on Court
26 1 919246FR Board, 44", Traditional NBA, Brown
27 1 979281FR Board, 50" Polycarbonate, Blue
** EXISTING COMPONENTS
Item #7 (8)
Item #18 (2)
Item #16 (2) Item #15 (2)
Item #14 (4)
Item #19 (3)
Item #2 (2) Item #8 (4)
HARDWARE IDENTIFIER (Bolts and Screws)
ID# M890031 11/06 4
Install display boards in the marked locations. Each mounting location consists of a mounting pole stub with
the following dimensions: Height = 8”, O.D. = 3 3/8”, I.D. = 3 1/8” (arrows indicate direction the board is
facing).
Display boards will be mounted as follows:
Corner Location 1: 66281CA
•50” Polycarbonate Backboard
•Blue Graphic
•Black Slam Jam Rim
•Use extension arm for assembly
Corner Location 2: 77271CA
•44” Rectangle Recycled Board
•Basketball on Court Graphic
•Black Slam Jam Goal
•Use extension arm for assembly
Corner Location 3: 65246CA
•44” Trapezoidal Recycled Board
•Evolution Logo
•Black Standard Goal
•Gooseneck Pole System
Corner Location 4: Open - No Board
CORNERCORNER
4
1
CORNERCORNER
2
3
66281CA
3-1/2"
Open - No Board
3-1/2"
77271CA
3-1/2"
65246CA
3"
511/06 ID# M890031
1.
A
At corner location 3: remove the current 3"
display pole from the mounting stub.
Then, still at corner location 3, slide the 2.75” diameter pole
end of the display pole (24) inside the moiunting stub.
Secure the display pole by sliding the display wedges (12) into
position as shown. To lock the display pole in place,
tighten the hex-bolts (19). 24 24
12
19
12
12
19
19
CORNERCORNER
4
1
CORNERCORNER
2
3
CORNERCORNER
4
1
CORNERCORNER
2
3
1.
B
Corner Location 3: REPLACE POLE
ID# M890031 11/06 6
1.
2.
Corner Location 1: STEEL FRAME ACRYLIC BACKBOARD ASSEMBLY
27
7
23
Insert “T” bolt (18) through Slam Jam bracket (23) as shown.
Secure Slam Jam bracket (23), extension arm (10) and
mounting spacers (4) assemblies to backboard using bolt (7 )
and nut (11) as shown.
Display Stand - Top View 11
18
27
9
13
Attach board assembly to pole.
** (Use existing extension arm (9) and pole cap (22) on
current display).
44
10
22
TWO CAPABLE ADULTS
REQUIRED FOR THIS
PROCEDURE. FAILURE TO
FOLLOW THIS WARNING COULD
RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
WARNING!
11
9
9
CORNERCORNER
4
1
CORNERCORNER
2
3
66281CA
3-1/2"
Open - No Board
3-1/2"
77271CA
3-1/2"
65246CA
3"
711/06 ID# M890031
1
17
15
16
21
23
18
• Fit rim (21) securely into bracket (23) as shown.
• Install reinforcement bracket (1) onto “T” bolt (18) as shown.
• Install spring (16) onto “T” bolt (18) as shown.
• Install special nut (17) and washer (15) onto “T” bolt (18).
3.
4.
Peel protective
film from surface
of acrylic
backboard prior to
use.
NOTE:
Tighten nut (17) until flush
with end of "T" bolt (18) as
shown here.
NOTE:
OUTSIDE VIEW
B.
D.
C.
A.
21 20
Install net (20) as shown.
ID# M890031 11/06 8
Corner Location 2: 48” SQUARE MOLDED PLASTIC BOARD ASSEMBLY
1. Insert “T” bolt (18) through Slam Jam bracket
(23) as shown.
Secure Slam Jam bracket (23) and extension
arm (10) to backboard using bolt (7) and nut
(11) as shown.
Tighten completely.
25
23
11
7
18
10
18
25
9
9
9
13
2.Attach board assembly to pole.
** (Use existing extension arm (9) and
pole cap (22) on current display).
22
TWO CAPABLE ADULTS
REQUIRED FOR THIS
PROCEDURE. FAILURE TO
FOLLOW THIS WARNING COULD
RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
WARNING!
7
CORNERCORNER
4
1
CORNERCORNER
2
3
66281CA
3-1/2"
Open - No Board
3-1/2"
77271CA
3-1/2"
65246CA
3"
Display Stand - Top View
911/06 ID# M890031
3. • Fit rim (21) securely into bracket (23) as shown.
• Install reinforcement bracket (1) onto “T” bolt (18) as shown.
• Install spring (16) onto “T” bolt (18) as shown.
• Install special nut (17) and washer (15) onto “T” bolt (18).
1
17
15
16
21
23
18
Tighten nut (17) until
flush with end of
"T" bolt (18) as
shown here.
NOTE:
OUTSIDE VIEW
B.
D.
C.
A.
21 20
4. Install net (20) as shown.
ID# M890031 11/06 10
1.

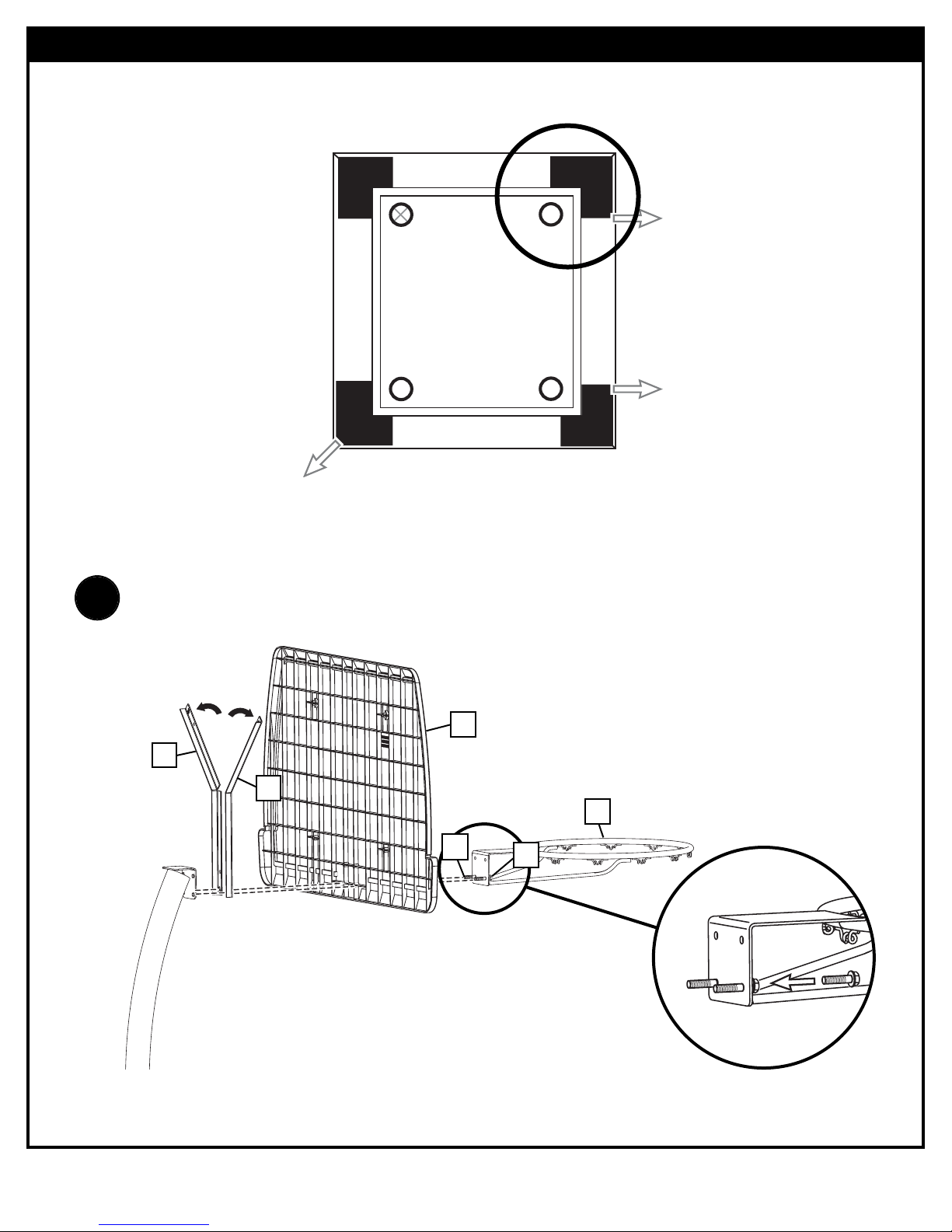

Corner Location 3: 44" TRAPEZOID MOLDED PLASTIC BOARD ASSEMBLY
Display Stand - Top View
Attach rim (6), backboard (26) and support brackets (3) to the mounting pad on the top pole using the
bottom rim mounting bolts (8) as shown.
36
8
8
3
26
CORNERCORNER
4
1
CORNERCORNER
2
3
66281CA
3-1/2"
Open - No Board
3-1/2"
77271CA
3-1/2"
65246CA
3"
