SOUNDMASTER UR2170 User manual

UR2170 / English Instruction Manual

General Description

•DAB/FM Digital Tuning System (20DAB+20FM Preset Stations by manual)

•AMS function (Automatic Memory System) （30DAB+30FM Preset Stations）

•RDS feature provide radio station name display & automatic time up-date

•CD|MP3|WMA and USB playback function provided

•Precise crystal is used for system operation

•Real time clock display with day-flag

•12|24 Hour clock display

•Built in calendar with auto leap year handling within 2000-2099

•4 mode dual alarms can be set to daily, weekday, week-end and single day independently

•Alarm output can be set to CD, DAB, FM or Buzzer sound

•Automatic or Manual search and Up, Down features are provided

•Electronic Volume Control (32 level )

•Back light with high-low dimmer

•Automatic change to standby mode after 15 minutes if not any sources playing.

•5 Preset EQ (Flat, Rock, Classic ,Jazz ,Pop)

•Radio Frequency range:

oFM: 87.5 ~ 108.0 MHz , 50 kHz | Step

oDAB Band III 174.928-239.2 MHz

•

CD playback function provided incl. below feature:

•CD Disc & MP3 Disc & WMA Disc

CD Disc

•Programmable Memories: (Max. 32 tracks)

oMP3 | WMA Disc

•Pre-Memories: Max. 99 tracks)

•8cm&12cm CD-R, CD-RW, Unclosed, Multi-Session, Mix Mode (CDDA only)

•High Speed Search for Pick-up

•Play, Pause, Fast Forward and Fast Backward Playback

•Repeat one / Repeat all /Repeat Folder/Random Playback

•USB Mode

Pro Memories: (Max. 99 tracks)

UR2170 / English Instruction Manual

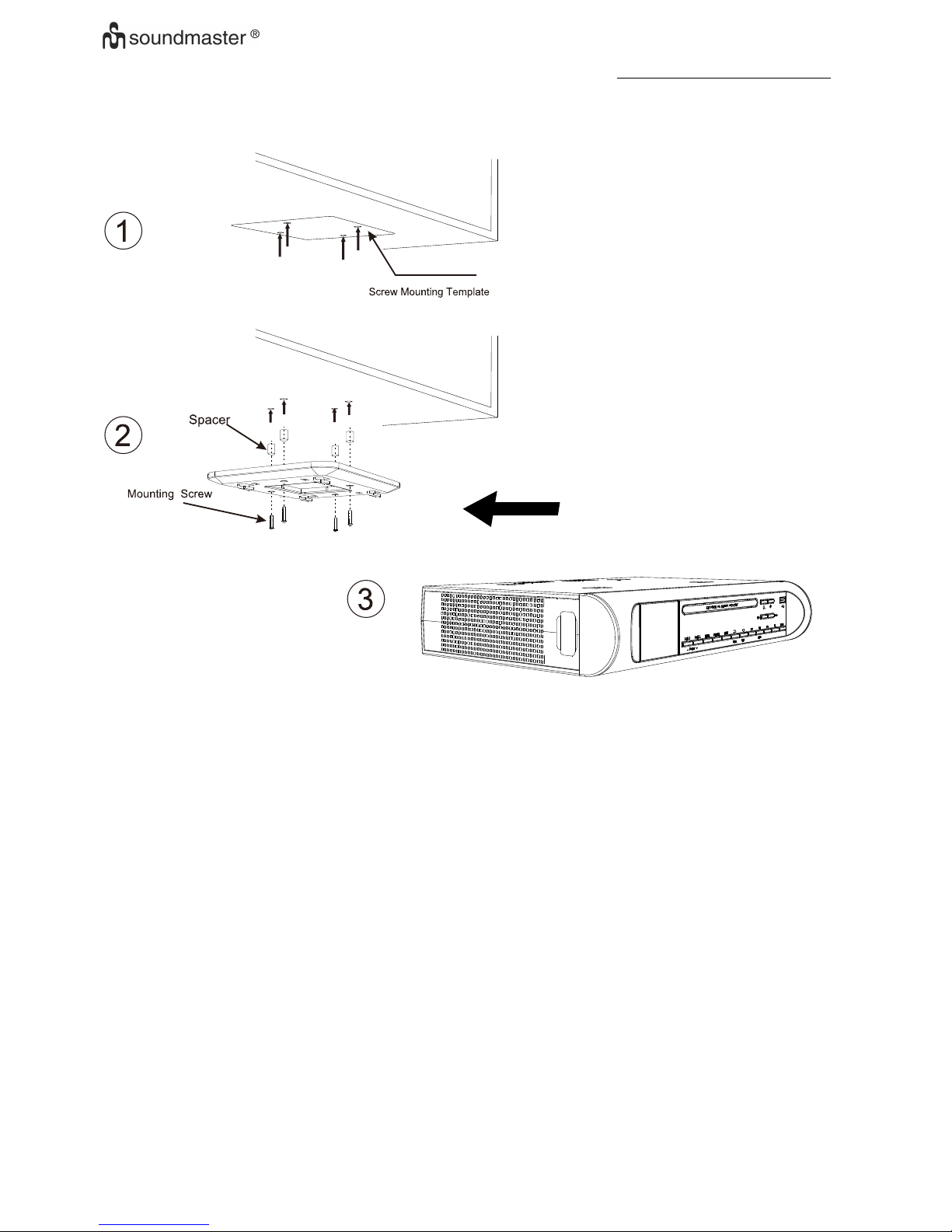

Assembly Drawing

Install the unit as below 3 steps:

1) Place the mounting/drill template under the cabinet with tape, so the unit will be located

where you want to and drill four holes with diameter 1/16 inch drill bit.

2) Fasten the screw as the above drawing with supplied Spacer+ mounting bracket+ long

screw or mounting bracket + short screw

3) Buckle the unit to the mounting bracket

Warning: To prevent damage, do not place any heating or cooking appliance beneath

the unit, install the unit as far as possible from a source of noise such as fridge,

microwave oven etc.

UR2170 / English Instruction Manual

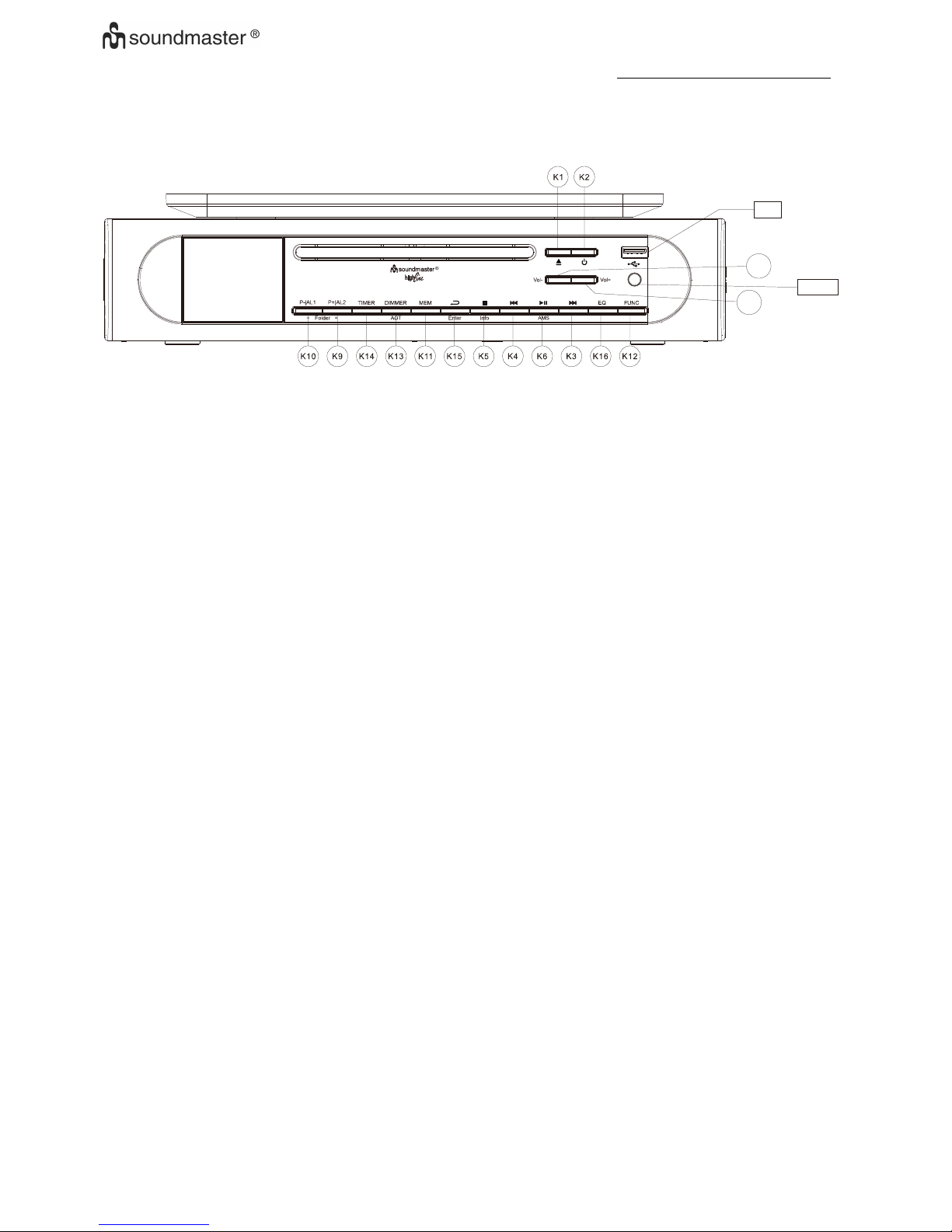

Key List

K I T C H E N C D R A D I O S Y S T E M

USB

Re mote

K-1. Power: Device power On | Off

K-2. Open : Control of CD tray to open or close

K-3. UP | FF：Tune up Radio station and forward of CD playback at that mode

K-4. DOWN|RW：Tune down Radio Station and backward of CD play back at that mode

K-5. Stop.| Info Mode set and Stop of CD/USB playback ,

press to show information of station

K-6. AMS| Pause |Play：AMS( Auto Memory Setting for radio station ) , Play & Pause of CD/USB

play back at that mode

K-7. VOL+：Volume increase

K-8. VOL-：Volume decrease

K-9. Preset | Folder+/AL1：Call back preset station for up/Review alarm at standby mode

K-10. Preset | Folder-/AL2：Call back preset station for down/ Review alarm at standby mode

K-11. MEM：Station Memory entry/ Preset Station review

K-12. function：DAB、FM 、CD、USB selector

K-13. Dimmer/AOT：Display backup light level control/ Automatic OFF Timer

K-14. Timer: Operate for timer function

K-15. Enter: Function Setup | Exit Setting, Enter or Confirm

K-16. EQ: EQ(Flat | Rock | Classic | Jazz | Pop)

Getting start

Power Up

oWhen device connect to power and it’s powered up first time, Automatic update function will

start automatically and scrolling text “Update, Please Wait ” is display on LCD, it’s may need

few minutes depends signal strength and device working environment , when signal was

received, the right time should be display on LCD accordingly. To terminate it, press any key

during the period

oWhen the automatic system setting had been terminate by user or update un-succeed, the

date and clock are defaulted to 01.01.2014 , 0:00

oThe all alarms are defaulted to 0:00

oThe unit is switched to clock auto-run mode

oDefault back light automatically set to dim from 23:00 to 05:59

UR2170 / English Instruction Manual

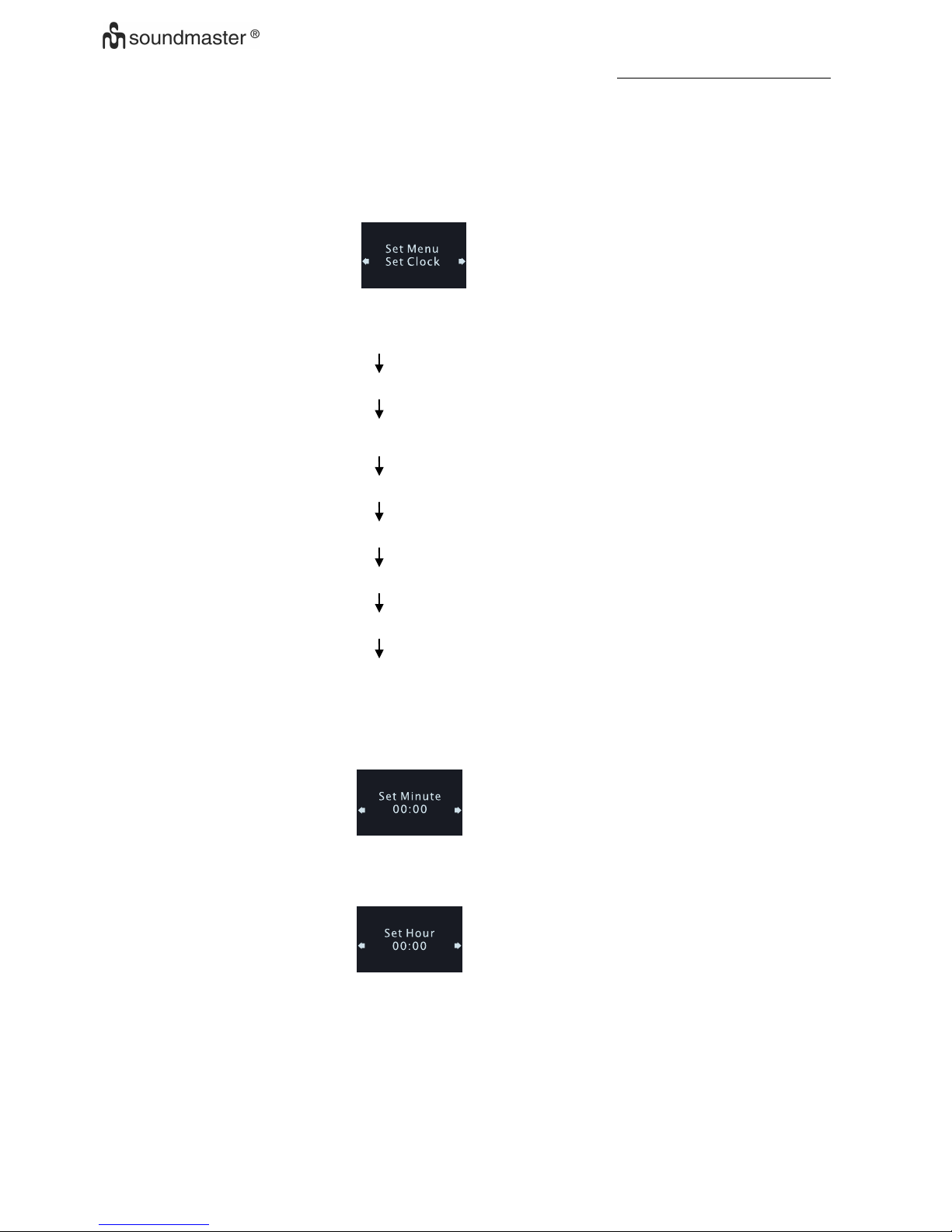

Setup Device

When Auto-Run Mode, Press <INFO> once will entry to setting mode, the LCD display should be show as

below:

Use <UP> or <DOWN> go to different mode sequentially as below

Device running as auto-run

Set Clock

Set the Calendar

Set the SDA

Set 12/24 hour

Set Alarm

Auto Dimmer

Factory Reset

Set the clock

•Press <UP> or <DOWN> to select 'Set Clock' when set menu mode

•Press <enter> to enter Set Clock and display will show as below

•Press <UP> or <DOWN> to set value of minutes.

•Press <enter> to Confirm minute Set and enter set hour mode, display show as below

•Press <UP> or <DOWN> to set value of hours.

•Press <Enter> to Confirm hour value and return to set menu

UR2170 / English Instruction Manual

Setup Calendar

•

Press <UP> or <DOWN> to select 'Set Calendar' when set menu mode.

•

Press <Enter> to setup value of calendar.

•

Press <UP> or <DOWN> to set value of dates.

•

Press <enter> to Confirm date value and enter to month selection, display show as

below.

•

Press <UP> or <DOWN> to select value of months.

•

Press <enter> to Confirm it and enter to setting up year value, display show as below

•

Press

> or <

DOWN

to select value of years, once it’s meeting right value, press

<Enter> confirm and return to setup Manu

Set the SDA

•

Press

> or <

DOWN

to set SDA when device stay on setting menu mode.

•

Press <enter

to enter set SDA timer

•

There are total 10 SDA timers for select .

•

Press

> or <

DOWN

to select number of SDA.

•

Press <enter> to confirm selected timer and enter to set up it

•

Press

> or <

DOWN

to set value of date.

•

Press <enter> to Confirm date and enter set month mode.

UR2170 / English Instruction Manual

•

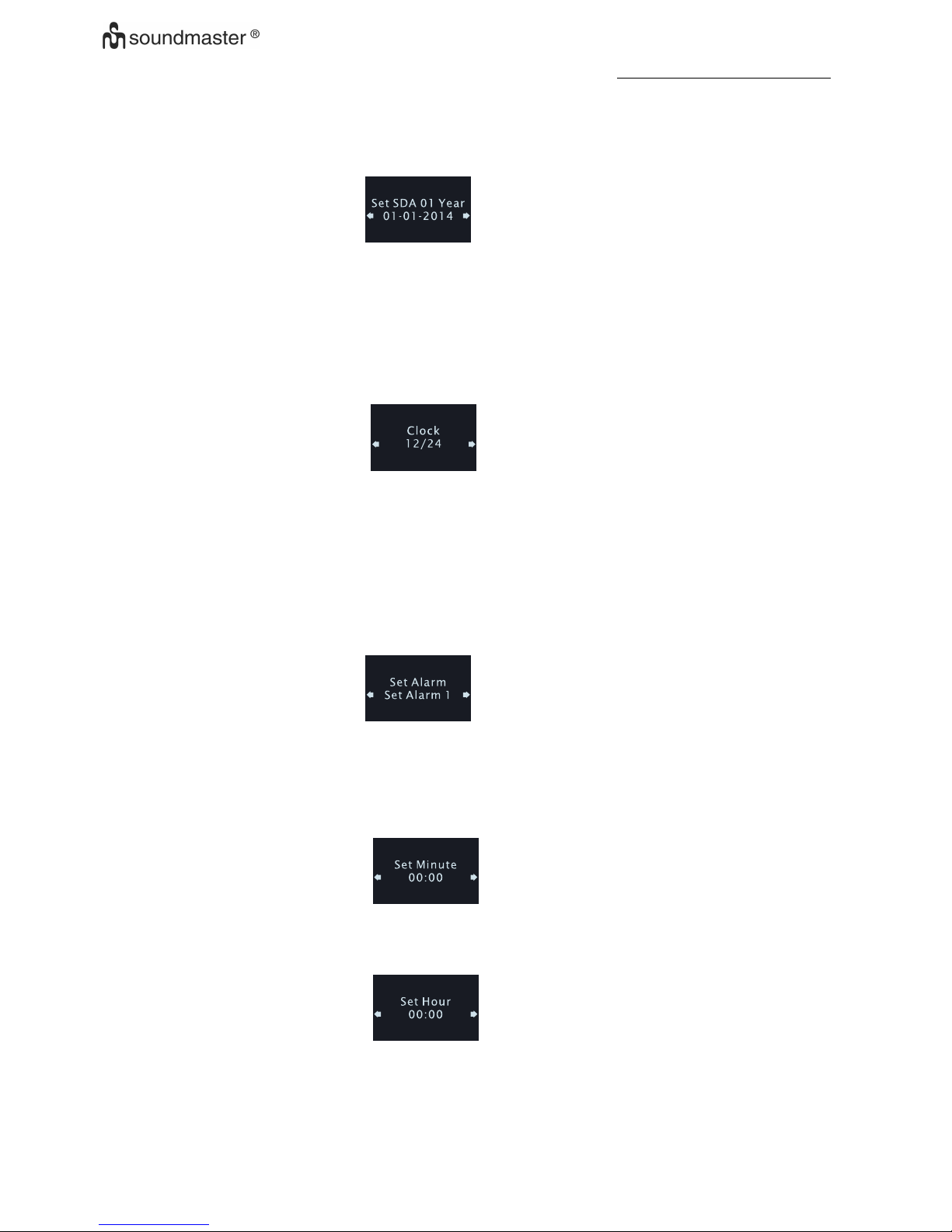

Press <UP> or <DOWN> to set value of month.

•

Press <enter> to Confirm month and enter set year mode.

•

Press

> or <

DOWN

to set value of year.

•

Press <enter> to Confirm year and return to set menu.

Select Clock format which 12 or 24

•

Press <UP> or <DOWN> to select 12/24 hour format when set menu mode, display

show as below:

•

Press <enter> to enter set 12/24 hour format

•

Press <UP> or <DOWN> to select 12 or24 hour format.

•

Press <enter> to Confirm select and return to set menu.

Setup the alarm

•

Press <UP> or <DOWN> to select 'Set Alarm' when stay on the setting menu display

show as below :

•

Press <enter> to enter to be start setup alarm :

•

Press <UP> or <DOWN> to select number of alarm.

•

Press <enter> to confirm selected number and enter to Minute of alarm selection, display

show as below

•

Press <UP> or <DOWN> to setup value of minute for alarm.

•

Press <enter> to confirm minute and enter to hour of alarm selection, display show as below

UR2170 / English Instruction Manual

•

Press <UP> or <DOWN> to set value of hour for alarm

•

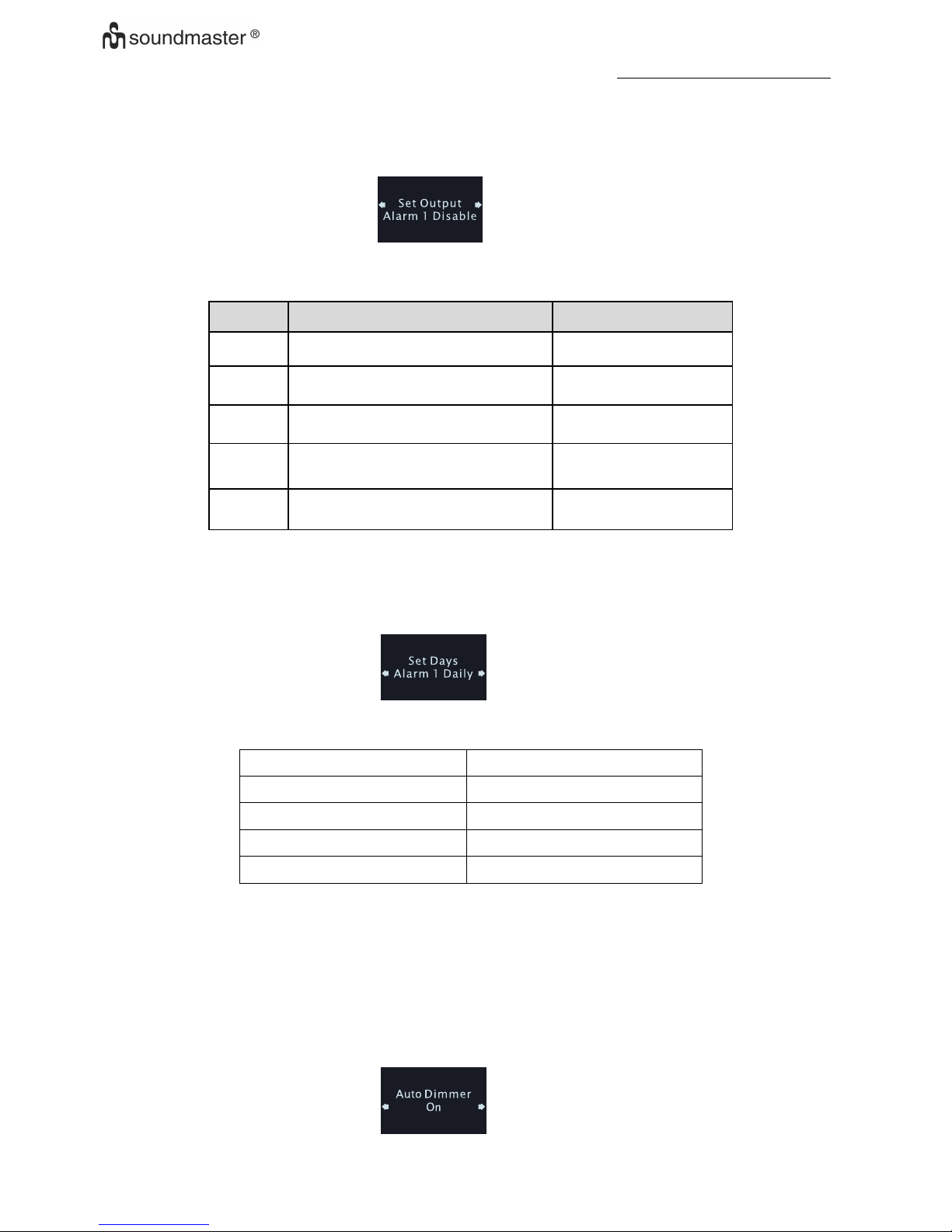

Press <enter> to confirm selected hour value and enter to select output of alarm active:

•

there are five kinds of choices, it is respectively as table 1

Kinds Means Alarm duration time

Disable Alarm is disable (default)

DAB DAB sound for alarm active

60 minutes

FM FM sound for alarm active

60 minutes

Buzzer Buzzer sound for alarm active

10 minutes

CD CD sound for alarm active

60 minutes

Table (1)

Press <UP> or <DOWN> to select the kind of output, if choose CD output mode, you have to

put the CD into the device, otherwise the alarm by Buzzer will take over

Press <enter> to Confirm it and enter to days selection, display show as below

There are ten kinds of choices, it is respectively as table 2

Table 2

Press <UP> or <DOWN> to select the kind alarm active arrangement

Press <enter> to Confirm the select and return to set menu.

Set Auto Dimmer

•Press <UP> or <DOWN> to select ' Auto Dimmer ' when stay on setup menu stage.

•Press <enter> to enter set auto dimmer and the LCD display screen show as bellow

Kinds Means

Daily Alarm work in every day

Weekday Alarm work in weekday

Weekend Alarm work in weekend

Sun, Mon … Sat Alarm work in one day of week

UR2170 / English Instruction Manual

Press <UP> or <DOWN> to select ON or OFF. Default is On

Press <enter> to Confirm selection and return to set up menu.

When you choose On, the default back light automatically set to dim from 23:00 to 05:59

When you choose Off, the device won’t dim the back light automatically.

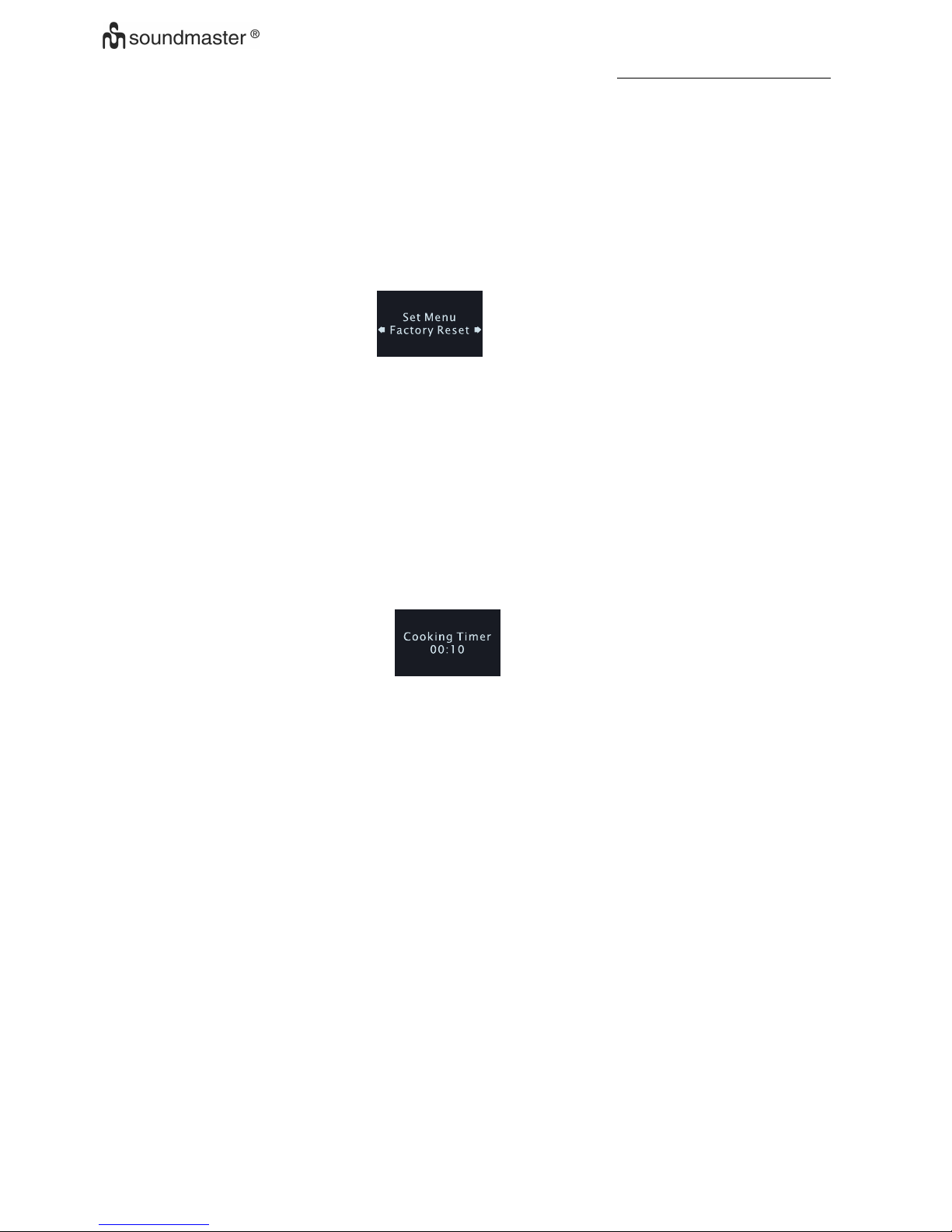

Set factory reset ( Be careful to use this action )

When stay on setup menu and press <UP> or <Down> to select “Factory

Reset”

•Make sure you want delete all setup and reset the device to factory default, Press <enter>

to done it.

Using Device

Once Automatic done or finish all setup, Device ready for use now.

Using Cooking Timer

•Press <Timer> once to entry the timer mode, Display show as below:

•Press <UP> or <DOWN> to choose the five value (00:10 or 00:15 or 00:30 or 00:40 or

1:00) , press <Timer> to start counting.

•press <preset +> or <preset -> to choose the ten value(00:10 /00:15 / 00:30 / 00:40 /

1:00/01:10/01:20/01:30/01:40/02:00) , press <Timer> to start counting.

•if you want to set any time you need, press<timer>once, then press <Info> to set minute

by <UP> and <Down>,then press <Enter> to set hour by <UP> and <Down>,then press

<enter> to confirm the set,, press <Timer> to start counting.

•When the timer is running press <Timer> could be pause it or press <Timer> again to

continue.

•Press and hold <Timer> for 2 seconds to terminate the timer and leave, when the timer

is running.

•Beep sound alarm is selected,

a. Sound of beep toggles at the Speaker

b. The duration of alarm is 10 minutes

•Press any key to terminate the currently active alarm.

UR2170 / English Instruction Manual

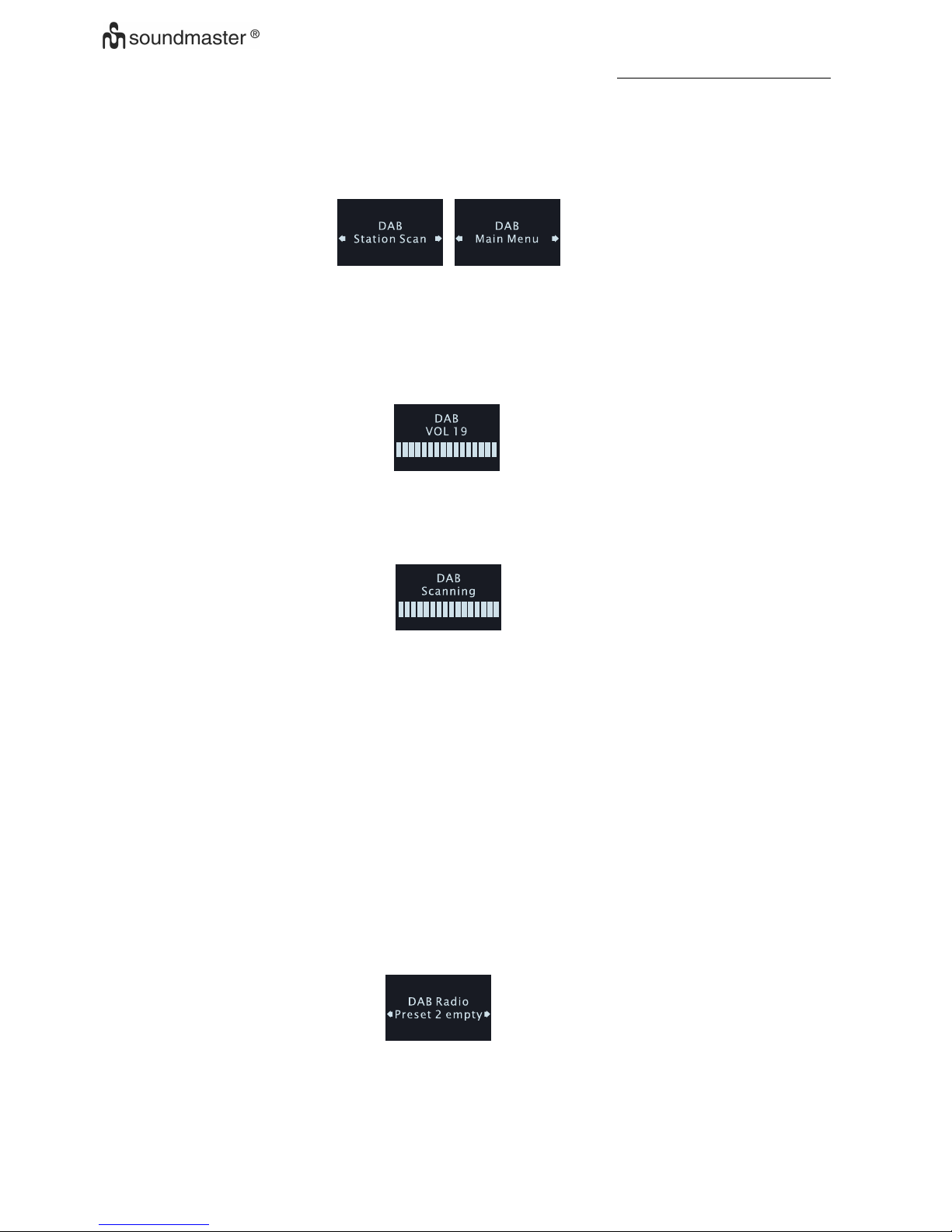

Listen the radio DAB

•

Press <Power> once to turn on the radio.

•

Press <FUNC> to select device work mode to DAB

•

Electronic Volume Control

Press <VOL+ > once, to increase speaker volume by one step. Hold for

continually.

Press <VOL-> once, to decrease speaker volume by one step. Hold for

continually.

•

How to listen DAB station

a. When device first to using DAB , Automatic Scan function will start automatically and

"Scanning” on LCD as below :

b. Till the action finish ,Select DAB station

c. Press <UP> or <DOWN>once to select DAB station list.

d. Press < enter > once to confirm and tune to the station.

e. Store station into preset

f. Press <Preset> once to select location of preset mode.

g. Press <Up> or <Down> to change location.

h. Press and hold < enter > to store value of station into current location.

i. Another way to search stations, In DAB mode, Press and hold <Info> until the display

show “Station scan”, then press <Enter> to choose “Manual tune” from

174.928-239.200 MHz

•

Recall the preset

a. Press <MEM> once to select location of preset mode, display show on below

information

b. Press <Up> or <Down> to change location.

c. Press <Enter> to confirm select and recall the frequency.

UR2170 / English Instruction Manual

•

How to using Auto Scan

a. Press and hold <AMS> for 2 seconds to active about function mode.

b. At the moment, the device will automatically scan the DAB station and store the

station that had been scanned until scan up all the frequency or stored all the

memory station, it will exit automatically.

•

Review the information of station

a. Press <info> to review information of station.

b. There are Seven kinds of choices, it is respectively:

1. Station frequency and block number

2. Data rate

3. Station RSSI

4. Signal error Rate

5. DLS (Scrolling text)

6. Program type

7. Station name

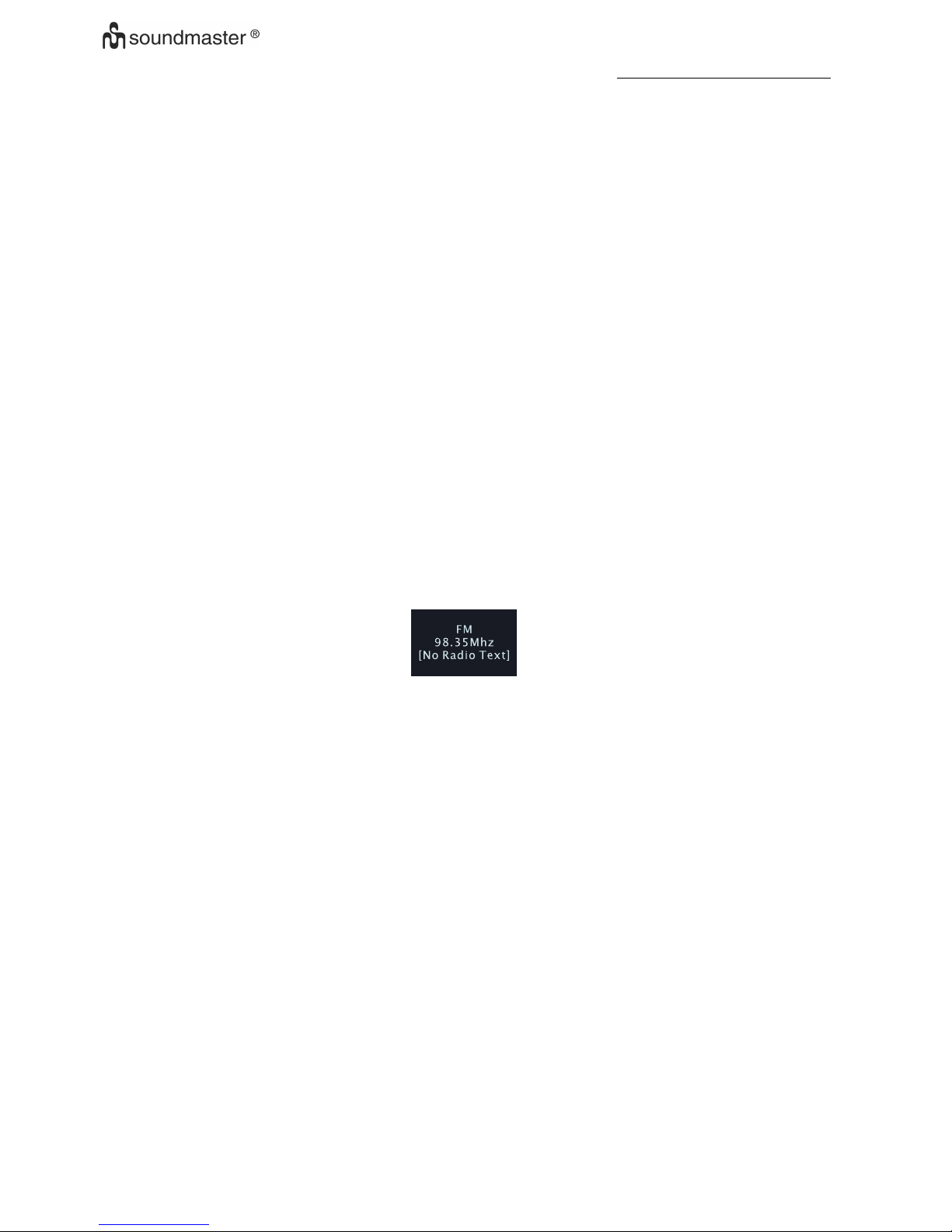

How to Listen FM Radio

Press <Power>key to turn device on, press <Func> select work mode to FM, Display should be show as

below:

•

How to search station

1. When the radio is ON, press <UP> once to change the receiving frequency up by 1 step

2. Press <DOWN> once to change the receiving frequency down by 1 step.

3. Press and hold <UP> to search the next radio station automatically by moving the

receiving frequency up.

4. Press and hold <DOWN> to search the next radio station automatically by moving the

receiving frequency down.

•

How to store station into preset location

1. Press <MEM> once to select location of preset mode.

2. Press <Up> or <Down> to change location.

3. Press and hold < enter > to store value of station into The current location.

•

Recall the presented station

1. Press <MEM> once to select location of preset.

2. Press <Up> or <Down> to change location.

3. Press <enter> to Confirm select and recall the frequency.

Other manuals for UR2170

Table of contents

Other SOUNDMASTER Radio manuals

SOUNDMASTER

SOUNDMASTER SCD 2300 User manual

SOUNDMASTER

SOUNDMASTER UR2170v2 User manual

SOUNDMASTER

SOUNDMASTER DAB112 User manual

SOUNDMASTER

SOUNDMASTER KR4 User manual

SOUNDMASTER

SOUNDMASTER HighLine TR 50USB User manual

SOUNDMASTER

SOUNDMASTER IR1100 User manual

SOUNDMASTER

SOUNDMASTER UR-2020 User manual

SOUNDMASTER

SOUNDMASTER Highline TR 85 User manual

SOUNDMASTER

SOUNDMASTER URD470SW User manual

SOUNDMASTER

SOUNDMASTER highline IR4000WE User manual

SOUNDMASTER

SOUNDMASTER UR-2008 User manual

SOUNDMASTER

SOUNDMASTER WE35 User manual

SOUNDMASTER

SOUNDMASTER NR-965CD User manual

SOUNDMASTER

SOUNDMASTER Highline TR 17 User manual

SOUNDMASTER

SOUNDMASTER UR210 User manual

SOUNDMASTER

SOUNDMASTER SCD1500 User manual

SOUNDMASTER

SOUNDMASTER RCD1755 User manual

SOUNDMASTER

SOUNDMASTER DAB400SI User manual

SOUNDMASTER

SOUNDMASTER Highline TR-18 USB User manual

SOUNDMASTER

SOUNDMASTER UR2195 User manual

SOUNDMASTER

SOUNDMASTER RCD1180 User manual

SOUNDMASTER

SOUNDMASTER UR102 User manual

SOUNDMASTER

SOUNDMASTER TR3 User manual

SOUNDMASTER

SOUNDMASTER NR920DBR User manual

Popular Radio manuals by other brands

EisSound

EisSound KBSound iSelect user manual

Midland

Midland 1001LWX owner's manual

Konig

Konig HAV-SR41 manual

Roberts

Roberts exprssion manual

VDigi

VDigi DD3.0 Operation manual

Radio Shack

Radio Shack 21-1863 owner's manual

Roberts

Roberts Stream 207 instruction manual

Sony

Sony Walkman SRF-M97 Service manual

Stanley

Stanley FatMax FMC770 manual

auna

auna DAB-Radio 10026947 manual

HYT

HYT TC-320 user manual

auna multimedia

auna multimedia Yellowstone 10026851 instructions

B-Tech

B-Tech GMRS-V2 manual

Weierwei

Weierwei VEV-V8 user manual

Telefunken

Telefunken TF-1505 instruction manual

Makita

Makita LXRM03 instruction manual

PRESIDENT

PRESIDENT TEDDY R. owner's manual

FRIENDCOM

FRIENDCOM FC-302V user manual
