Sony WEGA KLV-S23A10 User manual
Ver. DATA CONTENTS
1.0 2005.09 Issue.
1.1 2007.04 The change of parts number and parts list for G3 board. (P. 6-14, P. 7-11 thru
P. 7-18)
Correction and addition of exploded views and parts lists in SEC. 6
EXPLODED VIEWS. (P. 6-9, P 6-11, P. 6-12, P. 6-13, P. 6-14)
MODEL NAME : KLV-S23A10/S26A10/S32A10/S40A10
SERVICE MANUAL
PA RTS No. : 9-878-377-02
MODIFICATION HISTORY
* Blue characters are linking.
SYSSET
2018/07/0310:21:13(GMT+09:00)
SERVICE MANUAL
SPECIFICATIONS
WAX CHASSIS
KLV-S23A10/S26A10/S32A10/S40A10
GA Model
Display Unit
Power Requirements:
110–240 V AC, 50/60 Hz
Screen Size:
KLV-S40A10: 40 inches
KLV-S32A10: 32 inches
KLV-S26A10: 26 inches
KLV-S23A10: 23 inches
Display Resolution (horizontal ×vertical):
1366 pixels ×768 lines
Power Consumption:
KLV-S40A10: 260 W
KLV-S32A10: 170 W
KLV-S26A10: 110 W
KLV-S23A10: 95 W
Standby Power Consumption:
KLV-S40A10: 0.6 W
KLV-S32A10: 0.5 W
KLV-S26A10: 0.5 W
KLV-S23A10: 0.5 W
Dimensions (w ×h ×d):
KLV-S40A10:
Approx. 999 ×740 ×370 mm (with stand)
Approx. 999 ×693 ×103 mm (without stand)
KLV-S32A10:
Approx. 792 ×608 ×309 mm (with stand)
Approx. 792 ×564 ×99 mm (without stand)
KLV-S26A10:
Approx. 658 ×517 ×309 mm (with stand)
Approx. 658 ×474 ×90 mm (without stand)
KLV-S23A10:
Approx. 566 ×448 ×218 mm (with stand)
Approx. 566 ×411 ×89 mm (without stand)
Weight:
KLV-S40A10:
Approx. 33 kg (with stand)
Approx. 26.5 kg (without stand)
KLV-S32A10:
Approx. 19.8 kg (with stand)
Approx. 16 kg (without stand)
KLV-S26A10:
Approx. 16.3 kg (with stand)
Approx. 12.5 kg (without stand)
KLV-S23A10:
Approx. 12.7 kg (with stand)
Approx. 9.1 kg (without stand)
LCD Color TV
SYSSET
2018/07/0310:21:13(GMT+09:00)
KLV-S23/S26/S32/S40A10 (GA) 2
Channel Coverage
B/G
VHF:E2 to E12 / UHF: E21 to E69 /
CATV:S01 to S03, S1 to S41
VHF:0 to 12,5A, 19A / UHF: 28 to 69 /
CATV:S01 to S03, S1 to S41(Australia only)
VHF:1 to 11 / UHF: 21 to 69 /
CATV:S01 to S03, S1 to S41(New Zealand only)
I
UHF: B21 to B68 / CATV:S01 to S03, S1 to S41
D/K
VHF: C1 to C12 / UHF: C13 to C57, R21 to R60 /
CATV:S01 to S03, S1 to S41, Z1 to Z39
M
VHF:A2 to A13 / UHF: A14 to A79 /
CATV:A-8 to A-2, A to W+4, W+6 to W+84
Terminals
VIDEO IN1/2/3: /
S VIDEO (4-pin mini DIN):
Y:1.0 Vp-p, 75 ohms unbalanced, sync negative
C:0.286 Vp-p (Burst signal), 75 ohms
VIDEO:
1 Vp-p, 75 ohms unbalanced, sync negative
AUDIO:
500 mVrms
Impedance: 47 kilohms
HD/DVD IN 1/2:
YP
B
P
R
(Component Video) :
Y : 1.0 Vp-p, 75 ohms unbalanced, sync negative
P
B
: 0.7 Vp-p, 75 ohms
P
R
: 0.7 Vp-p, 75 ohms
Signal format : 480i, 576i, 480p, 576p, 720p,1080i
AUDIO:
500 mVrms
Impedance: 47 kilohms
VIDEO OUT:
VIDEO:
1 Vp-p, 75 ohms unbalanced, sync negative
AUDIO:
More than 1 Vrms at the maximum volume setting
(Variable)
Mre than 500 mVrms (Fixed)
PC :
D-sub 15-pin, analogue RGB, 0.7 Vp-p,
75 ohms, positive
See the PC Input Signal Compatibility Chart on page38
AUDIO :
Stereo minijack, 0.5 Vrms, 1 kilohm
Headphones i
Stereo minijack
Sound Output
KLV-S40A10: 10 W + 10 W
KLV-S32A10: 10 W + 10 W
KLV-S26A10: 10 W + 10 W
KLV-S23A10: 5 W + 5 W
Design and specifications are subject to change
without notice.
Panel System
LCD (Liquid Crystal Display) Panel
TV System
I, D/K, B/G, M
Color System
PAL, PAL60, SECAM, NTSC 4.43, NTSC 3.58
Antenna
75 ohm external terminal
SYSSET
2018/07/0310:21:13(GMT+09:00)
KLV-S23/S26/S32/S40A10 (GA) 6-1
SECTION 6
EXPLODED VIEWS
NOTE: • Items with no part number and no description are
not stocked because they are seldom required for
roution service.
•The construction parts of an assembled part are
indicated with a collation number in the remark
colum.
•Items marked " * " are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
The components identified !marked are
critical for safety.
Replace only with the part number specified.
SYSSET
2018/07/0310:21:13(GMT+09:00)
KLV-S23/S26/S32/S40A10 (GA) 6-2
6-1. KLV-S23A10
6-1-1. REAR CABINET ASSY AND STAND ASSY
12
5
6
2
7
2
8
10
10
10 10 10
10
9
9
#1
#2
#3
#4 #4
#4 #4
3
SYSSET
2018/07/0310:21:13(GMT+09:00)
KLV-S23/S26/S32/S40A10 (GA) 6-3
KLV-S23A10
6-1-2. CHASSIS-1
#2
#2
#2
#5
51
52
54
55
61
60
56
57
55
#5
#5
58
59
#5
SYSSET
2018/07/0310:21:13(GMT+09:00)
KLV-S23/S26/S32/S40A10 (GA) 6-4
KLV-S23A10

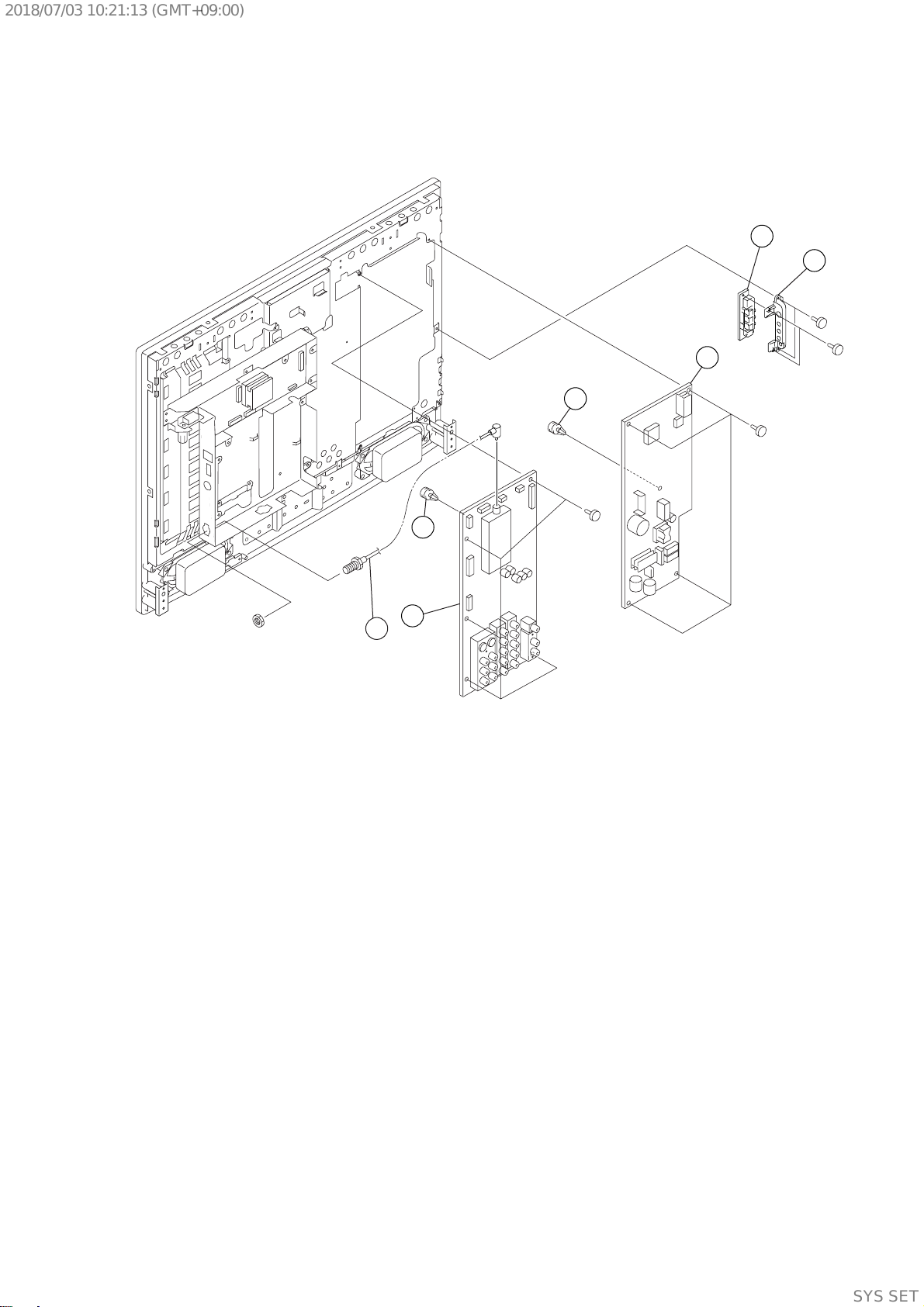

6-1-3. CHASSIS-2
#5
#1
#5
#5
101
103
102
104
104
105
106
SYSSET
2018/07/0310:21:13(GMT+09:00)
KLV-S23/S26/S32/S40A10 (GA) 6-5
KLV-S23A10
6-1-4. CHASSIS-3
#6
#6
#1
#5
#5
157
153
160
153
155
156
152
151
159
158
#5
SYSSET
2018/07/0310:21:13(GMT+09:00)
KLV-S23/S26/S32/S40A10 (GA) 6-6
KLV-S23A10
6-1-5. LCD PANEL
#7
#7
#6
203
202
202
202
201
#6
#6
203
SYSSET
2018/07/0310:21:13(GMT+09:00)
KLV-S23/S26/S32/S40A10 (GA) 6-7
Note: Illustrations are created based on KLV-S26A10.
6-2. KLV-S26A10/S32A10
6-2-1. REAR CABINET ASSY AND STAND ASSY
#1
#8
#9
#10
#10
#10
#10
#10 #10 #10
#10
#11
253 254 255
256
257
259
259
252
KLV-S32A10
257
252
251
251
258
251 251
#11
#11
#11
#1
SYSSET
2018/07/0310:21:13(GMT+09:00)
