Sony WEGA Trinitron KV-AR14 User manual

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-15 (1)

KV-AR21

KV-AR14

4-095-979-15 (1)

M81

M80

Trinitron Color TV

Mode d’emploi

• Avant de faire fonctionner cet appareil, lisez attentivement le présent

mode d’ emploi et conservez-le pour toute référence ultérieure.

 

•    ,              

 

•  ,          

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

01AR+s01COV-MIX.p65ME 3/10/03, 10:55 AM1

Black

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-15 (1)

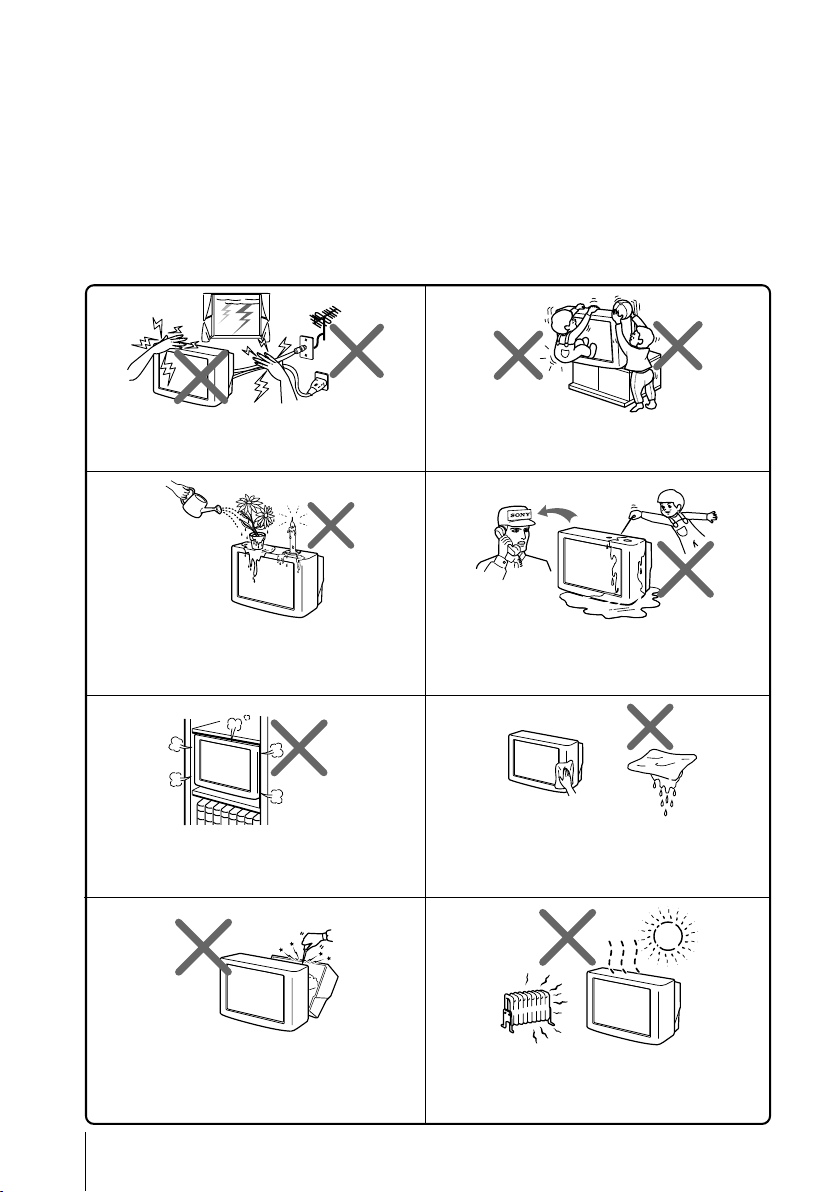

Do not place any objects on the TV. The apparatus

shall not be exposed to dripping or splashing and

that no objects filled with liquids, such as vases,

shall be placed on the apparatus.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

• Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may be

subject to excessive dust, heat, moisture or

vibrations.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals to

clean the TV. Do not attach anything (e.g., adhesive

tape, cellophane tape, glue) on the painted cabinet of

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

01GB02WAR-MIX.p65 3/10/03, 10:53 AM2

Black

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-15 (1)

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

01GB02WAR-MIX.p65 3/10/03, 10:53 AM3

Black

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-15 (1)

xSecuring the TV

BKV-AR21M81 only

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

01GB02WAR-MIX.p65 3/10/03, 10:53 AM4

Black

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-15 (1)

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“Initial Setup”) .................................... 7

Overview of Controls

TV top control, front and

rear panels............................................. 8

Using the remote control and

basic functions ...................................... 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

Viewing Teletext

(KV-AR21M81 only) .......................... 12

Menu Adjustment

Introducing the menu system .......... 13

Changing the “Picture” setting ........ 16

Changing the “Sound” setting ......... 17

Changing the “Timer” setting .......... 19

Changing the “Channel Setup”

setting .................................................. 20

Changing the “Setup” setting .......... 22

Additional Information

Connecting optional components ... 23

Troubleshooting ................................. 25

Specifications ...................... Back cover

01GB03TOC-MIX.p65 3/10/03, 10:53 AM5

Black

6Installation

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-15 (1)

Installation

xGetting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Set up the TV by following the instructions of the

“Initial Setup” menu (see page 7).

Plug in the power cord, then press !on the TV to

turn it on.

Note

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

• You can also connect your TV to other optional components

(see page 23).

01GB04INS-MIX.p65 3/10/03, 10:40 AM6

Black

Installation

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-15 (1)

Setting up your TV

(“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will appear.

You may change the menu language, preset the TV channels automatically and adjust

the picture position using the buttons on the top control panel.

Tip

• The MENU, and V/v/B/b buttons on the remote control can also be used for the

operations below.

1Press 2+/– to select the desired menu

language, then press t.

The selected menu language appears.

2Press 2+/– to select “Yes”, then press t

to preset the channels automatically or

select “No” to skip automatic channel

presetting.

Once you select “Yes”, your TV will start

searching for all the available channels.

If the message “No channel found. Please

connect cable/antenna.” appears, check your

TV connections, then press t.

3Press 2+/– to adjust the bars on the top

and bottom of the menu if they are

slanted, then press t (KV-AR21M81 only).

If no adjustment is necessary, then press

4Press 2+/– to select “No”, then press t.

This menu will not appear again the next

time you turn on the TV by pressing !.

To allow this menu to appear again, select

“Yes”, then press t.

Tips

• You can immediately go to the end of the ”Initial Setup” menu by pressing MENU.

• You can also set up your TV by pressing the MENU button on the top control panel for about

five seconds or using the menu system (see page 13).

Start auto program now?

01GB04INS-MIX.p65 3/10/03, 10:40 AM7

Black

8Overview of Controls

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-15 (1)

Overview of Controls

(MONO)

098 7 6

(MONO)

qsqdqfqg

((

MONO) MONO)

PROG

MENUSOUND MODE

TV front panel

TV rear panel

xTV top control, front and rear panels

TV top control panel

Button/Terminal Function Page

1!Turn off or turn on the TV. 6

2Remote control sensor. –

3Wake Up indicator. 19

31Standby indicator. 6

4iHeadphone jack. –

5t2 Video input terminal 2. 23

6PROG +/– Select program number. –

72+/– Adjust volume. –

8tSelect TV or video input. 23

Menu operations

72+/– Select and adjust items. –

8tConfirm selected items. –

9MENU Display or cancel the menu. –

0SOUND MODE Select sound mode options with a 5-Band 11

Graphic Equalizer display.

qa 8Antenna input terminal. 23

qs TMonitor output terminal. 24

qd Component video input terminal. 24

qf t1 Video input terminal 1. 23

qg S video input terminal. 23

01GB04INS-MIX.p65 3/10/03, 10:40 AM8

Black

Overview of Controls

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-15 (1)

xUsing the remote control and basic

functions

123

789

PROG

A/B

continue

Button Description Page

1?/1 Turn off temporarily or turn on the TV. –

2aDisplay the TV program. –

3Jump to previous program number. –

4PROG +/– Select program number. –

52+/– Adjust volume. –

9Change the picture size: –

“On” (16:9 wide-mode), “Off”.

Display on-screen information. –

qa Mute the sound. –

qd tSelect TV or video input. 23

qf 0 – 9, ÷Input numbers. –

qj Select surround mode options:

(KV-AR21M81 only)

“SRS” (three dimensional surround), “Simulated”

(stereo-like monaural sound), “Off”. –

(KV-AR14M80 only)

“On” (surround), “Simulated” (stereo-like

monaural sound), “Off”.

01GB04INS-MIX.p65 3/10/03, 10:40 AM9

Black

10 Overview of Controls

Sony KV-AR21M81 Group A2 (GB, FR, PR, AR)_4-095-979-15 (1)

continued

Button Description Page

ql Select sound mode options with a 5-Band 11

Graphic Equalizer display.

w; Select picture mode options. 11

Menu operations

6MENU Display or cancel the menu. 15

7Confirm selected items. 15

qk V, v, B, b Select and adjust items. 15

Timer operations

qg Set TV to turn on automatically. –

qh Set TV to turn off automatically. –

Teletext operations (green label)

(KV-AR21M81 only)

4, Display the next or previous page. 12

8Display Teletext broadcast. 12

0Reveal concealed information. 12

qs Enlarge the Teletext display. 12

qd Stop Teletext display from scrolling. 12

qg Display Teletext service contents. 12

qh Show TV screen while waiting for Teletext page. 12

wa x(red, green, Access a FASTEXT menu. 12

yellow, blue)

Stereo/bilingual operations

qs A/B Not function for your TV. –

SRS and symbol are trademarks of SRS Labs, Inc. SRS technology is

incorporated under license from SRS Labs, Inc.

Licensed by BBE Sound, Inc. under USP4638258, 4482866.

“BBE” and BBE symbol are trademarks of BBE Sound, Inc.

01GB04INS-MIX.p65 3/10/03, 10:40 AM10

Black

This manual suits for next models

Table of contents

Languages:

Other Sony TV manuals

Sony

Sony Trinitron KV-13M20 User manual

Sony

Sony KDL-26NL140 - Bravia Nl Series Lcd... User manual

Sony

Sony BRAVIA KD-49XG90 Series User manual

Sony

Sony KD-65X9000E User manual

Sony

Sony Trinitron WEGA KV-HM213 User manual

Sony

Sony FD Trinitron WEGA KD-30XSR955 User manual

Sony

Sony BRAVIA KD-50X690E User manual

Sony

Sony Bravia KD-75X75CH User manual

Sony

Sony Trinitron KV-24LS35B User manual

Sony

Sony BRAVIA KDL-48W655D User manual

Sony

Sony Trinitron KV-28DX30U User manual

Sony

Sony Trinitron WEGA KV-BZ213 User manual

Sony

Sony Bravia KD-85X8 J Series User manual

Sony

Sony TV & Home A/V Instruction Manual

Sony

Sony Bravia FWL-75W855C User manual

Sony

Sony BRAVIA KD-85X9000F User manual

Sony

Sony KD-28DX50U User manual

Sony

Sony Bravia XR-75X9 J Series User manual

Sony

Sony KDL-32S20L1 - 32" Bravia Lcd Digital Color... User manual

Sony

Sony Trinitron KV-20M42 User manual

Sony

Sony TRINITRON KV-XA25M60 User manual

Sony

Sony BRAVIA KD-85XH80 Series User manual

Sony

Sony BRAVIA XBR-65X950G User manual

Sony

Sony KV-XR34 User manual

Popular TV manuals by other brands

Philips

Philips Colour Television Service manual

Toshiba

Toshiba 27A10 owner's manual

Philips

Philips 42PF9630A/37 user manual

Hitachi

Hitachi 32FX48B operating guide

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Service manual

Changhong Electric

Changhong Electric uhd55b6000is Operation manual

Philips

Philips Matchline 21CE7551 operating instructions

Panasonic

Panasonic Genus TX-G10 operating instructions

Toshiba

Toshiba 19A20 Service manual

Philips

Philips 25PT4523-16 manual

Philips

Philips PR0930X3 owner's manual

Philips

Philips Brilliance 231P4QPY user manual

Samsung

Samsung 55S9 B Series Quick setup guide

Philips

Philips 32HF9385D Käyttöopas

Sharp

Sharp LC-40FI5012E user manual

Loewe

Loewe Table Stand Reference 55 user guide

Philips

Philips 32PFH5300 Service manual

Sylvania

Sylvania 6427FB owner's manual
