Sony KV-XA21M30 User manual

MODEL COMMANDER DEST. CHASSIS NO.

KV-XA21M30 RM-952 OCE SCC-U44C-A

KV-XA21M63 RM-952 Thailand SCC-U49G-A

KV-XA21N90 RM-915 Taiwan SCC-U54B-A

MODEL COMMANDER DEST. CHASSIS NO.

CHASSIS

TRINITRON

COLOR TV

SERVICE MANUAL BG-3R

123

789

JUMP

SOUND

MODE

FAVORITE

PROGR

-/--

123

789

POWER

DISPLAY

VIDEO

MUTING

MTS

SOUND

MODE

FAVORITE

WAKEUP

SLEEP

CABLE

AUTO

PROGRAM

ADD/

ERASE

JUMP

ENT

CHVOL

SELECT

PICMODE

RM-915 RM-952

– 2 –

KV-XA21M30/XA21M63

RM-952

KV-XA21N90

RM-915

SPECIFICATIONS

(KV-XA21M30/XA21M63)

Note

Power requirements 220-240 V AC, 50/60 Hz

Power consumption (W) Indicated on the rear of the TV

Television system B/G, I, D/K, M

Color system PAL, PAL 60, SECAM, NTSC4.43, NTSC3.58

Stereo/Bilingual system NICAM Stereo / Bilingual B/G, I, D/K, A2 Stereo / Bilingual B/G

Channel coverage

B/G VHF: E2 to E12 / UHF: E21 to E69 / CATV: S01 to S03, S1 to S41

IUHF: B21 to B68 / CATV: S01 to S03, S1 to S41

D/K VHF: C1 to C12, R1 to R12 / UHF: C13 to C57, R21 to R60

CATV: S01 to S03, S1 to S41, Z1 to Z39

MVHF: A2 to A13 / UHF: A14 to A79 /

CATV: A-8 to A-2, A to W+4, W+6 to W+84

˘˘

˘(Antenna) 75-ohm external terminal

Audio output 5W + 5W KV-XA21M30

speaker 3W + 3W KV-XA21M63

3D Woofer 9W KV-XA21M63 only

Number of terminal

D(Video) Input: 2* Output: 1 Phono jacks; 1 VP-P, 75 ohms

≥Audio Input: 2* Output: 1 Phono jacks; 500 mVrms

2(Headphone) Output: 1 Stereo minijack

Picture tube 21 inch

Tube size (cm) 54 Measured diagonally

Screen size (cm) 51 Measured diagonally

Dimension (w/h/d, mm) 640 ×452 ×496 KV-XA21M30

640 ×482 ×496 KV-XA21M63

Mass (kg) 26

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK !ON

THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND INTHE

PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE

THESE COMPONENTS WITH SONY PARTS WHOSE PART

NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN

SUPPLEMENTS PUBLISHED BY SONY.

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND

THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR

CARBON PAINTED ON THE CRT, AFTER REMOVING THE

ANODE.

– 3 –

KV-XA21M30/XA21M63

RM-952

KV-XA21N90

RM-915

SPECIFICATIONS

(KV-XA21N90)

Note

Power requirements 110 V AC, 60 Hz

Power consumption (W) Indicated on the rear of the TV

Television system M

Color system PAL*, PAL 60*, SECAM*, NTSC4.43*, NTSC3.58 * AV IN only

Stereo/Bilingual system MTS

Channel coverage VHF: E2 to E12 / UHF: E14 to E69 / CATV: 1 to 125

˘˘

˘(Antenna) 75-ohm external terminal

Audio output 5W + 5W

Number of terminal

D(Video) Input: 2 Output: 1 Phono jacks; 1 VP-P, 75 ohms

≥Audio Input: 2 Output: 1 Phono jacks; 500 mVrms

2(Headphone) Output: 1 Stereo minijack

Picture tube 21 inch

Tube size (cm) 54 Measured diagonally

Screen size (cm) 51 Measured diagonally

Dimension (w/h/d, mm) 620 ×452 ×496

Mass (kg) 26

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK !ON

THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE

PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE

THESE COMPONENTS WITH SONY PARTS WHOSE PART

NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN

SUPPLEMENTS PUBLISHED BY SONY.

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND

THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR

CARBON PAINTED ON THE CRT, AFTER REMOVING THE

ANODE.

– 4 –

KV-XA21M30/XA21M63

RM-952

KV-XA21N90

RM-915

TABLE OF CONTENTS

Section Title Page

SELF DIAGNOSIS FUNCTION ................................ 5

1. GENERAL ........................................................................ 8

2. DISASSEMBLY

2-1. 3D Speaker Removal ............................................... 30

2-2. Rear Cover Removal ................................................ 30

2-3. Speaker Removal ..................................................... 30

2-4. Chassis Assy Removal ............................................. 30

2-5. F, H4 and K2 Board Removal ................................. 30

2-6. J3 Board and Terminal Bracket Removal ................ 30

2-7. Service Position ....................................................... 31

2-8. Replacement of Parts ............................................... 31

2-8-1. Replacement of Light Guide .......................................... 31

2-8-2. Replacement of Power Button ........................................ 31

2-9. Picture Tube Removal .............................................. 31

3. SET-UP ADJUSTMENTS

3-1. Beam Landing .......................................................... 33

3-2. Convergence Adjustment ......................................... 34

3-3. Focus Adjustment .................................................... 36

3-4. G2 (Screen) and White Balance Adjustments ......... 36

4. CIRCUIT ADJUSTMENT

4-1. Adjustments with Commander ................................ 37

4-2. Adjustment Method ................................................. 37

4-3. Picture Quality Adjustments .................................... 42

4.4 Deflection Adjustment ............................................. 42

4-5. A Board Adjustment After IC003

(memory) Replacement ........................................... 42

4-6. Picture Distortion Adjustment ................................. 43

Section Title Page

5. DIAGRAMS

5-1. Block Diagram ......................................................... 45

5-2. Circuit Boards Location .......................................... 47

5-3. Schematic Diagrams ................................................ 48

(1) Schematic Diagram of F, J3 and C1 Boards ........... 49

(2) Schematic Diagrams of A Board ............................. 51

(3) Schematic Diagram of H4 and K2 Boards ................. 67

5-4. Voltage Measurements ............................................ 71

5-5. Waveforms ............................................................... 74

5-6. Printed Wiring Boards and Parts Location .............. 75

5-7. Semiconductors ........................................................ 80

6. EXPLODED VIEWS

6-1. Picture Tube ............................................................. 82

6-2. Chassis ..................................................................... 83

7. ELECTRICAL PARTS LIST....................................... 84

– 5 –

KV-XA21M30/XA21M63

RM-952

KV-XA21N90

RM-915

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/TIMER lamp will automatically

begin to flash.

The number of times the lamp flashes translates to a probable source of the problem. A definition of the STANDBY/TIMER

lamp flash indicators is listed in the instruction manual for the user’s knowledge and reference. If an error symptom cannot

be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past

problems and how often these problems occur.

1. DIAGNOSTIC TEST INDICATORS

When an errors occurs, the STANDBY/TIMER lamp will flash a set number of times to indicate the possible cause of the

problem. If there is more than one error, the lamp will identify the first of the problem areas.

Result for all of the following diagnostic items are displayed on screen. No error has occured if the screen displays a “0”.

Diagnostic

Item

Description

• Power does not

turn on

• +B overcurrent

(OCP) or

overvoltage

(OVP)

• Vertical deflection

stopped

• Horizontal

deflection

overdrive

• White balance

failure (no

PICTURE)

• Micro reset

Detected

Symptoms

• Power does not come on.

• No power is supplied to the

TV.

• AC power supply is faulty.

• Power does not come on.

• Load on power line is

shorted.

• Has entered standby state

after horizontal raster.

• Vertical deflection pulse is

stopped.

• Power line is shorted or

power supply is stopped.

• No raster is generated.

• CRT cathode current

detection reference pulse

output is small.

• Power is shut down shortly,

after this return back to

normal.

• Detect Micro latch up.

Note 1: If a + B overcurrent is detected, stoppage of the vertical deflection is detected simultaneously.

The symptom that is diagnosed first by the microcontroller is displayed on the screen.

Note 2: Refer to screen (G2) Adjustment in section 3-4 of this manual.

* IC700 out is faulty (C1 board).

SELF DIAGNOSTIC FUNCTION

No. of times

STANDBY/TIMER

lamp flashes

Does not light

2 times

5 times

—

Self-diagnostic

display/Diagnostic

result

—

002:000 or

002:001~255

003:001~255

004:001~255

at the same time

005:000 or

005:001~225

101:00 or

101:001~225

Probable

Cause

Location

• Power cord is not plugged

in.

• Fuse is burned out F4601

(F)

• H.OUT Q511 is shorted. (A

board)

• IC700 is shorted (C1 board)

• -13V is not supplied. (A

board)

• IC 503 faulty (A board)

• G2 is improperly adjusted.

(Note 2)

• CRT problem.

• IC700 out is faulty

(C1 board)

• IC301 is faulty. (A board)

• No connection A board to

C1 board.

• Discharge CRT (C1 Board)

• Static discharge

• External noise

– 6 –

KV-XA21M30/XA21M63

RM-952

KV-XA21N90

RM-915

2. DISPLAY OF STANDBY/TIMER LIGHT FLASH COUNT

3. STOPPING THE STANDBY/TIMER FLASH

Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY/TIMER lamp

from flashing.

4. SELF-DIAGNOSTIC SCREEN DISPLAY

For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it

is possible to bring up past occurances of failure for confirmation on the screen:

[To Bring Up Screen Test]

In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:

[Screendisplay] /channel [5] /Sound volume [-] /Power ON

Note that this differs from entering the service mode (mode volume [+]).

Self-Diagnosis screen display

STANDBY/SLEEP lamp

Lamp ON 0.3 sec.

Lamp OFF 3 sec.

Lamp OFF 0.3 sec.

2 times

3 times

Diagnostic Item Flash Count*

+B overcurrent/overvoltage 2 times

Vertical deflection stopped

White balance failure 5 times

* One flash count is not used for self-diagnostic.

002 : 000

003 : 000

004 : 000

005 : 001

Numeral "0" means that no fault has been detected.

Numeral "1" means a fault has been detected.

101 : 000

SELF DIAGNOSTIC

–7 –

KV-XA21M30/XA21M63

RM-952

KV-XA21N90

RM-915

5. HANDLING OF SELF-DIAGNOSTIC SCREEN DISPLAY

Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen

during repairs. When you have completed the repairs, clear the result display to “0”.

Unless the result display is cleared to “0”, the self-diagnostic function will not be able to detect subsequent faults after

completion of the repairs.

[Clearing the result display]

To clear the result display to “0”, press buttons on the remote commander sequentially as shown below when the diagnostic

screen is being displayed.

Channel [8] /0

[Quitting Self-diagnostic screen]

To quit the entire self-diagnostic screen, turn off the power switch on the remote commander or the main unit.

6. SELF-DIAGNOSTIC CIRCUIT

[+BovercurrentªOCPº] Occurs when an overcurrent on the +B(135) line is detected by Q604. If Q604 go to ON

and the voltage to pin 18 of IC301 should go down when V.SYNC is more than seven

verticals in a period, the unit will automatically turn off.

[Verticaldeflectionstopped] Occurs when an absence of the vertical deflection pulse is detected by Q509 and IC001

shut down the power supply.

[Verticaldeflectionovercurrent] Occurs when an overcurrent on V drive line is detected by Q507. Power supply will be

shut down when detect this by IC001.

[ hitebalancefailure] If the RGB levels* do not balance or become low level within 5 seconds, this error will be

detected by IC301. TV will stay on, but there will be no picture.

* (Refers to the RGB levels of the AKB detection Ref pulse that detects IK.)

IC301

Y/CHROMA JUNGLE

FROM

CRT

[V] Q509/507

IC001

SYSTEM

IC003

MEMORY

IK-IN

MP/

PROTECT O-LED

IO-8DAT B-DAT

IO-SDAT

521

18 51

SDA 35

FROM

[+B] Q604 C6

– 8 –

KV-XA21M30/XA21M63

RM-952

KV-XA21N90

RM-915

SECTION 1

GENERAL

The operating instruction mentioned here are partial abstracts

from the Operating Instruction Manual.The page numbers of

the Operating Instruction Manual remain as in the manual.

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 220 – 240 V AC.(except KV-XA21N90)

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are

present inside the TV. Refer servicing and

disposal of the TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto

it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Pull the power cord out by the plug. Do not pull

the power cord itself. Disconnect the TV before

moving it or if you are not going to use it for

several days.

WARNING

•Dangerously high voltages are present inside the TV.

•Operate the TV only between 110 V AC. (KV-XA21N90)

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are

present inside the TV. Refer servicing and

disposal of the TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

For children’s safety, do not leave children

alone with the TV. Do not allow children to

climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Pull the power cord out by the plug. Do not pull

the power cord itself. Disconnect the TV before

moving it or if you are not going to use it for

several days.

–9 –

KV-XA21M30/XA21M63

RM-952

KV-XA21N90

RM-915

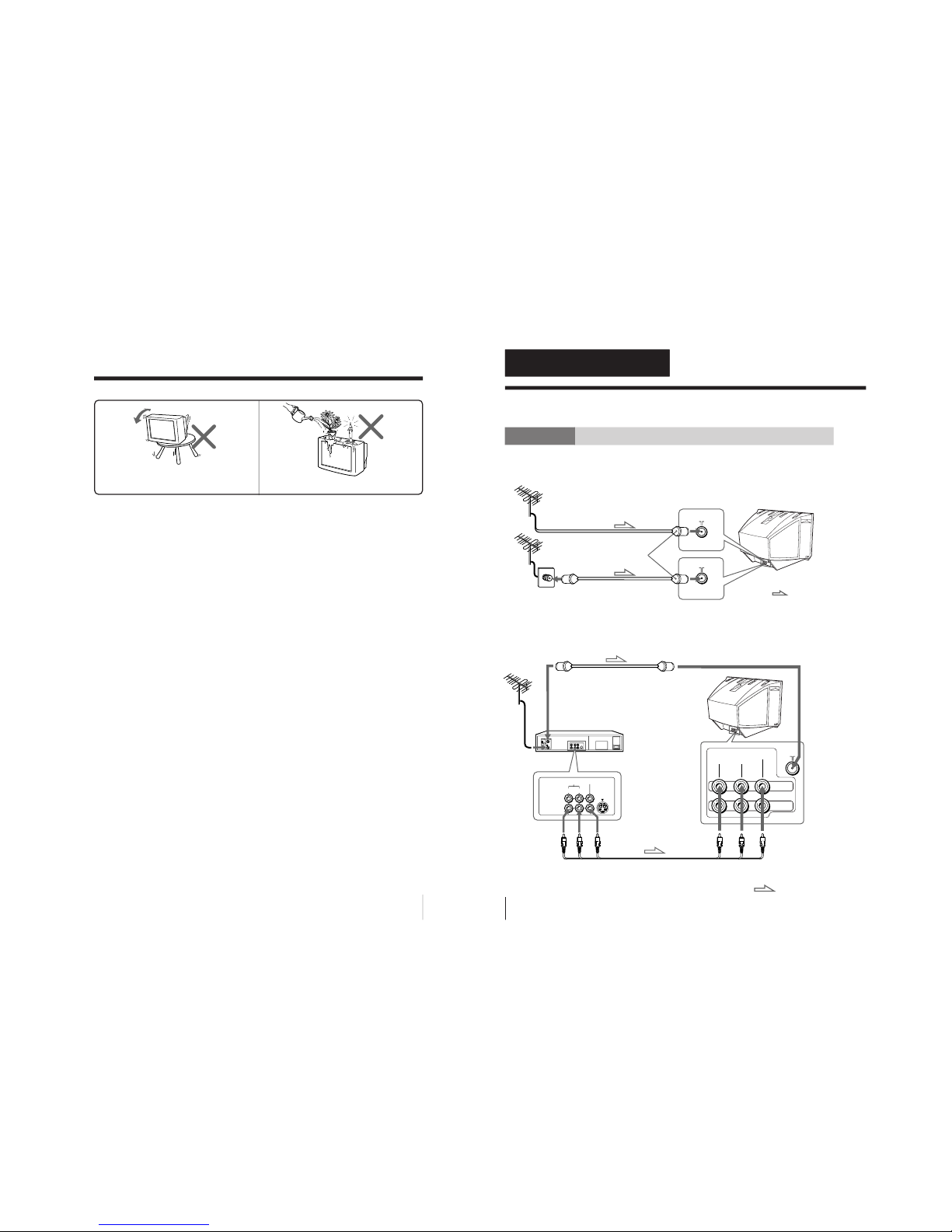

Do not install the TV in an unstable position.

Use a proper TV stand. Do not place any objects on the TV.

WARNING (continued)

Using Your New TV

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

L(MONO)

VIDEO

MONITOR

OUT

AUDIO VIDEO

Using Your New TV

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the Connecting a VCR diagram below.

Using Your New TV

F connector

(not supplied)

Rear of TV

Connecting a VCR

To watch the video input, press VIDEO (see page 11).

: Signal flow

Antenna cable (not supplied)

VIDEO (yellow)

AUDIO-L (MONO) (white)

AUDIO-R (red)

To video

and audio

outputs

Audio/Video cable

(not supplied)

To 8

(antenna)

To antenna

output

: Signal flow

VCR

To VIDEO IN 1

Rear of TV

Antenna cable

(not supplied)

–10 –

KV-XA21M30/XA21M63

RM-952

KV-XA21N90

RM-915

Using Your New TV

Front of TV

Notes (KV-XA21N90)

•With the “VIDEO MULTI SYSTEM”input terminal, you can also receive

PAL, NTSC and SECAM video signals when using VIDEO IN 1 jacks at

the rear of your TV or the VIDEO 2 INPUT at the front of your TV.

•If you connect a monaural VCR, connect the yellow plug to VIDEO (the

yellow jack) and the black plug to AUDIO-L (MONO) (the white jack).

•When no signal is input to the connected video equipment, the TV screen

becomes blue.

CAUTION

•Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through

the antenna and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries

from the remote if you are not going to use it for several days. If any

liquid that leaks from the batteries touches you, immediately wash it

away with water.

Insert the batteries

into the remote

Step 3

Preset the channels automatically

Tips

•If you want to stop automatic channel presetting, press SELECT.

•If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 9).

•The AUTO PROGRAM button on the remote works as the AUTO

PROGR button on the TV.

AUTO

PROGR

123

CABLE: ON

AUTO PROGRAM

SLEEP

CABLE

AUTO

PROGRAM

ADD/

ERASE

PIC MODE

POWER

CHANNEL

POWER

STANDBY/

STEREO/

WAKEUP

SELECT

VIDEOINPUT VOLUME

AUTO

PROGR

VIDEO2INPUT

VIDEOL

(

MONO

)

AUDIO

Step 2

Note

•Do not use old batteries nor use different types of batteries together.

Using Your New TV

Step 2

Note

•Do not use old batteries nor use different types of batteries together.

Front of TV

Notes (except KV-XA21N90)

•If you connect a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

•If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

•When no signal is input from the connected video equipment, the TV

screen becomes blue.

(not used for this model)

•Do not connect video equipment to the t2 (video input) jacks at the

front and the rear of your TV at the same time; otherwise the picture will

not be displayed properly on the screen.

CAUTION

•Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through

the antenna and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries

from the remote if you are not going to use it for several days. If any

liquid that leaks from the batteries touches you, immediately wash it

away with water.

Insert the batteries

into the remote

Step 3

Preset the channels automatically

Tips

•If you want to stop automatic channel presetting, press SELECT twice.

•If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 11).

Note (KV-XA21M63 only)

•During automatic channel presetting, your TV screen will indicate

“AUTO”for the TV system.

AUTO

PROGR

VHF LOW AUTO

L(MONO) R

PROGR

SELECT AUTO

PROGR

This manual suits for next models

Table of contents

Other Sony TV manuals

Sony

Sony Trinitron KV-PF14DK7 User manual

Sony

Sony BRAVIA KD-48A9B User manual

Sony

Sony KV-28FX65B User manual

Sony

Sony Bravia KD-55XH92 Series User manual

Sony

Sony BRAVIA KD-75X8000G User manual

Sony

Sony KV-24FV12 - 24" Trinitron Color Flat Tv User manual

Sony

Sony BRAVIA KDL-43W800G User manual

Sony

Sony 65X9305C User manual

Sony

Sony Trinitron WEGA KV-SW252 User manual

Sony

Sony Bravia KDL-75W850C User manual

Sony

Sony Trinitron KV-XA21 User manual

Sony

Sony BRAVIA XR XR-98X9 L Series User manual

Sony

Sony BRAVIA KDL-32L4000 User manual

Sony

Sony KV-32XBR37 User manual

Sony

Sony TRINITRON KV-PG14L70 User manual

Sony

Sony Grand WEGA KDF-E60A20 User manual

Sony

Sony Trinitron KV-PF14K70 User manual

Sony

Sony KV-29X5A User manual

Sony

Sony Trinitron KV-20EXR20 User manual

Sony

Sony KV-PF21K70 Trinitron User manual

Sony

Sony WEGA KV-27FS100L User manual

Sony

Sony KLV-32M1 - 32" Lcd Wega Color Tv User manual

Sony

Sony Trinitron KV-2199M5T User manual

Sony

Sony KV-32FS120 - FD Trinitron WEGA Flat-Screen CRT... User manual

Popular TV manuals by other brands

Philips

Philips Colour Television Service manual

Toshiba

Toshiba 27A10 owner's manual

Philips

Philips 42PF9630A/37 user manual

Hitachi

Hitachi 32FX48B operating guide

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Service manual

Changhong Electric

Changhong Electric uhd55b6000is Operation manual

Philips

Philips Matchline 21CE7551 operating instructions

Panasonic

Panasonic Genus TX-G10 operating instructions

Toshiba

Toshiba 19A20 Service manual

Philips

Philips 25PT4523-16 manual

Philips

Philips PR0930X3 owner's manual

Philips

Philips Brilliance 231P4QPY user manual

Samsung

Samsung 55S9 B Series Quick setup guide

Philips

Philips 32HF9385D Käyttöopas

Sharp

Sharp LC-40FI5012E user manual

Loewe

Loewe Table Stand Reference 55 user guide

Philips

Philips 32PFH5300 Service manual

Sylvania

Sylvania 6427FB owner's manual
